Description
Product Details

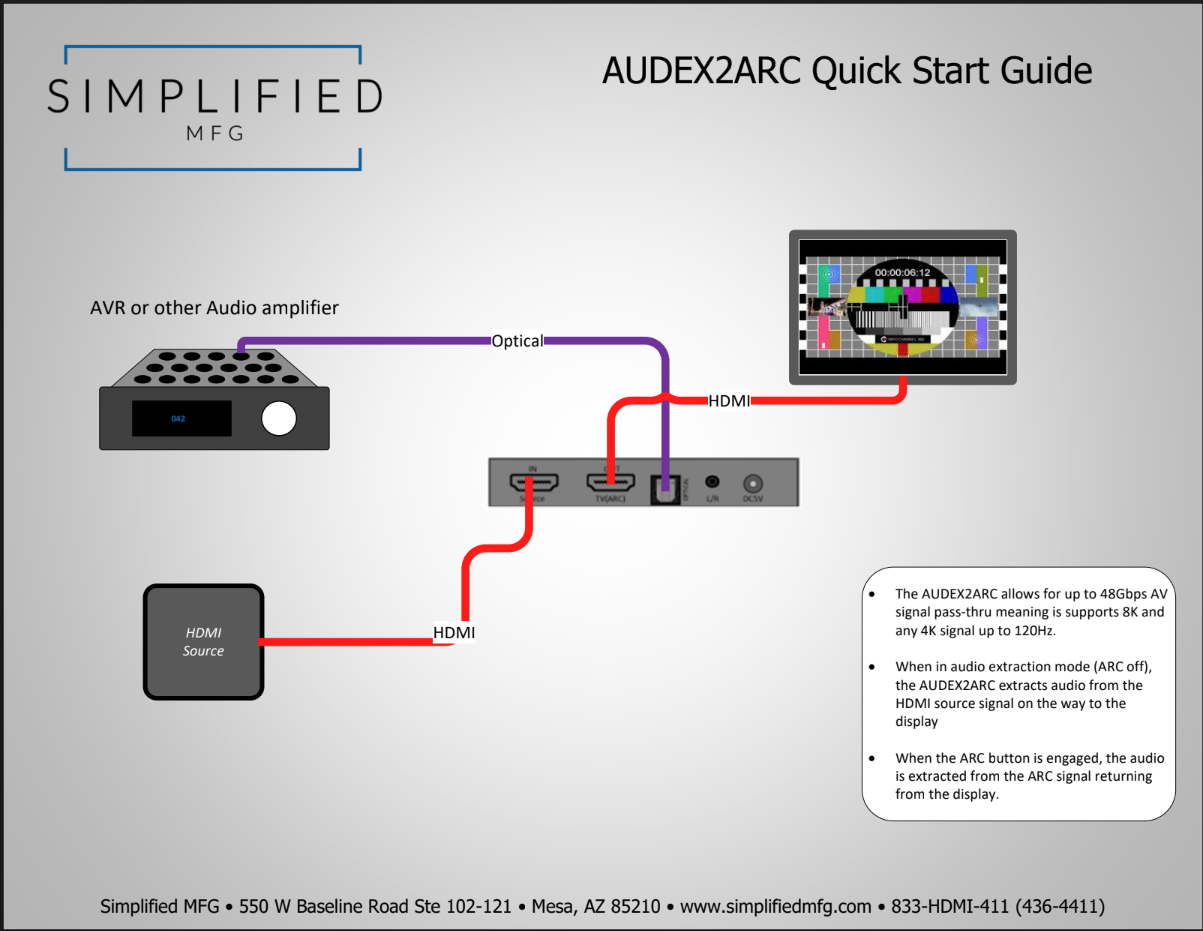

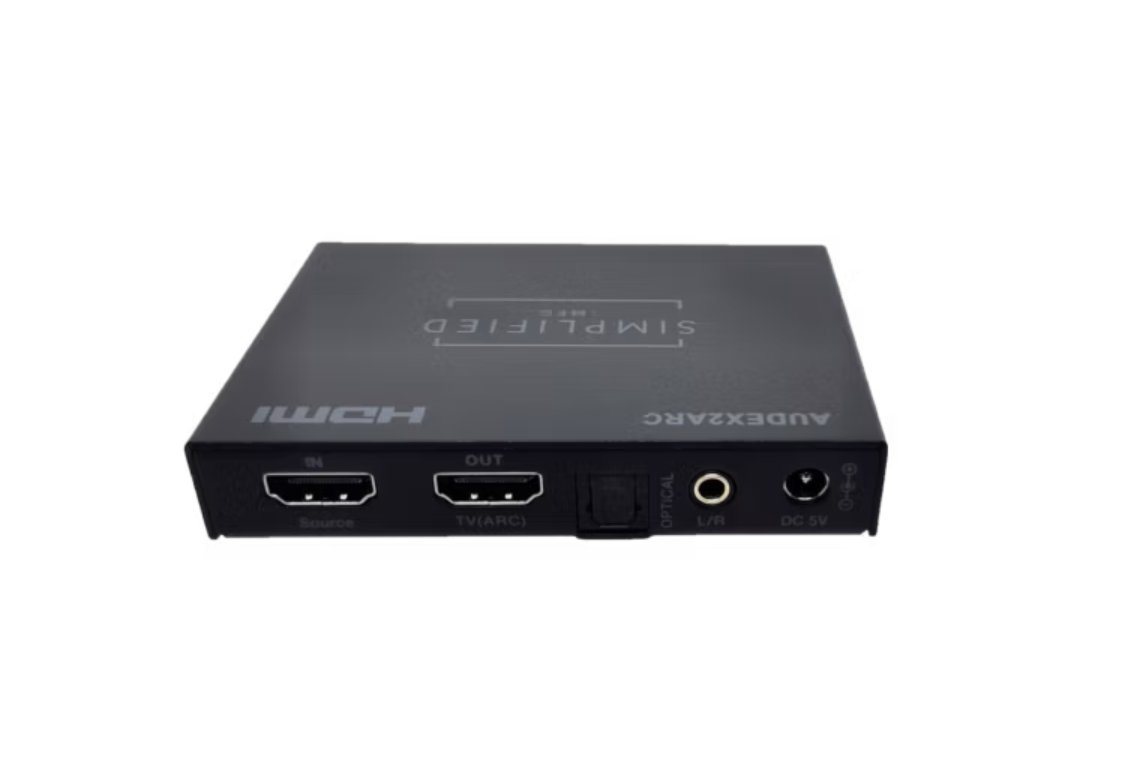

The AUDEX2ARC is a dual-purpose device. In Audio extraction mode, it extracts audio from the HDMI stream will simultaneously passing on the AV stream unmolested. The AUDEX2ARC supports the entire HDMI 2.1b format and maintains all the features associated with the format. The AUDEX2ARC has an optical S/PDIF port for multichannel audio up to Dolby Digital 5.1 Plus and an analog port for stereo output. In ARC mode, the AUDEX2ARC allows for ARC extraction from the display instead of audio extraction from the HDMI stream. This is handy for legacy soundbars and distributed audio needs.
Features
• HDMI 2.1 and HDCP 2.3 compliant
• Supports 48Gbps FRL and 18Gbps MDS video bandwidth (8K or legacy 4K)
• Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
• Resolutions up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
• HDMI 2.1 fully supported (VRR, ALLM, QMS, QFT, SBTM)
• HDR, HDR 10, HDR 10+, DolbyVision™, HLG pass-through
• LPCM 7.1CH, Dolby TrueHD, Atmos, and DTS-HD Master, DTS:X Audio pass-through to display, and when in ARC mode, will extract 5.1.

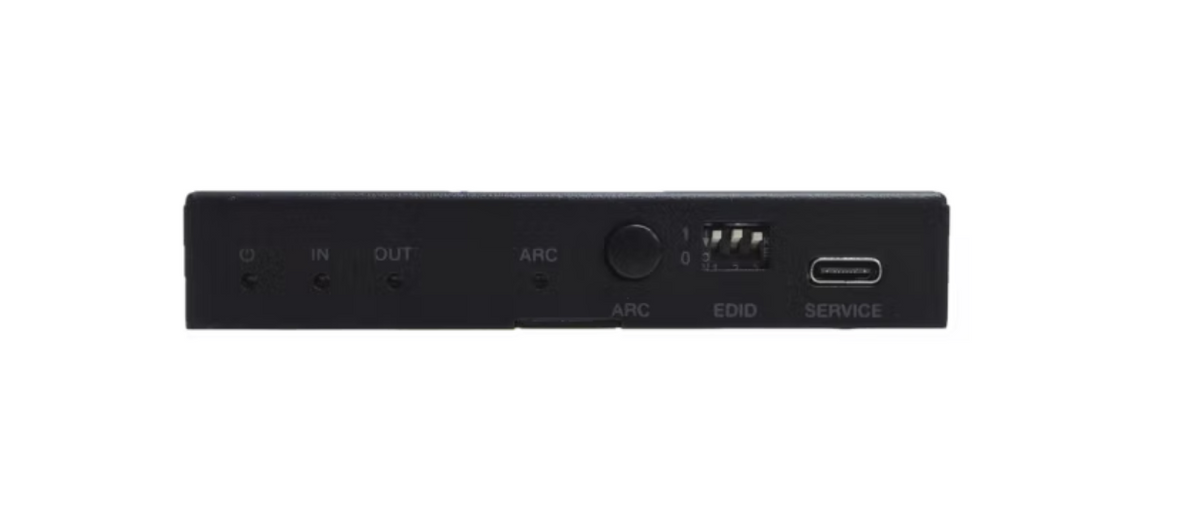

• ARC button off = audio extraction from signal to display
• ARC button on = audio extraction from display’s ARC
• CEC control for control of sources
• Advanced EDID management
• 3-Year warranty
