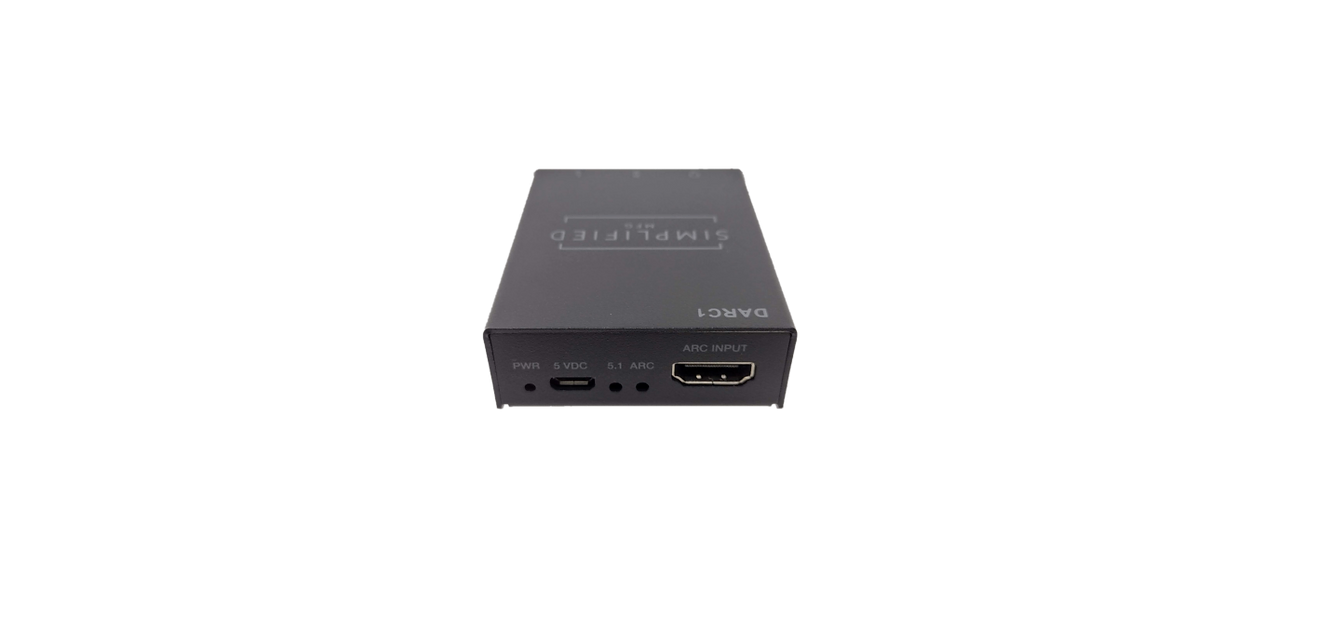

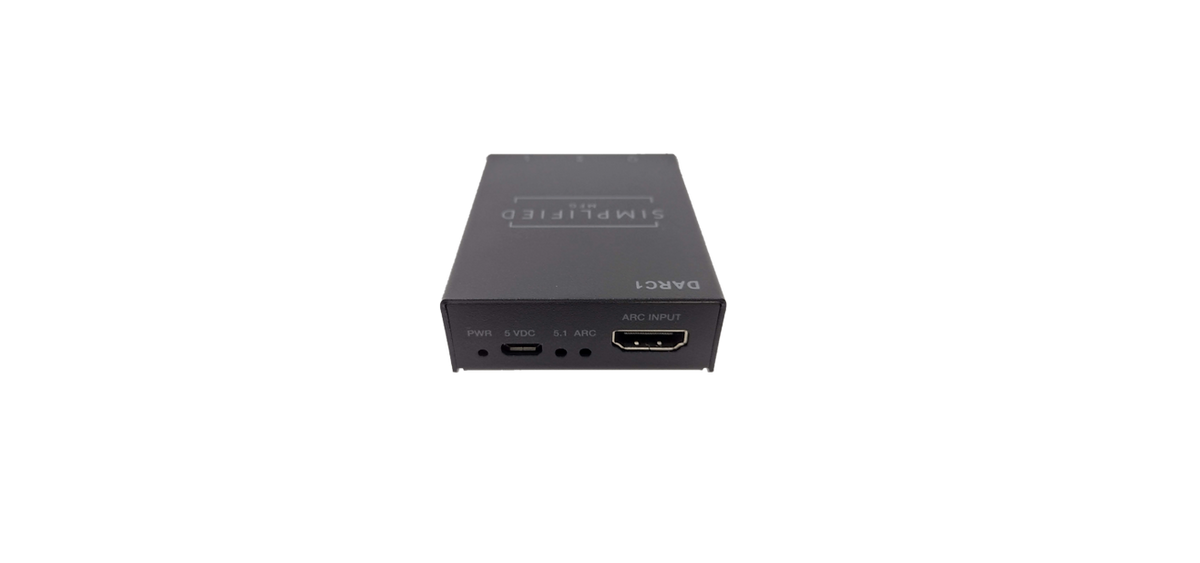

Simplified DARC1 ARC Audio Extractor with Downmix to Stereo
Product Details
The DARC1 is an ARC audio extractor that will extract ARC audio from a display and downmix the multichannel audio to stereo. The DARC1 one is a perfect device for getting a usable stereo audio signal from a display that does not have a stereo audio output. The display's remote will control the volume of the outputs via CEC.
Features & Benefits
- Converts HDMI ARC audio to Stereo
- Compact design
- Powers from USB port of display
- Converts 5.1 formats to stereo
- 3-year Warranty
Specifications
| Technical | |
|---|---|
| HDMI Compliance | Not Applicable |
| HDCP Version | Not Applicable |
| HDMI ARC Audio Formats | LPCM 2/5.1/Dolby Digital, DTS 5.1 |
| L/R Audio Formats | Analog Stereo 2CH |
| Analog Output Ports | RCA (2) and 3.5mm mini-jack |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connections | |
|---|---|

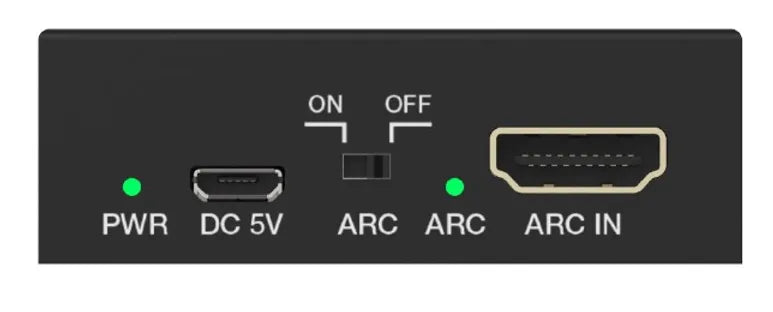

| Inputs | 1x HDMI Type A [19-pin female] |

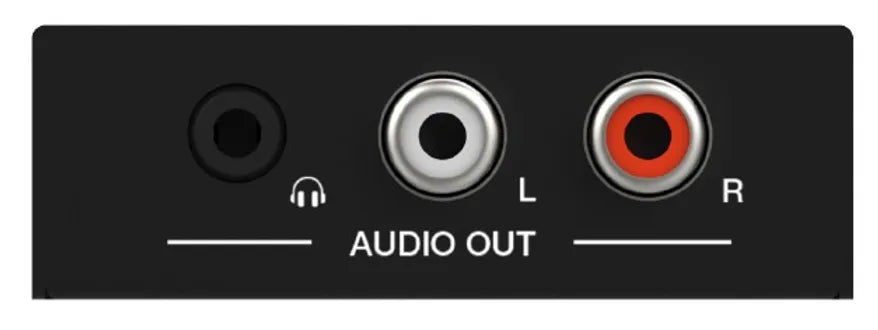

| Outputs | 2x L/R Audio Out RCA Connectors |
| 1x 3.5mm Mini-Jack |
| Mechanical | |
|---|---|
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 70mm/2.756" [W] x 60mm/2.36" [D] x 20mm/0.788" [H] |
| Weight | 130g/4.6 oz. |
| Power Supply Input | AC100 - 240V 50/60Hz |
| Power Supply Output | DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 1W (Max) |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
Specifications subject to change.
