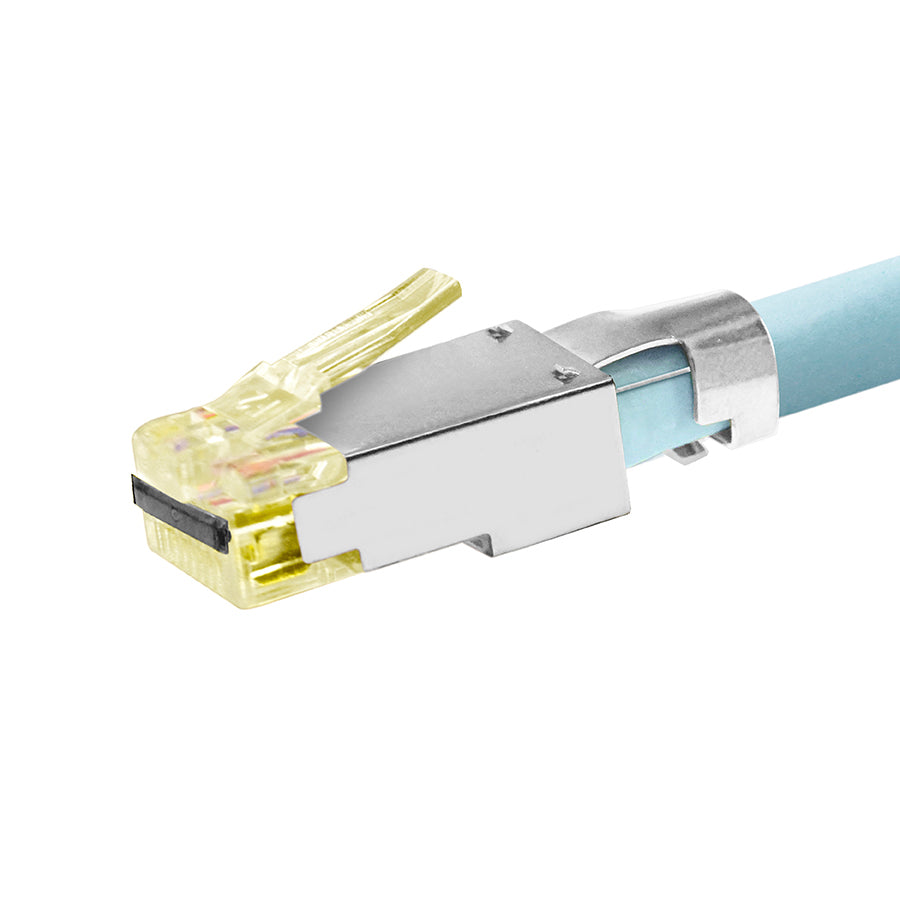

Simply45 S45-1755P ProSeries 10G Cat6a/7/7a Shielded External Ground – Pass-Through RJ45 with Cap45® & Bar45® 50 pc/Jar
Simply45 S45-1755P ProSeries 10G Cat6a/7/7a Shielded External Ground – Pass-Through RJ45 with Cap45® & Bar45® 50 pc/Jar
Product Details
Simply45® ProSeries hybrid connectors feature patented Cap45. The ProSeries connector provides the convenience of a pass-through style with the security of a standard modular plug. Simply45® only uses the highest quality materials to ensure reliable results and will greatly reduce truck rollbacks. These connectors are commercially rated and feature a 3-prong style contact designed for all PoE applications, making Simply45® ProSeries the most reliable terminations on the market today.
Specifications
| Category Type | Cat6a/7/7a |
| Connector Style | Pass-Through with Cap45 |
| Wire Alignment | Hi/Lo Stagger, Sled Style Load Bar |
| Cable Type | STP |
| AWG | 23AWG Solid |
| Conductor Range | 1.15mm-1.35mm (0.045″-0.053″) |
| Max Cable OD | 8.0mm (0.315″) |
| Plug Material | Polycarbonate |
| Material Rating | UL94 V0 Commercial (Plenum, LSZH) Rated |
| Plug Color | Yellow Tint |
| Patent Number | 10,811,831 B1 |
| Contact Design | 3 Prong Style |
| Contact Material | Phosphor Bronze |
| Base Contact Plating | 100µ of nickel plating |
| Surface Contact Plating | 50µ 24ct Gold |
| UL & cUL Listed | E520614 |
| Compliant | TAA, P65 |
| HDBaseT | Approved |
| Packaging Type | Jar |
| Connector Quantity | 50 pieces |
| Metal Shell Quantity | 50 pieces |
Features

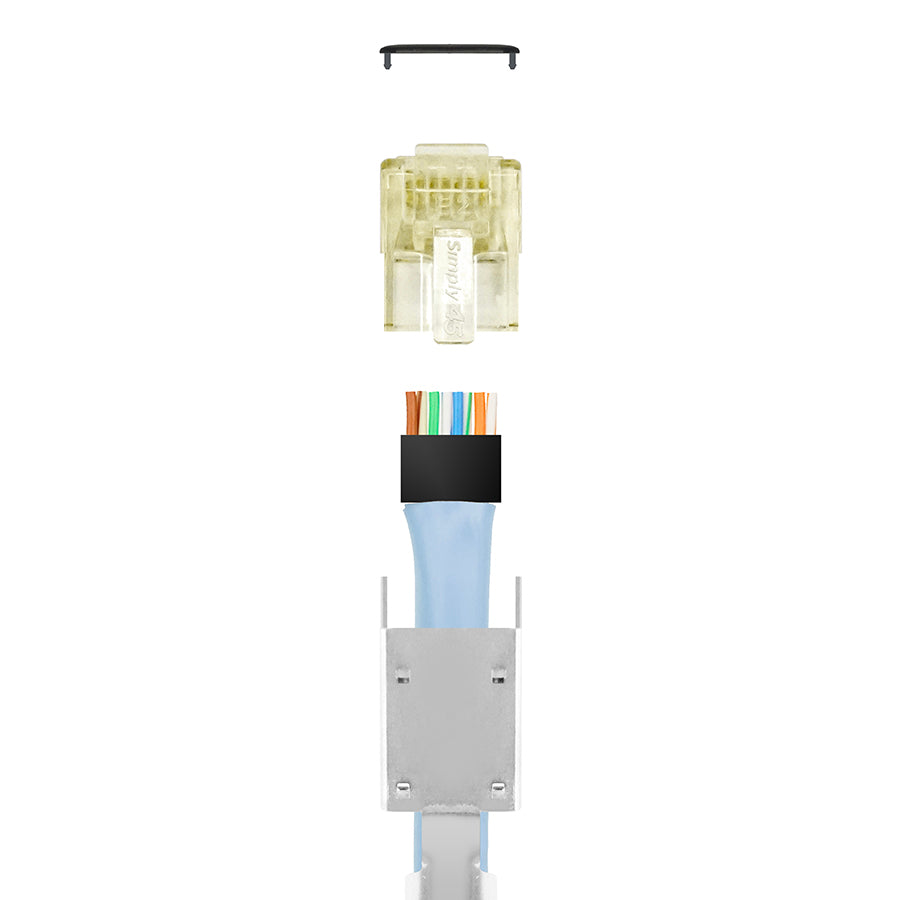

- Two-Piece Plug
- Bar45® Load Bar
- Cap45
- High/Low Staggered Wire Insert
- Accommodates Large Diameter Shielded LAN Cables
- 3 Prong Pin Design with 50µ of True 24ct Gold Plating
- Improved Crosstalk Performance
- Commercial Rated
- Color Tinted RJ45 Modular Plugs
- Wide Mouth Jar for Easy Hand Access
- Color-Coded Jar Caps
- UL Listed
- PoE/PoH Rated
- Compliant with Industry Standards
- Lifetime Warranty
