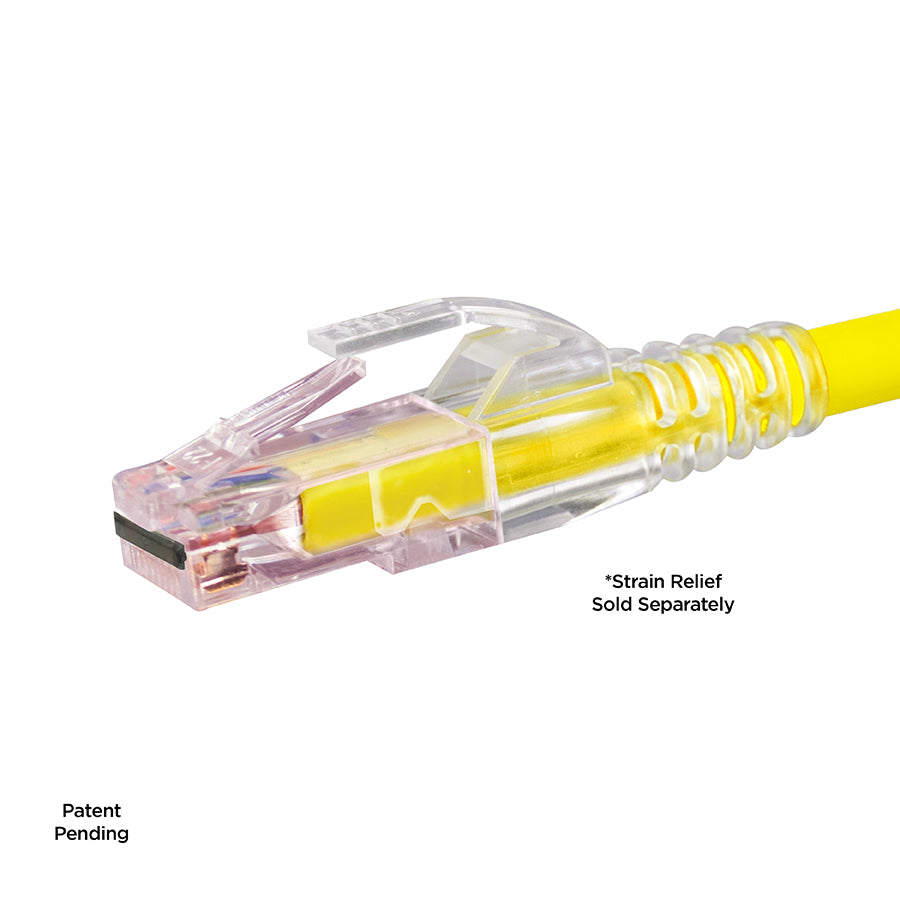

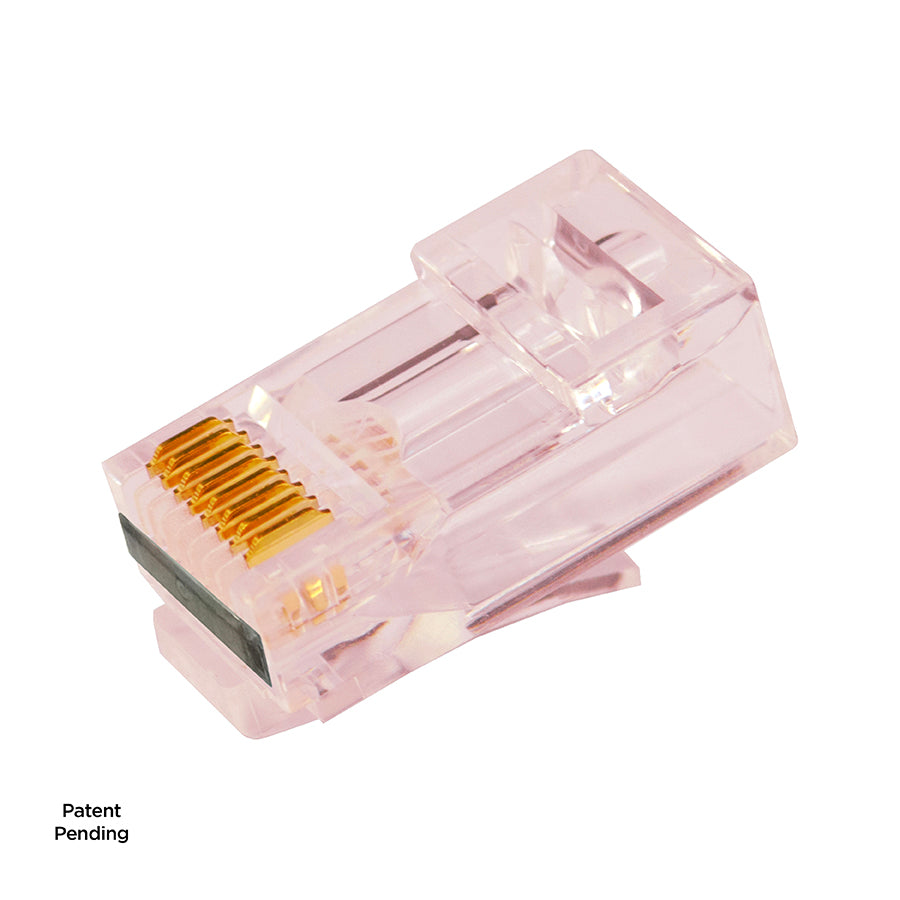

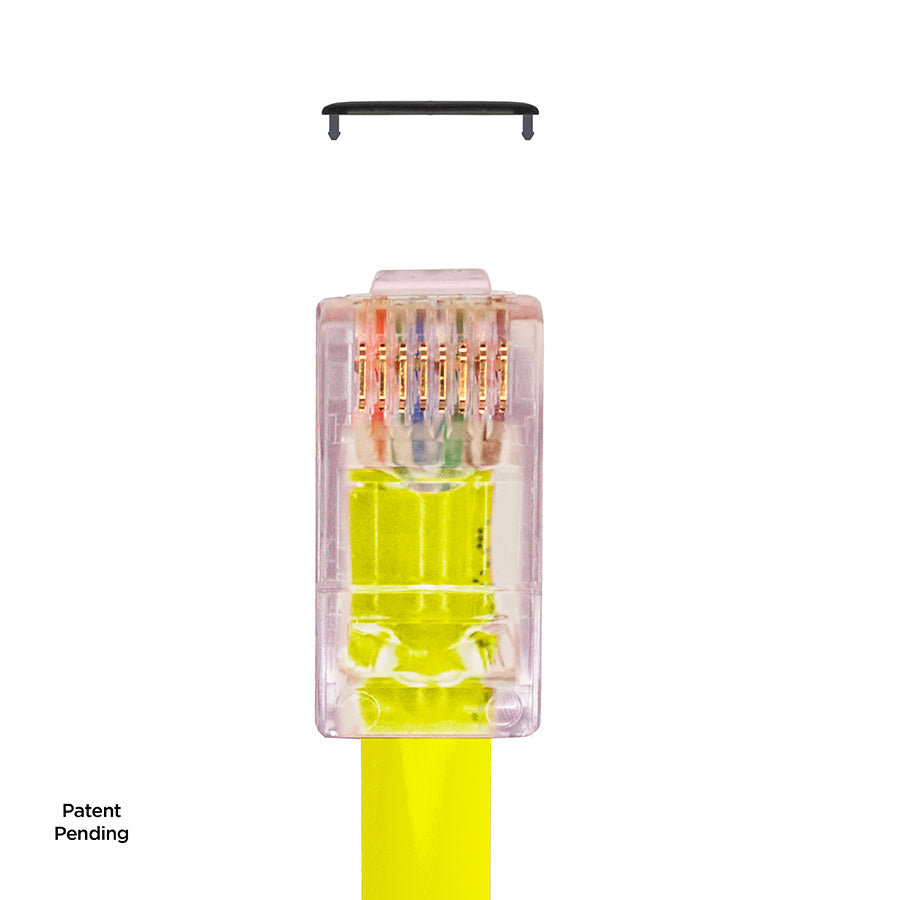

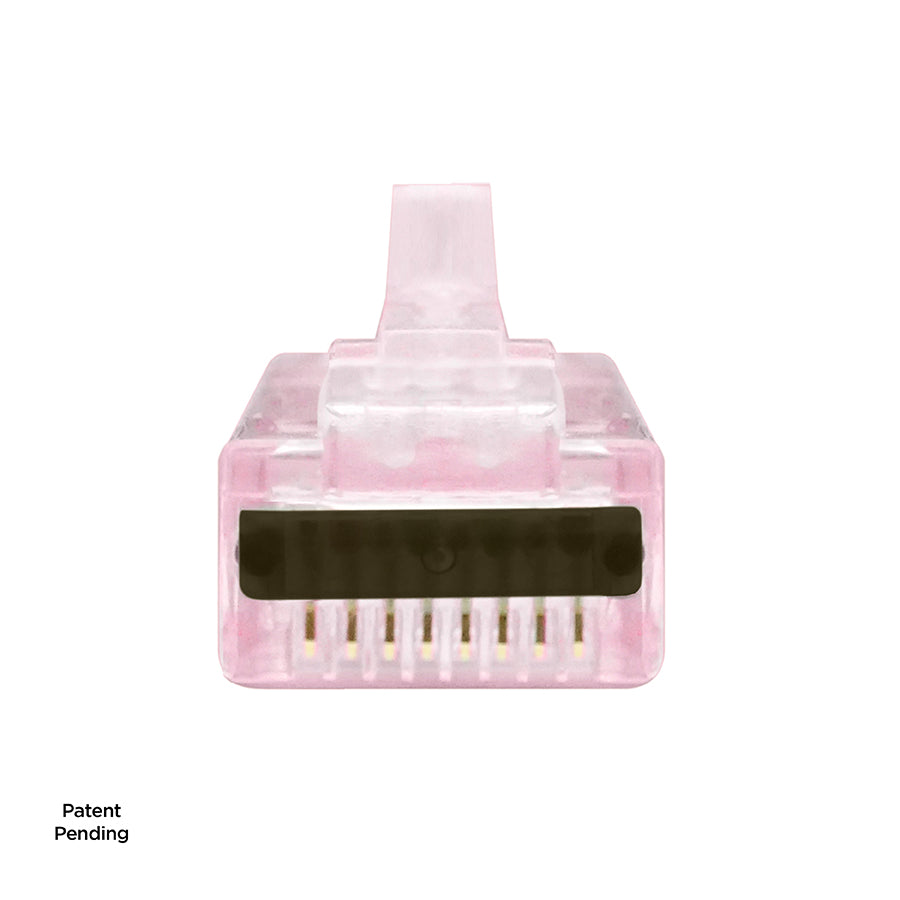

Simply45 S45-1705P ProSeries Cat6/6a Unshielded Pass-Through RJ45 Modular Plugs with Cap45® 500 pc/Jar
Simply45 S45-1705P ProSeries Cat6/6a Unshielded Pass-Through RJ45 Modular Plugs with Cap45® 500 pc/Jar
Product Details
Simply45® ProSeries hybrid connectors feature patented Cap45. The ProSeries connector provides the convenience of a pass-through style with the security of a standard modular plug. Simply45® only uses the highest quality materials to ensure reliable results and will greatly reduce truck rollbacks. These connectors are commercially rated and feature a 3-prong style contact designed for all PoE applications, making Simply45® ProSeries the most reliable terminations on the market today.
Specifications
| Category Type | Cat6/6a |
| Connector Style | Pass-Through with Cap45 |
| Wire Alignment | Hi/Lo Stagger |
| Cable Type | UTP |
| AWG | 23AWG Solid |
| Conductor Range | 1.05mm - 1.20mm (0.041″-0.047") |
| Max Cable OD | 7.4mm (0.291″) |
| Plug Material | Polycarbonate |
| Material Rating | UL94 V0 Commercial (Plenum, LSZH) Rated |
| Plug Color | Red Tint |
| Patent Number | 10,811,831 B1, 9,543,729; 10,116,082; 10,573,990; 11,146,014 |
| Contact Design | 3 Prong Style |
| Contact Material | Phosphor Bronze |
| Base Contact Plating | 100µ of nickel plating |
| Surface Contact Plating | 50µ 24ct Gold |
| UL & cUL Listed | E520614 |
| Compliant | TAA, P65 |
| HDBaseT | Approved |
| Packaging Type | Jar |
| Connector Quantity | 500 pieces |
| Cap45 Quantity | 550 pieces |
Features
- Single Piece Plug
- High/Low Staggered Wire Insert
- 3 Prong Pin Design with 50µ of True 24ct Gold Plating
- Improved Crosstalk Performance
- Commercial Rated
- Color-Tinted RJ45 Modular Plugs
- Wide Mouth Jar for Easy Hand Access
- Color-Coded Jar Caps
- UL Listed
- PoE/PoH Rated
- Compliant with Industry Standards
- Lifetime Warranty
