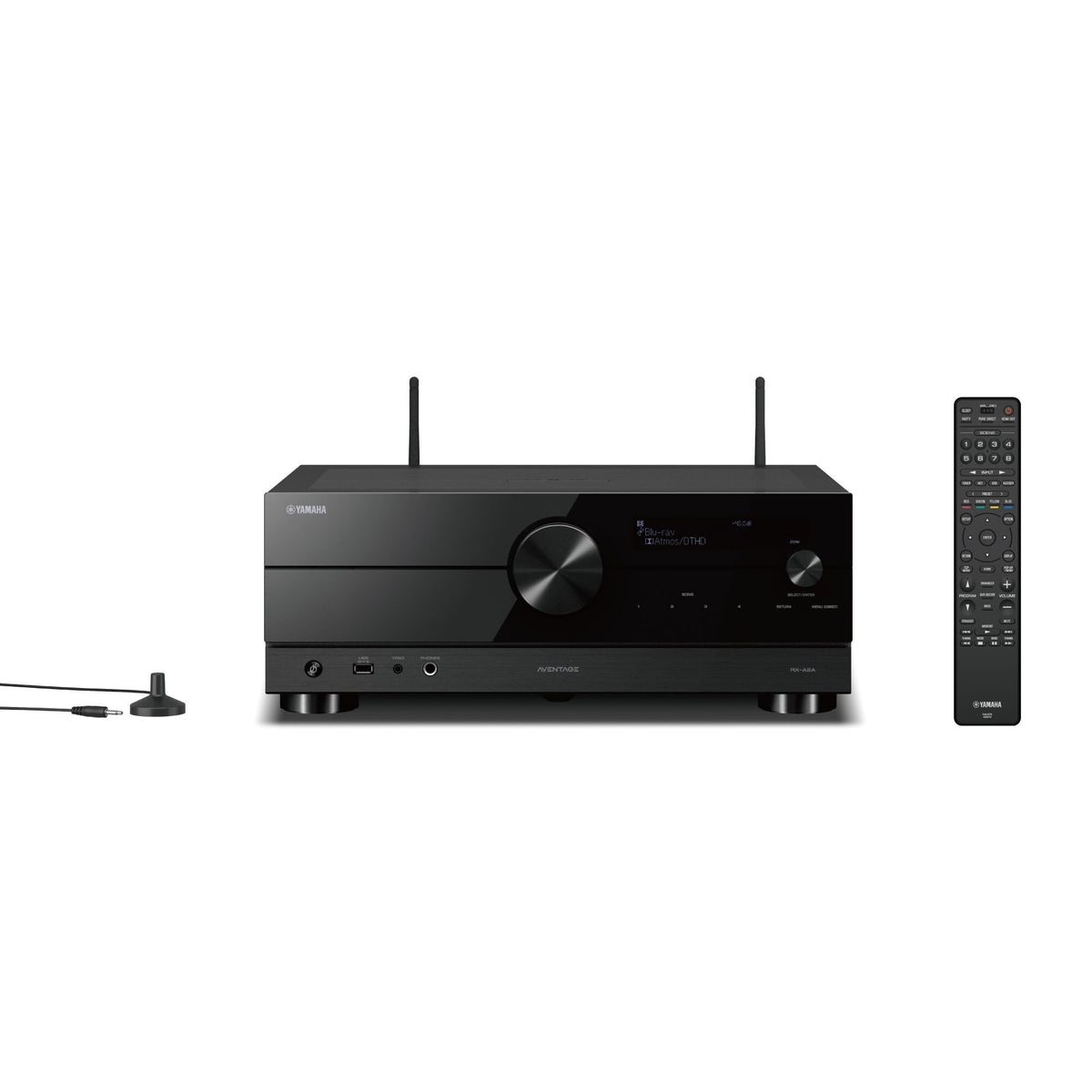

Yamaha RX-A2A AVENTAGE 7.2-Channel AV Receiver with 8K HDMI and MusicCast
Take your entertainment to the next level. With professional quality video and immersive surround sound via Dolby Atmos®, the RX-A2A will completely transform home cinema.
- 7.2-channel 100 Watt surround sound with Zone 2
- 4K60, Dolby Vision™, Hybrid-Log Gamma and BT.2020
- 4K120AB and 8K60B HDMI™ and HDR10+ with HDCP 2.3 and eARC (7 in/1 out)
- Supports enhanced media and gaming – ALLM and VRR
- Dolby Atmos®, DTS:X™ and Dolby Atmos Height Virtualization
- Wi-Fi®, AirPlay 2 and Spotify Connect
- MusicCast App control
- Pandora®, Spotify, Amazon Music, SiriusXM, TIDAL, Deezer and more
- YPAO automatic room calibration with R.S.C. and multipoint
- Works with Sonos: seamlessly unites with a Sonos system using a Sonos Port (sold separately)
- Phono input
| RX-A2A | ||
|---|---|---|
| Amplifier Section | Channels | 7.2 |
| Rated Output Power (20Hz-20kHz, 2ch driven) | 100 W (8 ohms, 0.06% THD) | |
| High Slew Rate Amplifier | Yes | |
| Surround Sound Processing | Surround:AI | N/A |
| Cinema DSP | Yes | |
| DSP Programs | 17 | |
| Dialog Level Adjustment | Yes | |
| Virtual Presence Speaker | Yes | |
| Virtual Surround Back Speaker | Yes | |
| Dialogue Lift | Yes | |
| SILENT Cinema / Virtual Cinema DSP | Yes | |
| Dolby Atmos | Yes | |
| Dolby Atmos Height Virtualization | Yes | |
| Dolby TrueHD | Yes | |
| Dolby Digital Plus | Yes | |
| Dolby Surround | Yes | |
| DTS:X | Yes | |
| DTS-HD Master Audio | Yes | |
| Auro 3D | N/A | |
| Audio Features | File Format | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz |
| Pure Direct | Yes | |
| Compressed Music Enhancer | Yes | |
| High-resolution Music Enhancer | N/A | |
| YPAO Multipoint Measurement | Yes with R.S.C. (Reflected Sound Control) | |
| YPAO Volume | Yes | |
| Adaptive DRC (Dynamic Range Control) | Yes | |
| Initial Volume and Maximum Volume Setting | Yes | |
| A.R.T. Wedge | Yes | |
| Bi-amp Capability | Yes | |
| Audio Delay | Yes (0-500 ms) | |
| DA Converter | 384 kHz / 32-bit BB PCM5102A | |
| Video Features | HDMI eARC | Yes |
| HDMI Audio Return Channel | Yes | |
| HDMI Pass-through | 4K120AB, 8K60B, 4K60 and 24GBPS HDMI1-3 | |
| HDMI Upscaling | Yes up to 4K | |
| HDMI Up-conversion | N/A | |
| Dolby Vision | Yes | |
| HDR 10+ | Yes | |
| VRR & ALLM | Yes | |
| Video Adjustment | N/A | |
| Connectivity | MusicCast Surround | Yes |
| Wi-Fi | Yes (2.4 / 5 GHz) | |
| AirPlay 2 | Yes | |
| Bluetooth | Yes (SBC / AAC) | |
| Phono Input | Yes | |
| XLR Terminal | N/A | |
| Component Video Input/Output | N/A | |

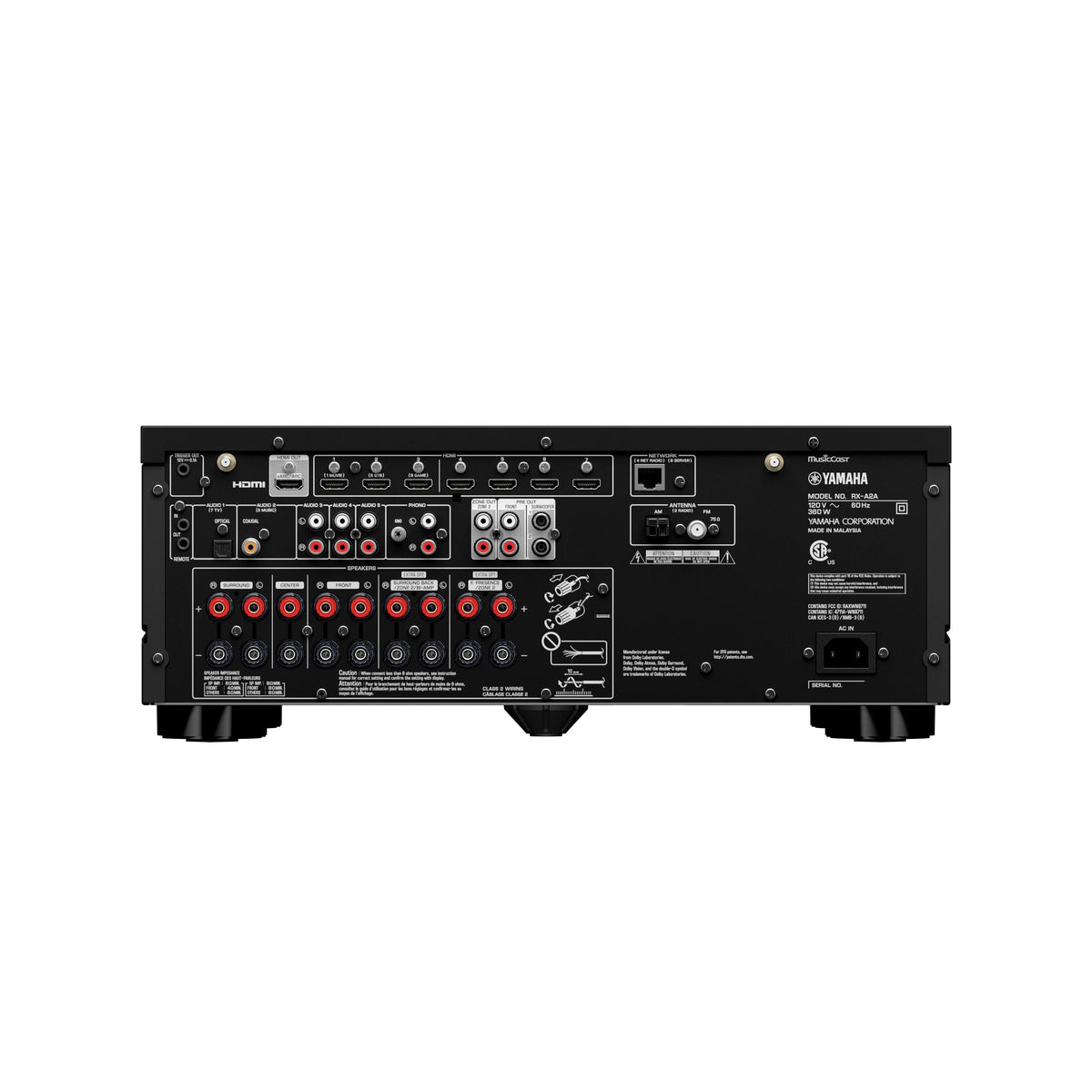

| Extensive Connections | HDMI Input/Output | 7 / 1 |
| HDMI CEC | Yes | |
| USB Input | Yes | |
| Network Port | Yes | |
| Front AV Input | USB | |
| Digital Audio Input / Output: Optical | 1 / 0 | |
| Digital Audio Input / Output: Coaxial | 1 / 0 | |
| Analog Audio Input / Output | 4 / 0 | |
| Composite Video Input / Output | N/A | |
| Preout | 2.2-ch | |
| Headphone Output | 1 | |
| Tuner Section | FM / AM Tuner | Yes |
| User Interface | On-Screen Display | Graphical User Interface |
| SCENE | Yes (8 sets) | |
| App Control | Yes (iPhone / iPad / Android phone / tablet) | |
| Web Browser Control | Yes | |
| Remote Control Unit | Yes | |
| Zone Control | Zone 2 Audio Output | Preout |
| Zone 3 Audio Output | N/A | |
| Zone 4 Audio Output | N/A | |
| Powered Zone | Zone 2 | |
| Zone Video Output | N/A | |
| Zone B Output | N/A | |
| Zone GUI | N/A | |
| RS-232C Interface | N/A | |
| +12V Trigger Output | 1 | |
| Remote (IR) Input/Output | 1 / 1 | |
| Party Mode | Yes | |
| General | Standby Power Consumption (IR only) | 0.1 W |
| Auto Power Standby | Yes | |
| ECO Mode | Yes | |
| Dimensions (W x H x D) | 17-1/8" x 6-3/4" x 14-5/8" (with antenna up:17-1/8" x 9-5/8" x 14-5/8") | |
| Weight | 22.5 lbs. | |
