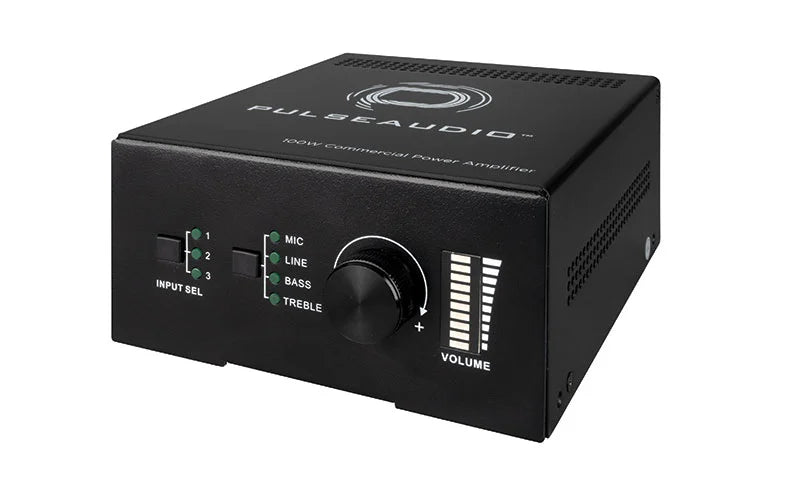

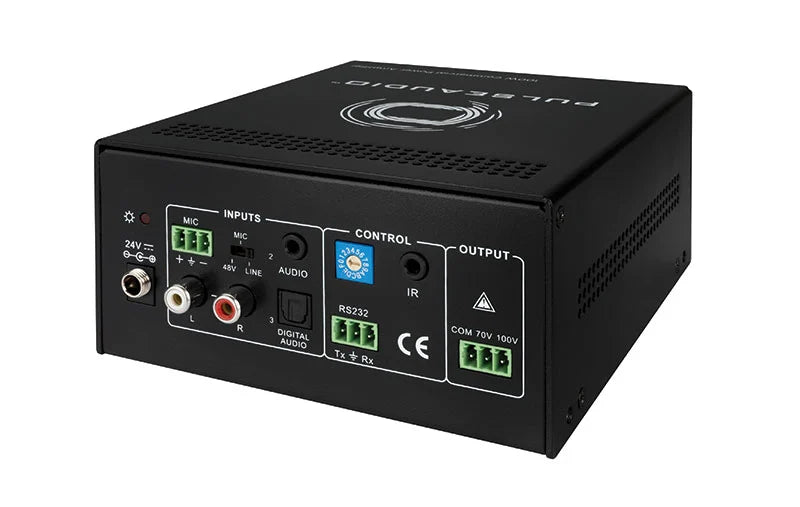

Pulse Audio Single Channel 100w 70/100 Volt Amplifier w/Mic Input

• Mono audio output at 100W
• Switchable between 70V and 100V
• Sixteen ID codes for controlling multiple PAV1100 amplifiers in a system
• 3-level MIC input, supports condenser microphone, dynamic microphone and wireless microphone, with ducking or mixing function
• MIC input supports balanced/unbalanced signal, and suppresses external noise effectively
• One 2-channel analog audio inputs and one digital audio input, switchable by button, IR remote & RS232
• Manual volume control
• Bass/Treble controllable via front panel, IR remote & RS232
• Convection cooled, no external fan needed
• LED indicator, for power and working status
• Anti-static case design provides good protection for long-term and stable performance

Package Contents:
PAV1100 Amplifier
(2) Mounting ears with included screws
(4) Plastic feet
(2) Pluggable terminal blocks
(1) RS-232 cable
(1) DC 24V 5A power adapter
