Description
Pulse Audio PA6X 120/240W, 6-Channel Commercial Amplifier
The PulseAudio PA6X series of 6-channel commercial amplifiers are designed for versatile audio distribution in retail, hospitality, and office environments. Supporting both 8ohm and 70/100V speaker systems, it offers flexible installation options to suit a wide range of projects. With inputs for two microphones, multiple line sources, Bluetooth connectivity, USB flash drives, SD/MMC memory cards, and a FM radio tuner, it delivers convenient playback and seamless mixing capabilities. Available with 120W or 240W total power output, these amplifiers provide reliable performance and a clear, balanced sound for any commercial setting.
Key features:
- Compatible with 4/8/16ohm and 70/100V speaker systems
- 120/240W total power or 20/40W per channel
- Multi-zone control to independently manage audio in 6 distinct zones

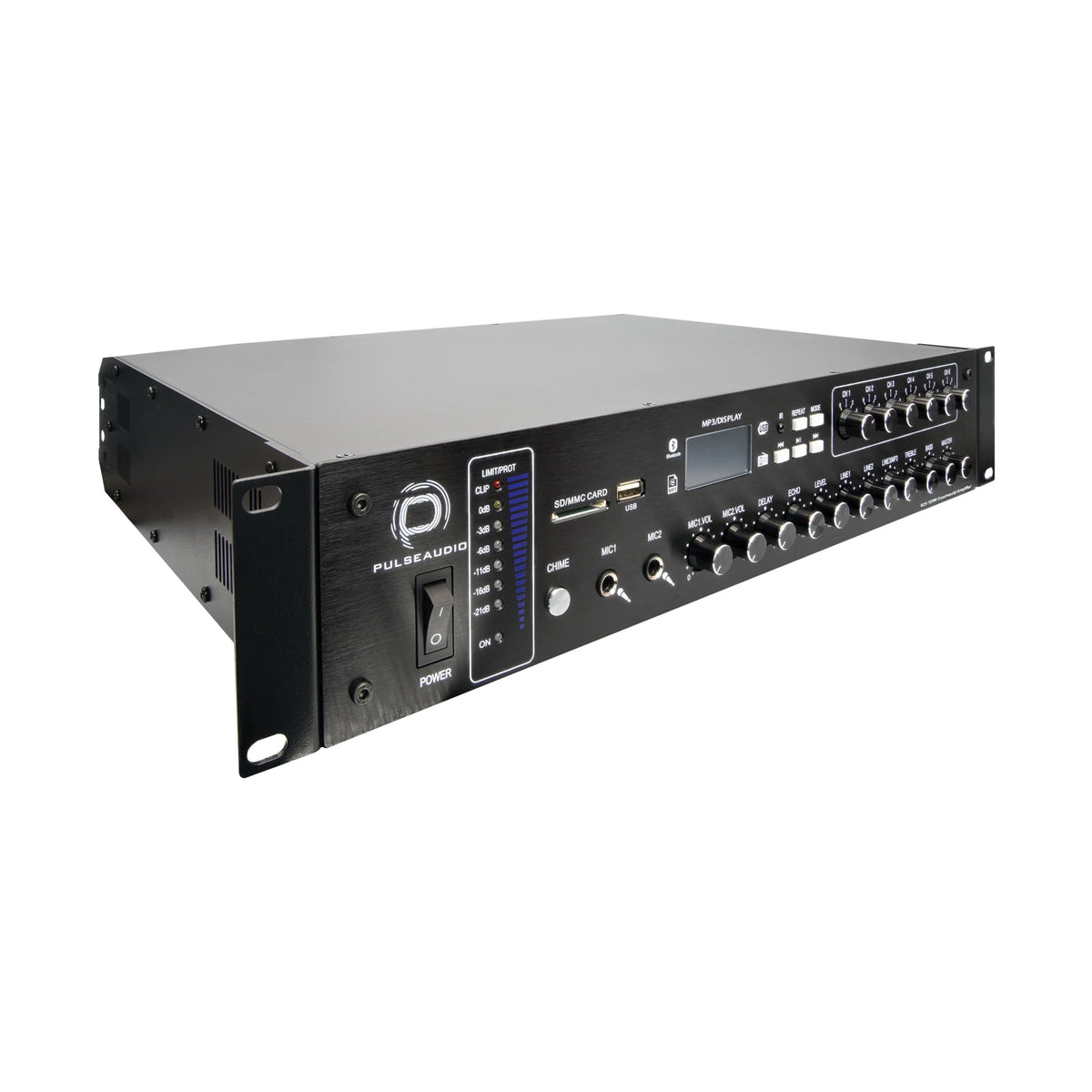

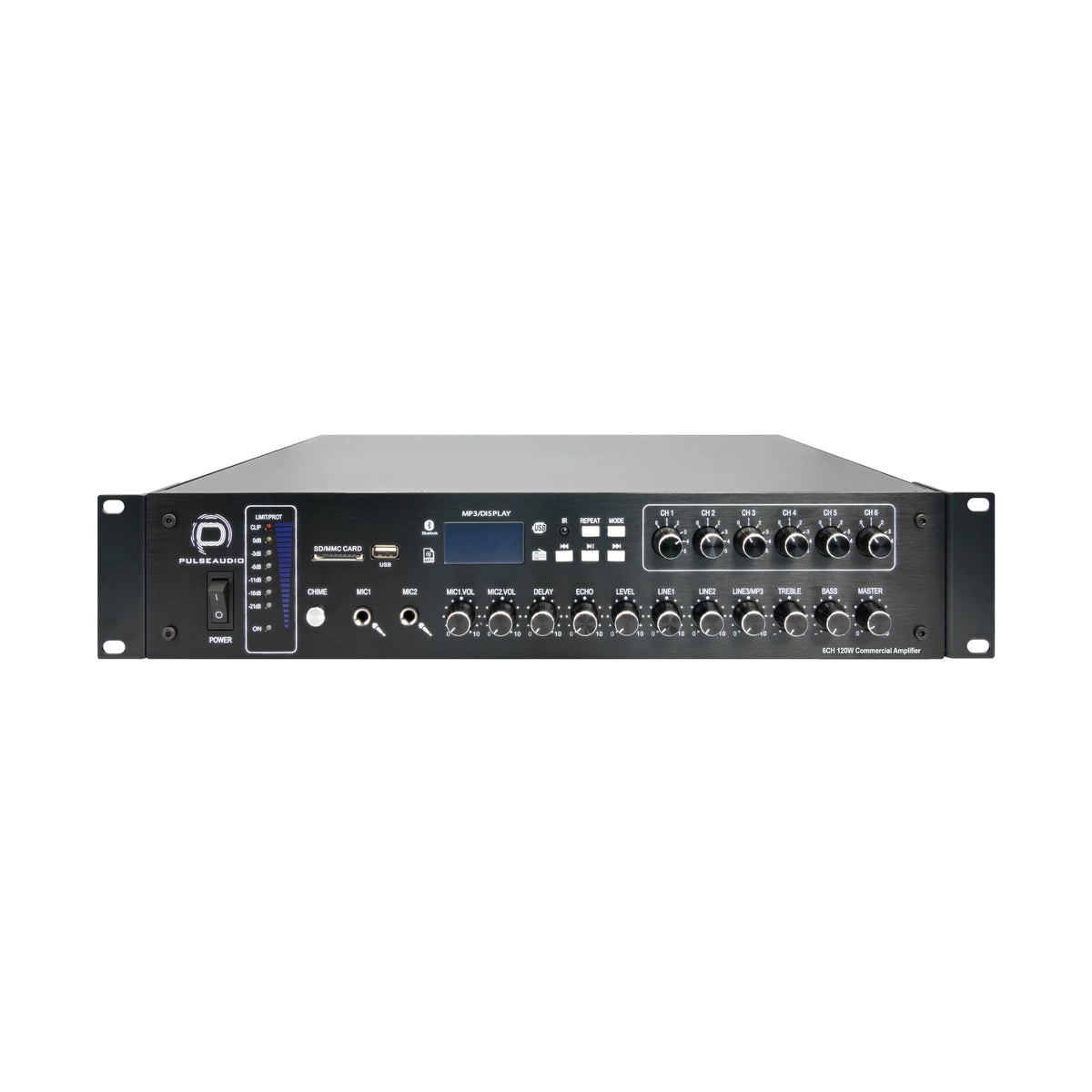

- Front panel dials control for all functions
- Rack mounting ears and hardware included
Audio inputs:
- (2) 1/4” microphone inputs
- (3) Stereo RCA inputs
- (1) USB flash drive
- (1) SD/MMC memory card
- (1) FM radio tuner
- Bluetooth 5.0 connectivity
Box contents:
- (1) PA6X120/240 amplifier
- (1) Set of rack mounting ears and hardware
- (1) FM tuner antenna

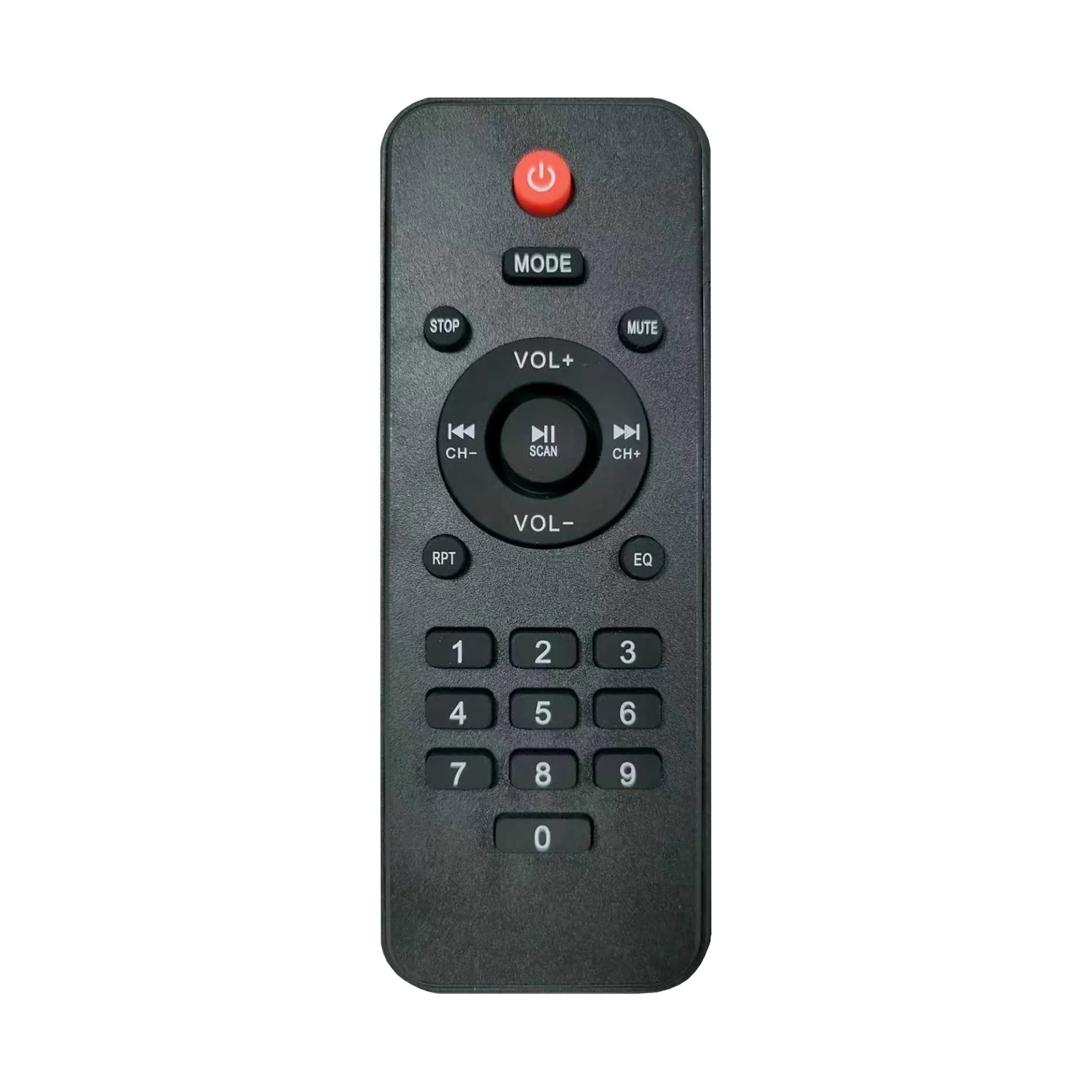

- (1) Remote control
- (1) Quick start guide
Tech Tip: Mic 1 input allows for microphone ducking and mixing. Mic 2 input solely allows for mixing.

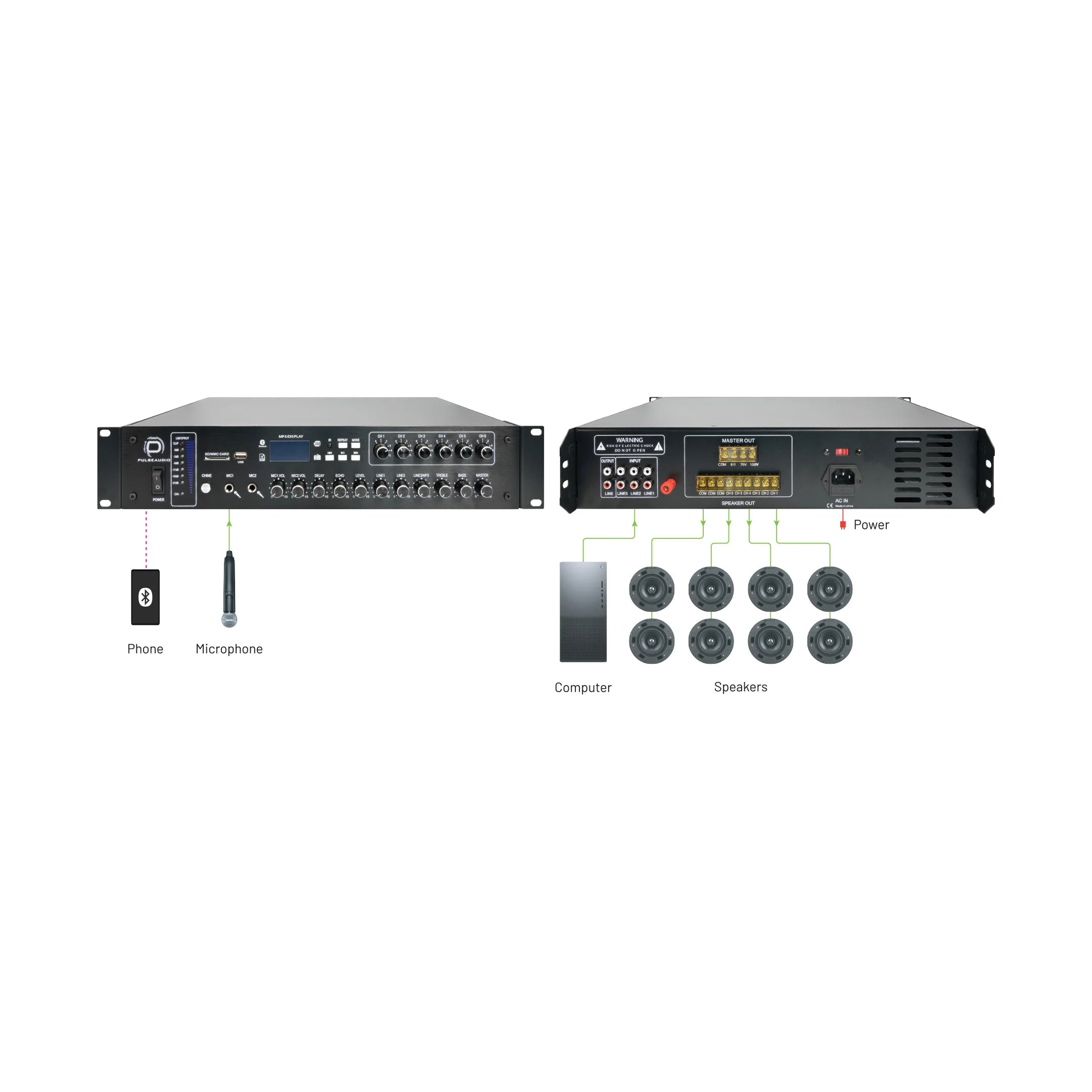

What does the PA6X series of amps do? Equipped with Bluetooth, FM tuner, line and mic level inputs and the ability to output to 70V/100V speakers for broader distribution through the 6CH outputs, and 4/8 ohm or70/100V speakers through the Master Output, the PA6X amps are versatile for a variety of applications. With simple dial control, all inputs can be adjusted and mixed easily without any other devices for control.
