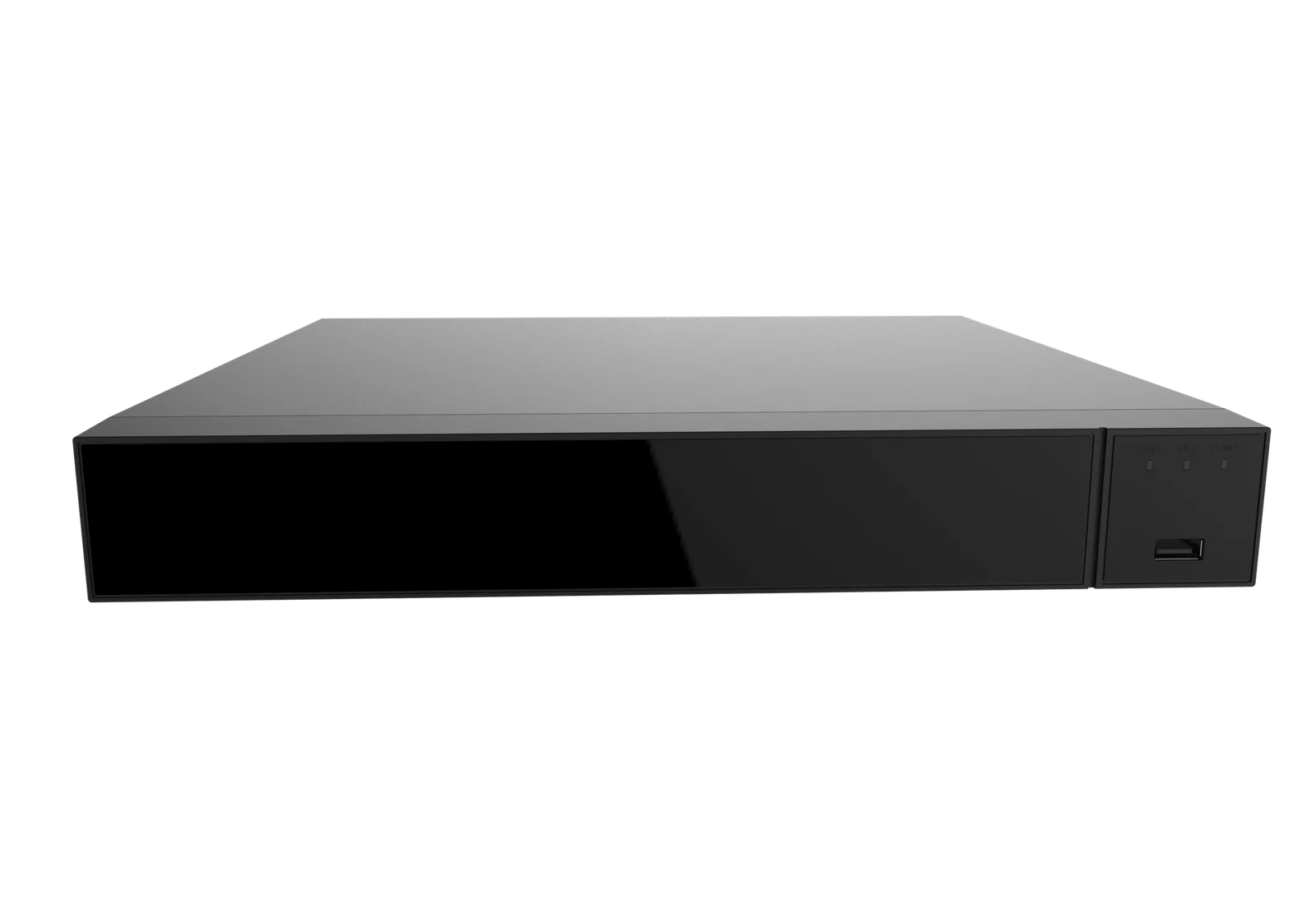

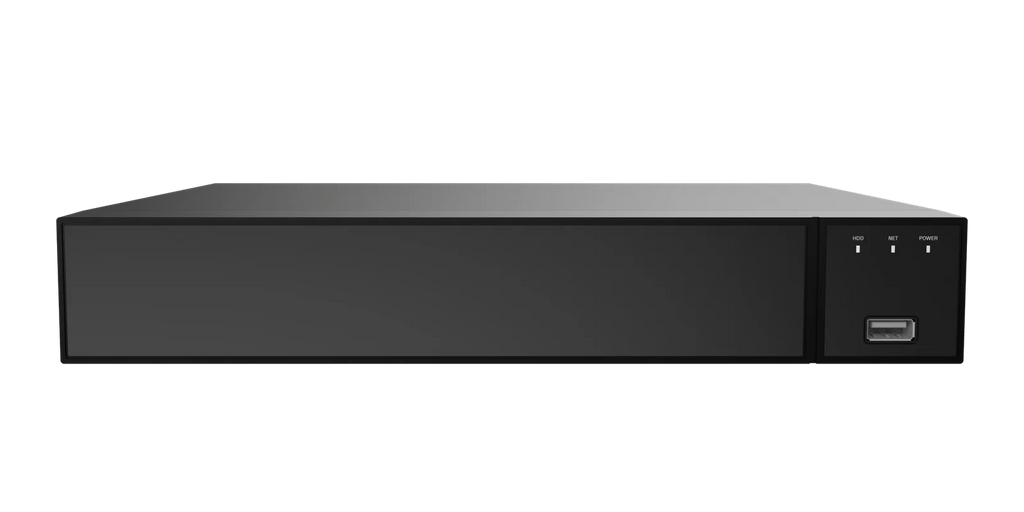

Proview PRX-R5108N XVR 8CH Hybrid 8MP Digital Video Recorder
8CH Hybrid 8MP Digital Video Recorder, 5 in 1: TVI, AHD, CVI, Analog, IP (IPC up to 16CH), Video Input: 8HD+4IPC, 14CH/HD+IPC, 16CH/IPC; IPC Input: IPC/16CH; HD Input: 8M-N@6fps, 5M-N@12.5fps, 5M@6fps, 2MP@15fps, 1 SATA, HD output, VGA, USB, Audio, Alarm, RS485, Network, P2P
| System | |
| Main Processor | MC6650 |
| Operating System | Embedded LINUX |
| Video | |
| Input | Normal Mode: Default:8*(AHD/TVI/CVI:8MP; TVI/AHD: 5MP; AHD/TVI/CVI:4MP; AHD/TVI:3MP; AHD/TVI/CVI:1080P/720P; Analog:960H)+4*network(Max 8MP) Analog+Network:6*Analog(8MP)+8*network(Max 8MP),4*Analog(8MP)+10*network(Max 8MP),2*Analog(8MP)+12*network(Max 8MP) LITE Mode: Default: 8*(TVI/AHD:5M@12fps; AHD/TVI/CVI:4M@15fps; AHD/TVI/CVI:1080P/720P; Analog:960H)+4*network(Max 8MP) Analog+Network: 6*Analog(5M@12fps)+8*network(Max 8MP),4*Analog(5M@12fps)+10*network(Max 8MP),2*Analog(5M@12fps)+12*network(Max 8MP) Network: 16*8MP/5MP/4MP/3MP/1080P/960P/720P(Total incoming bandwidth ≤80M) |
| Input | 8CH BNC |
| Signal Type | Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network |
| Output | 1HD,1 VGA |
| Audio | |
| Input | 1 Channel RCA,support AOC |
| Two-way Audio | NO |
| Output | 1 Channel RCA |
| Alarm | |
| Sensor Input | 4 |
| Output | 1 |
| Motion Detection | 12 Channel(max 16 Channel in pure network mode) |
| Trigger Events | Recording, Email, Screen tips, Buzzer, Push notifications(motion detection) |
| Email Alarm | Send Image to The Designated E-mail |
| AI Function | |
| Human Detection | YES |
| PTZ | |
| Interface | RS485 |
| Protocol | Pelco-D, Pelco-P |
| Baud Rate | 110~921600 |
| Address | 0~255 |
| Display | |
| VGA | Resolution:1920 × 1080P, 1280 × 1024 , 1280 × 720,1024 × 768 |
| HD Output | Resolution: 3840×2160 1920×1080 1280×1024 1280×720 1024×768 |
| Display Split | 1/4/8/9/16 |
| Privacy Masking | 3 Rectangular Zones (Each camera) |
| OSD | Camera title, Time, Video loss, Alarm, Motion detection, Recording |
| Recording | |
| Video Compression | H.265/H.265+/H.264/H.264+ |
| Audio Compression | G.711U/G.711A |
| Resolution | 5MP,8MP_LITE,5MP_LITE,4MP,4MP_LITE,3MP,3MP_LITE,1080P,720P,960H |
| Video Quality | Lowest/Low/Ordinary/Good/Better/Best |
| Record Rate | Normal Mode: Analog:PAL:8MP_LITE(8*8fps), 5MP(8*6fps),5MP_LITE(8*10fps),4MP(8*8fps),4MP_LITE(8*15fps),3MP(8*9fps),3MP_LITE(8*18fps),1080P(8*15fps),720P(8*25fps),960H(8*25fps) NTSC:8MP_LITE(8*8fps),5MP(8*6fps),5MP_LITE(8*10fps),4MP(8*8fps),4MP_LITE(8*15fps),3MP(8*9fps),3MP_LITE(8*18fps),1080P(8*15fps),720P(8*30fps),960H(8*30fps) LITE Mode: PAL:5MP_LITE(8*10fps),4MP_LITE(8*15fps),3MP_LITE(8*18fps),1080N(8*25fps),720P(8*25fps),960H(8*25fps) NTSC: 5MP_LITE(8*10fps),4MP_LITE(8*15fps),3MP_LITE(8*18fps),1080N(8*25fps),720P(8*25fps),960H(8*30fps) Pure IP(H.265): PAL :8MP@9x25fps, 5MP@12x25fps,4MP@16x25fps, 3MP@16x25fps, 1080P@16x25fps, 960P@16x25fps, 720P@16x25fps, D1@16x25fps NTSC:8MP@9x30fp, 5MP@12x30fps,4MP@16x30fps, 3MP@16x30fps, 1080P@16x30fps, 960P@16x30fps, 720P@16x30fps, D1@16x30fps |
| Record Mode | Normal\Motion Detection\Alarm\Intelligent |
| Playback & Backup | |
| Decode Capability | 4*1080P@30fps |
| Sync Playback | Normal Mode: Pure Analog: 8CH 5M@6fps, 7CH 8M_LITE@8fps, 8CH 4M@8fps, 8CH 3M@9fps, 8CH 1080P@15fps Mix Mode: 4CH 5M@6fps, 4CH 4M@8fps, 4CH 3M@9fps, 4CH 1080P@15fps, 1CH 8MP 30fps, 2CH 5MP 30fps, 2CH 4MP @30fps, 2CH 3MP@30fps Pure IPC: 1CH 4K@30fps, 2CH 5MP@30fps, 3CH 4MP@30fps, 4CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps LITE Mode: Pure Analog:8CH 5M_LITE@ 8CH 1080N@25fps,8CH 720P@25fps,8CH 960H@25fps Mix Mode: 4CH 5M@6fps, 4CH 4M@8fps, 4CH 3M@9fps, 4CH 1080P@15fps, 1CH 8MP 30fps, 2CH 5MP 30fps, 2CH 4MP @30fps, 2CH 3MP@30fps Pure IPC: 1CH 4K@30fps, 2CH 5MP@30fps, 3CH 4MP@30fps, 4CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps |
| Remote Playback | 4 Channel / 1Channel |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection,Alarm,Tag |
| Playback Functions | Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen |
| Smart Phone Playback | 4 Channel |
| Backup Mode | USB Device(with fomat FAT 32 )/Network/FTP |
| Network | |
| Interface | 1 RJ45 10M/100M Adaptive Ethernet Interface |
| Network Functions | TCP/IP, IPv4/IPv6, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP |
| DDNS | Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE,HDPROVN,DYNAMIC_PLANET,EASY_PLANET |
| Web Browser | Edge, Google Chrome , Firefox ,Safari |
| CMS Software | Support Windows 10/Windows 11/MAC OS |
| Extra Stream | CIF(1-30fps)/D1(1-15fps) |
| Smart Phone | iPhone, Android |
| Hard Disk Driver | |
| Interface Type | 1 SATA Interface |
| Capacity | 1 SATA Hard Disk (2.5″/3.5″ SATA, Up to 8TB) |
| General | |
| Language | Simplified Chinese,Traditional Chinese, English, Polish, Czech, Thai, Hebrew, Arabic, Bulgarian, Japanese,German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese, Ukrainian |
| UTC Control | YES |
| USB Interface | 2 USB 2.0 Interfaces |
| Power consumption | DC 12V/2A ≤ 7W (without HDD) |
| Working Environment | -10~55℃/10~90% |
| Dimension (W×D×H) | 260*230*43(mm) |
| Weight | 1.2kg (Without HDD) |
