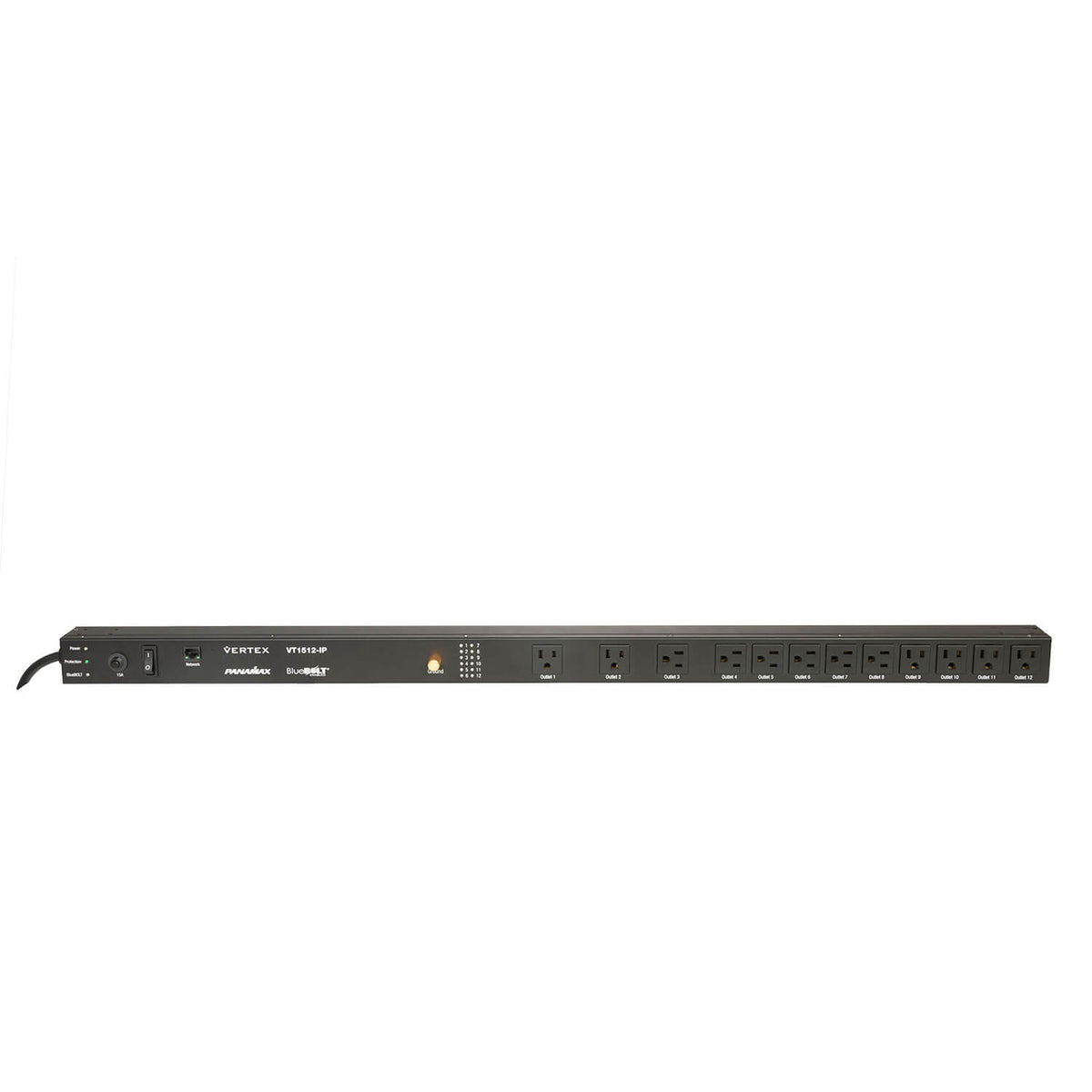

The VT1512-IP is a BlueBOLT enabled slim form factor vertical rack power conditioner and power sequencer. The VT1512-IP is a full featured power conditioner providing protection and filtration for maximum longevity and performance of connected equipment. BlueBOLT enabled, the VT1512-IP allows remote reboot of 12 individually controlled outlets, as well as the ability to monitor energy use, set alerts, program scheduled commands, network pings with conditioner reboots. For non-Cloud applications the VT1512-IP has an embedded webpage for control and programming, or you can use a LAN for secure control via an ELAN or other 3rd party control systems.
Features
- Protect-or-Disconnect surge protection
- Standard EMI/RFI Filtration
- Over/Under voltage load disconnect
- Power Sequencing
- IP Monitor & Control – BlueBOLT™ enabled for IP control and monitoring
- 12 individually controlled outlets, 3 spaced for wall-warts & 6 turned 90°
- Ground lug to attach Panamax signal-line protection modules

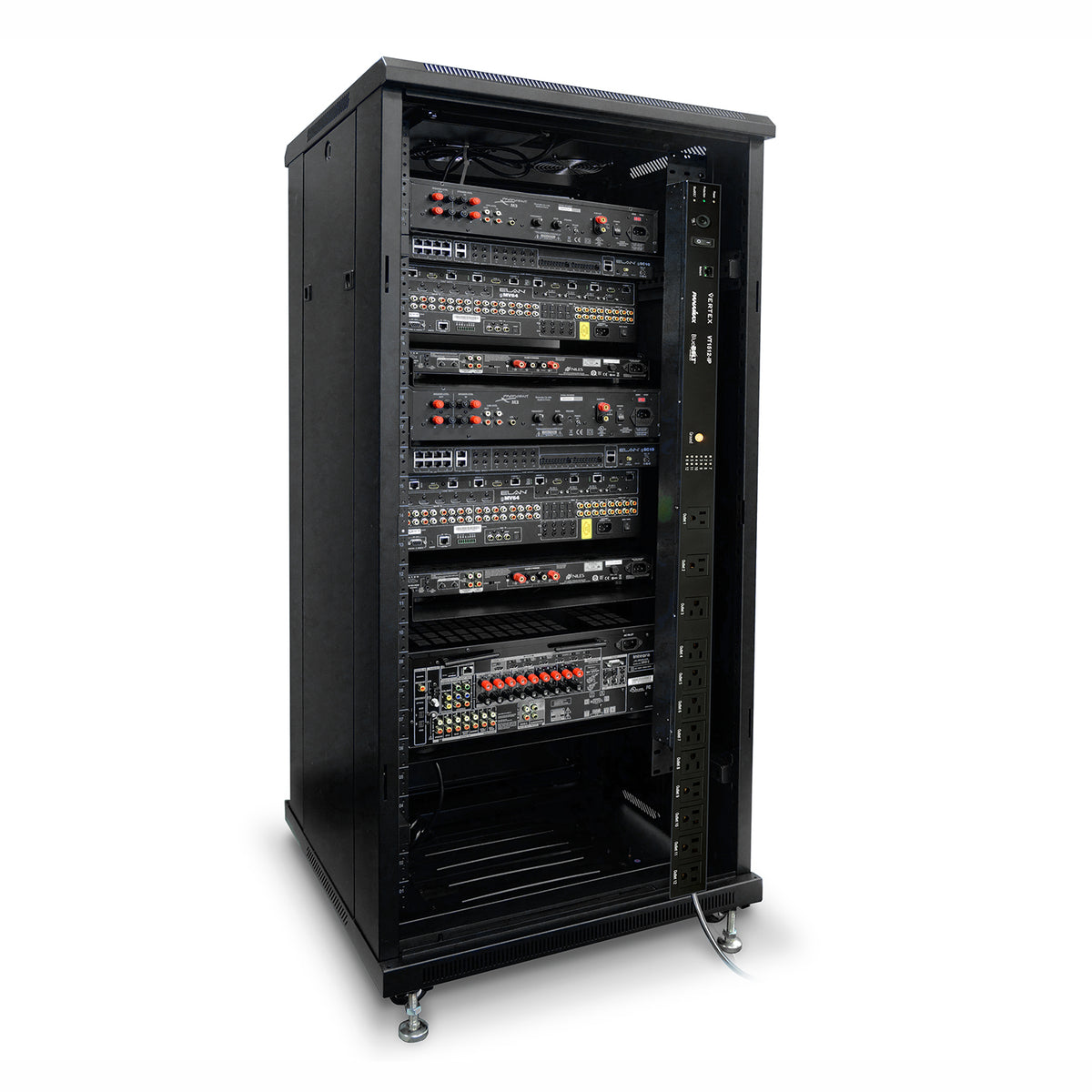

- Sleek design ideal for vertical mounting to an equipment rack with included brackets
- 10 foot power cord with removable plug to customize length
- 15A Capacity with circuit breaker
- 3 year limited product warranty
- $5,000,000 Connected Equipment Protection Policy when used with Panamax signal-line protection modules
Specifications
AC Power : 120Vac, 50/60Hz
Total Outlets : 12
Total Current Capacity : 15A (1800W)
Voltage Protection Rating : (UL 1449 4th Edition, 3,000A): L-N 500V, L-G 500V, N-G 500V
Protection Modes : L-N, L-G, N-G
Initial Clamping Level : 200 V Peak, 141 RMS
Energy Dissipation : 668 Joules
Peak Impulse Current : 12,000
Protect-or-Disconnect : Yes
Thermal Fusing : Yes
Cord Length : Captive 10ft. cord with removable NEMA 5-15P for length customization
Dimensions : 37” L x 1.75” W x 1.75” H
