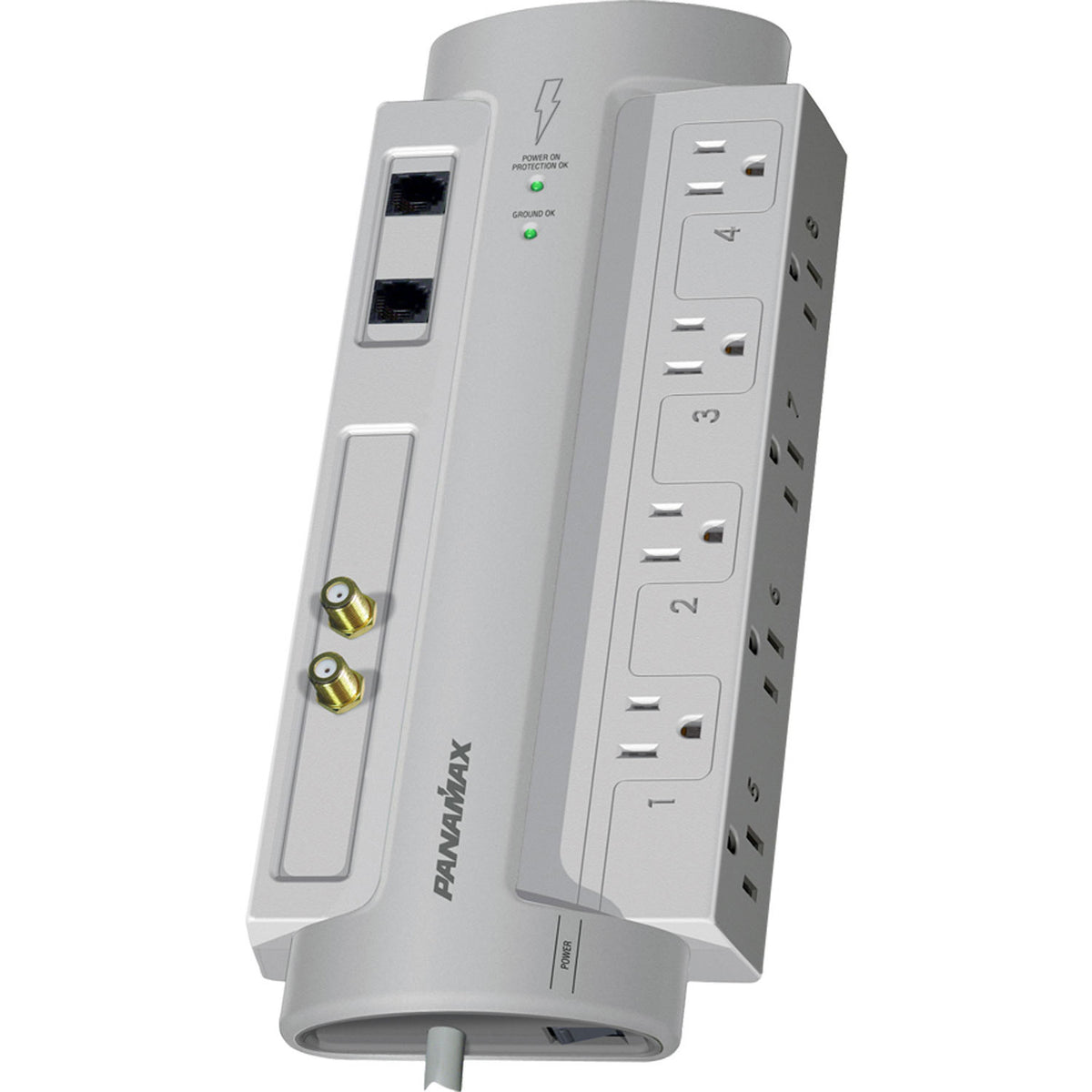

AC power, telephone and coax lines can provide direct pathways for surges and spikes to enter and damage expensive audio/video equipment. Panamax’s SP8-AV eliminates voltage irregularities and protects your AV system.
Features
- Power Status LED.
- In / Out Telephone Connectors.
- In / Out Coax Connectors for Cable/Sat.
- Six (6)ft, Power Cord with Right Angle 45 degree Offset Plug.
- Exclusive Protect or Disconnect™ circuitry. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.
- Ground OK LED.
- 8 AC Outlets Provide Power Proection with Transformer Spacing Between Outlets.
- ON / OFF Power Switch and 15A Circuit Breaker.
Specifications
Voltage Protection Rating : (UL 1449 3rd Edition, 3,000A): 500V
Thermal Fusing : Yes
Single Pulse Energy Dissipation : 1125 Joules
Response Time : < 1 ns
Peak Impulse Current : 60,000 Amps
Telco Protection
Wires Protected : 1 Line (3, 4)
Suppression Modes : Metallic & Longitudinal
Fuseless / Auto-reseting : Yes
Connectors : RJ-11
Clamping Level : 260V
Capacitance : 30pf (approx.)
Universal Coaxial Protection
Shielded : Yes
Insertion Loss : < 0.5 dB
Frequency Range : OMHz – 2.2 GHz
Connections : Female “F”, Gold Plated
Clamping Level : 75V
Bidirectional : Yes
