Description
Product Details
For Outdoor Speakers, Keypads and Control Lines
Features

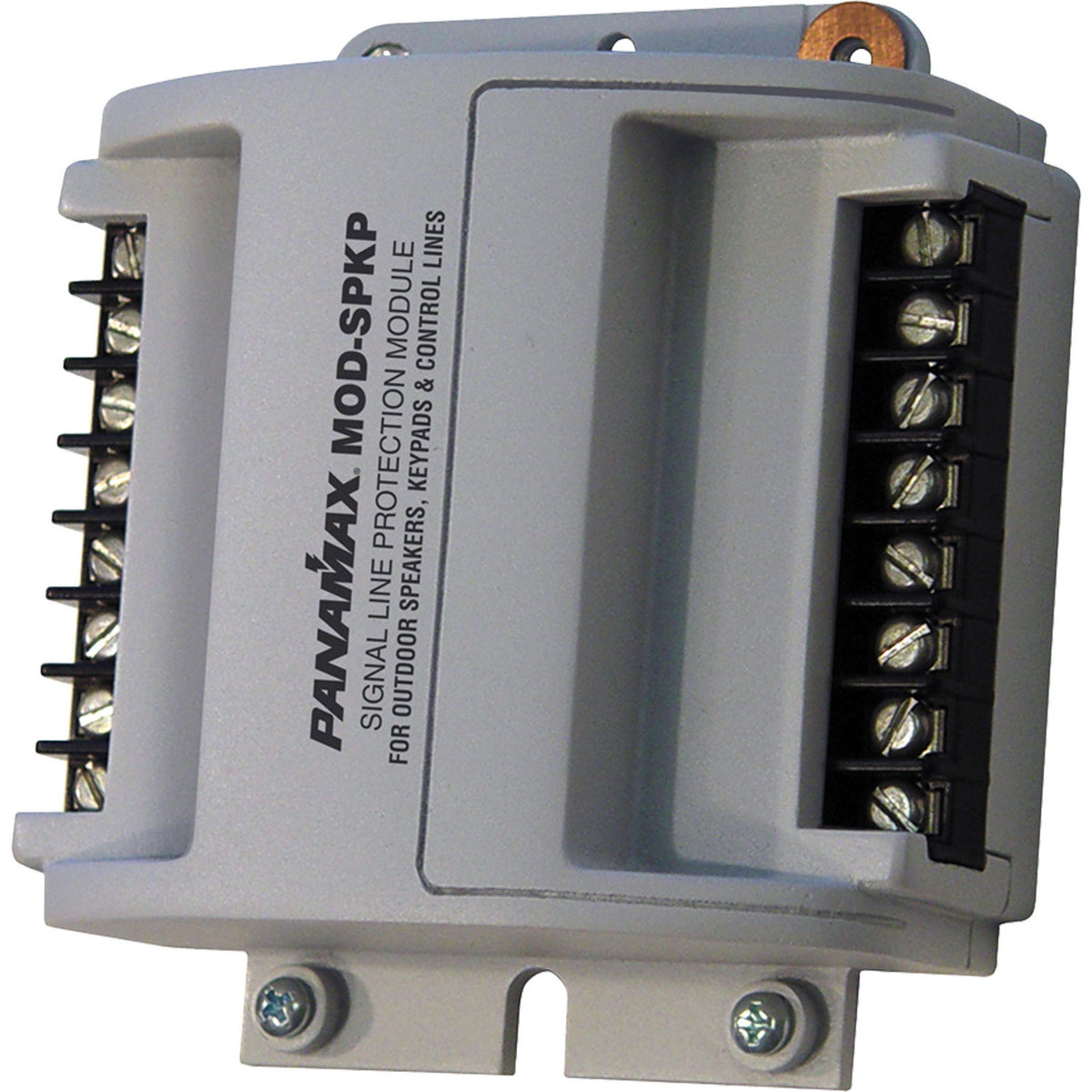

Equipment lines that lead outside the building are pathways for surges (sometimes called backdoor surges) to enter the equipment. The MOD-SPKP is designed to protect outdoor speaker, keypad, control and security wires (8 wires or 4 pairs).
Specifications
Mounting Hardware Included: Yes
Protection
Wires Protected: 8
Wire Size: 12 AEG Max.
Screw Terminals: Compatible w/ 12 Gauge Wire
Power Handling Capacity for Outdoor Speakers: 225 Watts per Channel for 4 Ohm Speakers
Per Wire Capacity: 7 Amp
Modes Protected: All Terminals to Ground
Connectors: 8 Wire Screw Terminals
Clamping Level: 47V (30Vrms max to the speaker output)
112 Watts per Channel for 8 Ohm Speakers
