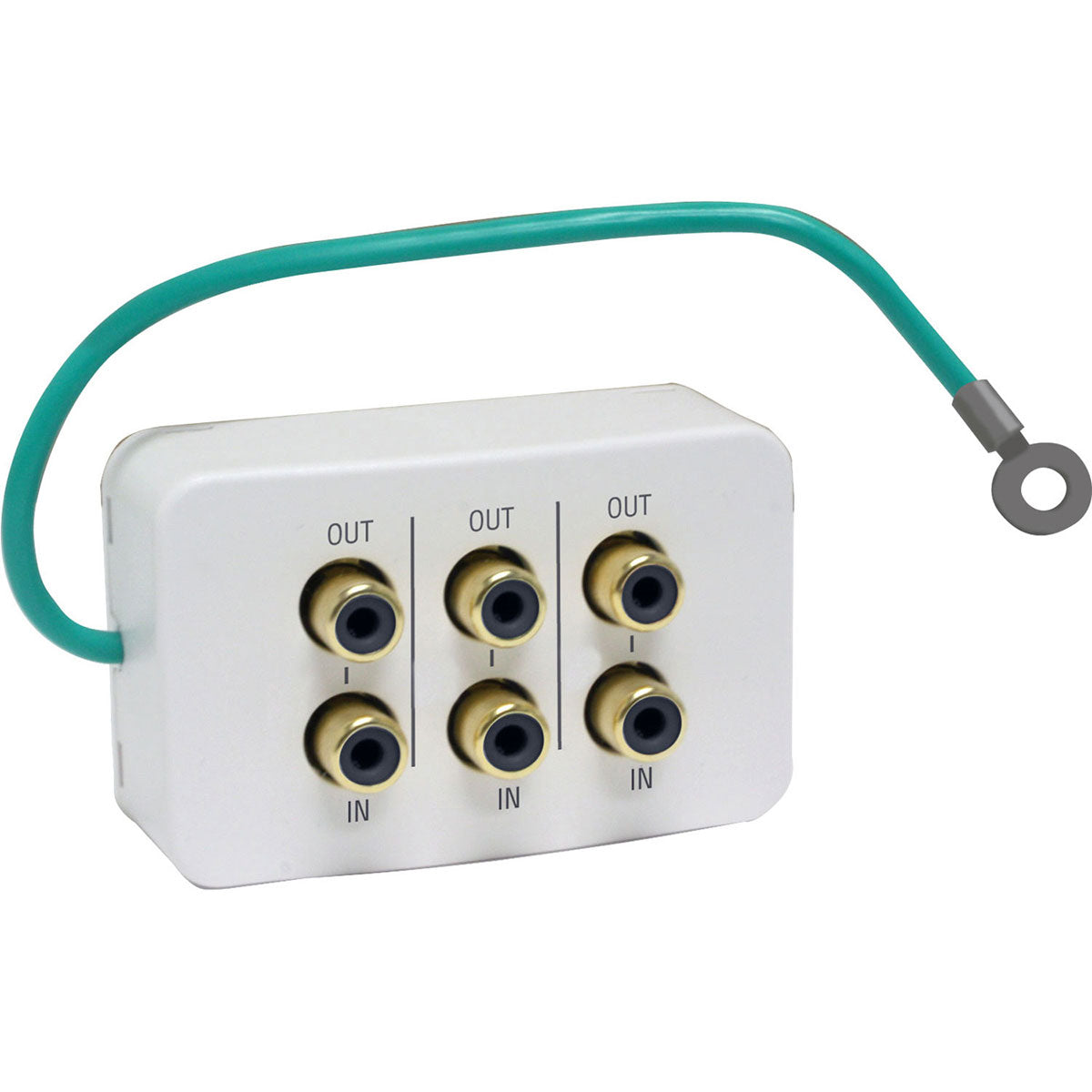

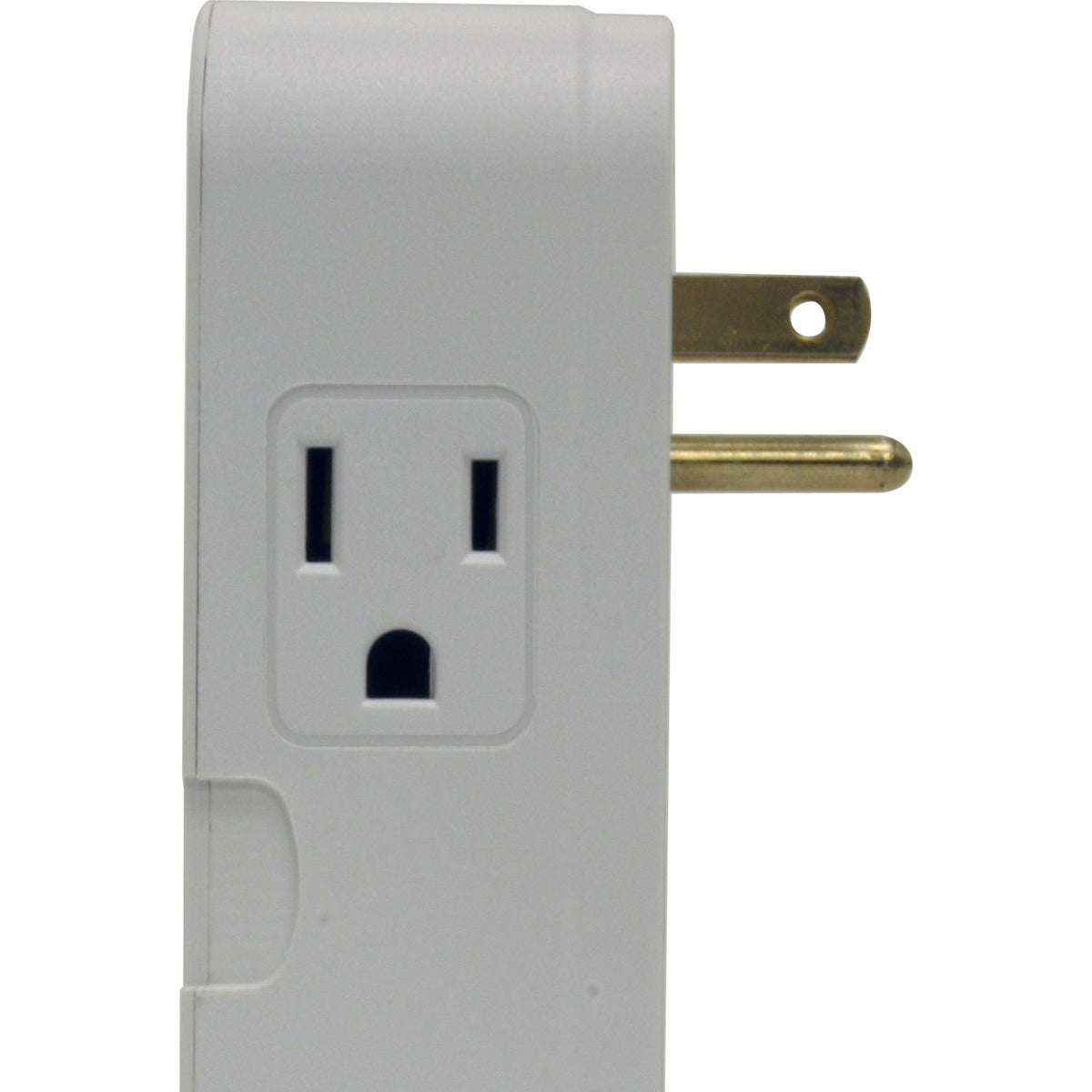

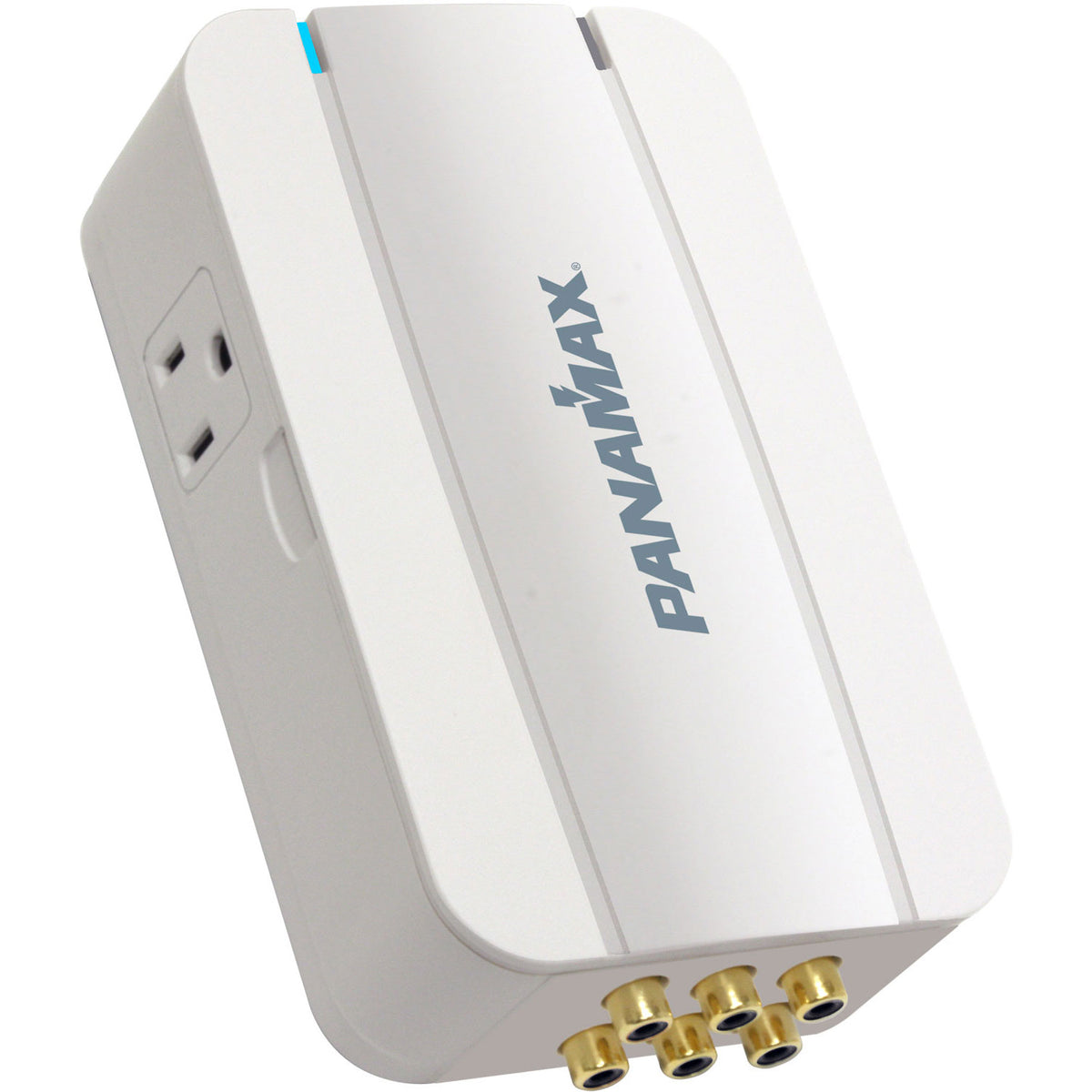

Panamax MD2-AV 2 Outlet End-to-End Surge Protector Kit for Remote Subs/Equip.

PanamaxSKU: MD2-AV

Price:

Login to see pricing

MSRP:
$96.85
Stock:
Call for availability

Description

Product Details

Exclusive Protect or Disconnect™ Circuitry

Safeguards equipment against all surges. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.

Noise Filtration Circuit

EMI/RFI Filtration Circuitry for Clean, Unimpeded Power.

RCA Line Level Protection

Protects equipment from electrical surges that travel over low voltage RCA lines.

Features

  • EMI/RFI Filtration Circuitry for Clean, Unimpeded Power.
  • Protect-or-Disconnect™ Circuitry
  • 3 Circuits RCA Input/Outputs.
  • Removable, paintable cover ensures seamless fit with any décor.
  • Includes module to deliver signal from source component to MD2-AV to remote AV equipment.
  • Two Diagnostic Lights (LED) Power On/Protection OK and Line Fault.
  • Thin Profile – Only 1.5″ inches deep.
  • Convenient display feature; turn cover around to hide diagnostic lights

Specifications

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): L-N 400V, L-G 500V, N-G 400V
Thermal Fusing: Yes
Single Pulse Energy Dissipation: 1350 Joules
Response Time: <1 ns
Peak Impulse Current: 60,000 A
Nominal Discharge Current: 3,000 A

A/V Line-Level Specifications
Connectors: RCA, Female
Clamping Level: 8V
Attenuation: 0.06dB from 10Hz-6MHz

Downloads

User Manual

Datasheet

Family Datasheet
