Description
Product Details

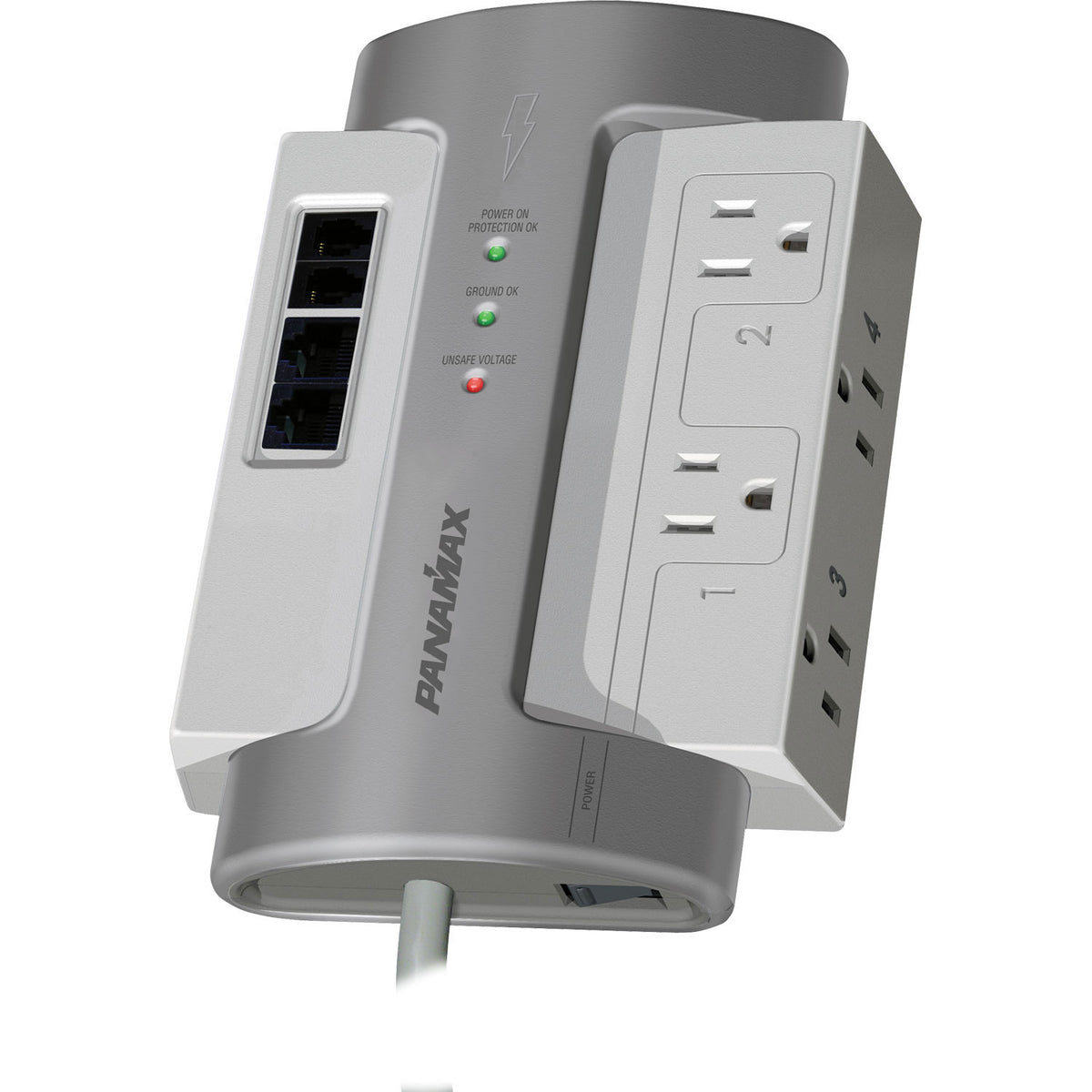

Noise Filtration/Surge Protection for All Home/Office Equipment
Features
- RJ-11 Phone line IN/OUT connectors.
- RJ-45 CAT5e IN/OUT LAN connectors.
- Power indicator LEDs.
- Four (4) protected AC receptacles with tranformer spacing
- Exceeds UL Safety Standards
- Solid-State Telephone Line Protection
- Compatibility 10/100/1000 BASE-T (CAT 5e)
- Includes DSL Phone Line Splitter
- Four AC Outlets with Transformer Spacing
- Accepts Add-on Signal Line Modules to Accomodate System Expansion
Specifications
Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
Thermal Fusing: Yes
Single Pulse Energy Dissipation: 1650 Joules
Response Time: 1ns
Peak Impulse Current: 52,000 Amps
Patented Power Management Circuit: Yes
LAN Protection
Wires Protected: Pins 1-8
Suppression Modes: Differential & Common Ground
Connectors: RJ-45
Compatability: 10/100/1000 BASE-T (CAT 5e)
Clamping Level: 62V
Telco Protection
Wires Protected: 2 wire, 1 pair (3,4)
Suppression Modes: Metallic & Longitudinal
Fuseless/Auto-Resettable: Yes
Connectors: RJ-11
Clamping Level: 260V
Capacitance: 30 pf (approx.)
