Product Details

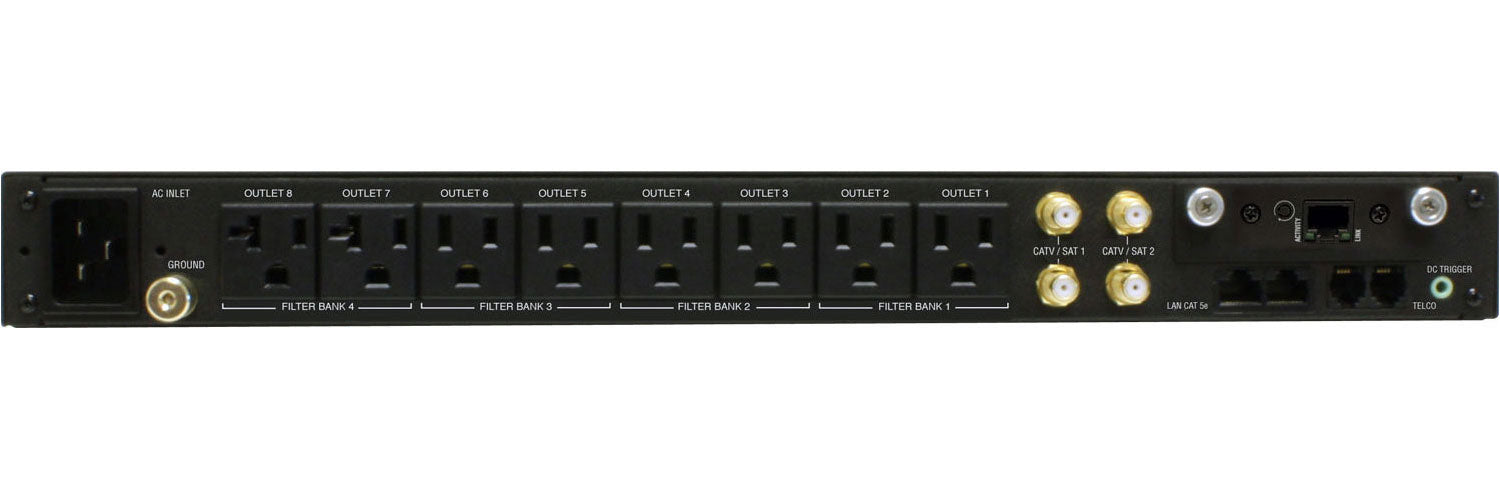

The M4320-PRO features Panamax™ revolutionary AVM (Automatic Voltage Monitoring) circuit, and our exclusive Linear Filtering Technology (LiFT). Together, these technologies comprise precisely what our customers have come to expect from Panamax: uncompromised AC protection and purification. Outlets: all rear panel outlets are separately controlled. They are grouped into four (4) filter-isolated banks. BlueBOLT™ is included, providing secure, hosted IP system control and monitoring for the M4320-PRO
Features
Power Management with Control System Interactive Functionality.
- 20 Amp Capacity M4320-PRO
- 8 Individually Controllable Rear Panel Outlets
- Fully Programmable
- TCP/IP (BlueBOLT™) Installed
- Linear Filtration with 3 Isolated LiFT Filter Banks, 76db (5 kHz – 250 kHz), 46 db (250 kHz – 1 MHz)
- One Isolated Filter Bank for High Current Devices, 60db (5 kHz – 450 kHz), 46 db (450 kHz – 1 MHz)
- Front Panel Circuit Breaker
- Removable Front Rack Ears
- 12 Volt Input Triggering
- Detachable 10 ft. Power Cord – 20A plug
- AVM & Protect-or-Disconnect Circuitry
Specifications
Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
Single Pulse Energy Dissipation: 2700 Joules
Peak Impulse Current: 135,000 Amps
LAN – Wires Protected: 8-Wires
LAN – Compatibility: 10/100/1000 BASE-T
LAN – Clamping Level: 60 ± 5V
Coax – Shielded: Yes
Coax – Insertion Loss: < 0.5 dB
Coax – HD 1080 i/p Ready: Yes
Coax – Frequency Range: 0 MHz – 2.2 GHz
Coax – Connections: Female “F”, Gold Plated
Coax – Clamping Level: 75V
Coax – Bidirectional: Yes
