Product Details
Exclusive Protect or Disconnect™ Circuitry
Safeguards equipment against all surges. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.
Signal Perfect™ Circuitry
Optimized phone line surge protection circuitry ensures a clean, clear signal. It features solid-state SIDACtor® and autor-resetting PTCR’s for maximum protection and reliability.
$5,000,000 Limited Connected Equipment Protection Warranty
Panamax will protect your equipment or we will repair or replace up to $5,000,000!
Lifetime Product Warranty
The surge protector shall be free of any defects in design, materials, or workmanship, and Panamax will repair or replace any defective unit.
Product Upgrade Offer
See policy for details on upgrade offer to replace damaged units
Features

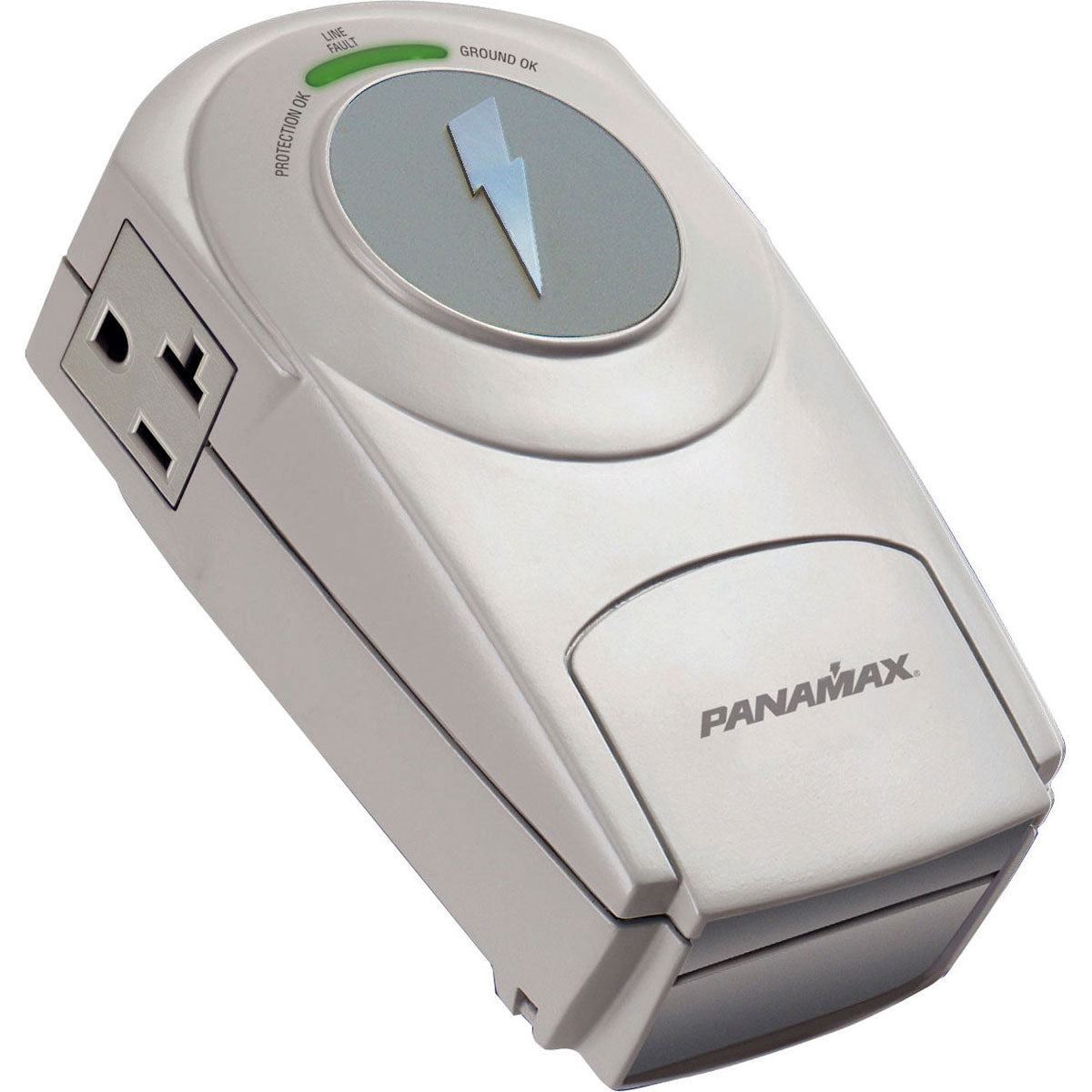

- Two 20 Amp AC Outlets
- Protect-or-Disconnect™ Circuitry
- Convenient security feature; attach the protector to your equipment’s power cords.
- Three diagnostic lights indicate wiring integrity and protection status.
- Space-saving design plugs directly into wall outlet.
- Convenient security feature; attach the protector to your equipment’s power cords.
-
Versatile outlet orientation accommodates the widest range of plug styles including transformers and right angle plugs
Specifications
AC Power
| UL 1449 Suppression Rating | 330V |
| Thermal Fusing | Yes |
| Single Pulse Energy Dissipation | 1350 Joules |
| Response Time | <1 ns |
| Protection Modes | L-N, L-G, N-G |
| Protect or Disconnect™ Circuitry | Yes |
| Peak Impulse Current | 52,000 A |
| Maximum Current Rating | 20A (2400 W) |
| Line Voltage | 120 VAC, 50/60 Hz |
| Initial Clamping Level | 200V |
| EMI/RFI Noise Filtration | 50 dB (100 kHz – 1 MHz) |
| Catastrophic Surge Circuit | Yes |
General
| Weight | .75 lb. |
| Dimensions | 3.12 in. W X 5.5 in. D X 2 in. H |
Agency Approvals & Warranty
| UL® 1449 Rating | 330V |
| Product Warranty | Lifetime |
| Lightning Protection | Yes |
| Connected Equipment Protection Policy | Up to $5,000,000 |
