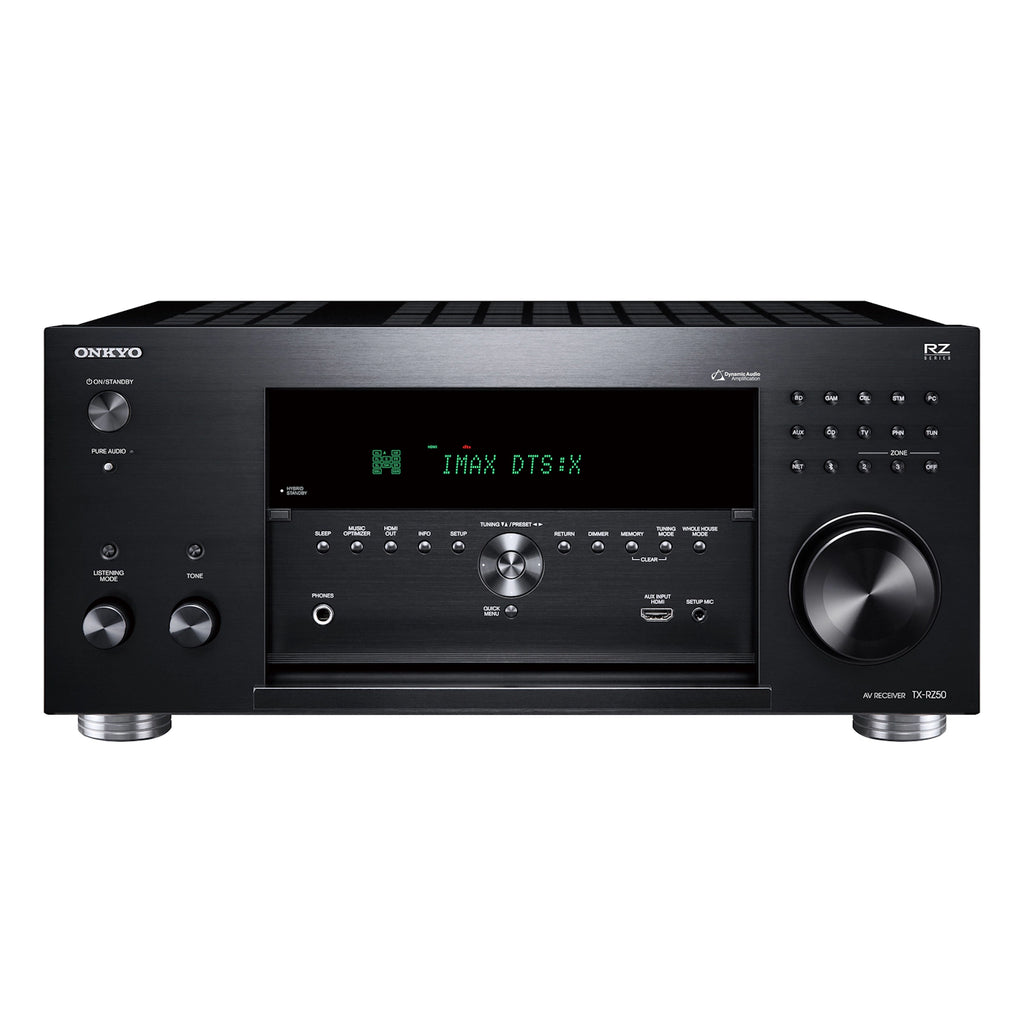

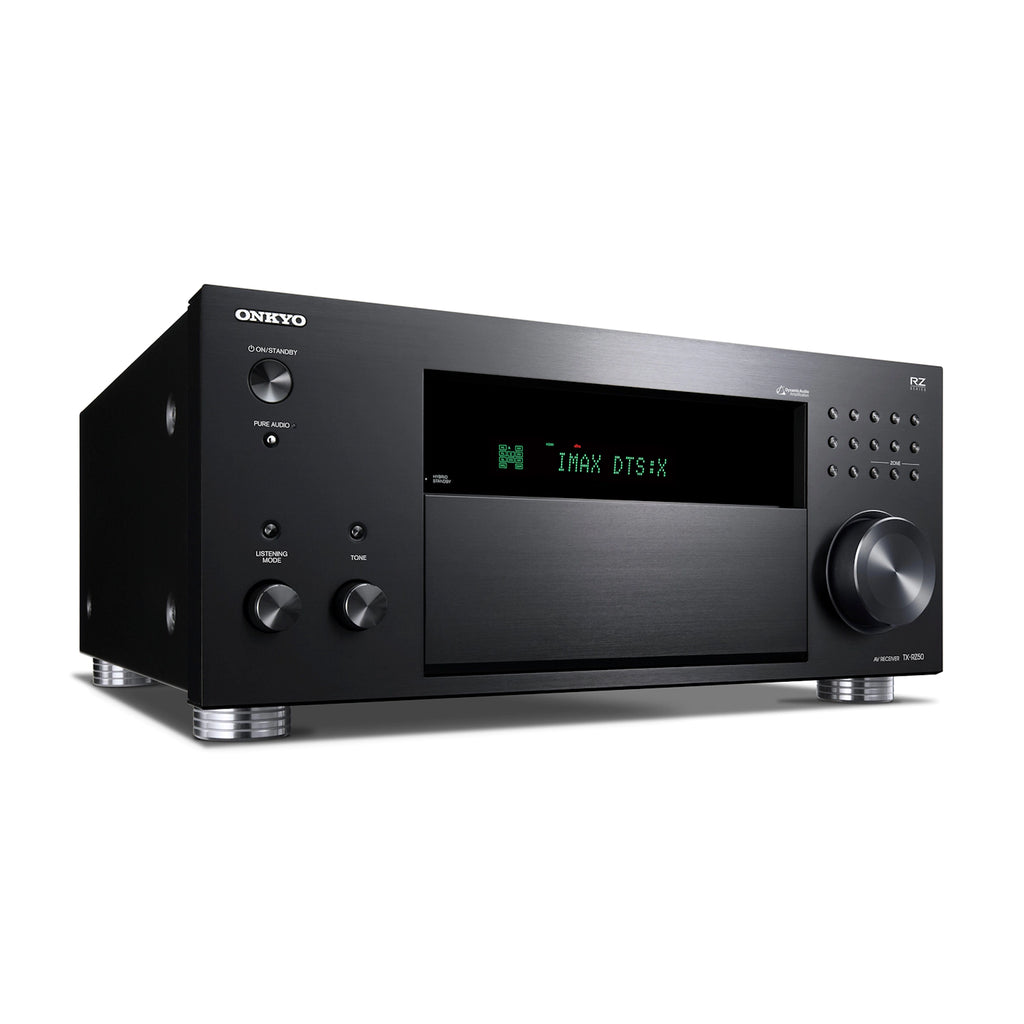

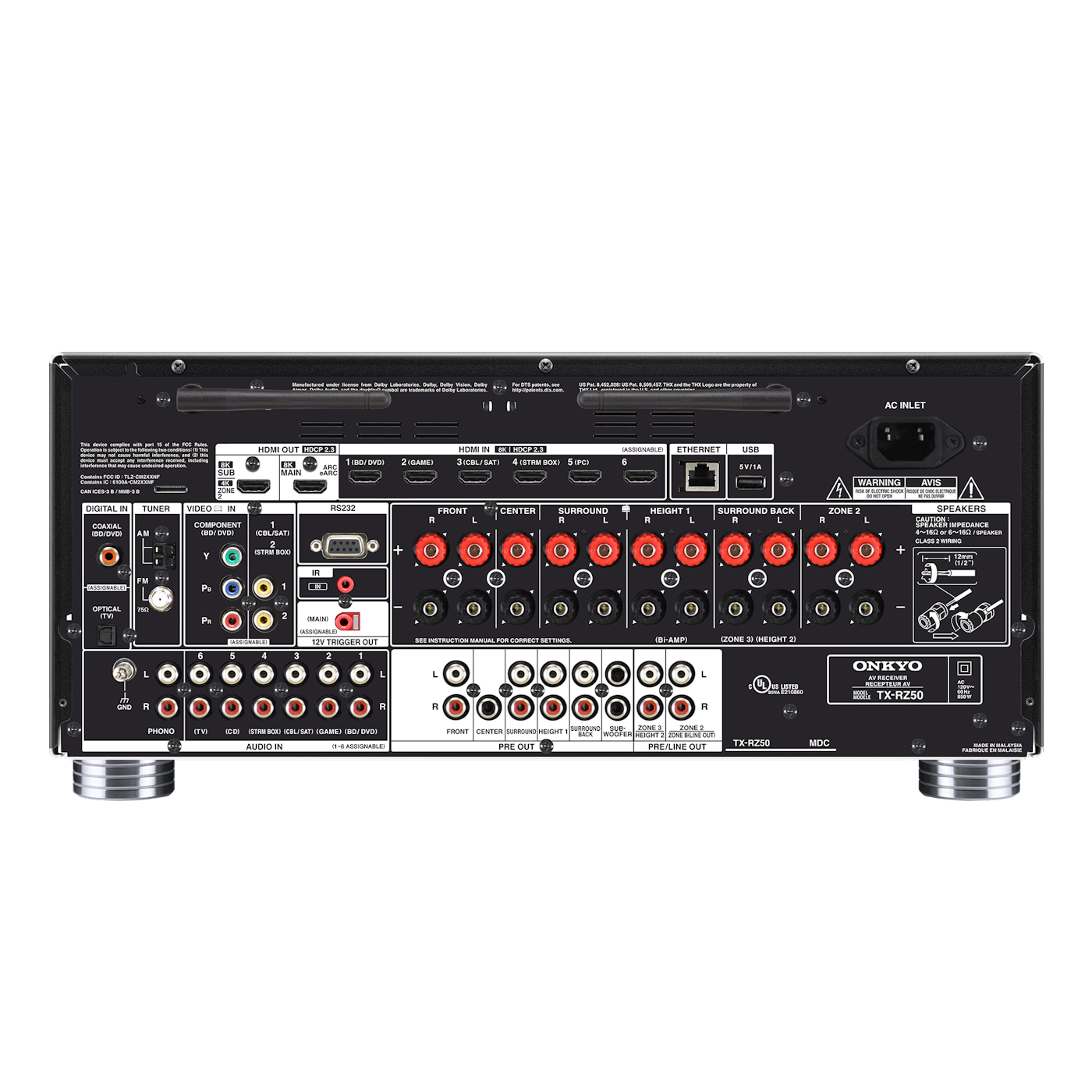

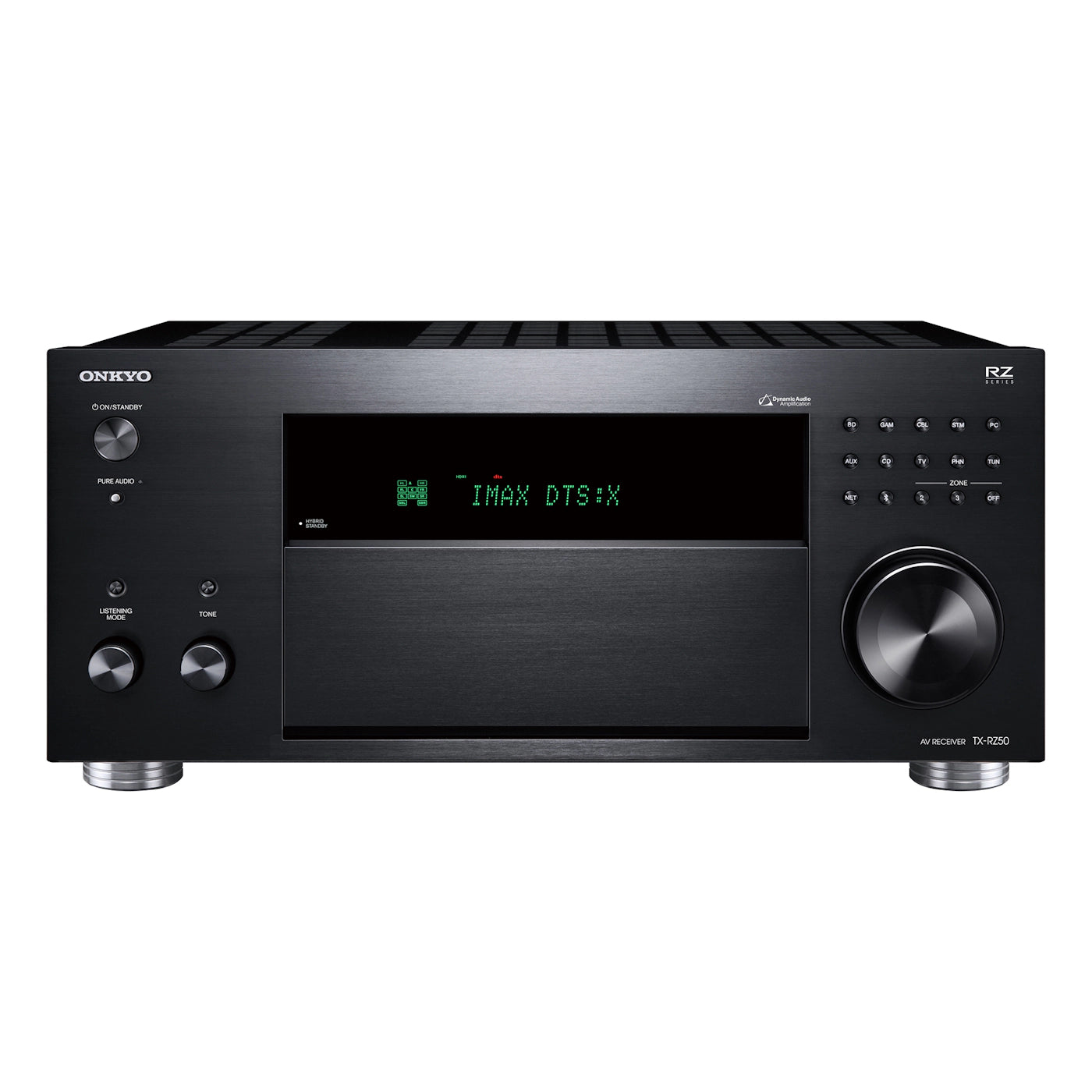

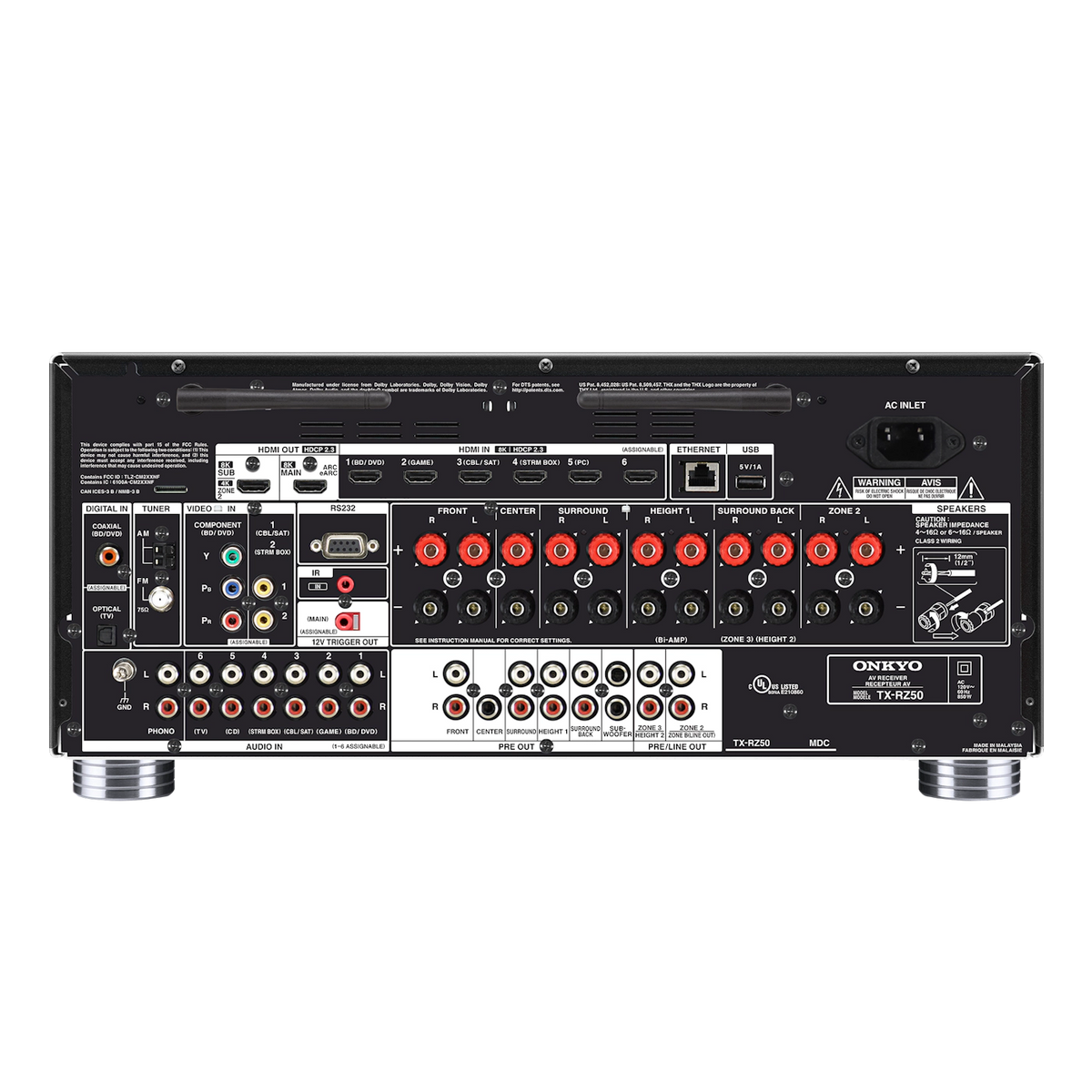

Onkyo TX-RZ50 9.2 Channel AV Receiver
The TX-RZ50 delivers enormous power on-demand to highlight every nuance of the music, movies, and games you love.
Features:
| IMAX® Enhanced certified for immersive signature sound by DTS:X® | ✓ |
| 11.2-ch processing and pre-outs for 7.2.4 layouts | ✓ |
| Supports Dirac Live® Room Correction | 20Hz to 20kHz |
| AccuReflex phase-matching solution for Atmos-enabled speakers | ✓ |
| SMART AV Receiver™ | Works with Sonos, Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music HD, Pandora®, TIDAL, Deezer, and TuneIn streaming services |
| Works with Hey Google or Alexa | Sold separately |
| Stream over 5 GHz/2.4 GHz dual-band Wi-Fi® supporting the 802.11ac standard | ✓ |
| HDMI® inputs | Inputs 1-3 and Main/Sub out support 8K/60AB and 4K/120AB. Inputs 4-6 support 8K/60B and 4K/120AB. Front HDMI Input supports up to 4K/60 (HDMI 2.0). |
| HDMI 2.1 | HDMI 2.1 features that are supported on HDMI inputs 1–6, Main Out, and Sub/Zone 2 Out in Sub Mode output including VRR, ALLM, QFT (Quick Frame Transport), DSC (Display Stream Compression), QMS (Quick Media Switching), and eARC (Main Out). |
| HDMI Sub/Zone 2 Out for media transmission to a second display | ✓ |
| Send or receive audio via Bluetooth® wireless technology | RX mode: SBC/AAC, TX mode: SBC/Qualcomm® aptX™/ aptX HD |
| Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines | ✓ |
| 5.2-ch Main + Powered Zone 2 + Powered Zone 3 speakers support synced/independent D/A audio playback | ✓ |
| Zone 2/Zone B line-out*7 (analog RCA) supports synced or independent D/A playback*8 on compatible audio systems or headphone docks | ✓ |
Specs:
Amplfiers |
|
| Power output (All channels) | 120 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2 channels driven, FTC) |
| THD+N (Total Harmonic Distortion + Noise) | 0.08% (20 Hz–20 kHz, half power) |
| Input sensitivity and impedance | 200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM) |
| Rated RCA output level and impedance | 1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/470 ohms (Zone 2/Zone B line-out) |
| Frequency response | 5 Hz–100 kHz/+1 dB, -3 dB (Direct Mode) |
| Tone control | ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble) |
| Signal-to-noise ratio | 106 dB (Line, IHF-A) 80 dB (Phono, IHF-A) |
| Speaker impedance | 4–16 ohms |
Tuners |
|
| FM | 87.5 MHz–107.9 MHz |
| AM | 530 kHz–1,710 kHz |
| FM/AM preset memory | 40 stations |
Generals |
|
| Power supply | AC 120 V~, 60 Hz |
| Power consumption (operating) | 850 W |
| Power consumption (idle) | 75 W |
| Power consumption (standby) | 0.1 W |
| Dimensions (W x H x D) | 17 1/8˝ x 7 15/16˝ x 15 11/16˝ (435 x 201.5 x 398 mm) |
| Weight | 30.9 lbs. (14.0 kg) |
Accessories Included |
|
| Power cord | ✓ |
| Indoor FM antenna | ✓ |
| AM loop antenna | ✓ |
| Speaker setup microphone | ✓ |
| Quick Start Guide | ✓ |
| Remote control | ✓ |
| Two AAA (R03) batteries | ✓ |
