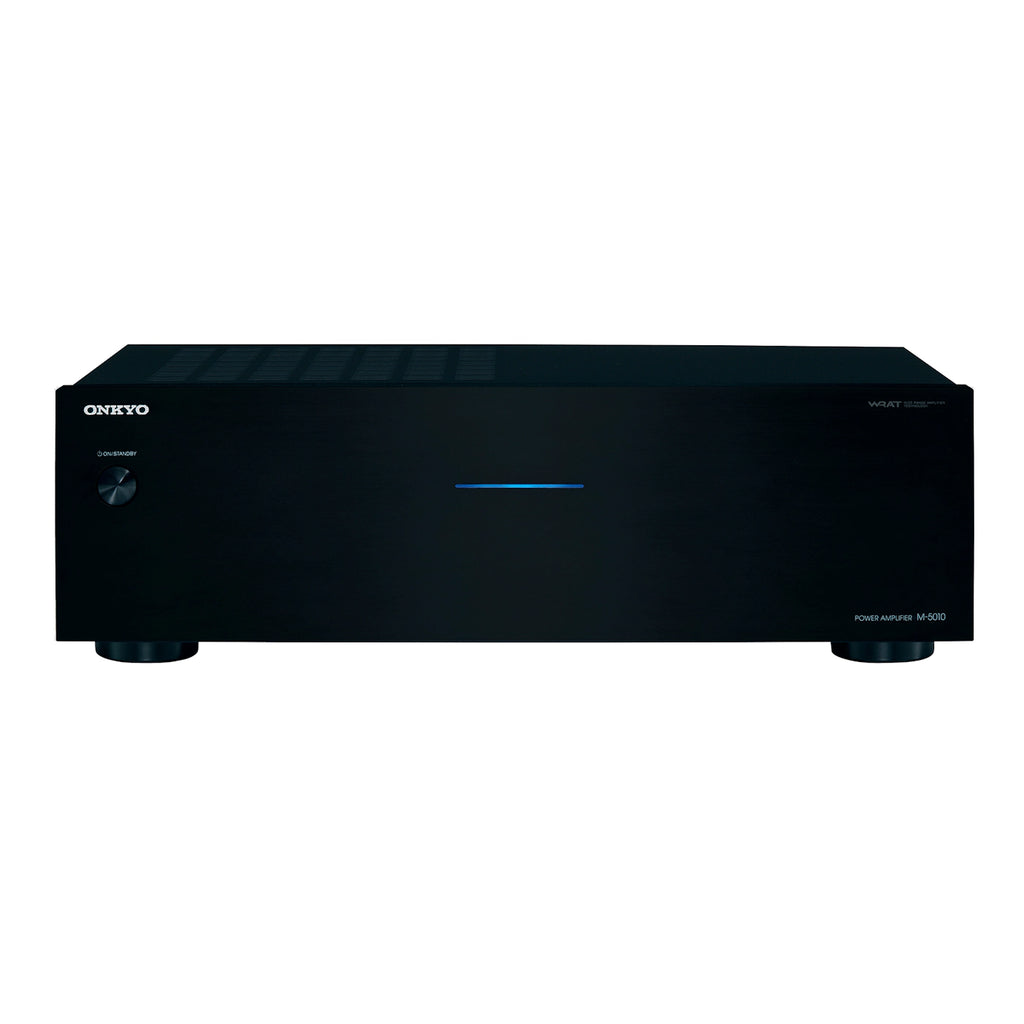

Onkyo M-5010 2-Channel Amplifier
Add the M-5010 2-channel amplifier to expand your home theater’s multi-room capabilities or to enable the 11-channel surround sound feature offered on selected Onkyo A/V receivers.
Boasting our acclaimed Wide Range Amplifier Technology (WRAT) with three-stage inverted Darlington Circuitry, this two-channel power amp is perfect for handling the fast-changing dynamics of movie soundtracks while retaining enough sensitivity to deliver all the nuances of your favorite music.
- Low negative feedback circuits for reduced noise, expanded frequency response, and maximum efficiency
- Highly durable amp construction built around a thick anti-resonant metal chassis for extra vibration resistance
- All-analog circuitry for an ultra-clear sound
- High-output power supply for signal purity

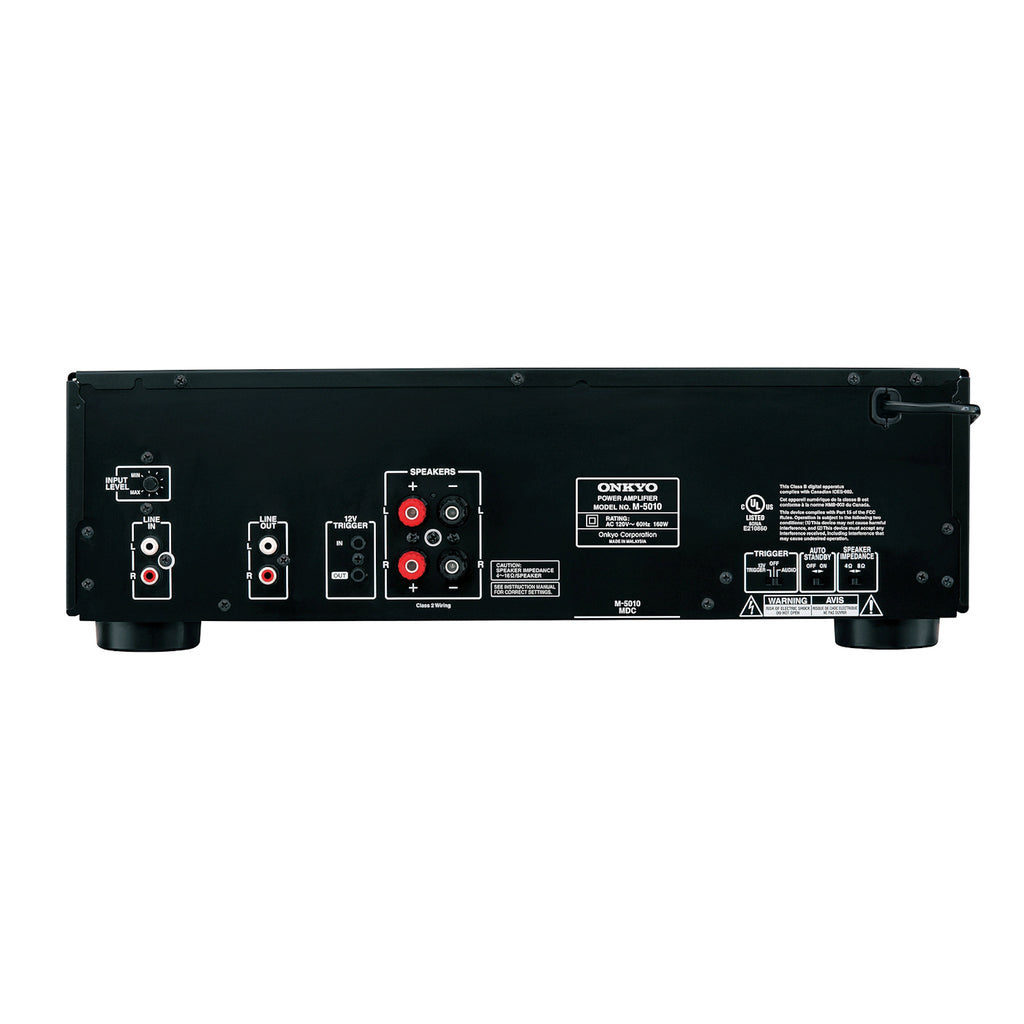

- Configure your setup with selectable audio, 12-volt triggers, and rear side level adjustments
- Banana plug-compatible speaker posts included for easy integration
Specs:
Amplifer |
|
| Power Output | 75 W/Ch (8 Ohms, 1 kHz, 0.08%, 2 Channels Driven, FTC) |
| THD (Total Harmonic Distortion) | 0.08% (Rated Power) |
| Damping Factor | 60 (Front, 1 kHz, 8 Ohms) |
| Input Sensitivity and Impedance | 870 mV/20 k-Ohms (Unbalanced) |
| Rated RCA Output Level and Impedance | 0.87 V/270 Ohms (Line Out) |
| Frequency Response | 10 Hz–100 kHz/+0 dB, -3 dB |
| Signal-to-Noise Ratio | 110 dB (Line, IHF-A) |
| Speaker Impedance | 4 Ohms–16 Ohms |
General |
|
| Power Supply | AC 120 V~, 60 Hz |
| Power Consumption | 160 W |
| No-Sound Power Consumption | 45 W |
| Standby Power Consumption | 0.4 W |
| Dimensions (W x H x D) | 17 1/8˝ x 5 1/2˝ x 12 1/4˝ (435 x 139 x 311 mm) |
| Weight | 17.6 lbs. (8.0 kg) |
