Description

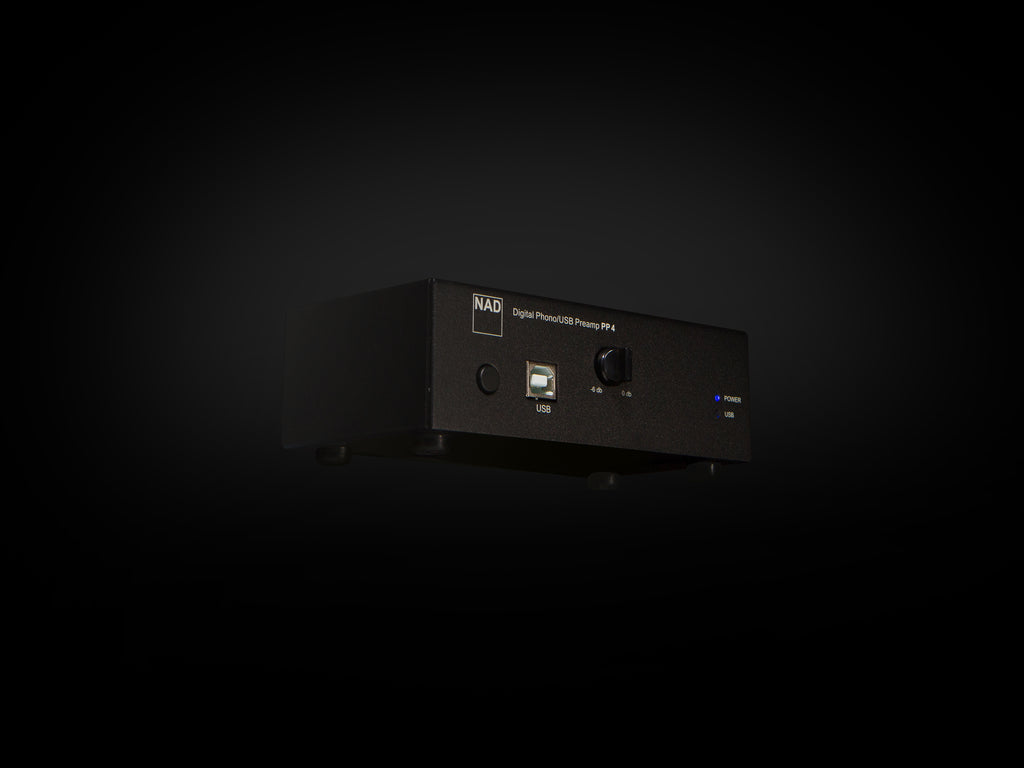

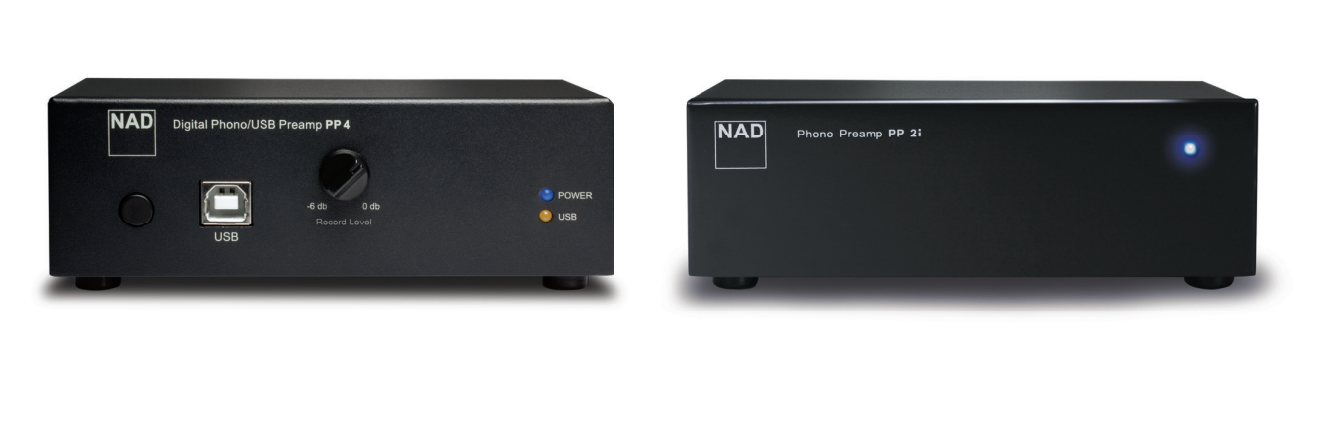

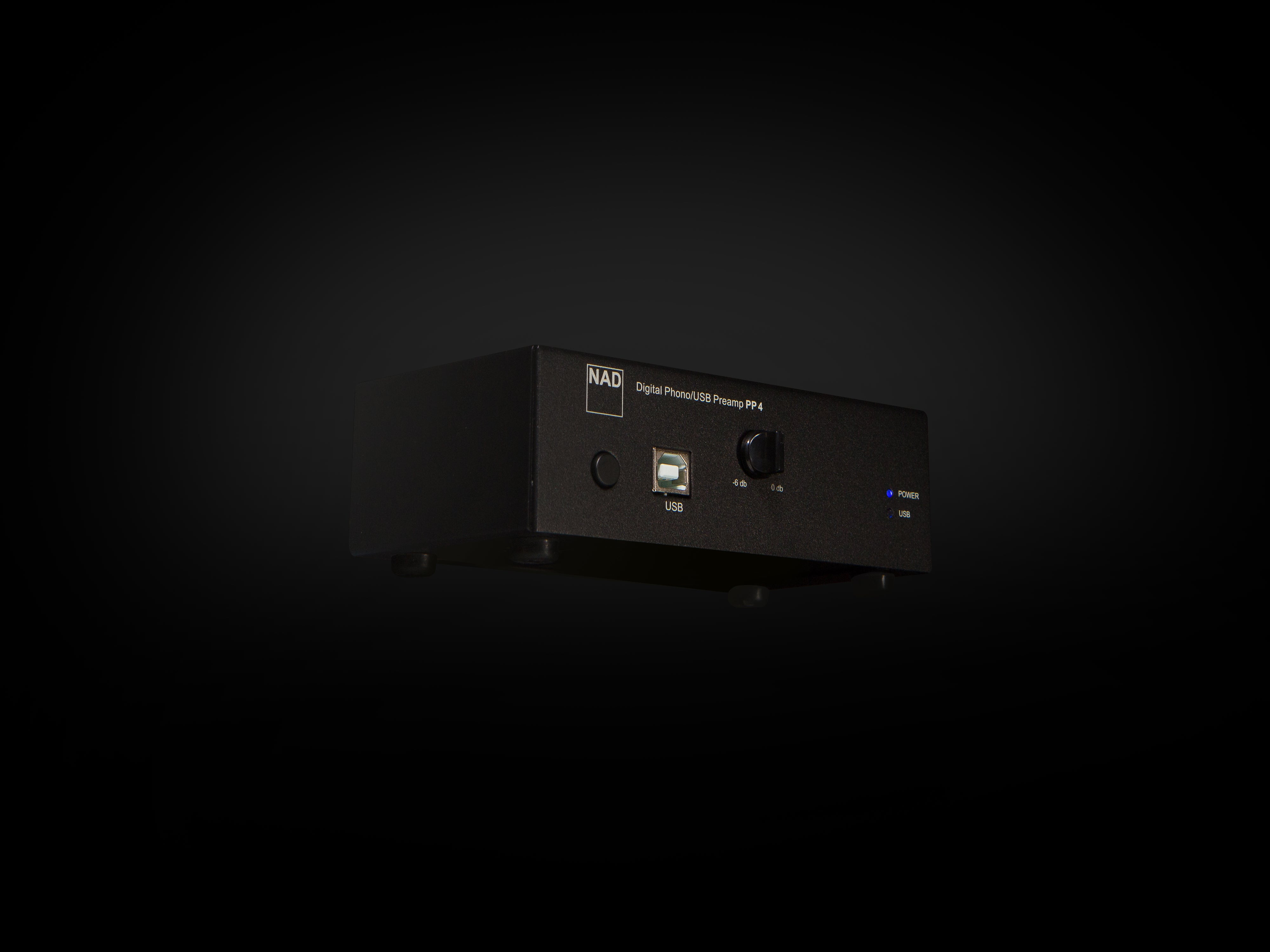

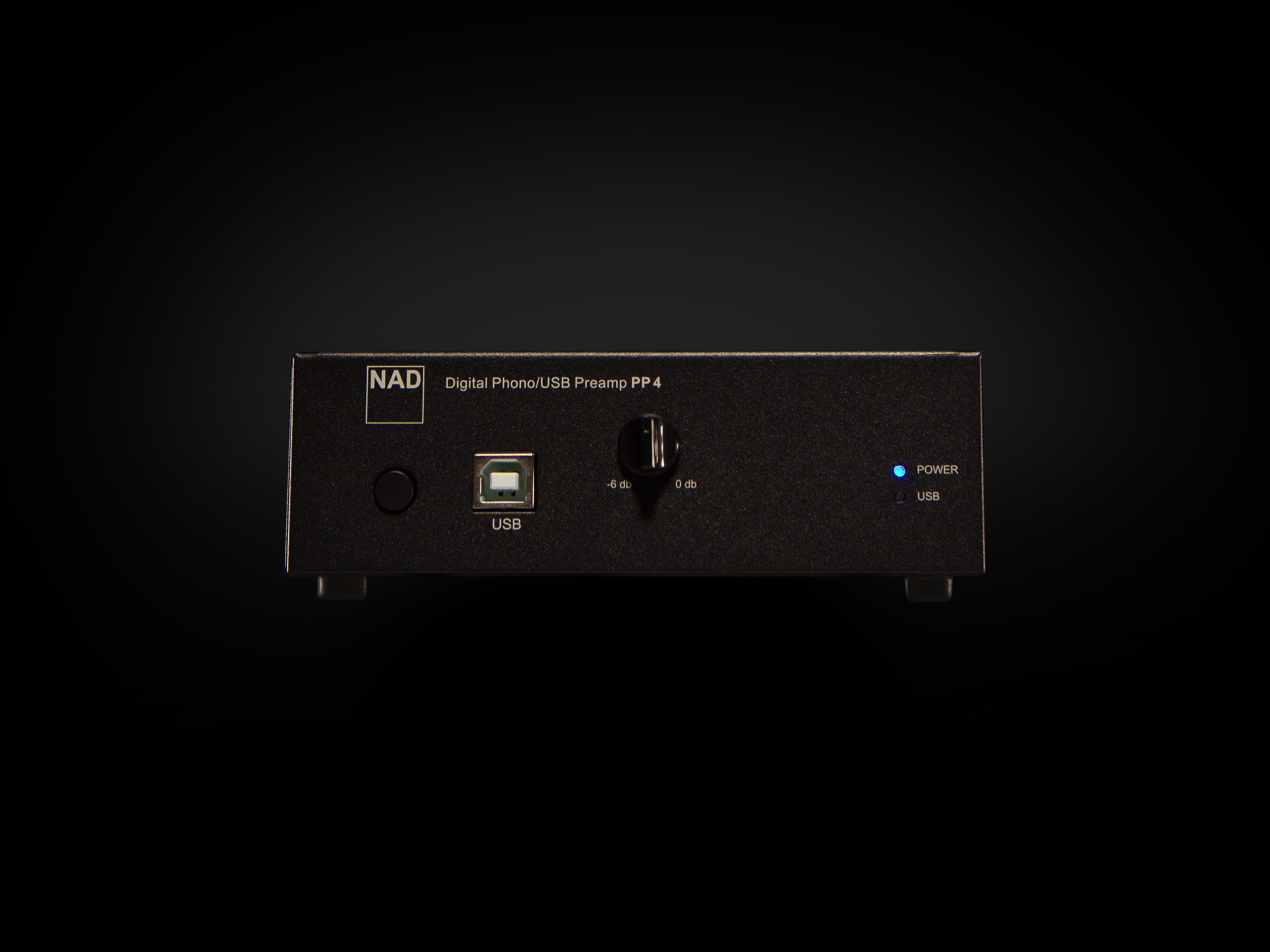

NAD PP 4 Digital Phono USB Preamplifier



Digitise your vinyl collection

Offering superb measured and sonic performance, NAD’s two simple solutions, the PP 4 Digital Phono/USB Preamplifier makes it easy to add phono to many of today’s stereo amplifiers and AV receivers that have either eliminated the phono input or included a low quality circuit for attaching your turntable. As part of NAD’s commitment to the environment, the PP 4 features a more efficient “green” power supply that reduces power consumption. The PP 4 goes one step further with a USB interface, shielded USB cable and recording level control which reduces noise and improves the analogue-to-digital conversion process. The PP 4’s Auto Power Down feature saves energy by automatically powering the PP 4 to OFF when not in use.

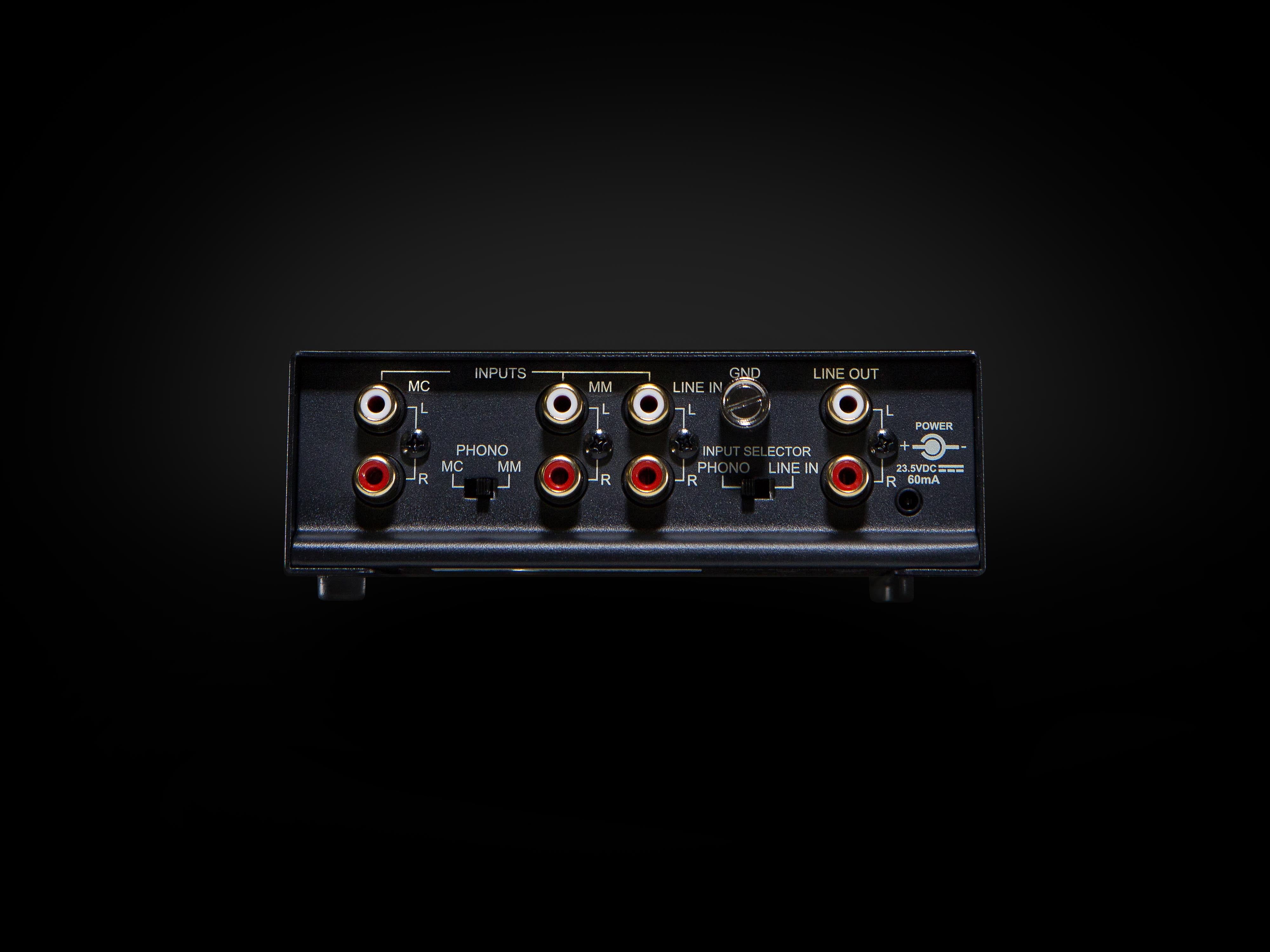

Our PP 4 Digital Phono/USB Preamplifier enables you to digitise your treasured vinyl collections to a PC or Mac. It features inputs for both MM (moving magnet) and MC (moving coil) types for a wide variety of phono cartridges, and there is a line input to allow for the transfer of cassette tapes. The PP 4 also includes VinylStudio Lite Software for ripping LPs and burning audio CDs. The PP 4 Phono-to-USB Preamp offers a complete hardware and software solution with exceptional flexibility to record from LP or tape.

PP 4 VinylStudio Lite

The PP 4 (or the older PP 3) comes with Mac and PC compatible version of AlpineSoft’s VinylStudio Lite ripping software is included with your new PP-4. With VinylStudio Lite you can:

  • Rip LPs into WAV files
  • Split Tracks
  • Burn CDs
  • Record Disks
  • Look up Song Titles
  • Handle File Management

MC

  • Input Impedance (R and C)
  • 100 Ohm + 180pF
  • Gain at 1kHz
  • 58dB
  • Input sensitivity (ref. 200mV output)
  • 0.38mV
  • Signal to noise (A weighted, with cartridge connected)
  • 78dB
  • Input overload (20Hz/1kHz/20kHz)
  • 0.65/6.5/60mV
  • Rated Distortion (THD 20Hz – 20kHz)
  • <0.03%
  • RIAA response accuracy
  • ±0.3dB
  • Infrasonic filter
  • -14dB (5Hz)
  • -3dB (10Hz)
  • Digital output (USB)
  • 16 bit linear PCM
  • Sampling frequency
  • 48kHz
  • Dynamic range
  • 86dB

MM

  • Input Impedance (R and C)
  • 47 kilohm + 200pF
  • Gain at 1kHz
  • 35dB
  • Input sensitivity (ref. 200mV output)
  • 5mV
  • Signal to noise (A weighted, with cartridge connected)
  • 76dB
  • Input overload (20Hz/1kHz/20kHz)
  • 10/100/900mV
  • Rated Distortion (THD 20Hz – 20kHz)
  • <0.03%
  • RIAA response accuracy
  • ±0.3dB
  • Infrasonic filter
  • -14dB (5Hz)
  • -3dB (10Hz)
  • Digital output (USB)
  • 16 bit linear PCM
  • Sampling Frequency
  • 48kHz
  • Dynamic range
  • 89dB
  • Record Level
  • 0dB to -6dB
  • Gross Dimensions excl. Power supply (W x H x D)*
  • 135 x 49 x 72mm
    5 5/16 x 1 15/16 x 2 7/8″**

*Gross dimensions include feet, extended buttons and rear panel terminals.

**Non-metric measurements are approximate.

Line In

  • Input Impedance
  • 47 kilohm + 180pF
  • Rated Distortion (THD 20Hz – 20kHz)
  • <0.008%
  • Signal to noise, A weighted
  • -115dB
  • Maximum Input Level
  • 5.3V

Line Out

  • Output Impedance
  • 100 Ohm
  • Maximum Output Level
  • 5.3V
