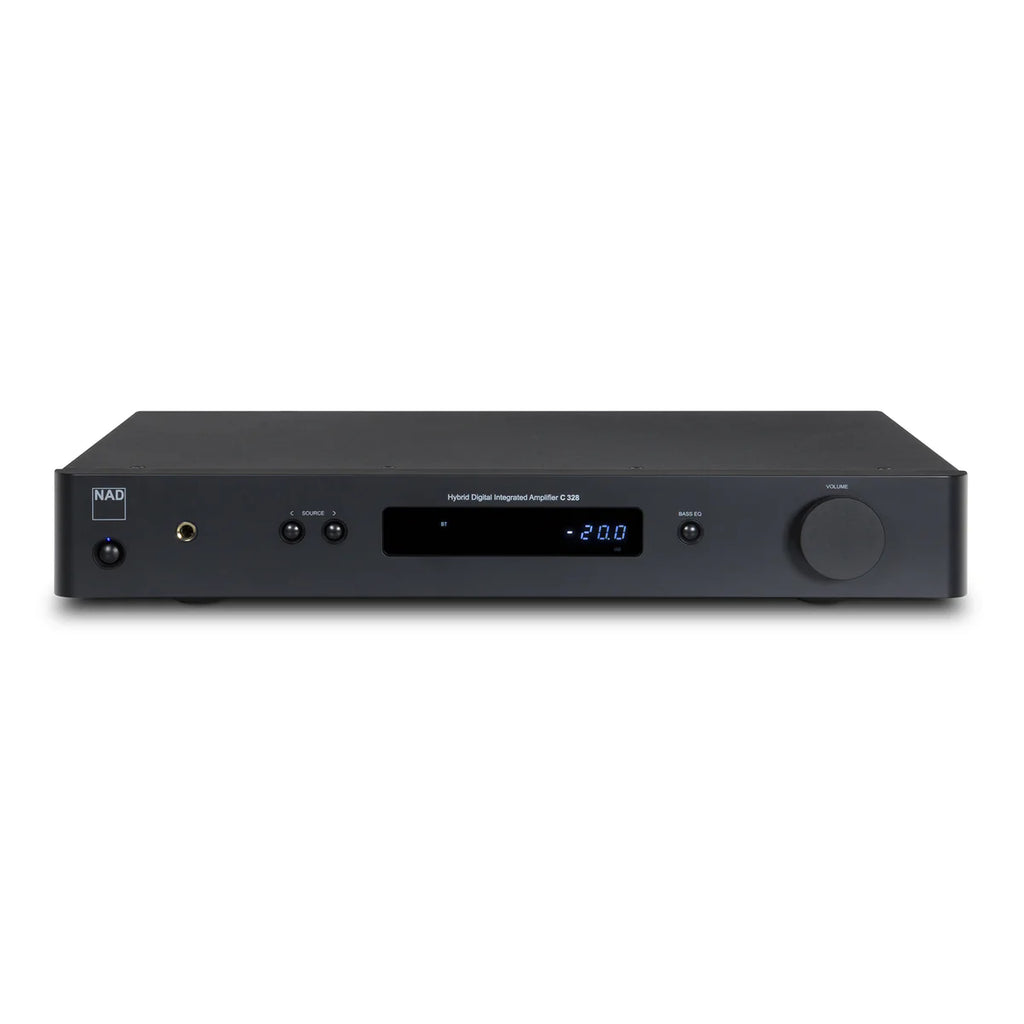

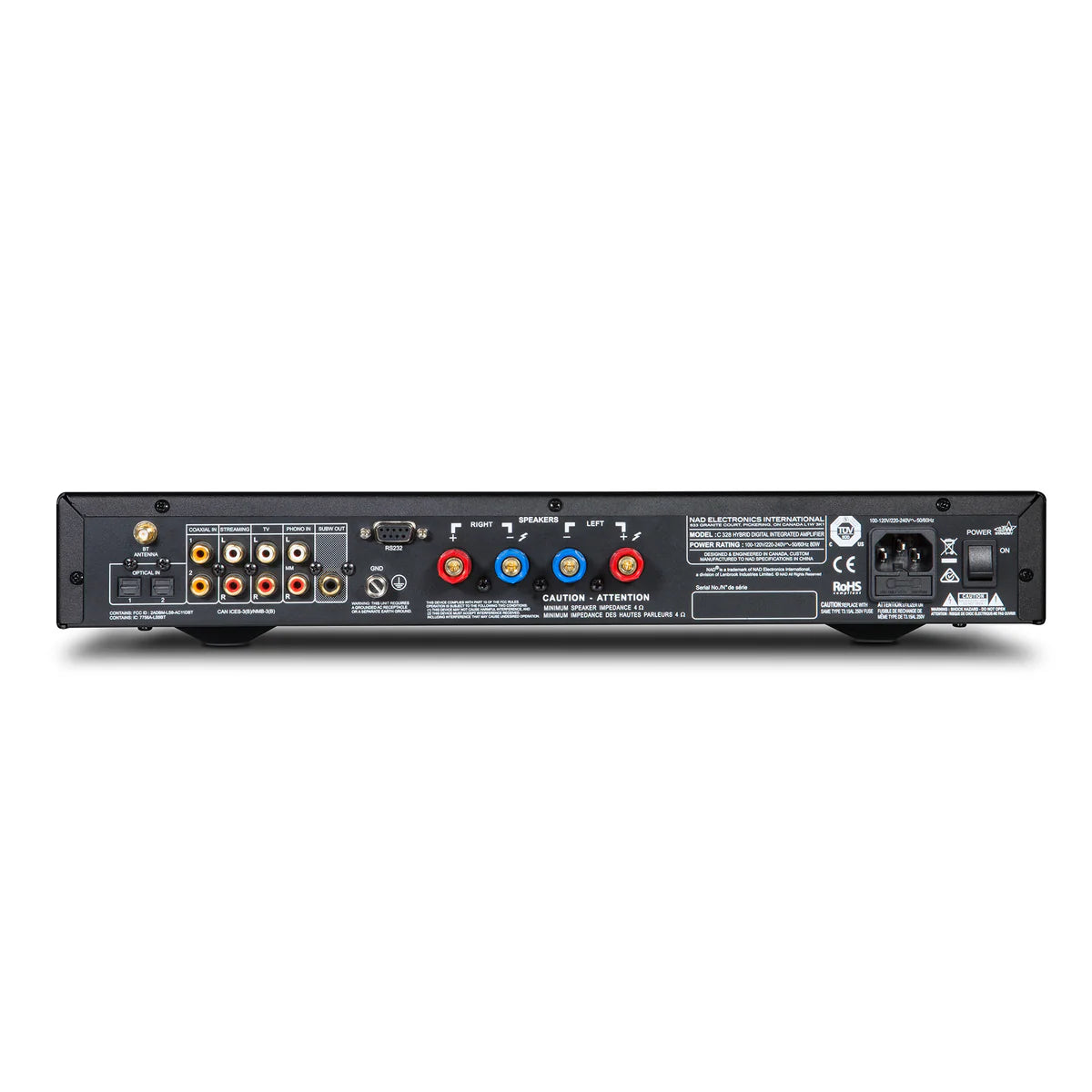

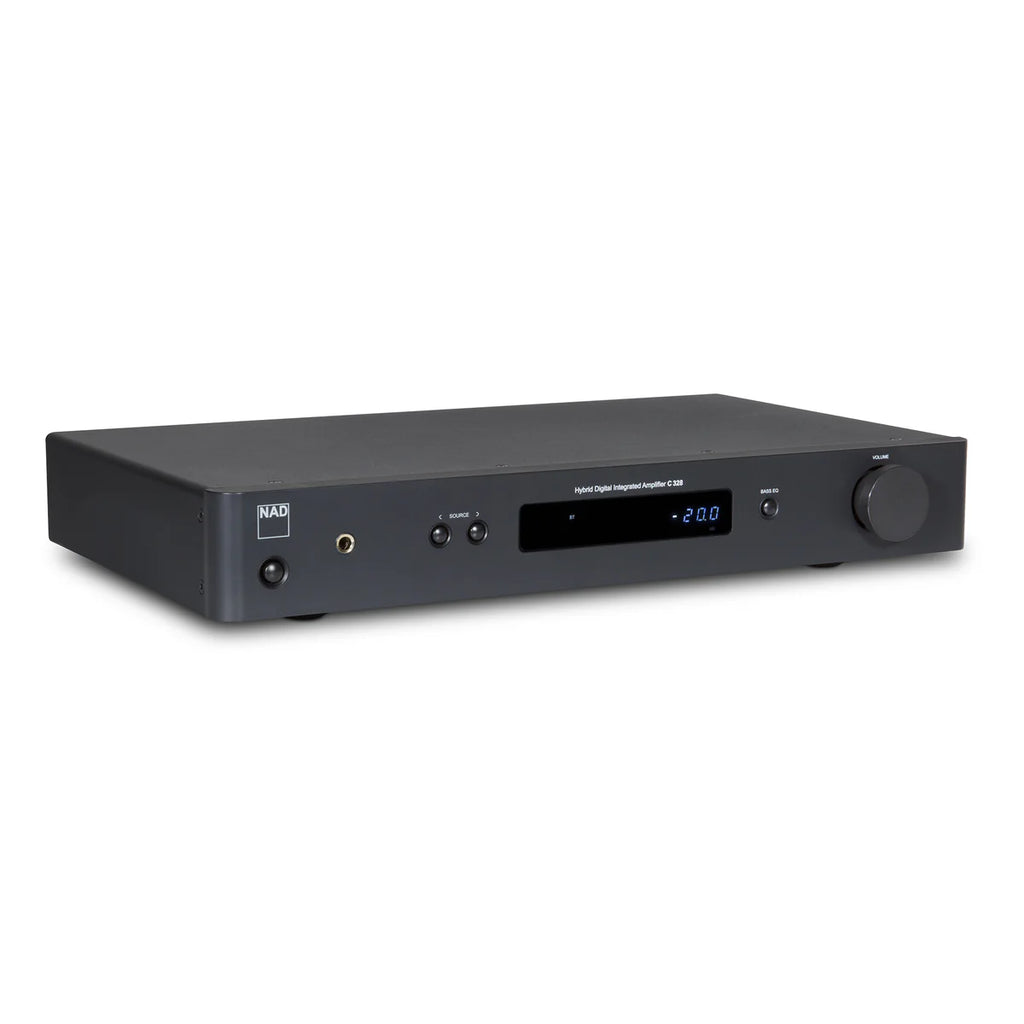

NAD C328 Hybrid-Digital DAC Amplifier
Product Details
The NAD C 328 HybridDigital DAC Amplifier makes it easy to build a clean, modern hi-fi system with the musicality and precision NAD is known for. Its 50 Watts per channel HybridDigital UcD design delivers detailed, low-noise performance, while the built-in phono stage brings new clarity to vinyl playback. Support for Bluetooth adds simple wireless streaming, and versatile analogue and digital inputs make integration effortless. Compact and thoughtfully designed, the C 328 is an ideal first step into true high-fidelity sound.
Features
- 50 Watts per channel of HybridDigital UcD amplification into 8 or 4 ohms
- High-performance DAC stage for clear, low-noise digital playback
- Built-in MM phono input with accurate RIAA equalisation
- Bluetooth support for simple wireless music streaming
- Analogue and digital inputs for easy system integration
- Separate headphone amplifier with high output capability
- Subwoofer output for expanding low-frequency performance
- Low-noise circuitry with precise digital volume control
- Auto standby, Eco mode, and low power consumption
- Compact, lightweight design suitable for small hi-fi systems
Specifications
| Continuous output power into 8 Ohms and 4 Ohms |
50W (ref. 20 Hz-20 kHz at rated THD, both channels driven) |
| THD (20 Hz – 20 kHz) |
<0.005 % at 1 V out |
| Signal-to-Noise Ratio |
>100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain) |
| Frequency response |
±0.3 dB (20 Hz - 20 kHz) |
| Output impedance |
11 ohms |
| THD (20 Hz – 20 kHz) |
<0.005 % at 1 V out |
| Signal-to-Noise Ratio |
>100 dB (A-weighted, 32 ohms, ref. 2V out, unity gain) |
| Frequency response |
±0.2 dB (20 Hz - 20 kHz) |
| Output impedance |
200 ohms |
| THD (20 Hz – 20 kHz) |
<0.03 % (100 mW to 40 W, 8 ohms and 4 ohms) |
| Signal-to-Noise Ratio |
>95 dB (A-weighted, 500 mV input, ref. 1 W out 8 ohms) |
| Frequency response |
±0.3 dB (20 Hz - 20 kHz) |
| THD (20 Hz – 20 kHz) |
<0.03 % (200 mW to 40 W, 8 ohms and 4 ohms) |
| Signal-to-Noise Ratio |
>75 dB with IHF MM cartridge (A-weighted, ref. 5mV input 1 kHz and 1W output in 8 ohms) |
| Frequency response(RIAA deviation) |
±0.3 dB (20 Hz - 20 kHz) |
| at ECO Standby mode |
0.5 Watts* |
| at Control Standby mode |
0.6 Watts** |
| OFF mode (Power switched OFF) |
0 Watts |
| Gross dimensions (W x H x D) |
435 x 70 x 285 mm (17 1/8 x 2 13/16 x 11 1/4") |
| Net weight |
4.9 kg (10.8 lbs) |
| Shipping weight |
5.9 kg (13.0 lbs) |
