Description
Lumentruss 30W Universal 24V LED Driver, 120/277V
THE COMPLETE FAMILY OF ADJUSTABLE VOLTAGE OUTPUT DRIVERS
The LTE series offers the range of 30W, 60W, 96W, 192W (96W x 2) and 288W (96W x 3) drivers with 24V adjustable output. The voltage output adjustment (up to 26V) allows
to compensate possible voltage drops when you need longer wire leads between your driver and your lighting application.
FEATURES:
• Constant voltage output
• Flicker-free dimming
• 100 - 277VAC (Universal) range

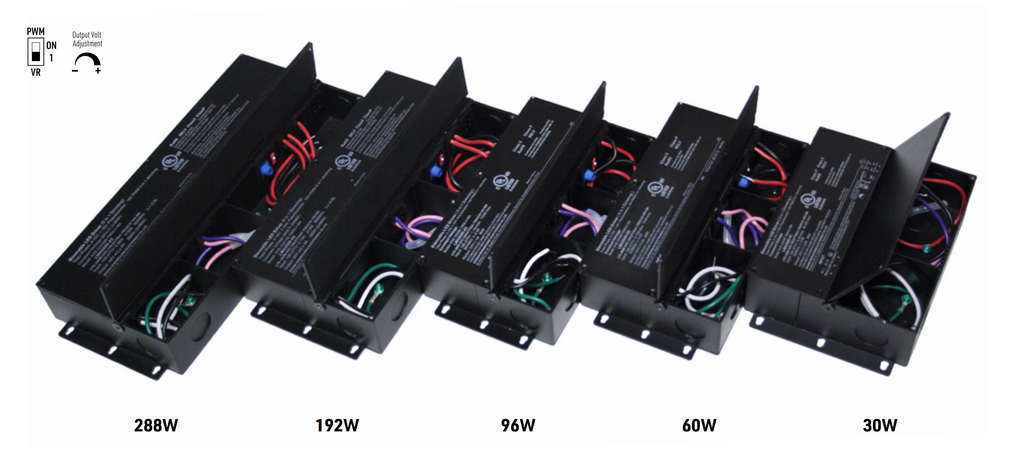

• Available in 30W, 60W, 96W, 192W and 288W
• Built-in Power Factor Correction (PFC) function
• Easy field voltage adjustment
• Efficiency up to 84%
• Short circuit, over load, over temperature protection
• Cooling by free air convection
• Full aluminum protection housing for dry, damp and wet locations
• Phase dimming: forward phase, MLV, reverse phase, ELV, TRIAC
• 0-10V dimming: 0 - 10V / 1 - 10V / Potentiometer / 10V Power Width Modulation (PWM) 4 in 1
• Dimming range 0 - 100%, dimming depth 0.1%
• High efficiency, smaller size, high power factor, low THD
• Surface installation
• 5 years warranty
