Description

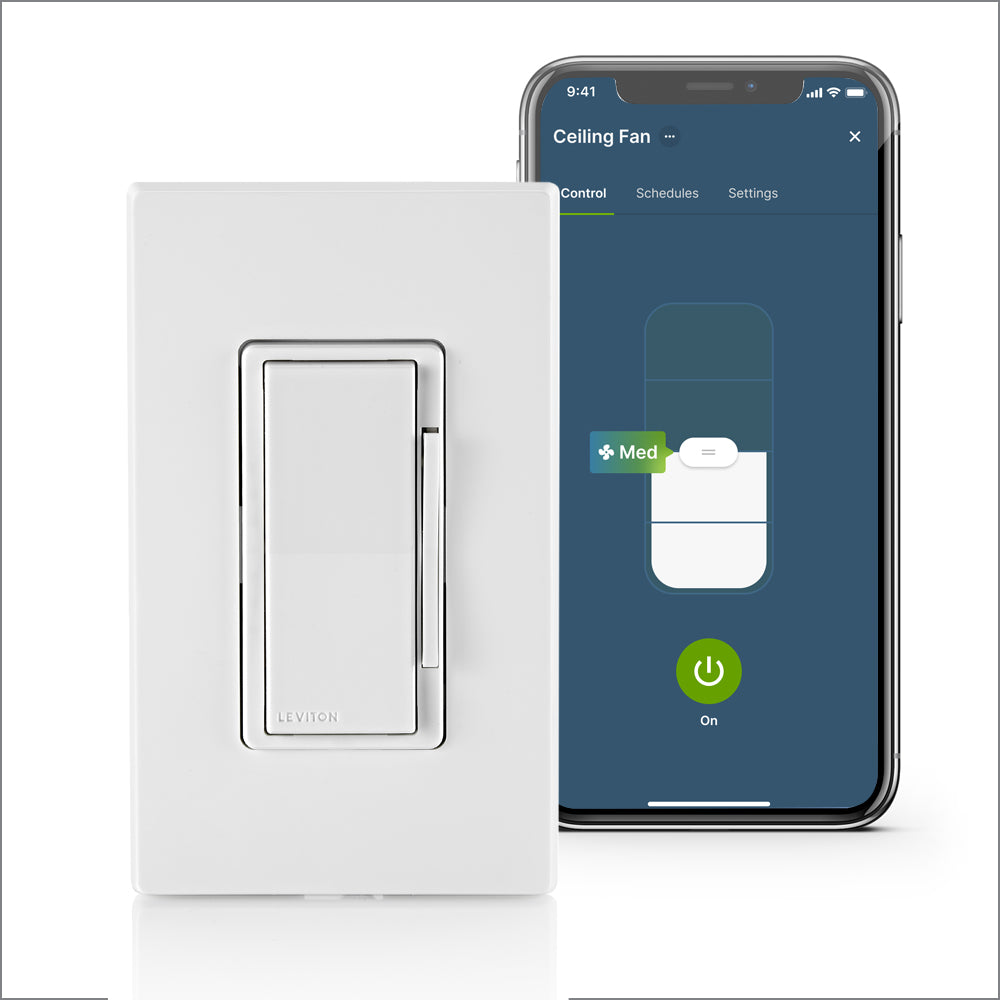

Leviton D24SF-1BW Decora Smart Fan Speed Controller, Wi-Fi, Neutral Wire Required
Decora Smart Fan Speed Controller, single pole, 3-way, or multi-location when used with Wired Switch or Dimmer Companions or Wire-Free Anywhere Dimmer or Switch Companions. For use with overhead ceiling paddle fans not to exceed 1.5A maximum load, neutral wire required – White.
BENEFITS
- Don't worry about stale air – make your existing ceiling fan smart to circulate airflow and improve the wellness of your home
- Never reach for the pull chain again –schedule when your ceiling fans run and at what speed, or use an auto-shutoff timer to turn them off automatically
- Add multiple speed options – replace your existing on/off fan switch to add quiet 4-speed control of your ceiling fan (low, medium, high, max)
- Control fans in high-up, hard-to-reach places –perfect for rooms with tall or vaulted ceilings
- Use your voice to set your fan speed – works with Google Assistant, Amazon Alexa, and Apple Siri
- Personalize your home – have your fan turn on to the speed you want every time, perfect for bedrooms, home offices, home gyms, and living areas
- Control your fan from another wall location in your home without additional wiring – pairs with DAWDC or DAWSC Anywhere Dimmer or Switch Companions
- Smarter energy savings – Use the My Leviton app to control the D24SF Fan Speed Controller with a Leviton D2MSD Motion Sensing Dimmer so your fan turns on when you enter the room and off when you leave
FEATURES
- Quiet fan speed control – On/off control with four speed options including low, medium, high and max
- Works with overhead ceiling fans – rated for up to 1.5A, ideal for pull-chain ceiling fans without electronic control
- The most connected - Works with Alexa, Google Assistant, Apple Home, and SmartThings support can be enabled with a firmware update via the My Leviton app

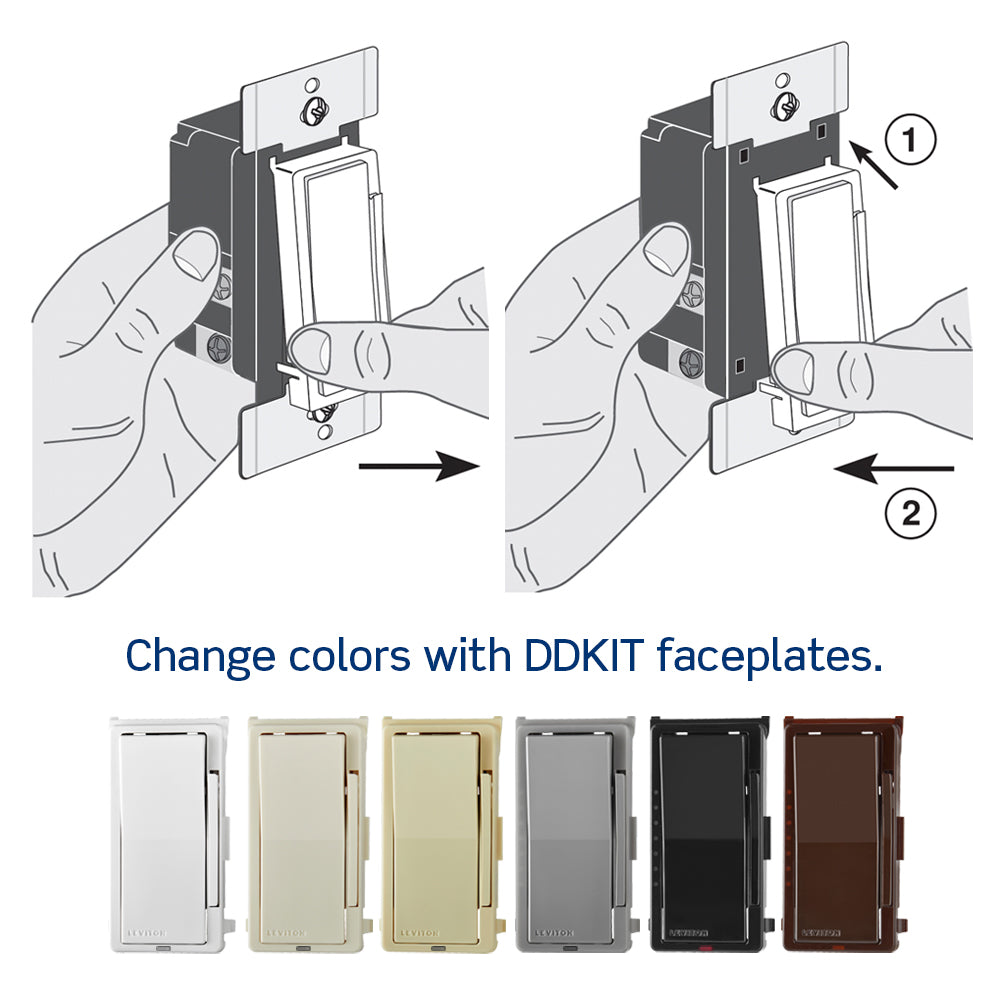

- Match your style – it’s easy to change the color using DDKIT to update to Black, Grey, Light Almond, Ivory, or Brown.
- Simple guided setup – works with the My Leviton app, create schedules, activities, scenes and more

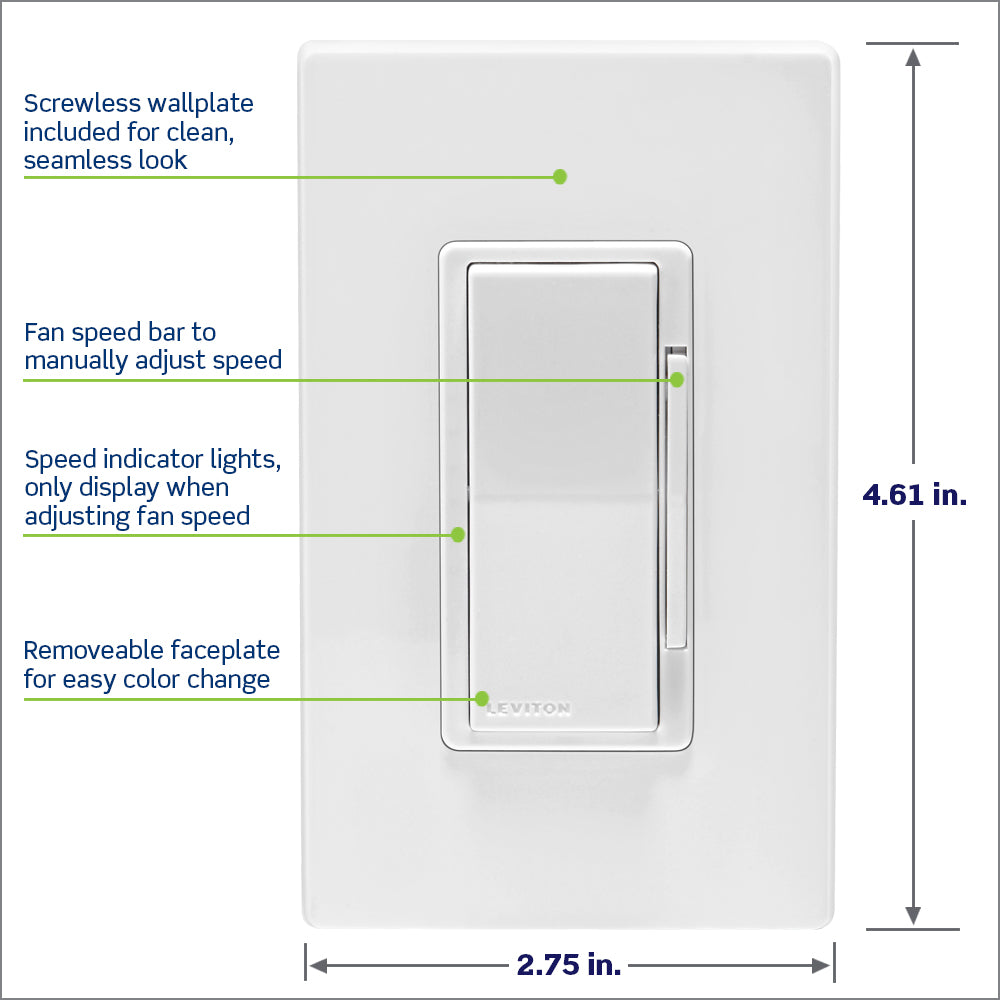

- Easy Install – replaces your existing switch; no hub, slim design, and included screwless wallplate make install a breeze
- Know how fast the fan is going – LEDs on the device light up to show you the fan's current speed
- Single Pole or 3-Way – works with DD00R Wired Dimmer Companion, DD0SR Wired Switch Companion, DAWDC wire-free Anywhere Dimmer Companion, or DAWSC wire-free Anywhere Switch Companion
- Change the color – Change the dimmer faceplate color to black, gray, brown, light almond, ivory or white using DDKIT
TECH SPECS
- Requires 2.4 GHz Wi-Fi Network; No hub required with My Leviton app
- Requires Neutral Wire
- Rated for overhead paddle fans without electronic control up to 1.5A motor; not for use with exhaust type fans, lighting loads, or combined ceiling fan light kits
Electrical Specifications
Load Rating: 1.5A Fan Motor
Neutral Required: Yes

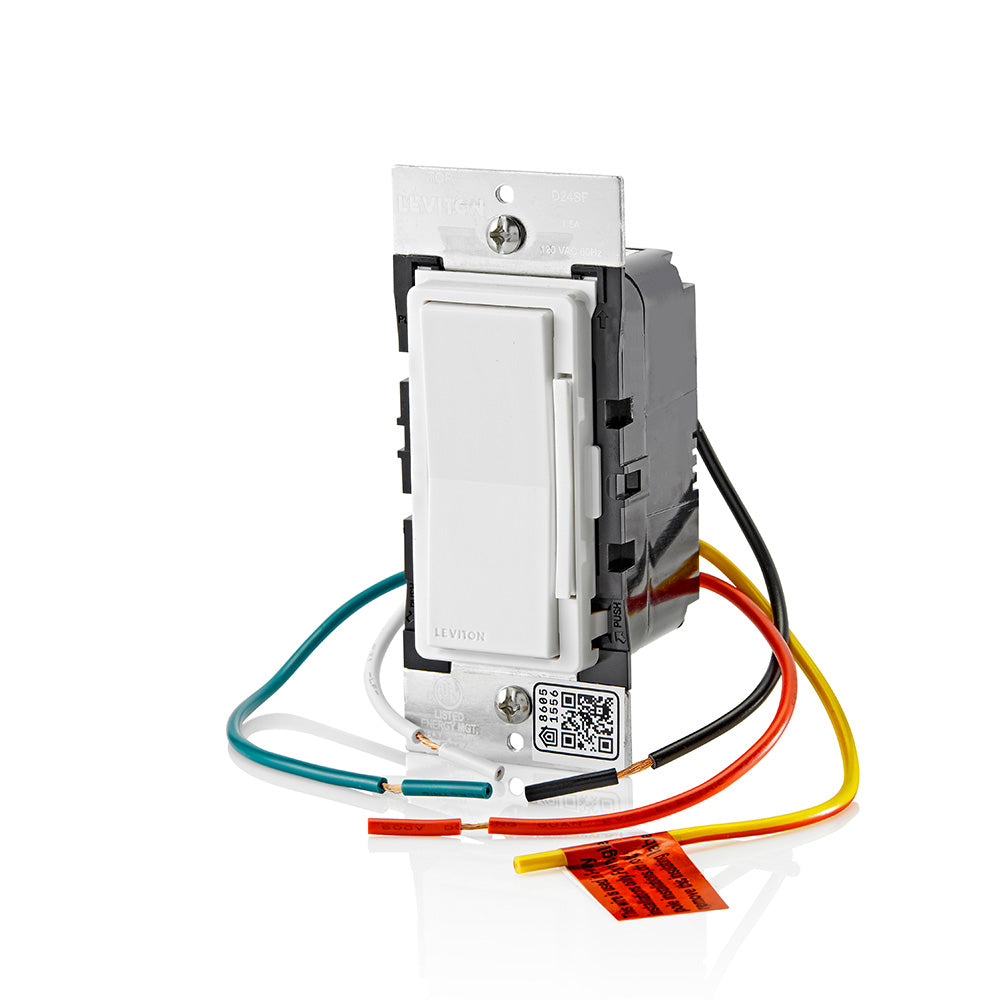

Termination: Wire Leads
Voltage: 120 VAC
Environmental Specifications
Operating Temperature: 0°C to 40°C
Material Specifications
Color: White
Optional Color Change Kits Available: Yes, DDKIT in White, Ivory, Light Almond, Gray, Black and Brown
Strap Material: Metal
Product Features
Brand: Decora Smart Wi-Fi
Device Type: Fan Speed Controller
Grade: Residential
Hub Required: No
Standards & Certifications
Standards and Certifications: UL, FCC, CSA, NOM, Wi-Fi
Warranty
Warranty: 2-Year Limited
