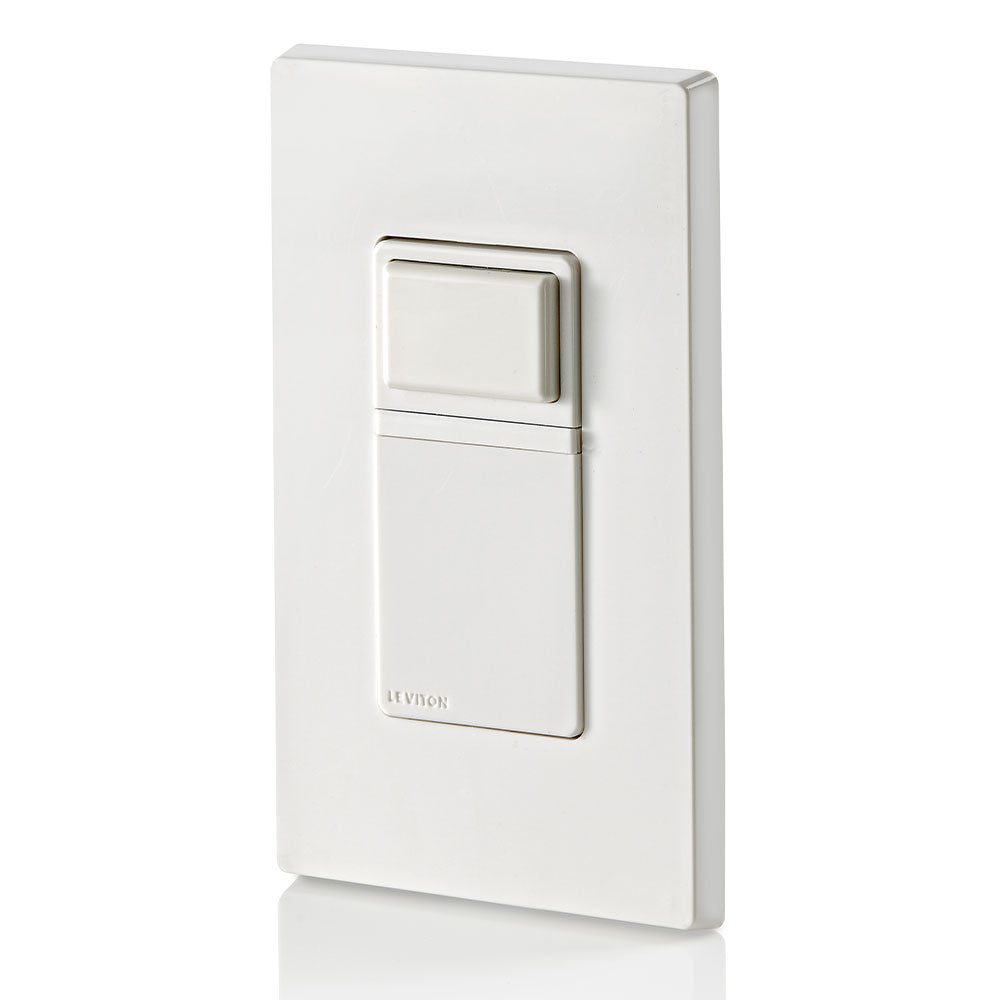

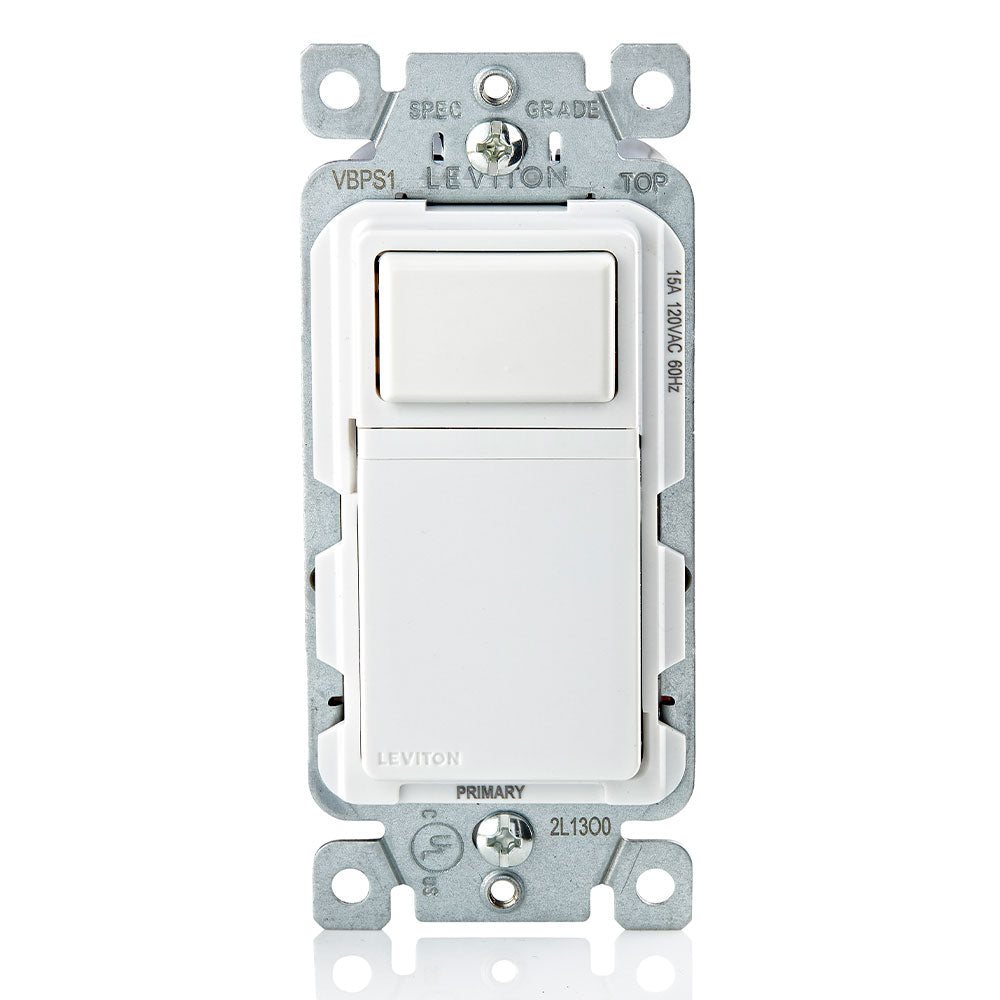

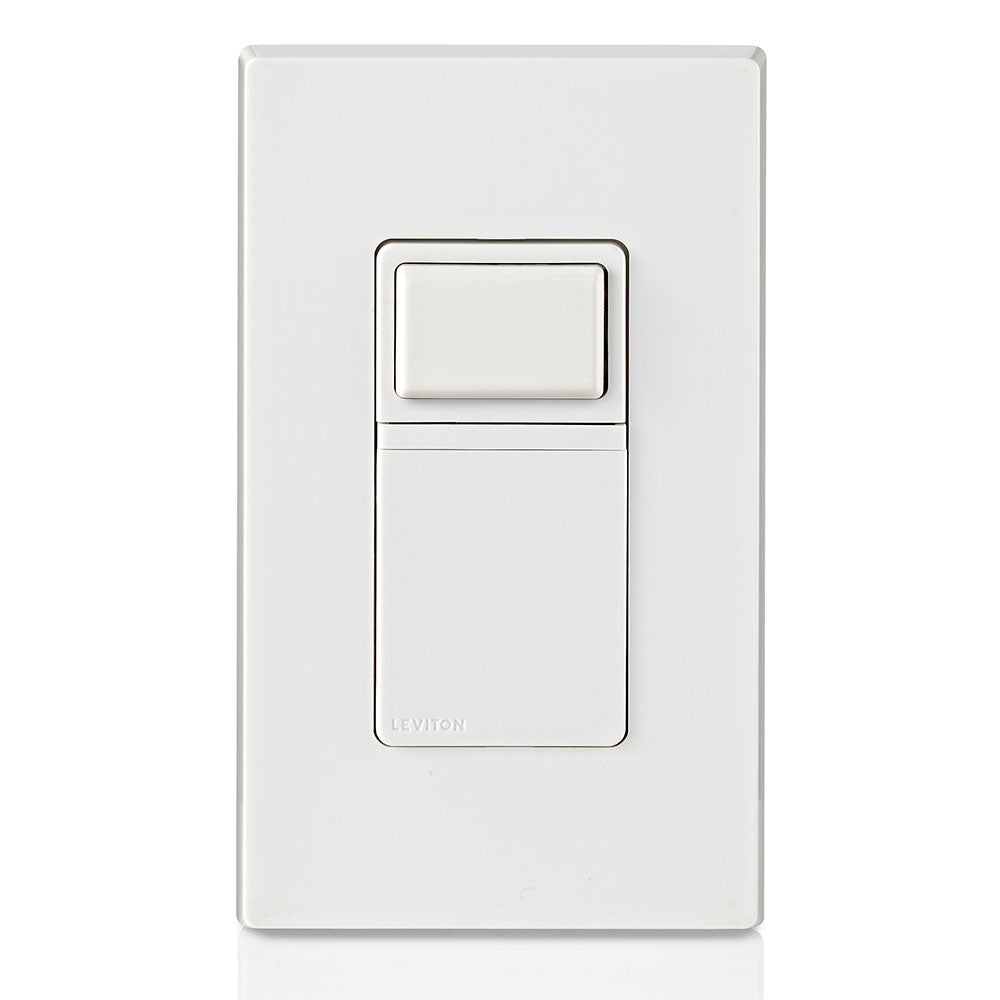

Leviton VBPS1-11W Decora Evolve Multiway Primary Switch Base, 15A 120VAC, Residential - White
Product Details
With the Decora Evolve Primary Switch Base, builders can give homeowners the power to customize light switches using a variety of interchangeable modules. Once the base unit is installed by builders, homeowners can conveniently change modules in seconds – without special tools or technical know-how.
- MULTI-WAY - Used to control the load for lights managed by more than one switch.
- FAMILIAR - Install using industry-standard wiring, electrical boxes, and face plates.

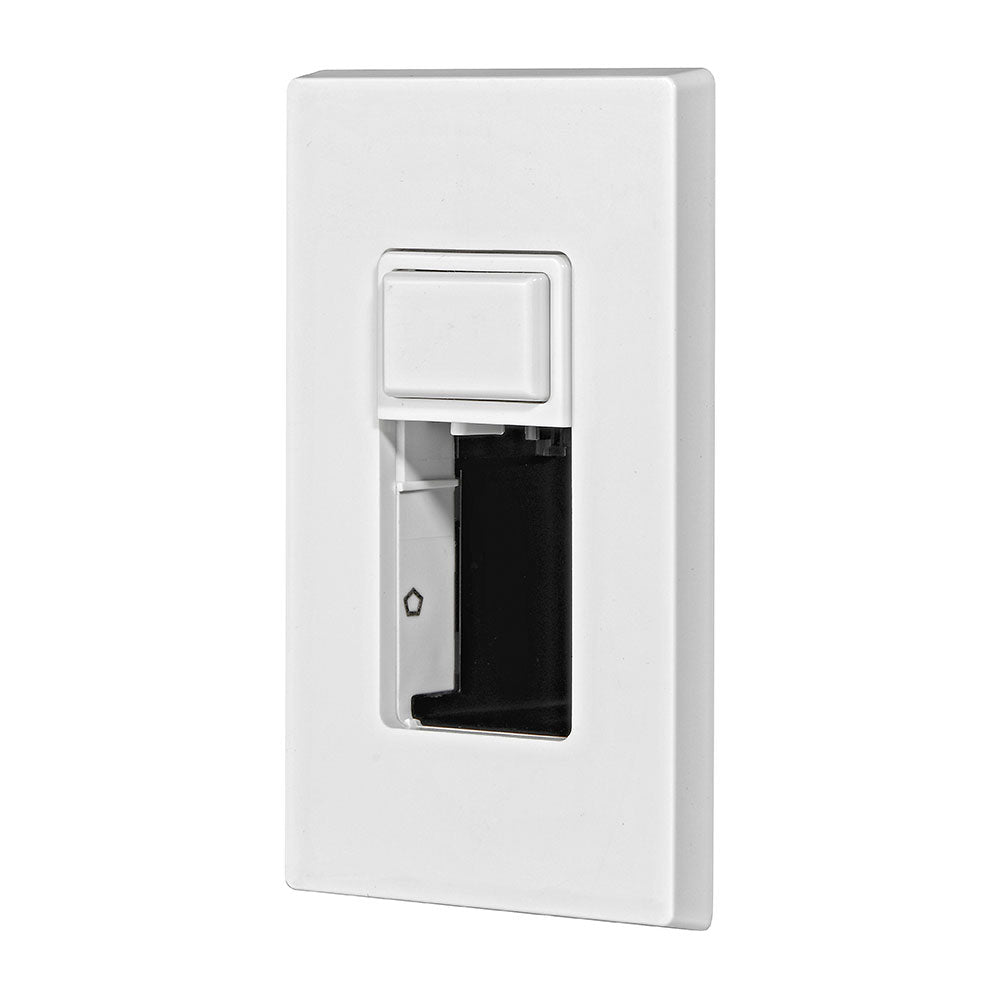

- MODULAR - Removal of the bottom blank module allows placement of a Night Light, USB-A/USB-C® Charger, Dimmer, Occupancy Sensor, Smart Switch or Smart Dimmer Module.
- CONSUMER-FRIENDLY - Homeowners can add and change modules themselves without having to turn off the power.
Should be paired with the Decora Evolve Companion Switch Base for the additional switches that do not control the load.
Features
Color: White
Device Type: Base
Feature: Modular
Function: Multiway Load Controller
Grade: Residential
Electrical Specifications
Amperage: 15 A
HP Rating: 1/2HP
Voltage: 120VAC
Material Specifications
Body Material: Thermoplastic
Contacts: Copper Alloy
Flammability Rating: .5V
Grounding Screw: Plated Steel
Strap Material: Galvanized Steel
Terminal Screws: Plated Steel
Mechanical Specifications
Product ID: Stamped on Strap

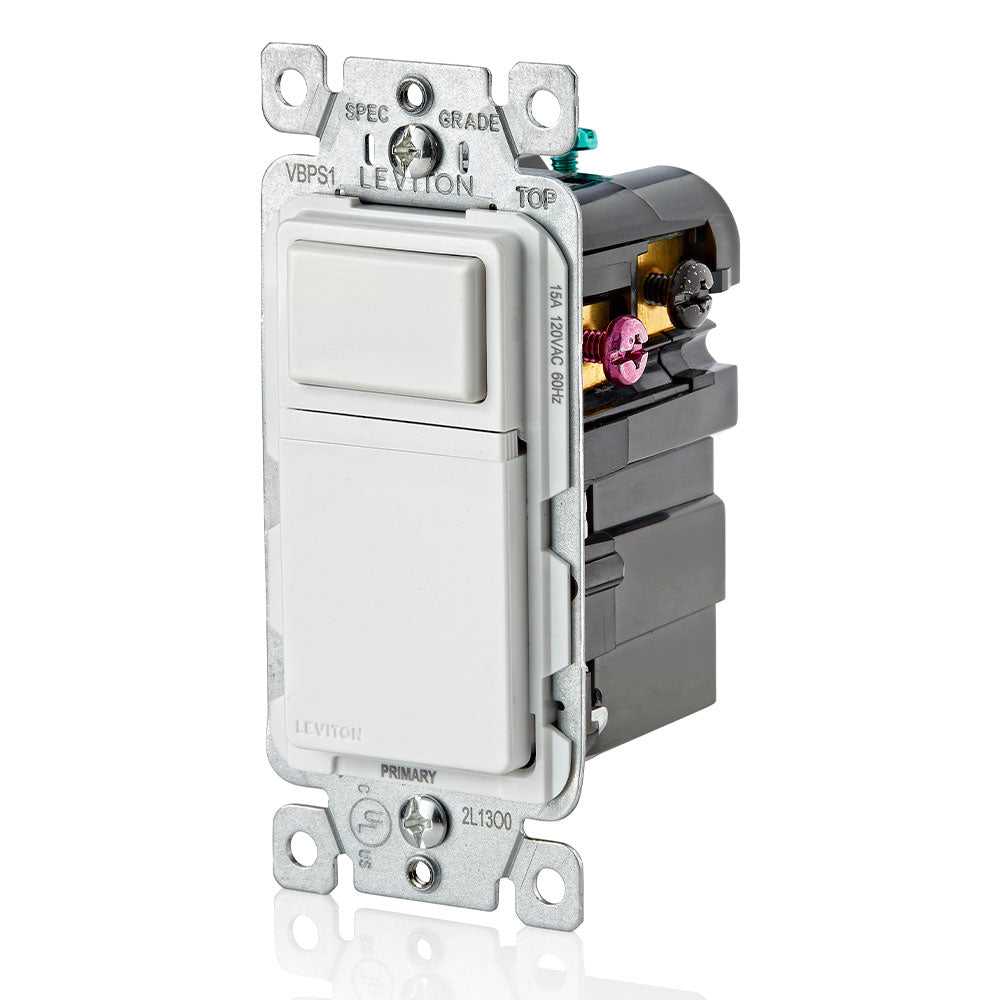

Terminal Accom#10 - #14 AWG Side Wired Only
Terminal ID: Black - Hot, Silver - Neutral, Green - Ground, Brass - Traveler, Red - Load
Terminaton: Side Wire Only
Torque Range.14 - 18 in lb.
Standards and Certifications
NEMA: Compliant to NEMA
UL Standard: UL20
