Description

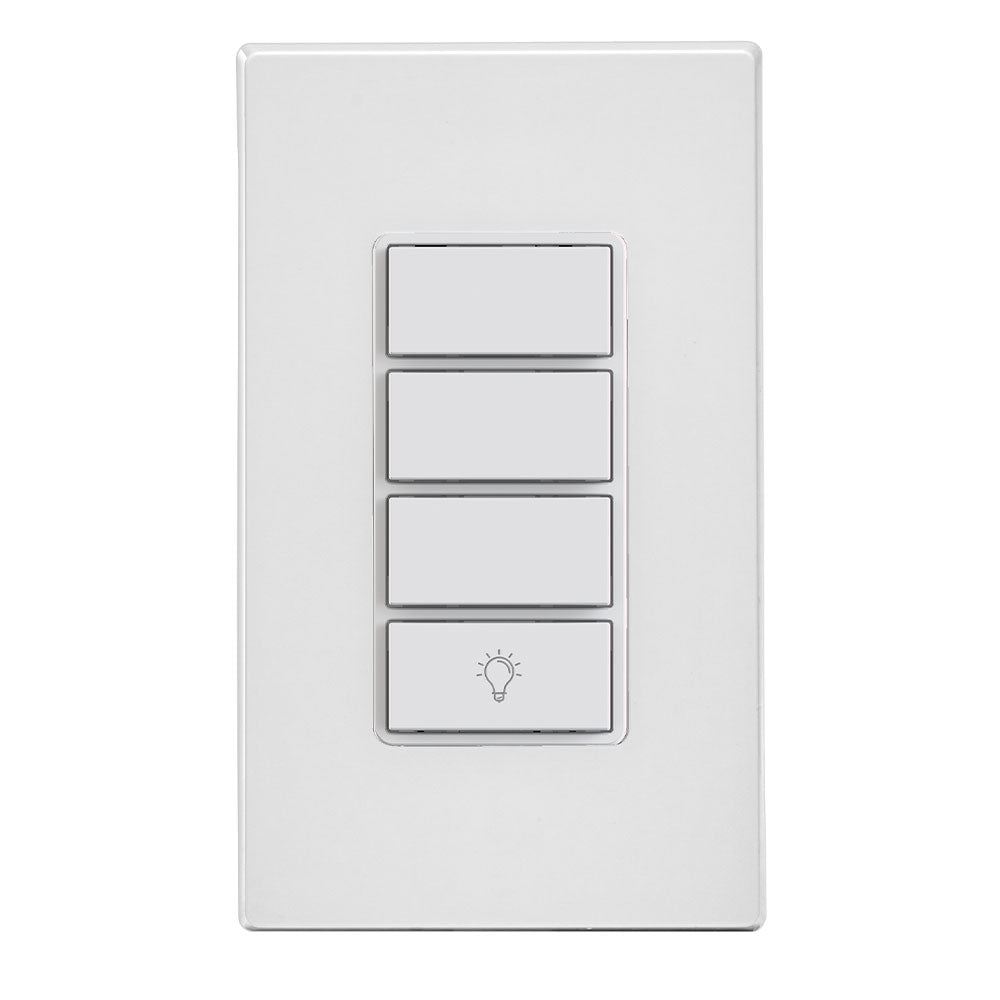

Leviton D2SCS-1BW Decora Smart Scene Controller Switch, Wi-Fi, Neutral Wire Required
Decora Smart Scene Controller Switch, single pole, 3-way, or multi-location when used with the DD0SR Wired Switch Companion or the DAWSC Wire-Free Anywhere Switch Companion. 15 Amp General Use, 5A LED/CFL/Electronic Ballast, 1500W Incandescent/Halogen, 15 Amp Magnetic Ballast, ¾ HP Motor, neutral wire required – White

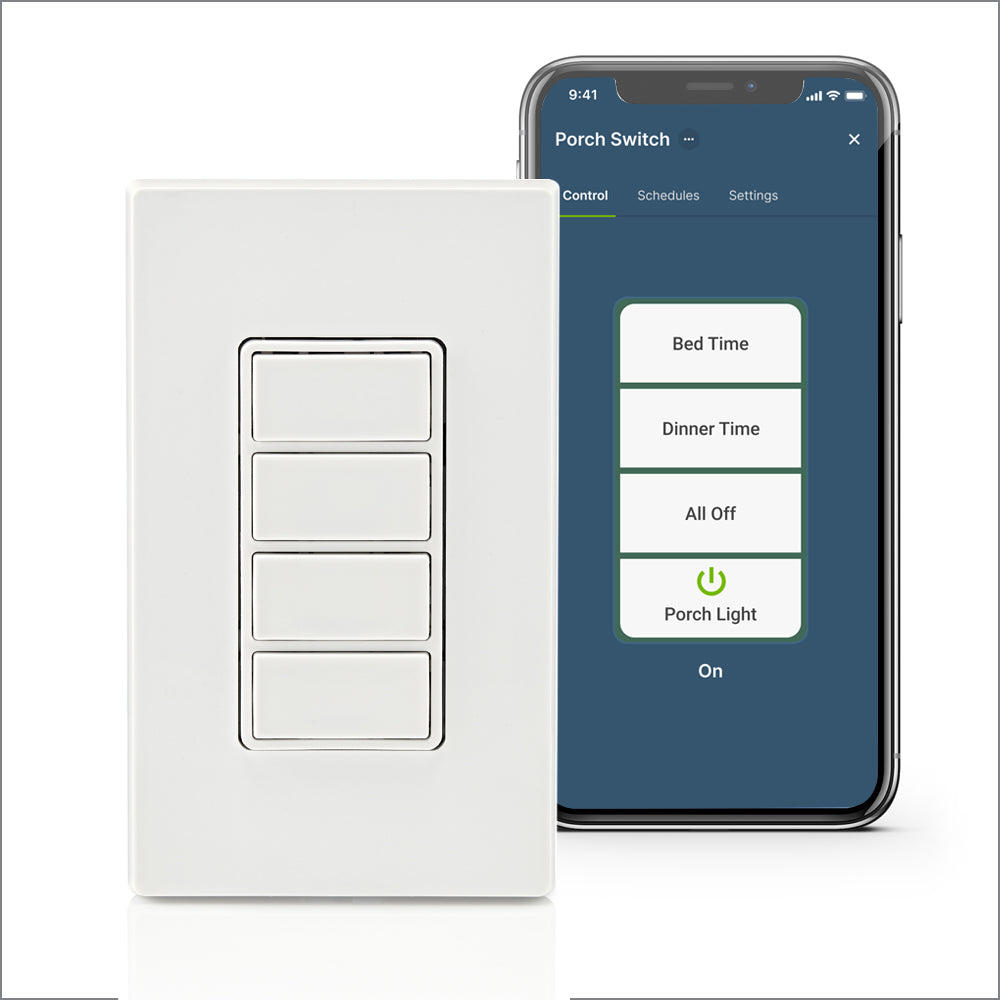

- MULTI-BUTTON CONTROL – Add ON/OFF control of connected light(s) and three custom lighting scenes via My Leviton or Apple HomeKit; supports 2.4GHz Wi-Fi Networks
- QUICK INSTALL – Replace your existing light switch to add smart home control, neutral wire required
- EASY SETUP – No complex programming. Use the app to assign custom room scenes or activities, such as “Movie Time” or “All Off” to the buttons. Order custom engraved buttons via the app to personalize (US Only)
- FLEXIBLE OPTIONS – ON or OFF of multiple Decora Smart Wi-Fi devices, ON/OFF toggle control of an individual Decora Smart Wi-Fi device, Scenes, Activities, Works with Apple Home; use the Apple Home app to set up control of scenes and accessories (requires Apple Home Hub and a compatible iOS device).

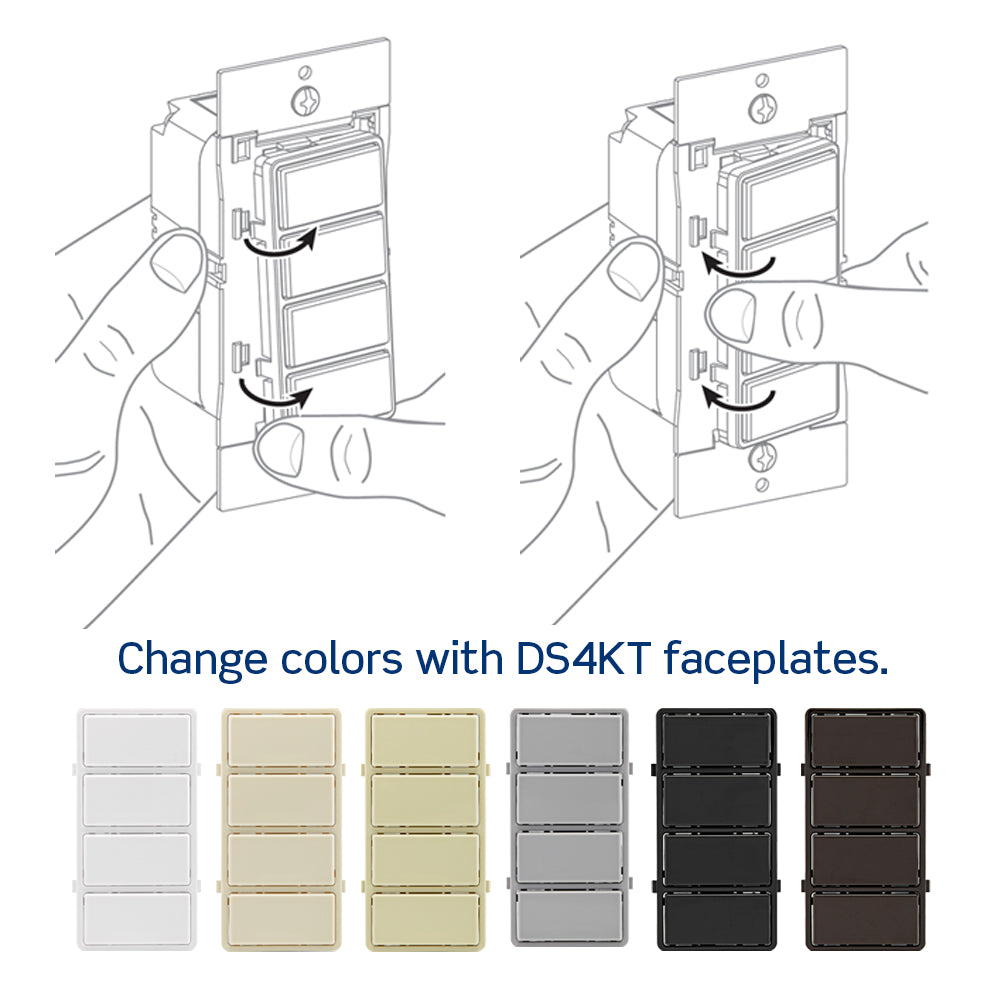

- CONVENIENCE - Change the switch faceplate color to black, gray, brown, light almond, ivory or white using DS4KT
Electrical Specifications
Load Rating: 15A General Use, 5A LED/CFL, 5A Electronic Ballast, 1500W Incand/ Halogen, 15A Magnetic Ballast, ¾ HP Motor
Neutral Required: Yes

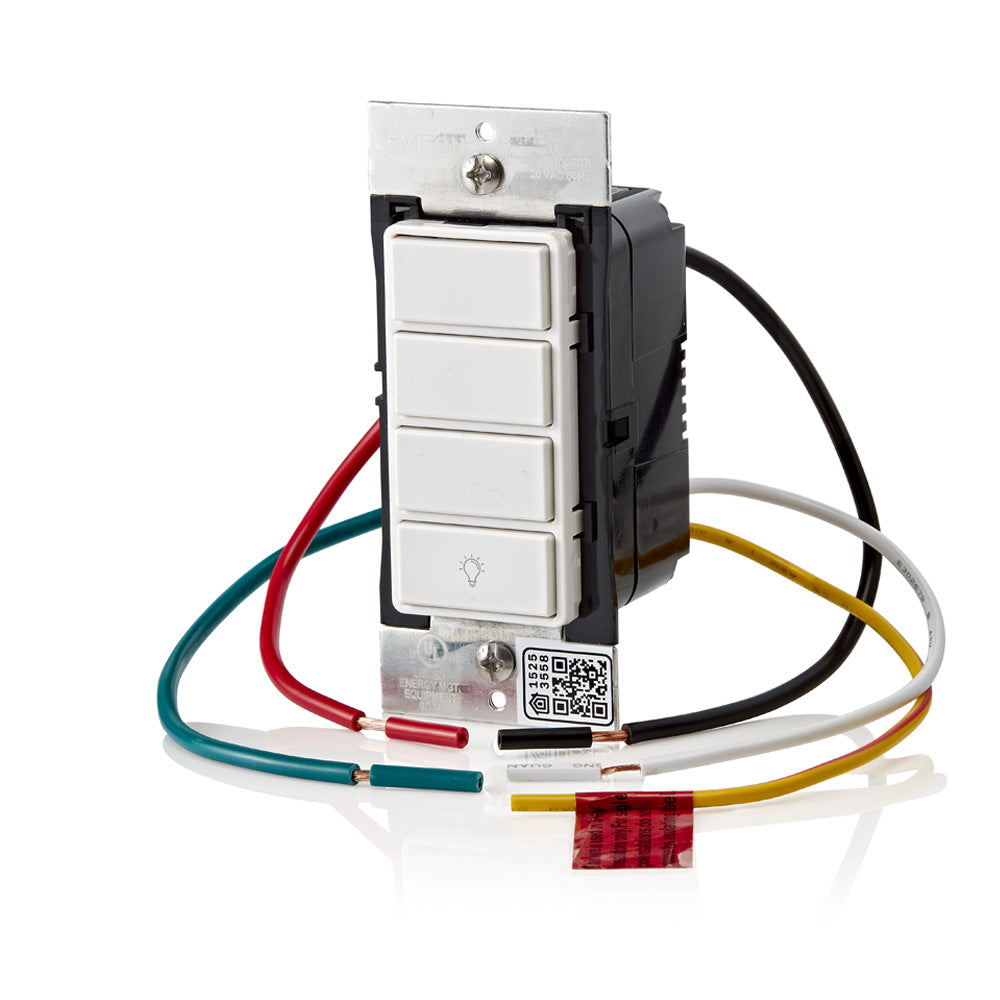

Termination: Wire Leads
Voltage: 120 VAC
Environmental Specifications
Operating Temperature: 0°C to 40°C
Material Specifications
Color: White
Optional Color Change Kits Available: Yes, DS4KT-1P in White, Ivory, Light Almond, Gray, Black and Brown
Strap Material: Metal
Product Features
Brand: Decora Smart Wi-Fi
Device Type: In-Wall Scene Controller Switch
Grade: Residential
Hub Required: No
Standards & Certifications
Standards and Certifications: UL, FCC, NOM, CSA, Wi-Fi
Warranty
Warranty: 2-Year Limited
