Description

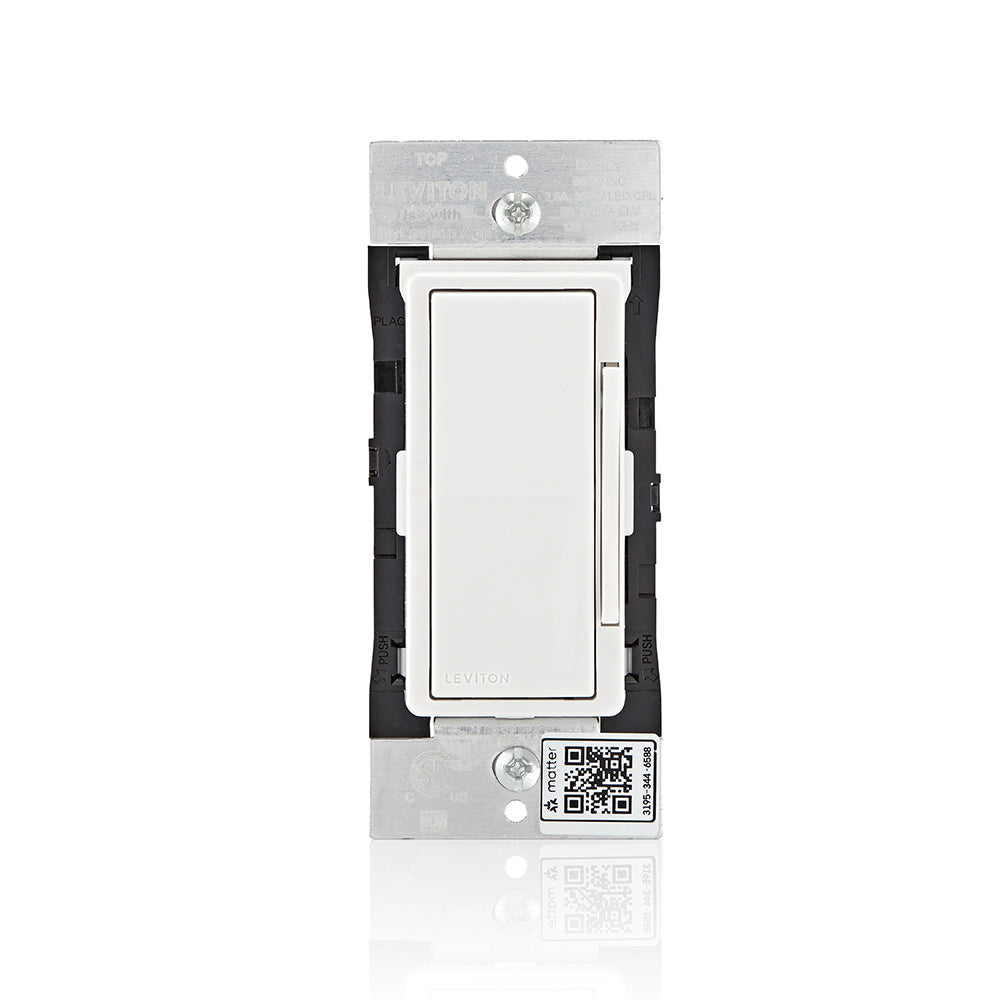

Leviton D2ELV-1BW Decora Smart ELV/LED Phase Selectable Dimmer, Wi-Fi, Neutral Wire Required

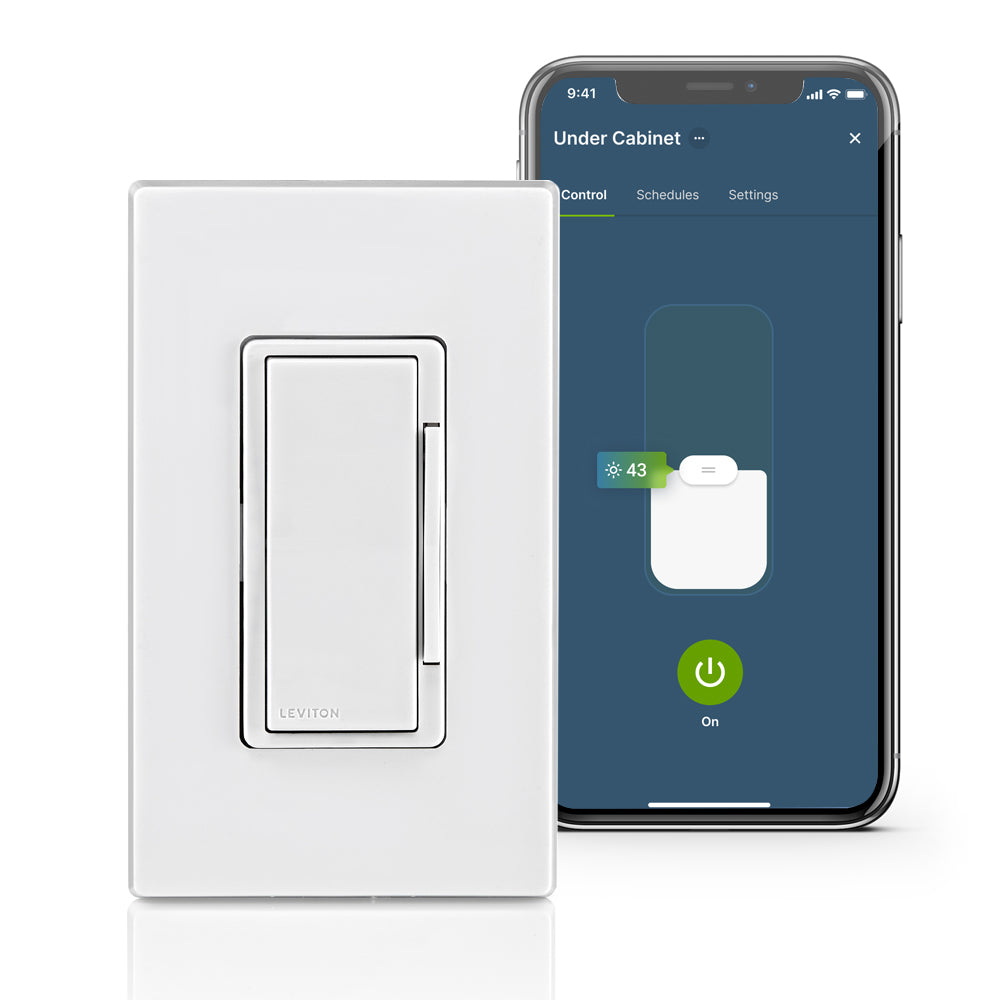

Decora Smart Electronic Low Voltage/LED Phase Selectable Dimmer Switch, Wi-Fi. 600VA ELV, 300W LED, 300W CFL, 600W Incandescent/Halogen, wallplate included - White BENEFITS Premium performance – compatibility across a broad range of ELV (Reverse Phase Dimming) and dimmable LED lights and fixtures (Forward or Reverse Phase Dimming) Create an elegant ambiance – set the mood for dinner, dim the lights to create a movie theatre experience, turn the lights down low to wind down for bedtime Know if lights are on and adjust whether at home, at work, or on vacation – control from anywhere Personalize lighting – customizable fade rates that gradually turn lighting on or off, or preset light level options to make sure lights always come on at the desired level Voice Control – works with Google Assistant, Amazon Alexa, and Apple Siri Automatic softer lighting at night – perfect in kitchens for a midnight snack or soft illumination to light the way, using My Leviton Night Setting Prevent flickering lights – settings to fine tune performance such as minimum dim/maximum bright settings and control timing Don’t worry about leaving lights on – auto-shutoff can turn lights off automatically on a timer in rooms such as the bedroom, living room, family room, dining room, and kitchen Make it look like someone’s home when away – turn on lights randomly for a lived-in look Control this dimmer from another wall location without additional wiring – pairs with DAWDC or DAWSC Anywhere Dimmer or Switch Companions FEATURES Control a wide range of lighting – designed for use with ELV lighting out of the box to add smart dimming control to undercabinet, toe-kick, track, recessed, accent lighting or any application with electronic low voltage (ELV) fixtures Full range dimming – on/off and dim/bright control of dimmable ELV (Electronic Low Voltage), dimmable LED/CFL, Incandescent, and Halogen lighting The most connected – Works with Matter, Alexa, Google Assistant, Apple Home, SmartThings Let there be light – double press the top rocker to quickly snap on at maximum brightness; or double-press bottom rocker to snap OFF Easy Install – replaces an existing switch; wire leads and slim design make install a breeze Simple guided setup – works with the My Leviton app, create schedules, activities, lighting scenes and more Lights won’t glow when you turn the dimmer off – “Off Means Off” technology ensures low-wattage LED bulbs don’t glow in the off state One switch, many options – use as a dimmer switch or an on/off switch via non-dimmable bulb mode for non-dimmable LED or CFL lighting Single Pole or 3-Way – works with DD00R Wired Dimmer Companion, DD0SR Wired Switch Companion, DAWDC wire-free Anywhere Dimmer Companion, or DAWSC wire-free Anywhere Switch Companion Change the color – Change the dimmer faceplate color to black, gray, brown, light almond, ivory or white using DDKIT TECH SPECS Requires 2.4 GHz Wi-Fi Network; No hub required with My Leviton app Requires Neutral Wire Rated for 120V, 60Hz: Electronic Low Voltage up to 600VA, Dimmable LED and CFL up to 300W, Incandescent and Halogen up to 600W Not for use with magnetic low-voltage lighting or motor loads
Environmental Specifications
Operating Temperature: 0°C to 40°C
Product Features
Brand: Decora Smart Wi-Fi
Device Type: In-Wall Smart Dimmer
Grade: Residential
Hub Required: No
Electrical Specifications
Load Rating: 600VA ELV, 300W LED/CFL, 600W Incand/Halogen
Neutral Required: Yes

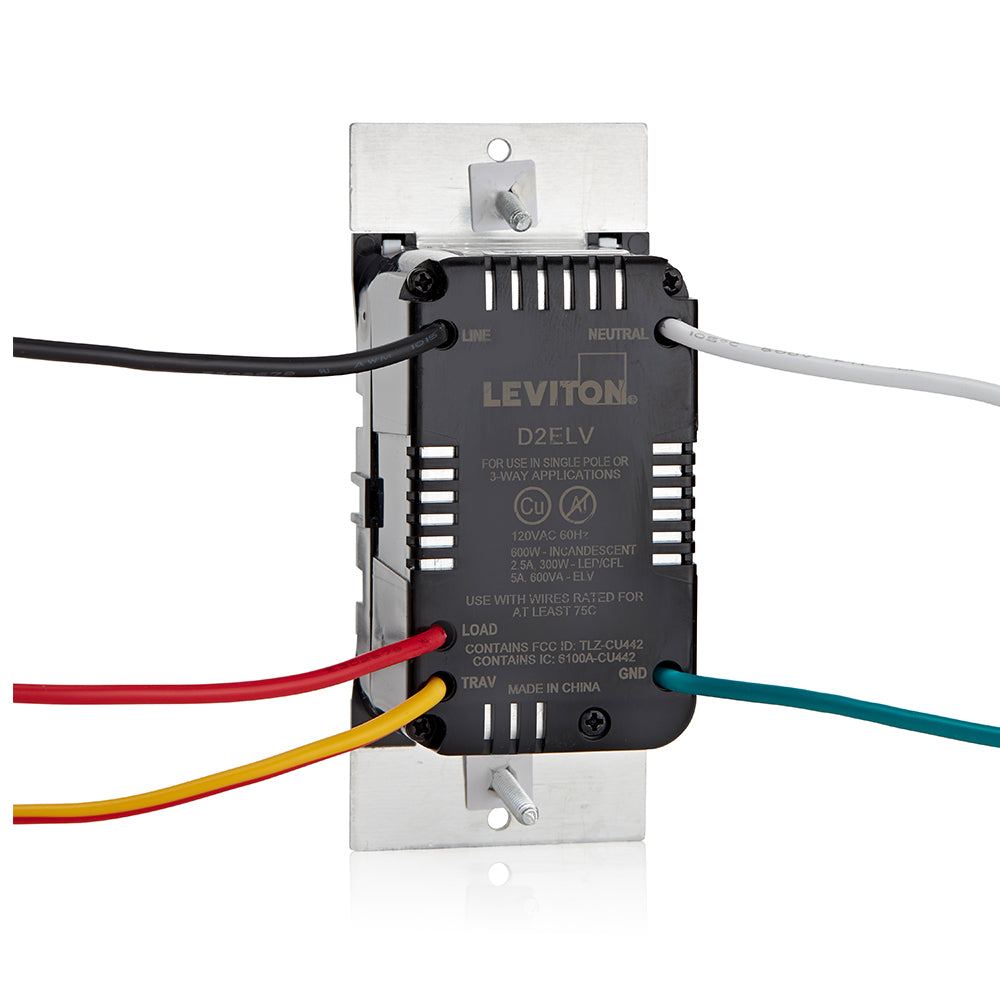

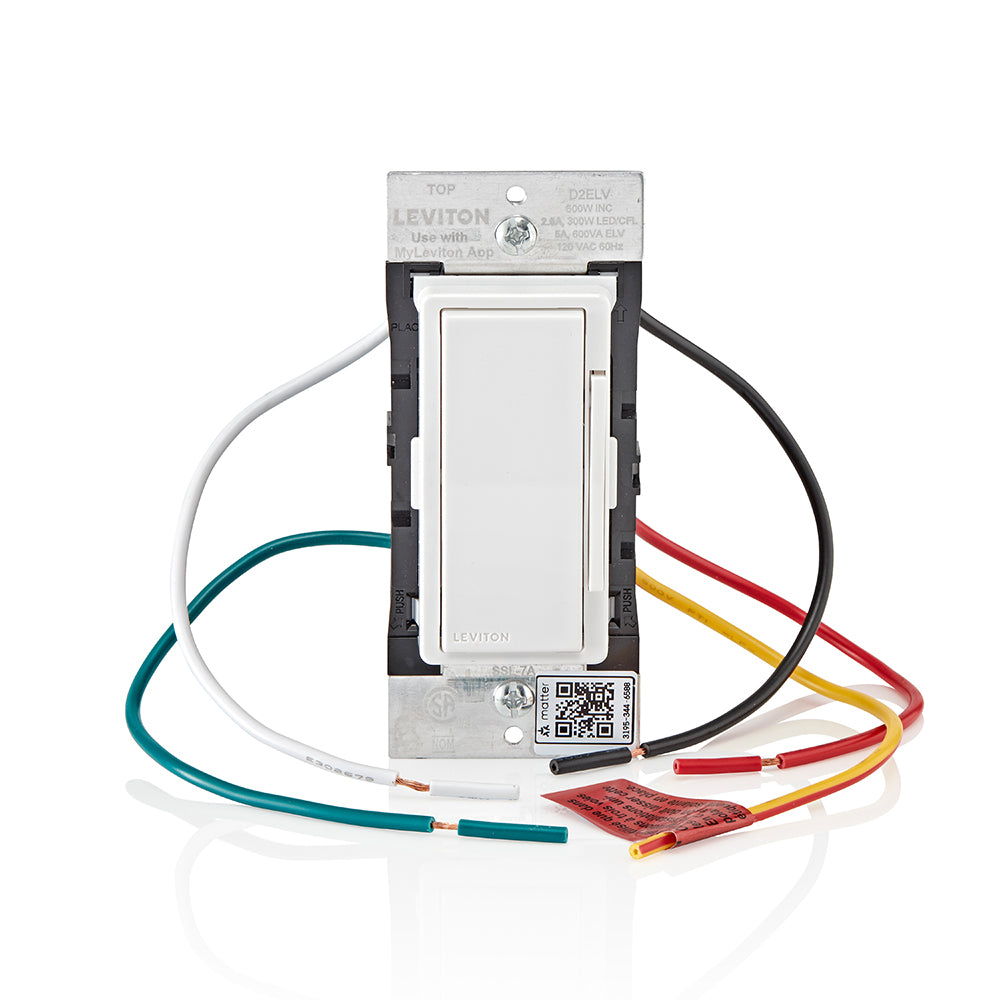

Termination: Wire Leads
Warranty
Warranty: One-Year Limited
Standards and Certifications
Standards and Certification: UL, FCC, CSA, NOM, Wi-Fi, Title 24, Matter
Material Specifications
Color: White

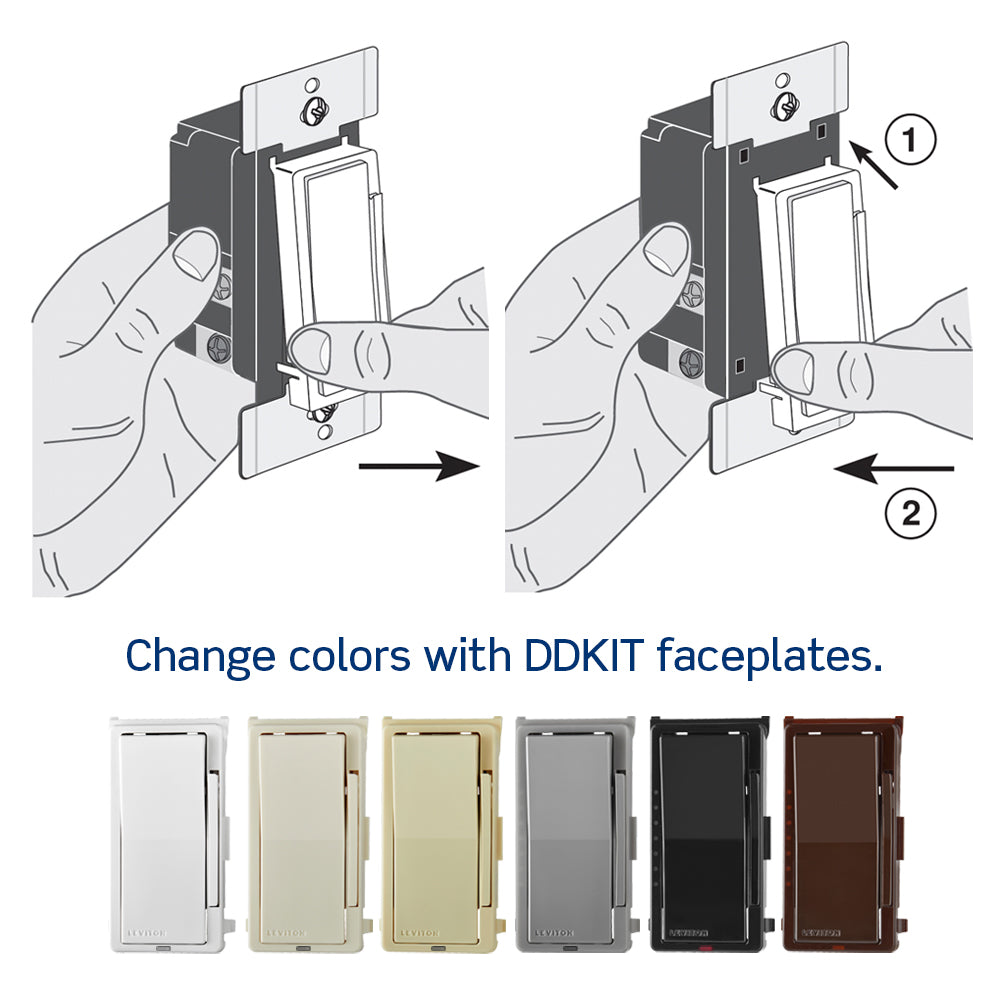

Optional Color Change Kits Available: Yes, DDKIT in Black, White, Light Almond, Ivory, Gray, and Brown
Strap Material: Metal
