Description

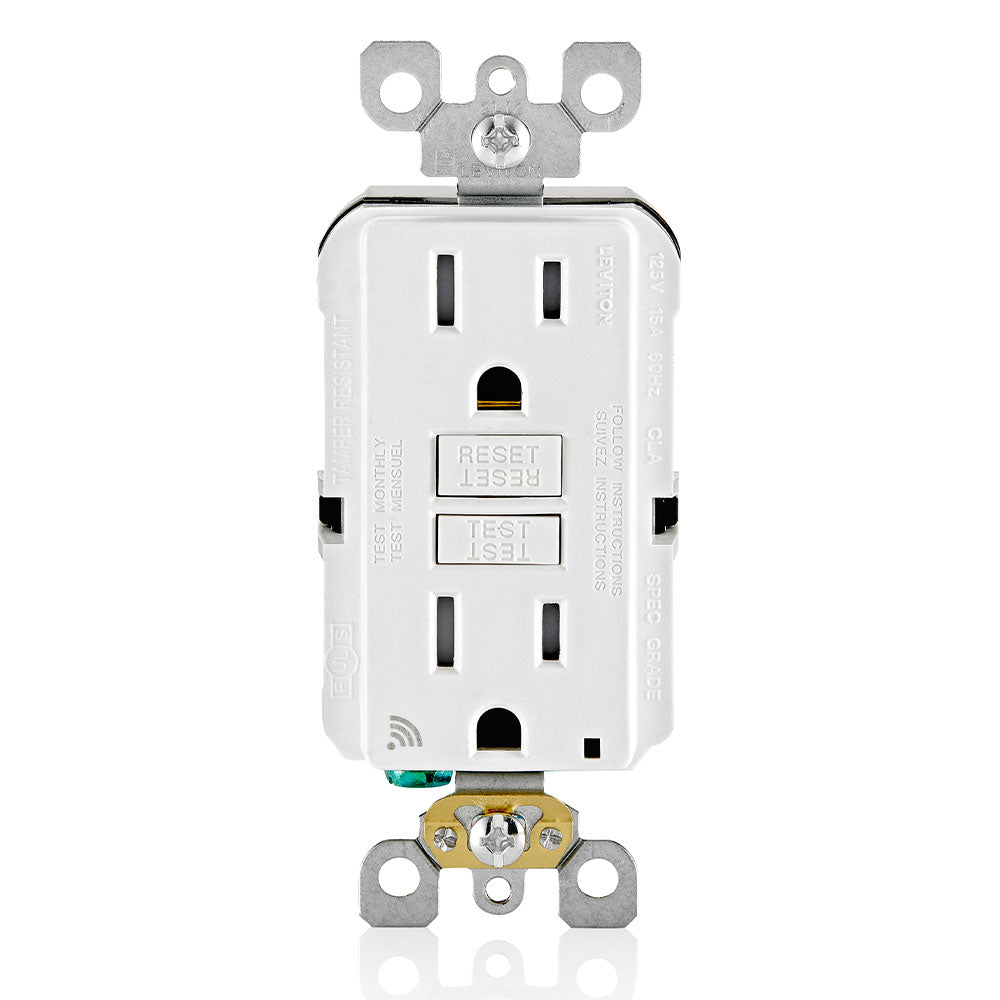

Leviton D2GF1-KW 15 Amp, Self Test, Tamper-Resistant Smart GFCI Outlet with LED Indicator Light

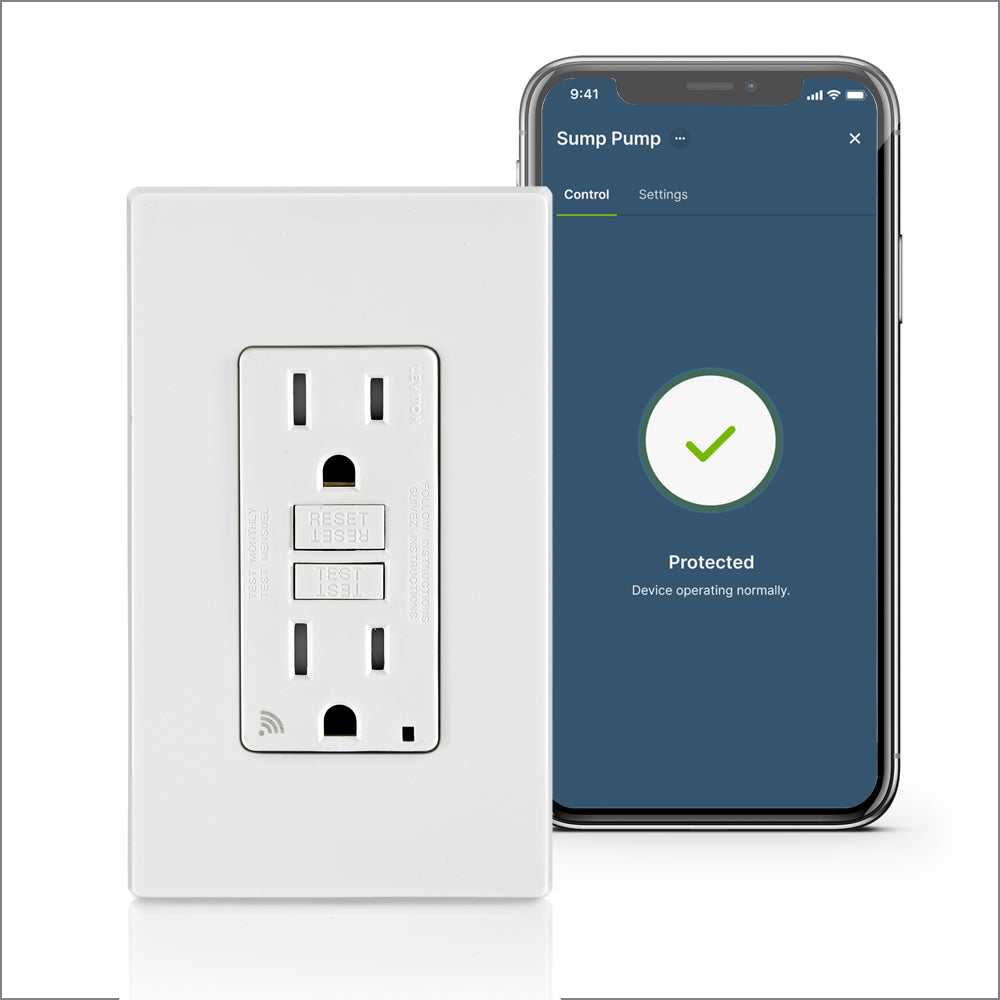

15A, 125V, 20A Feed-Through, Wi-Fi® Certified Smart GFCI Receptacle/Outlet - White Only An industry first! Our Smart GFCI Outlet provides peace of mind by sending notifications directly to your smart phone when a GFCI trips due to a ground-fault, using the My Leviton app. At a glance, the app provides details on protection status, if a ground-fault occurs, and if the GFCI is in test mode; (for safety) the app does not provide on/off control. Through the My Leviton app, users will know exactly which Smart GFCI in their home has tripped.

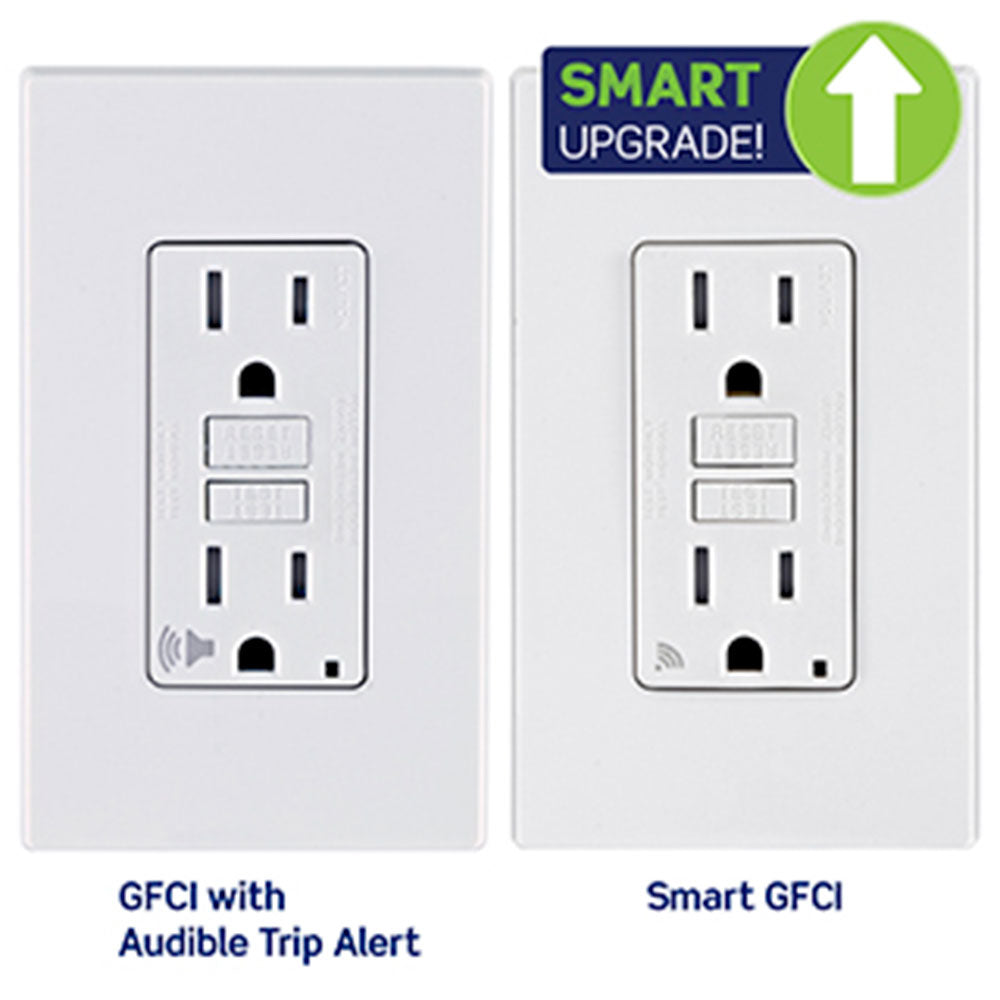

- An upgrade to Leviton’s GFCI Outlet with Audible Trip Alert, allowing you to receive notifications and alerts wherever you are via the My Leviton app.
- Ideal for refrigerators, sump pumps, and other appliances in out-of-the-way locations such as a garage or basement. Also great for second homes and other remote locations where daily visual checks are unlikely.
- Includes an optional audible alarm that can be enabled or silenced. It is a perfect complement to Leviton’s Decora Smart® product line and can be combined with other My Leviton-enabled devices to build a whole home smart solution reflective of today’s connected lifestyle.
- Provides continuous ground-fault protection and meets latest UL requirements.
- Patented Reset Lockout feature prevents reset if the GFCI is not wired or operating correctly.
- Available in 20 Amp
Product Features
Amperage15 A
At Rated Voltage1 HP
Brand: SmartlockPro
Color: White
Feature: Self-Test
Fed Spec WC-596: Yes
Grade: Residential/Commercial Specification Grade
Grounding: Self Grounding
NEMA5-15R
Pole: 2
Smart: Yes
Standards and Certifications: Meets the latest UL requirements, cULus Listed , UL Standard 943 Class A (GFCI) and 498 (Receptacles), UL Listed (File #E48380), NOM Certified, Meets Federal Specification W-C-596G
Strap Material: Galvanized Steel
Tamper Resistant: Yes
Termination: Back & Side
Trip Level: Class A, 5mA plus or minus 1mA
Type: Wi-Fi
Voltage: 125 VAC
Wallplate: Not Included
Warranty: 2-Year Limited
Wire: 3
AC Horsepower Ratings
At Rated Voltage1 HP
Dielectric Voltage: Withstands 1250VAC per UL 943
Short Circuit Current Rating: 10KA
Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
Electrical Specifications
Dielectric Voltage: Withstands 1250VAC per UL 943
Flammability: Rated V-2 per UL 94
Operating Temperature: -35C to +66C
Short Circuit Current Rating: 10KA
Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
Environmental Specifications
Body Material: Polycarbonate
Clamps: Brass
Face Material: Thermoplastic
Grounding Screw: Plated Steel
Line Contacts: Brass Double Wipe .031 Thick
Notes: Wallplate Sold Separately
Operating Temperature: -35C to +66C
Terminal Screws: Plated Steel
Yoke: Zinc-Plated Steel
Material Specifications
Body Material: Polycarbonate
Clamps: Brass
Face Material: Thermoplastic
Grounding Screw: Plated Steel
Line Contacts: Brass Double Wipe .031 Thick
Notes: Wallplate Sold Separately
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Screws: Plated Steel
Yoke: Zinc-Plated Steel
Mechanical Specifications
Amperage: 15 A
Body Material: Polycarbonate
Brand: SmartlockPro
Color: White
Face Material: Thermoplastic
Feature: Self-Test
Fed Spec WC-596Yes
Grade: Residential/Commercial Specification Grade
Grounding: Self Grounding
NEMA5-15R
Pole: 2
Product ID: Ratings are permanently marked on device
Standards and Certifications: Meets the latest UL requirements, cULus Listed, UL Standard 943 Class A (GFCI) and 498 (Receptacles), UL Listed (File #E48380) NOM Certified, Meets Federal Specification W-C-596G
Strap Material: Galvanized Steel
Tamper Resistant: Yes
Terminal Accom.:14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back & Side
Torque Range14 – 18 in.-lbs.
Trip Level: Class A, 5mA plus or minus 1mA
Type: Wi-Fi
Voltage: 125 VAC
Warranty: 2-Year Limited
Wire: 3
Standards and Certifications
Fed Spec WC-596: Yes
NOM Certified: Yes
UL 498: Yes
UL 943: Yes
UL Listed: File #E48380
cULus: Yes
