Description

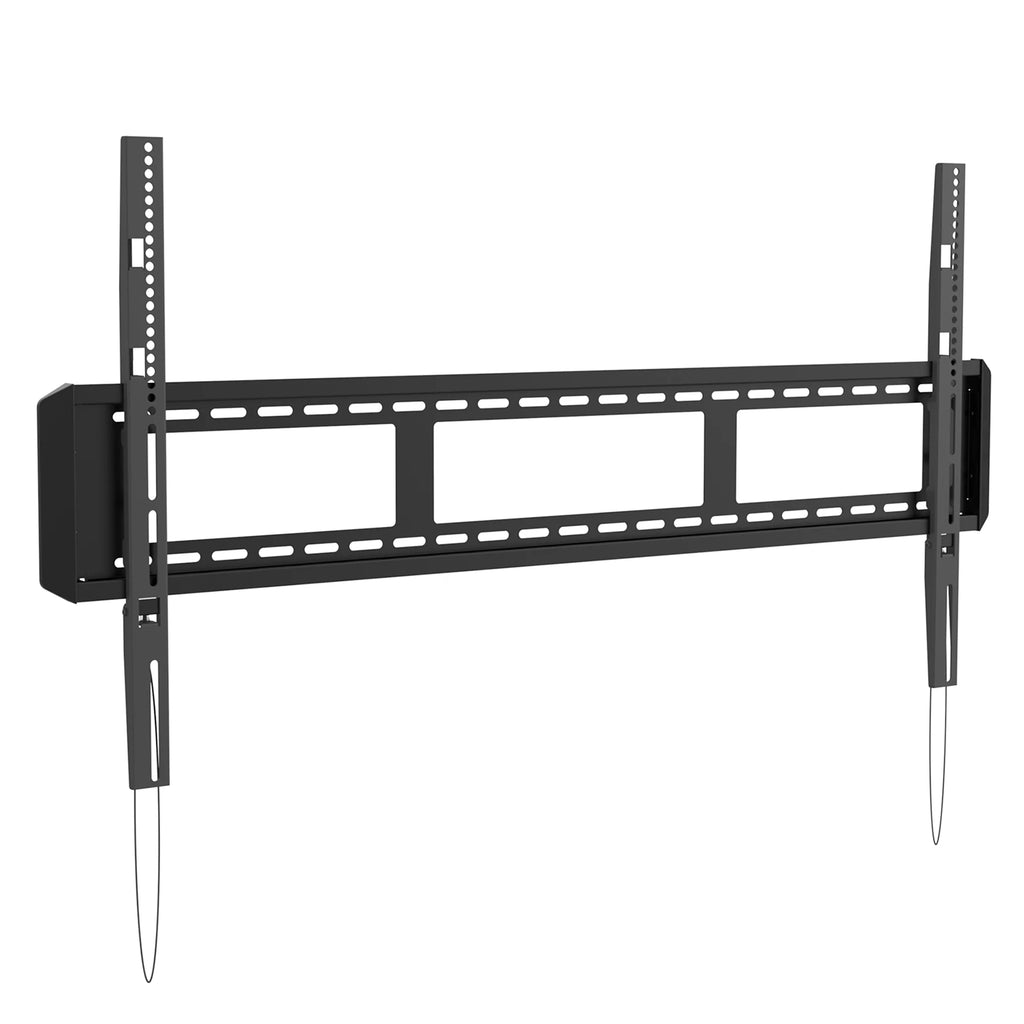

Kanto F6080 Low Profile Fixed TV Wall Mount for 55" - 120" TVs
Product Details
F6080 allows you to securely mount the largest TV panels available, supporting up to 200 lbs and accommodating a generous 1100×600 VESA. With just 1.1″ between the wall and the back of the TV, you can achieve a sleek, low-profile look even with the heaviest TVs. The F6080 features horizontal leveling screws for precise TV positioning and an extra-wide wall plate for optimal TV placement. Quick-release TV brackets make servicing your TV easy and convenient.
Features
-
Massive TV Support: Specifically designed for extra-large screens from 55” to 120”.
-
Low Profile: Sits just 1.1” (2.8 cm) from the wall for a modern, flush look.
-
Extra-Wide Wall Plate: The 47.6” plate spans up to three studs, allowing for easy centering regardless of stud spacing (supports 16” and 24” centers).
-
Post-Installation Leveling: Includes extra-tall horizontal leveling screws that can be adjusted with a screwdriver or socket even after the TV is hung.
-
Quick-Release System: Spring-loaded brackets click into place for security; integrated quick-release cords (with magnetic ends) allow for easy removal for servicing.
-
Sturdy Construction: Built from solid steel with a durable powder-coated finish.
-
Aesthetic Finish: Includes smooth, polished end caps to hide the ends of the mount and hardware.
Specifications
-
TV Sizes Supported: 55” to 120”
-
Weight Capacity: 200 lbs (91 kg)
-
VESA Compatibility: 100x100 to 1100x600 (covers almost all large-format patterns)
-
Distance from Wall: 1.1” (2.8 cm)
-
Wall Plate Width: 47.6” (121 cm)
-
Material: Solid Steel with Powder-Coated Black Finish
-
Warranty: 5-Year Manufacturer Warranty
-
UPC: 800152712345
Weights & Dimensions
-
Product Weight: 13.9 lb (6.3 kg)
-
Shipping Box Weight: 15.4 lb (7.0 kg)
-
Shipping Box Dimensions: 47” x 9.6” x 3.7” (119.5 x 24.5 x 9.5 cm)
Installation Requirements
-
Tools Needed: Drill, 7/32” bit (wood) or 3/8” bit (masonry), socket wrench, Phillips screwdriver, hammer, stud finder, level, and pencil.
-
Mounting Surface: Wood stud (dual or triple) or solid concrete/stone.
