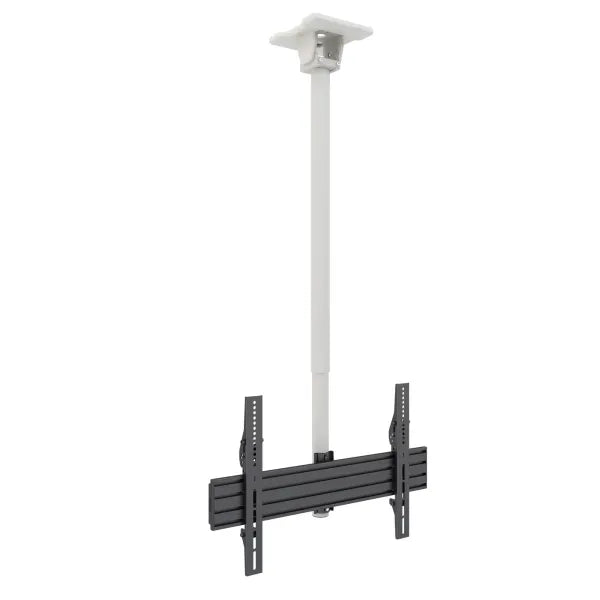

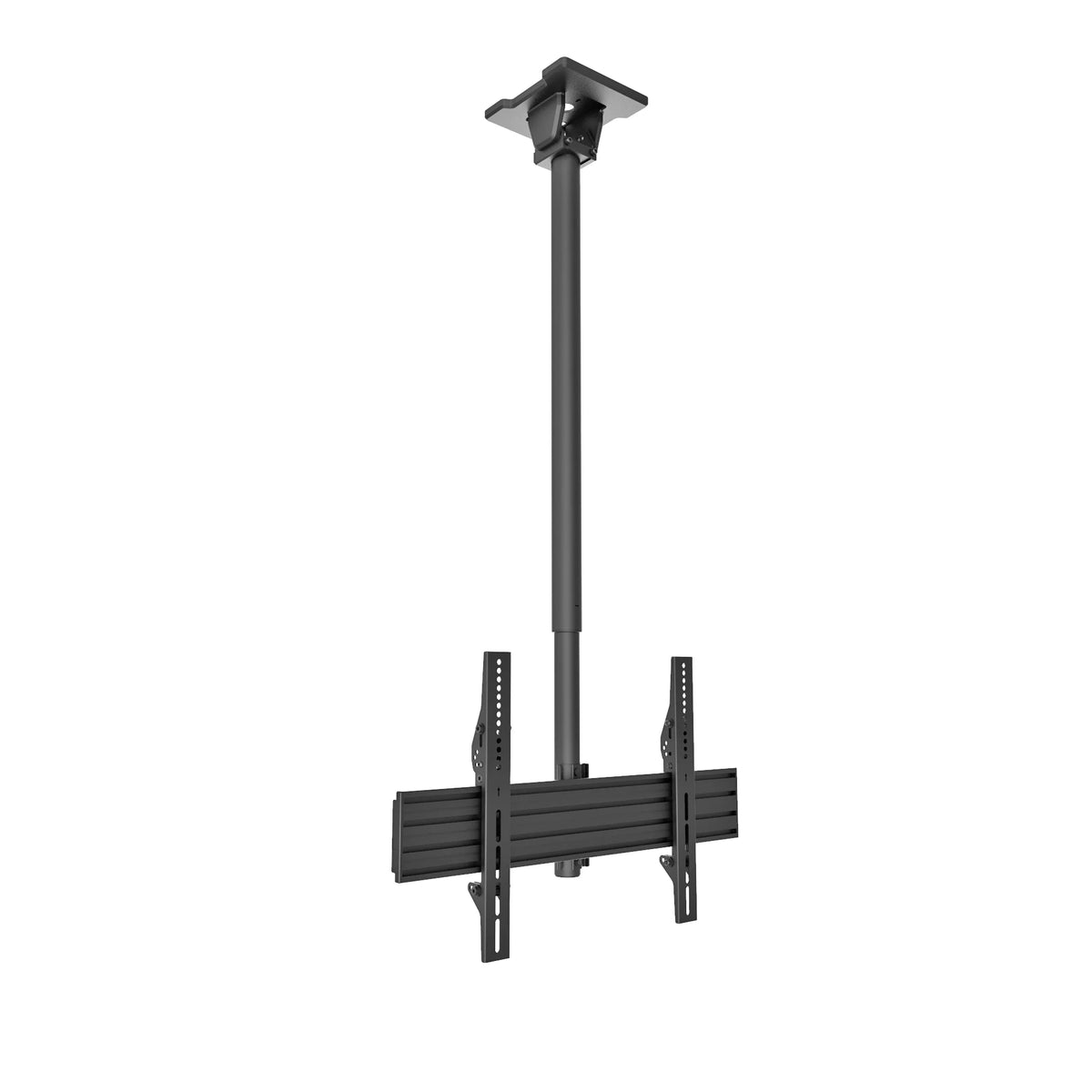

Kanto CM600 Height Adjustable Hanging Ceiling TV Mount for 40" - 80" TVs
Product Details
The Kanto CM600 is a versatile full-motion TV ceiling mount engineered for quick installation on both flat and sloped ceilings. It features a telescoping extension pole that provides up to 23” of height adjustment and full 360° rotation. With the ability to swing up to 90°, it can also be mounted vertically on a wall. The mount includes adjustable leveling screws and four discrete tilt options, allowing you to angle your TV independent of the pole for the perfect line-of-sight.
Features
-
Easy Installation: Features a detachable mounting plate that can be installed to any wood stud or concrete ceiling. The extension pole then slides into place for a secure fit.
-
Angled Ceiling Support: The mounting plate swings up to 90°, making it compatible with sloped ceilings, support beams, or vertical wall installations.
-
Adjustable Height: The telescoping pole offers height adjustment between 42.7” and 66.3” from the ceiling to the center of the TV.
-
Full Rotation & Tilt: Provides 360° of rotation and four discrete tilt options (5° increments). Angle the TV up to 15° forward or 6° backward to eliminate glare and improve viewing angles.
-
Integrated Cable Management: The hollow core of the extension pole allows for unobstructed cable routing, while an opening in the mounting plate keeps cables hidden through the ceiling.
Specifications
| Dimensions & Measurements | TV Sizes Supported | 40” to 80” |
| VESA Sizes | 75x75 to 600x400 | |
| Height Adjustment | 42.7” to 66.3” (Ceiling to center of TV) | |
| Shipping Box Dimensions | 41.5” x 8.2” x 4.8” (105.5 x 20.8 x 12.1 cm) | |
| Weight & Capacity | Weight Allowance | 110 lb (50 kg) |
| Product Weight | 19.8 lb (9.0 kg) | |
| Shipping Box Weight | 20.9 lb (9.5 kg) | |
| Characteristics & Features | Tilt Range | +15° to -6° |
| Swivel / Rotation | 360° | |
| Ceiling Plate Swing | 90° | |
| Material | Anodized aluminum and solid steel | |
| Finish | Durable powder-coated finish | |
| Horizontal Leveling | Adjustable | |
| UPC (Black) | 800152718590 | |
| UPC (White) | 800152719122 | |
| Certifications & Warranties | Warranty | 5-year manufacturer's warranty |
What’s Included
-
Kanto CM600 Full Motion Ceiling Mount
-
Installation Manual
-
All mounting hardware for wood stud and concrete installation
