Description

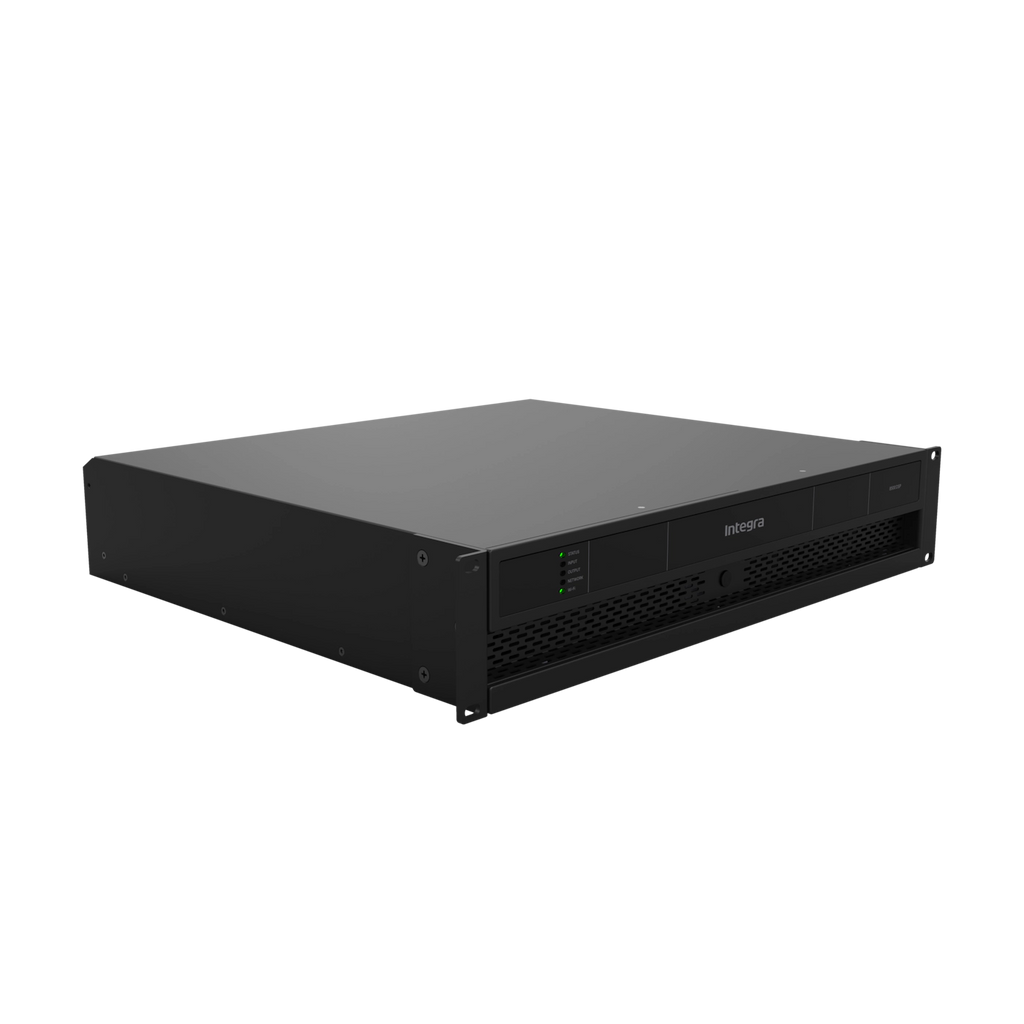

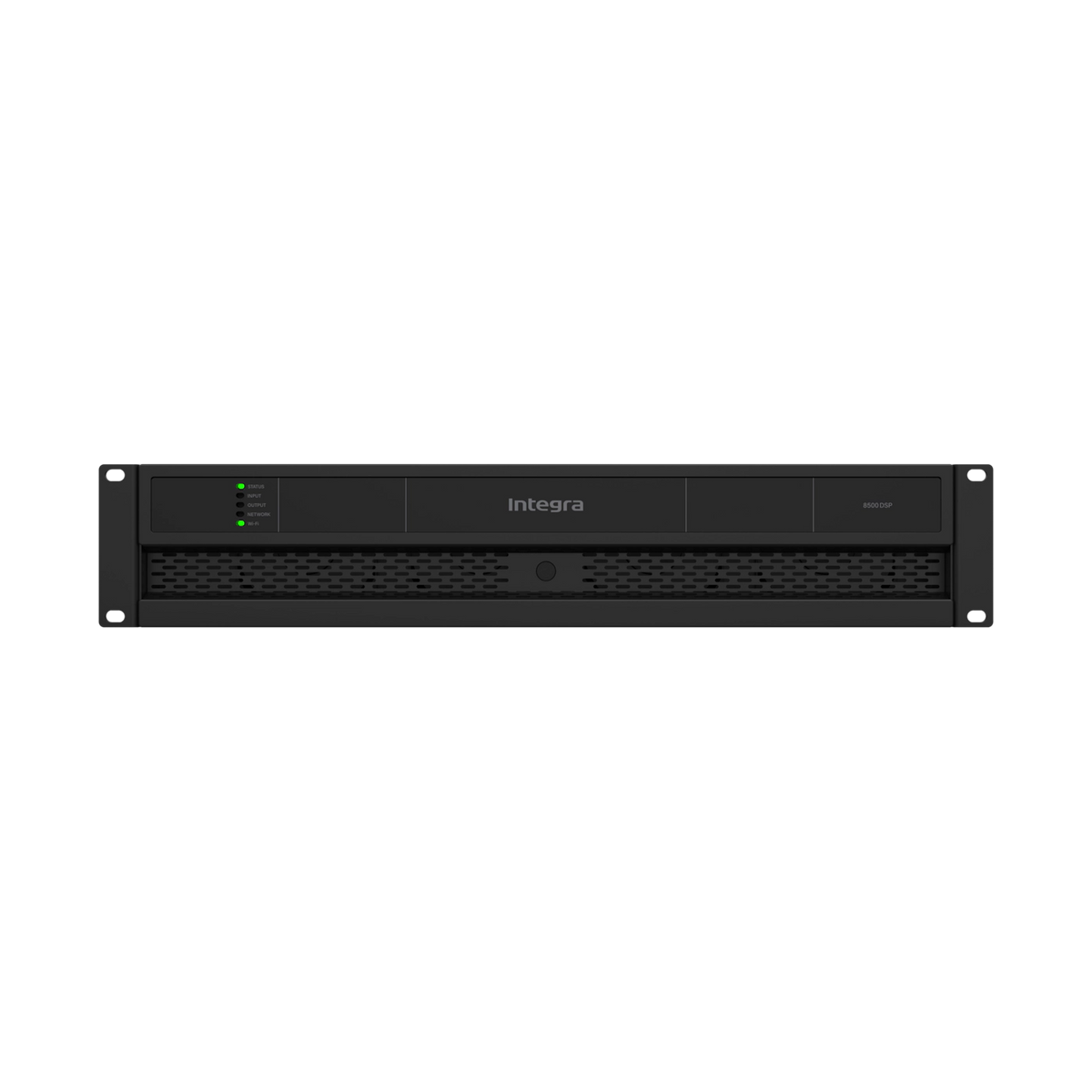

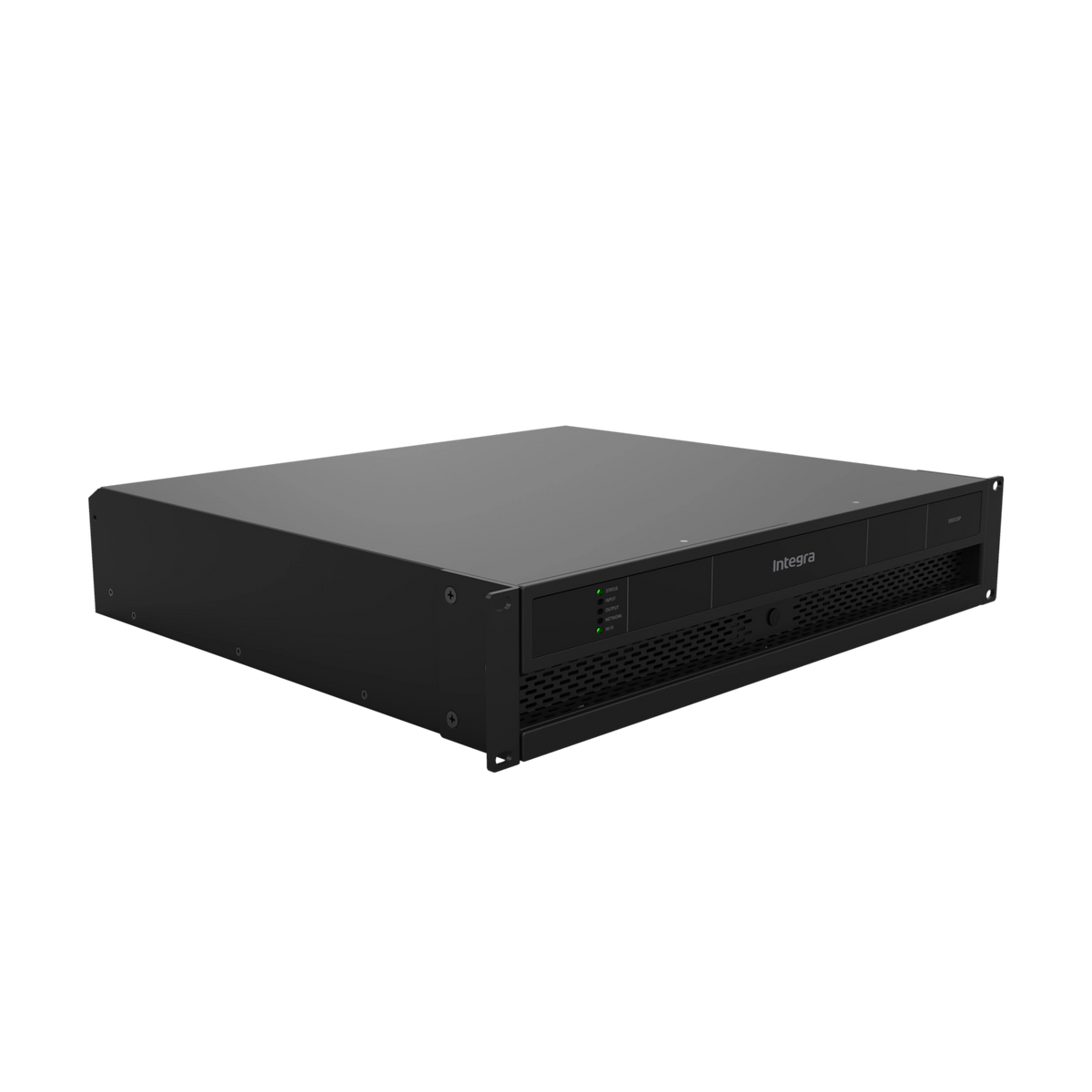

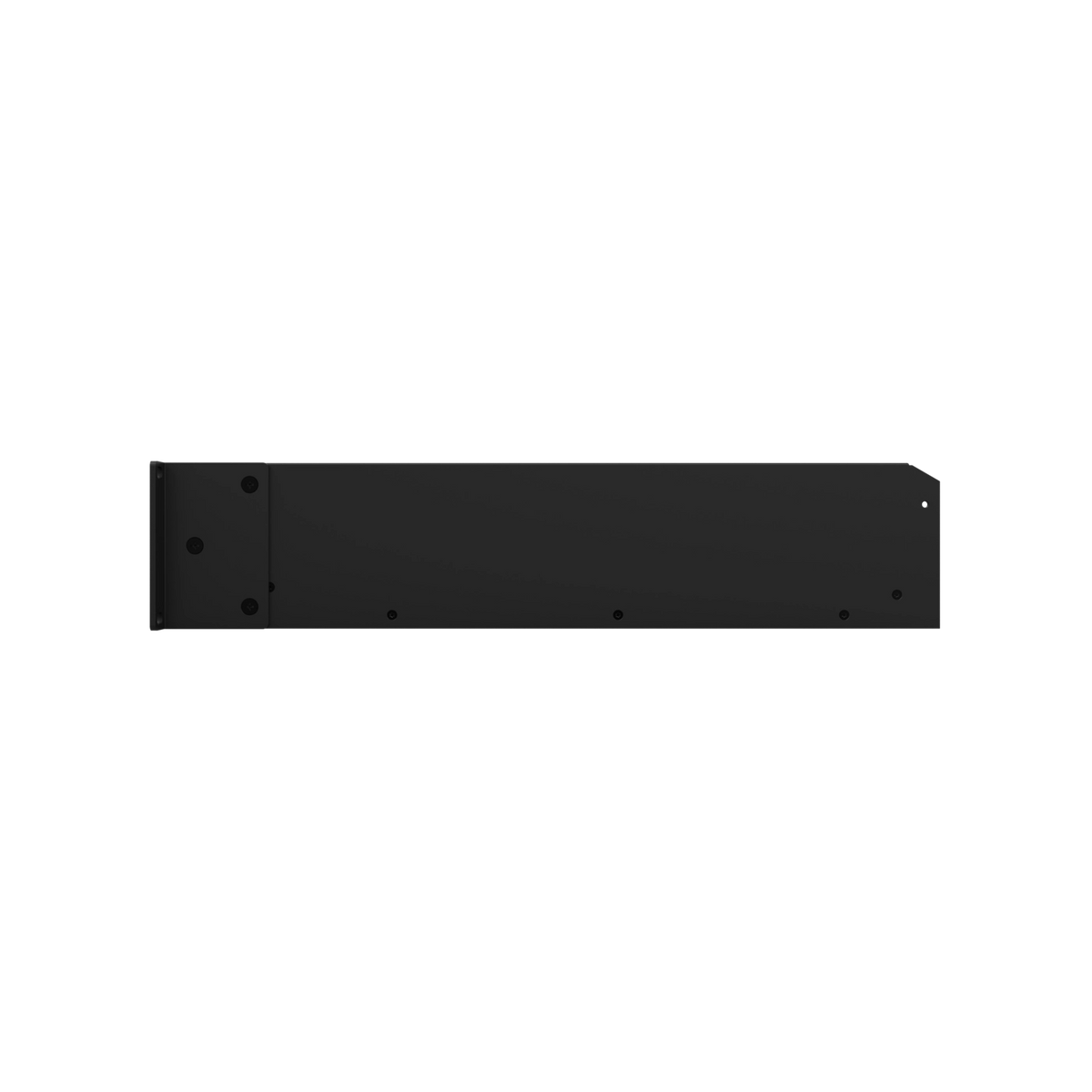

Integra 8500DSP 8-Channel 500W DSP Amplifier
With 8 x 500W @ 4 ohms, 8 x 250W @ 8 ohms, 4 x 1000W BTL @ 70/100V the all-new Integra 8500DSP Professional Amplifier provides precision amplification to very large sites, like hotels and spacious office buildings, while maintaining high output with integrator-friendly installation and control.
Features
Performance the pros can trust
|
Driven by our close working relationships with custom integrators, Integra brings only the highest performing audio equipment to market. The all-new Integra Professional Amplifier series is no exception, providing precision amplification to upscale sites with integrator-friendly controls that power long-lasting results. |
Integra Pro Amps pass every test
|
Our Professional Amplifiers are exhaustively tested to exceed your high expectations, meeting the demands of our rapidly changing marketplace. |
Built-in Klipsch speaker presets
|
Working closely with Klipsch engineers, all Integra Professional Amplifiers have built-in Klipsch Speaker Presets to automatically provide the highest-quality audio alignment with many of their most legendary CI products. EQ, limiters, compressors, and more are captured in these amplifiers to ease initial setup and maximize customer satisfaction. |
Streamlined UI available via optional zone controller
|
Reduce setup time and streamline the user experience with the Integra Professional Amplifiers optional wall controller. This web-based platform is intuitively designed, secured via 4-pin passcode, and shows real-time device syncing that allows users to quickly navigate their smart home audio system. Available in contemporary black or white finish to seamlessly blend with any premium aesthetic. |
Custom Integration
Enhanced configuration and maintenance with intuitive online setup GUI
|
Busy CI pros save time and hassle with the Integra Pro Amplifier’s online GUI. Digitally perfect your client’s audio experience by adjusting inputs, zones, output, and backup settings by setting up with intuitive UI. |
Software tools for streamlined installation
|
Working with our partners at Q-SYS, C4, RTI, Crestron, Symetrix, AMX, URC, and Savant, the Integra Professional Amplifiers feature built-in software tools to make installation a breeze via intuitive online GUI. |
Mounting
|
A compatible rack mount kit is included. No additional purchase is necessary. |
|
Included: Standard industry size rack mount kit |
Warranty
|
5-Year Warranty |
Specifications
Output power
|
@ 4 ohm |
8 x 500W |
|
4 x 1000W (BTL) |
|
|
@ 8 ohm |
8 x 250W (SE) |
|
4 x 1000W (BTL) |
|
|
@ 70V |
4 x 1000W (BTL) |
|
@ 100V |
4 x 1000W (BTL) |

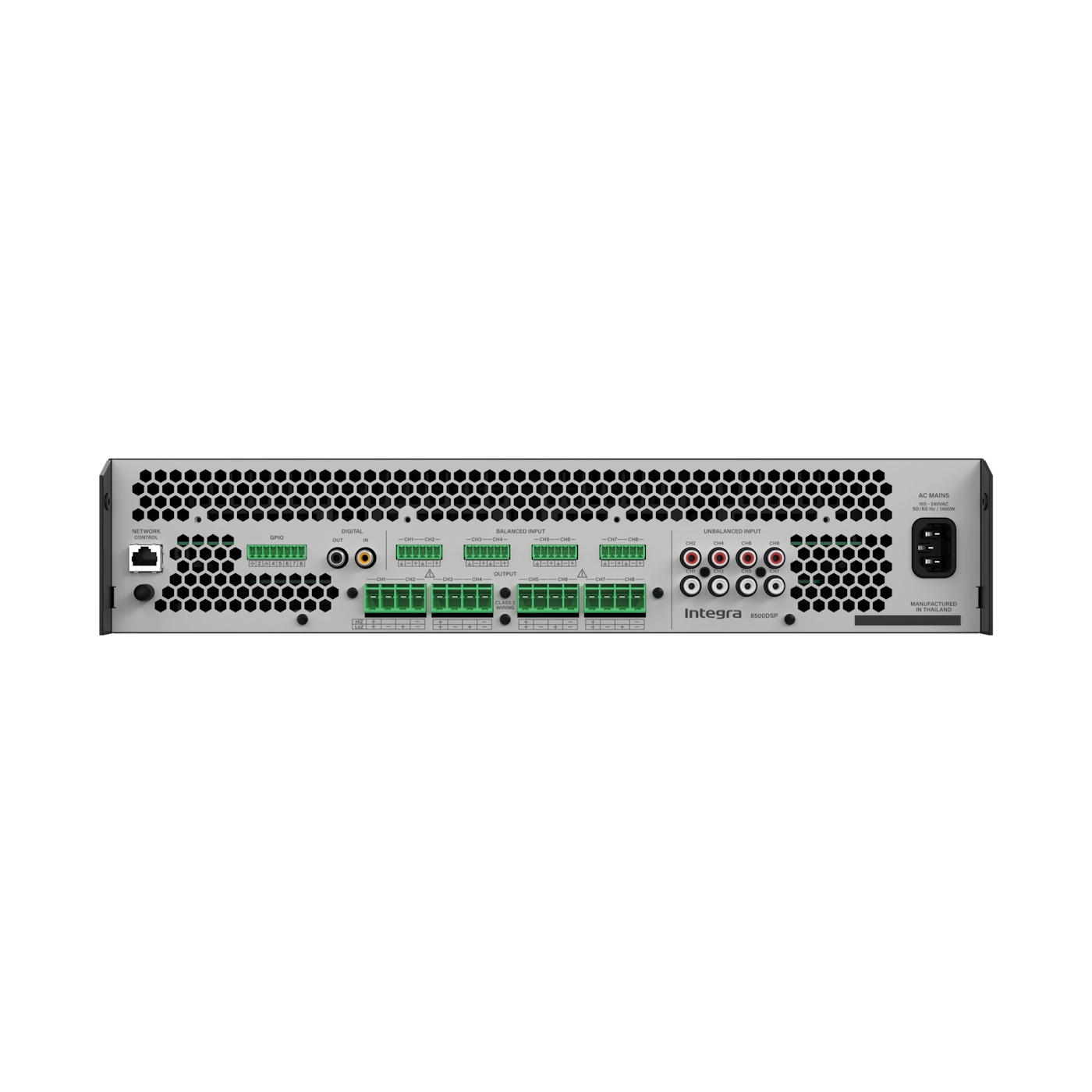

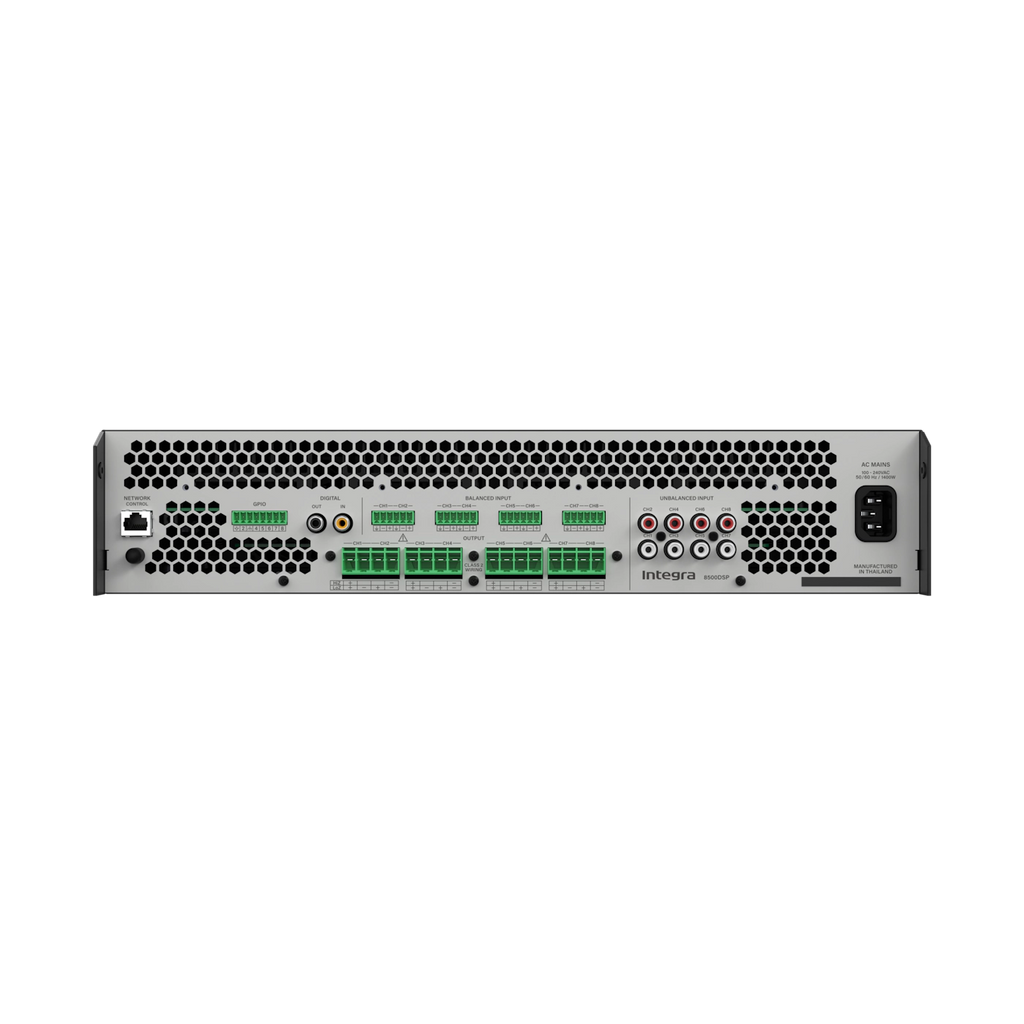

Inputs
|
4 x Unbalanced RCA input (Auto Sensing) |
|
Digital Coax (Auto Sensing) w/ 24bit 48kHz DAC |
Outputs
|
Digital Coax |
|
Speaker (Phoenix Connection) |
Network
|
WiFi (2.4GHz Only) |
|
LAN |
Rack unit
|
2 RU |
Dimensions & weight
|
PRODUCT |
|
|
Dimensions (W x H x D) |
3.5" x 17.3" x 16.3" |
|
(88 x 440 x 414 mm) |
|
|
Weight |
25.6 lbs |
|
(11.6 kg) |
