Description

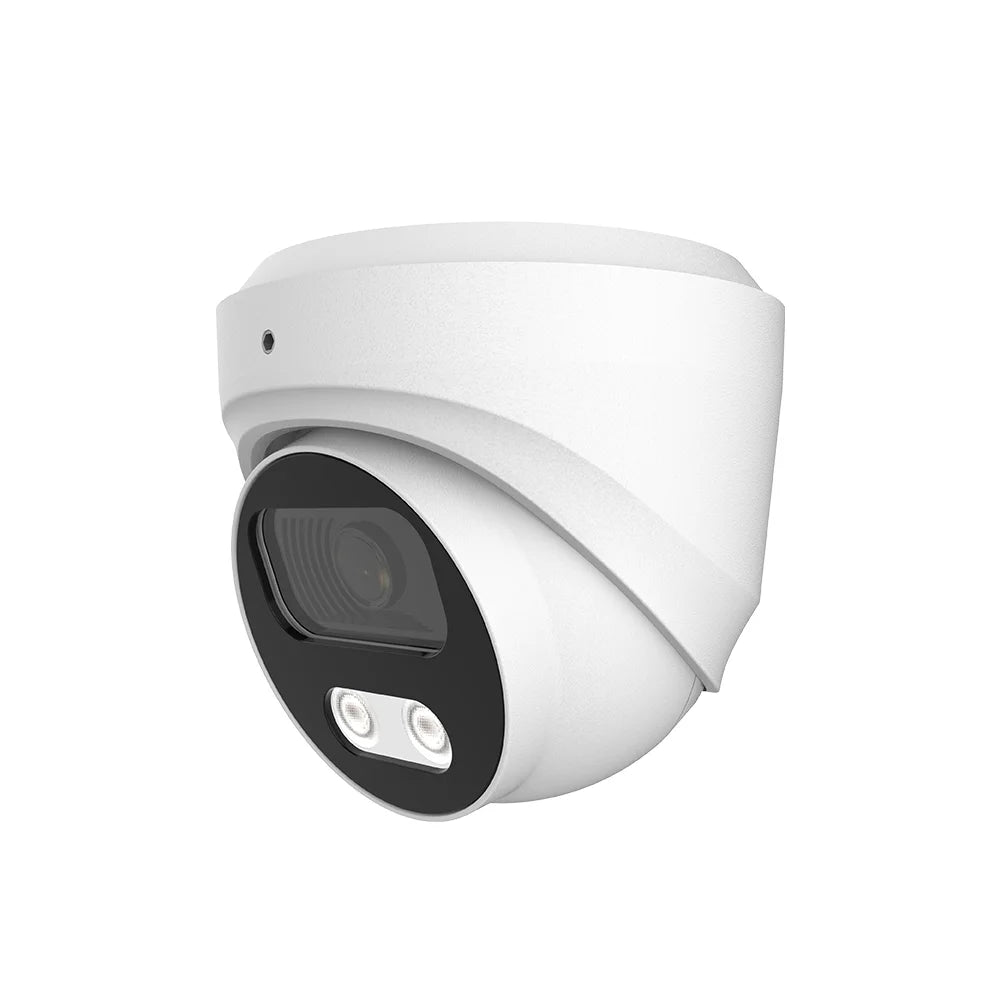

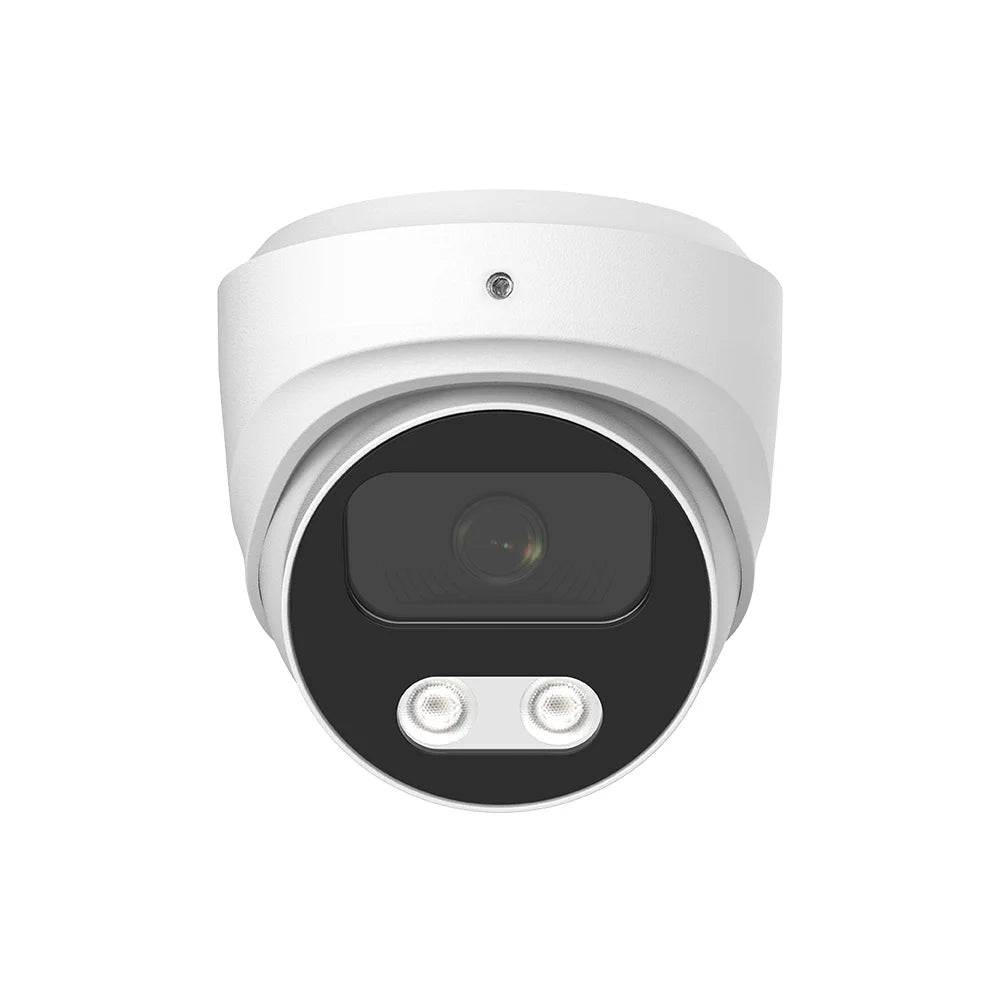

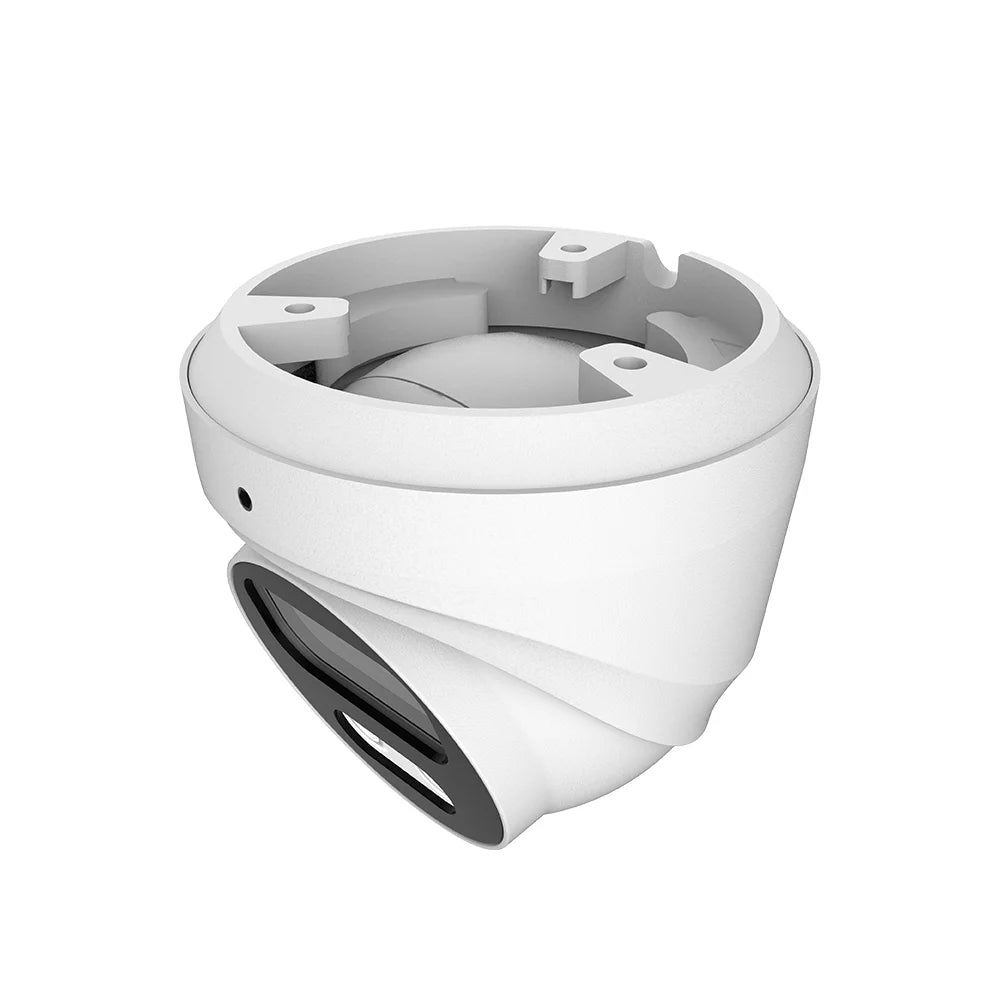

ProView Eco 5MP Full Color Mic Turret HD Analog Camera PROD-5SBFPE36-FX
1/3" CMOS sensor, 5MP, AOC (Audio over Coax cable) DWDR, DNR, MIRROR, OSD, UTC, AHD/TVI: 5M@20fps, 4M/2MP@30fps; CVI: 4M/2M@30fps
LED: 3015U*2, Warm white (4000K), up to 25m
Accessories: B116, JB-173-01, JB-310, JB-SB
Specs:
| Video Output Mode | AHD/TVI: 5M@20fps/12.5fps, 4M@30fps, 2M@30fps; CVI: 4M@30fps, 2M@30fps | |
| Camera | ||
| Image Sensor | 1/3″ CMOS Sensor | |
| Image Resolution | 5M:2592*1944 4M:2560*1440 2M:1920*1080 | |
| TV System | PAL/NTSC | |
| Minimun Illumination | Color : 0.03 lux@F2.0, 0 Lux with white light | |
| Scanning System | Progressive Scan | |
| Lens | ||
| Focus Length | 3.6 mm | |
| Focus Control | Fixed | |
| Lens Type | Fixed | |
| Night Vision | ||
| IR Cut Filter | YES | |
| Infrared LED | NO，Suport Warm white (4000K) | |
| Infrared Distance | up to 25m | |
| IR Status | AGC Auto Control | |
| Camera Features | ||
| Starlight | N/A | |
| Day/Night | YES/NO | |
| OSD Menu | YES | |
| WDR | DWDR | |
| UTC | YES | |
| Noise Reduction | DNR | |
| Coaxial Audio | YES(only TVI ) | |
| White Balance | AUTO / MANUAL | |
| Gain Control | AUTO | |
| General | ||
| Housing | Metal, IP67 | |
| Bracket | NO | |
| Operation Temperature | -10℃ ~ +60℃ RH95% Max | |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max | |
| Power Source | DC12V±10%, 550mA | |
| Dimension | ￠96 x 91(H) mm | |
| Weight | 600g | |
