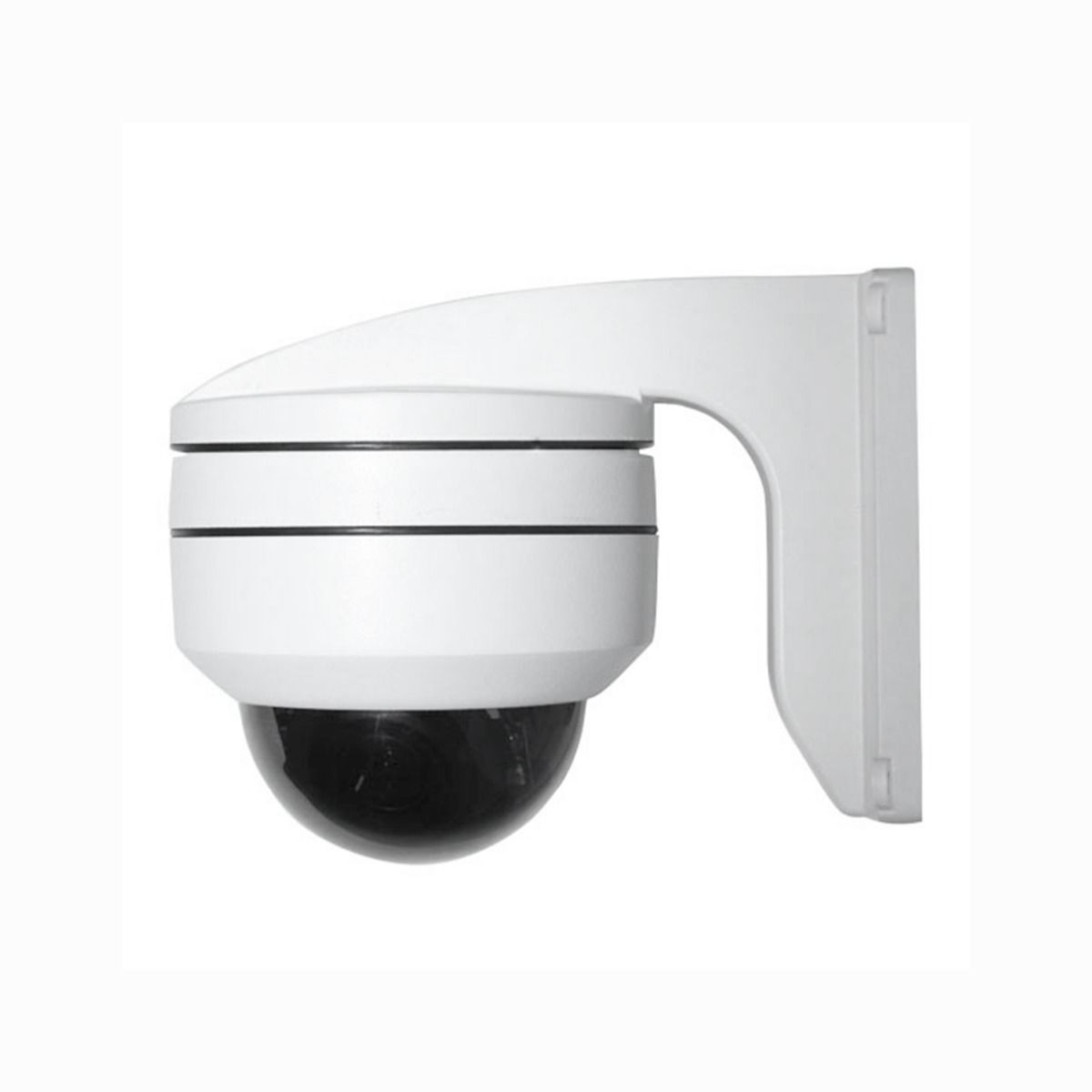

ProView Eco 5MP IR AI Mic & Speaker PTZ IP Camera PROP-D5DKGL4X
3" AI IP PTZ 4X, High Speed Dome Camera, 5MP, 120 Db WDR, 3D NR, 2592*1944@20fps/ 4MP(2560*1440)@25fps/ 1080P(1920*1080) @30fps, H.265/H.264/M-JPEG Compression 28µx 8PCS IR LEDS, IR Range: 15M, Pan Range: 0°~340°, Pan Speed:22°/S, Tilt Range: 0°~90°, Tilt Speed: 15°/sec, Preset Points: 255, Guard Tours: 8 Groups, Guard Points: Max.20 points.
POE, Built-in SD Card Slot, Build in Mic, Support Two way Audio
Smart Analytics: Motion Detection, Intrusion Detection
| Camera | |
| Image Sensor | 1/2.8″ Progressive Scan CMOS Sensor |
| Horizontal Resolution | 5MP |
| Compression | H.264/H.265/H.264+/H.265+ |
| Minimum Illumination | Color: 0.008 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| S/N Ratio | 60db |
| WDR | 120dB(Not support in 5MP resolution) |
| PTZ | |
| Horizontal Rotation Speed | 22°/S |
| Horizontal Rotation Range | 0°~340° |
| Tilt Rotation Speed | 15°/S |
| Tilt Rotation Range | 0°~90° |
| Preset Points | 220 |
| Guard Tours | 8 groups |
| Guard Points | Max.20 points |
| Lens | |
| Focus Length | 3.35-10.05mm F1.66-F3.03 |
| Focus Control | 4X Optical Zoom |
| Night Vision | |
| Infrared LED | ￠28x8PCS |
| IR Range | 15M |
| Day-night mode | AUTO |
| Network | |
| Network protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP |
| ONVIF | Support (PROFILE S,PROFILE G,PROFILE T） |
| Network interface | Built-in RJ45 network interface, support 10M/100M IP DATA |
| Main Stream1 | 5MP(2592*1944)@20fps |
| Main Stream2 | 4MP(2560*1440)@25fps |
| Main Stream3 | 1080P(1920*1080)@30fps |
| Sub Stream1 | D1(720*480)@20fps |
| Sub Stream2 | CIF(352*288)@20fps |
| Sub Stream3 | / |
| AI Function | |
| Intelligent Analysis | Intrusion Detection, Motion detection based on human detection |
| Interface | |
| Audio | Built-in Mic & Speaker |
| Audio Encode | G711A，C711U |
| Alarm | N/A |
| SD Card Slot | Support |
| POE | YES |
| General | |
| Weatherproof | IP66 |
| Operating Temperature | Light on: -30~45℃ Light off:-30~50℃ |
| Operating Humidity | ≤90% Non Condensing |
| Power | DC12V/1A(Device power consumption) |
| Lightning Protection | Transient voltage 3000V |
| Dimension | device:129*129*124(mm) package:140*155*150(mm) (Hanging) 140*155*160(mm) (Wall Mount) |
| Weight | device:0.64Kgs package:0.885Kgs(Hanging) 0.935Kgs(Wall Mount) |
