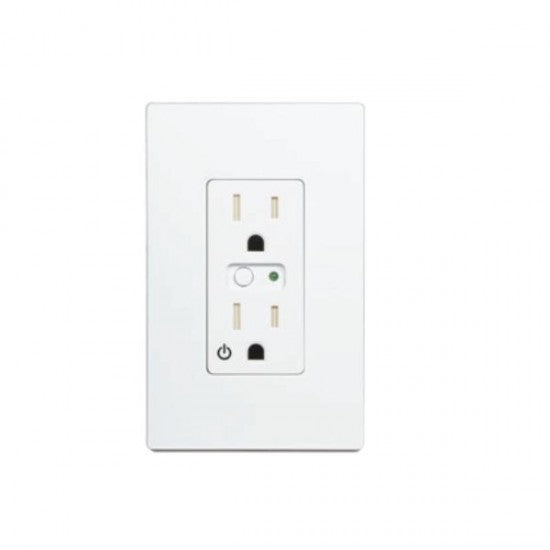

The WO15EMZ5-1 Single Wall Outlet is wired in place of a standard duplex receptacle
This device allows remote ON/OFF control of loads connected to the bottom outlet (the other outlet remains powered at all times)
This WO15EMZ5-1 Outlet integrates with other Nortek Security & Control Z-Wave enabled products, and can also act as a wireless repeater to ensure that commands intended for another device in the network are received (useful when a device would otherwise be out of radio range)
Specifications
Maximum Load
Incandescent- 600W maximum, 120 VAC
Resistive- 15 amps (1800 watts) maximum, 120 VAC
Motor- 1/2 H.P. maximum, 120 VAC
Signal (Frequency)- 908.42 MHz
Range- Up to 100 feet between the wireless controller and/or the closest Z-Wave device
Input- 120v 15A 60Hz
Tamper resistant- As required by 2008 National Electric Code for new and renovated dwellings Network wide inclusion
Scene- Command Class , Security beaming, Requires a Neutral
