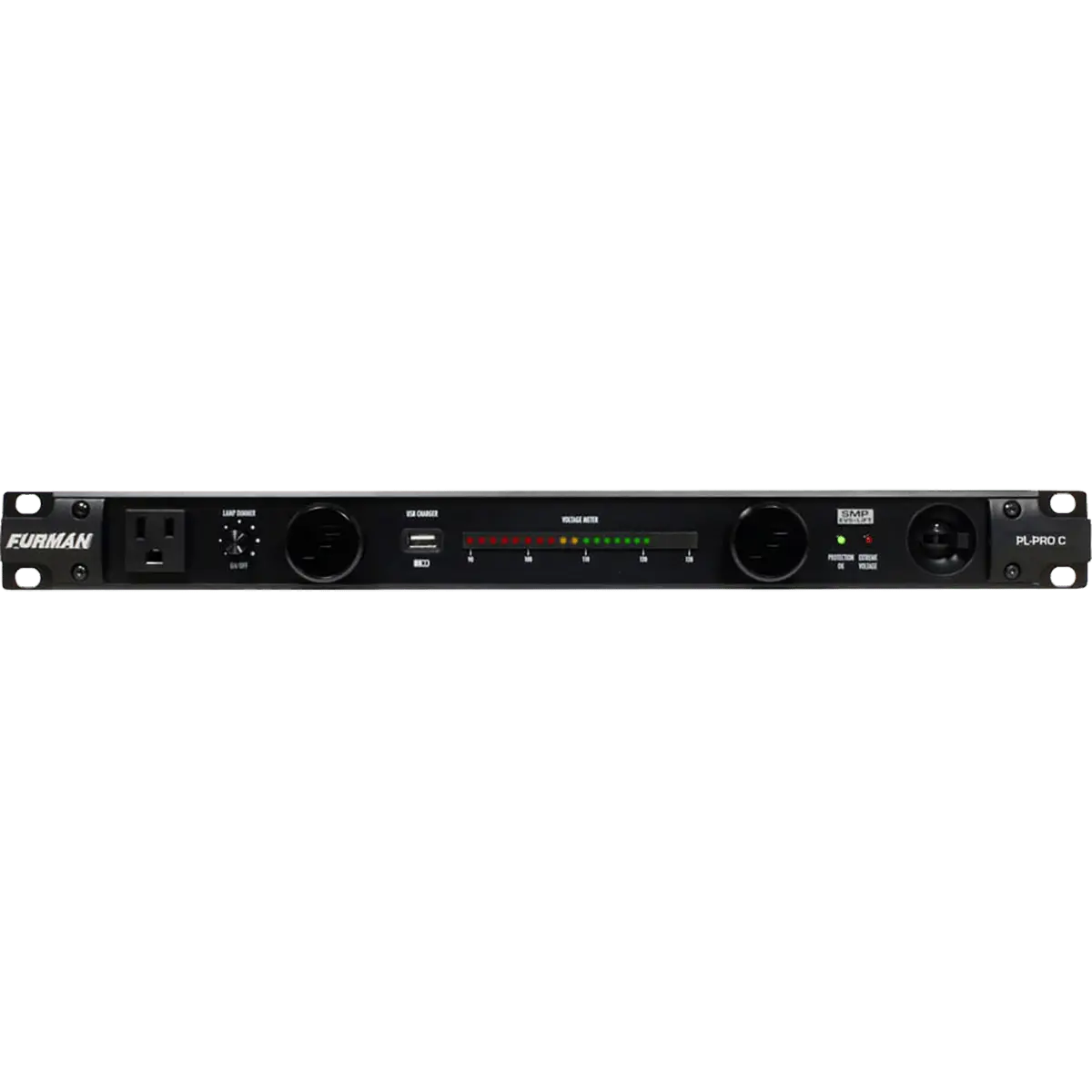

Furman Pro PL-PROC 20A Power Conditioner with Lights, Voltmeter

Furman ProSKU: PL-PROC

Price:

Login to see pricing

MSRP:
$719.95
Stock:
Call for availability

Description

Product Details

INSTRUMENT RIGS

You’ve got a rack for your effects, preamps, tuner… You’re going to plug that into the wall? One big spike and your rig is up in smoke. The advanced Series Multi-Stage Protection from Furman defends your gear from the spikes and surges that are so common at gigs and practice spots. With advanced Linear Filtering Technology from Furman, you’ll get a quieter tone without pops, crackles, and the local radio station coming out of your amp.

RECORDING

Can’t track down where that noise is coming from? Your mix sounding flat? With advanced Linear Filtering Technology from Furman, you’ll lower the noise floor caused by the dirty AC power coming into your console or DAW. Advanced Series Multi-Stage Protection from Furman keeps your sensitive digital equipment from acting funny or burning up due to everyday spikes and surges. With a 15A capacity and eleven total outlets, it’s enough to power your whole home studio.

DJ EQUIPMENT

Bars, clubs, and other event venues have some of the worst power out there—from air compressors turning on and off to light shows pulling current loads up and down, the AC power can strain the circuits in your rig. Advanced Series Multi-Stage Protection and LiFT from Furman keep the bad stuff out, and the dual pull-out front panel lights let you discreetly see your board and gear without distracting from the show on the dance floor.

PRO AUDIO

When you’re out there gigging, you never know what kind of power you’re going to get. The wear and tear on mobile rigs eventually takes its toll—that’s why it’s smart to plug into advanced Linear Filtering Technology from Furman. It keeps your equipment safe and sounding clean. Whether you’re setting up a show at the local club or powering up the church band for their next service, make sure you give them power they can trust.

Specifications

Response Time: 1 nanosecond

Maximum Surge Current: 6,500 amps

Construction: Steel chassis, .120” brushed and black anodized aluminum front panel; glass epoxy printed circuit boards

Family: Classic Series

Line Voltage: 120 (Volts)

Number of Outlets: 9

Number of Isolated Banks: 2

Outlet Descriptions: All 9 outlets linearly filtered and surge protected

Rack Mountable: Yes

Rack Ears Included: Yes

Front Panel Meter(s): Segmented LED voltmeter

Front Media Light(s): 2 multi-LED, dimmable lamps

Control: Front panel On/Off switch

Voltage Regulation: No

Compliance: cTUVus

USB Charging: 1 front panel USB charger

Low Voltage Trigger: N/A

AC Power Cord: 10 ft, captive 3/14 AWG, with NEMA 15 plug

Dimensions: 19" W x 10.5" D x 1.75" H

Weight: 12 lbs

Power Consumption: 12 Watts

AC Protection Technology: Extreme Voltage Shutdown, Series Multi-Stage Protection, Non-sacrificial protection with zero ground contamination

Under-Voltage Shutoff: 90V

Over-Voltage Shutoff: 140 VAC

Maximum Current Rating: 20 Amps

Initial Clamping Level: 188 VAC peak @ 3,000 Amps

Filtration Technology: LiFT

Filtration Rating: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz

Signal Line Protection: No

UPC: 654061027997

Proposition 65 Warning: WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Downloads

Manual

Datasheet
