Description
Product Details
INSTRUMENT RIGS
You’ve got a rack for your effects, preamps, tuner… You’re going to plug that into the wall? One big spike and your rig is up in smoke. The advanced Series Multi-Stage Protection from Furman defends your gear from the spikes and surges that are so common at gigs and practice spots. With the advanced Linear Filtering Technology from Furman, you’ll get a quieter tone without pops, crackles, and the local radio station coming out of your amp.
RECORDING
Can’t track down where that noise is coming from? Your mix sounding flat? With advanced Linear Filtering Technology from Furman, you’ll lower the noise floor caused by the dirty AC power coming into your console or DAW. Advanced Series Multi-Stage Protection from Furman keeps your sensitive digital equipment from acting funny or burning up due to everyday spikes and surges. With a 15A capacity and eleven total outlets, it’s enough to power your whole home studio.
DJ EQUIPMENT
Bars, clubs, and other event venues have some of the worst power out there—from air compressors turning on and off to light shows pulling current loads up and down, the AC power can strain the circuits in your rig. The advanced Series Multi-Stage Protection and LiFT from Furman keeps the bad stuff out, and the dual pull-out front panel lights let you discreetly see your board and gear without distracting from the show on the dance floor.
PRO AUDIO
When you’re out there gigging, you never know what kind of power you’re going to get. The wear and tear on mobile rigs eventually takes its toll—that’s why it’s smart to plug into Advanced Linear Filtering Technology from Furman. It keeps your equipment safe and sounding clean. Whether you’re setting up a show at the local club or powering up the church band for their next service, make sure you give them power they can trust.
Specifications
Response Time: 1 nanosecond
Peak Impulse Current: 6,500 amps
Rear BNC Connector: Rear rack lamp (Lamp not included) 12VAC 500MA max
Line Voltage: 120 (Volts)
Number of Outlets: 9
Number of Isolated Banks: 2
Outlet Descriptions: All 9 outlets linearly filtered and surge protected
Rack Mountable: Yes
Rack Ears Included: Yes
Front Panel Meter(s): No

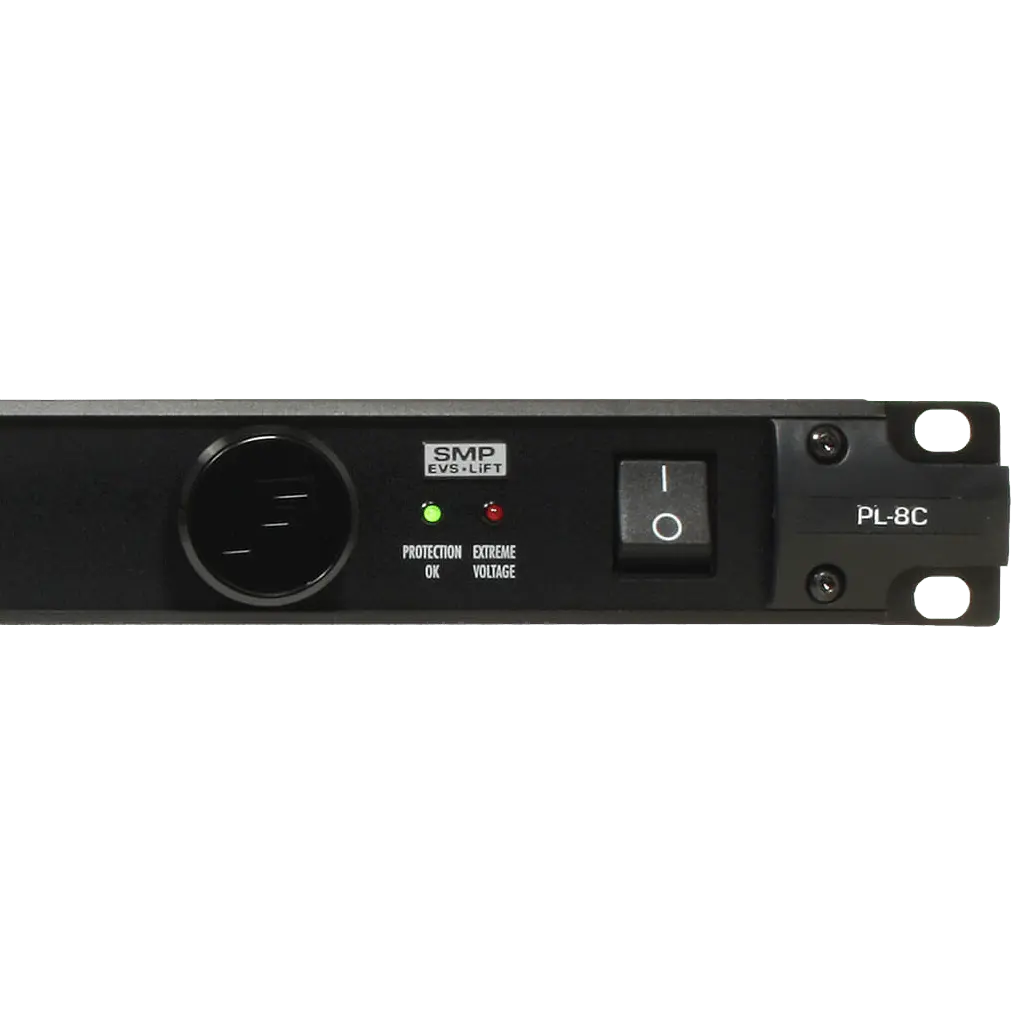

Front Media Light(s): 2 multi-LED, dimmable lamps
Control: Front panel On/Off switch, Light dimmable knob
Voltage Regulation: No
Compliance: cTUVus
USB Charging: N/A
Low Voltage Trigger: N/A
AC Power Cord: 10 ft, captive 3/14 AWG, with NEMA 15 plug
Dimensions: 19" W x 10.5" D x 1.75" H
Weight: 12 lbs
Power Consumption: 12 Watts
AC Protection Technology: Extreme Voltage Shutdown, Series Multi-Stage Protection, Non-sacrificial protection with zero ground contamination
Under-Voltage Shutoff: 90V
Over-Voltage Shutoff: 140 VAC
Maximum Current Rating: 15 (Amps)
Initial Clamping Level: 188 VAC peak @ 3,000 Amps
Filtration Technology: LiFT
Filtration Rating: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz
Signal Line Protection: No
UPC: 654061027966
