Description
Product Details
The unit provides connected 120V equipment with stable voltage, power protection, and AC line filtration, ideal for use with 120V A/V gear when traveling to countries with 100V, 220V, 230V, or 240V services.

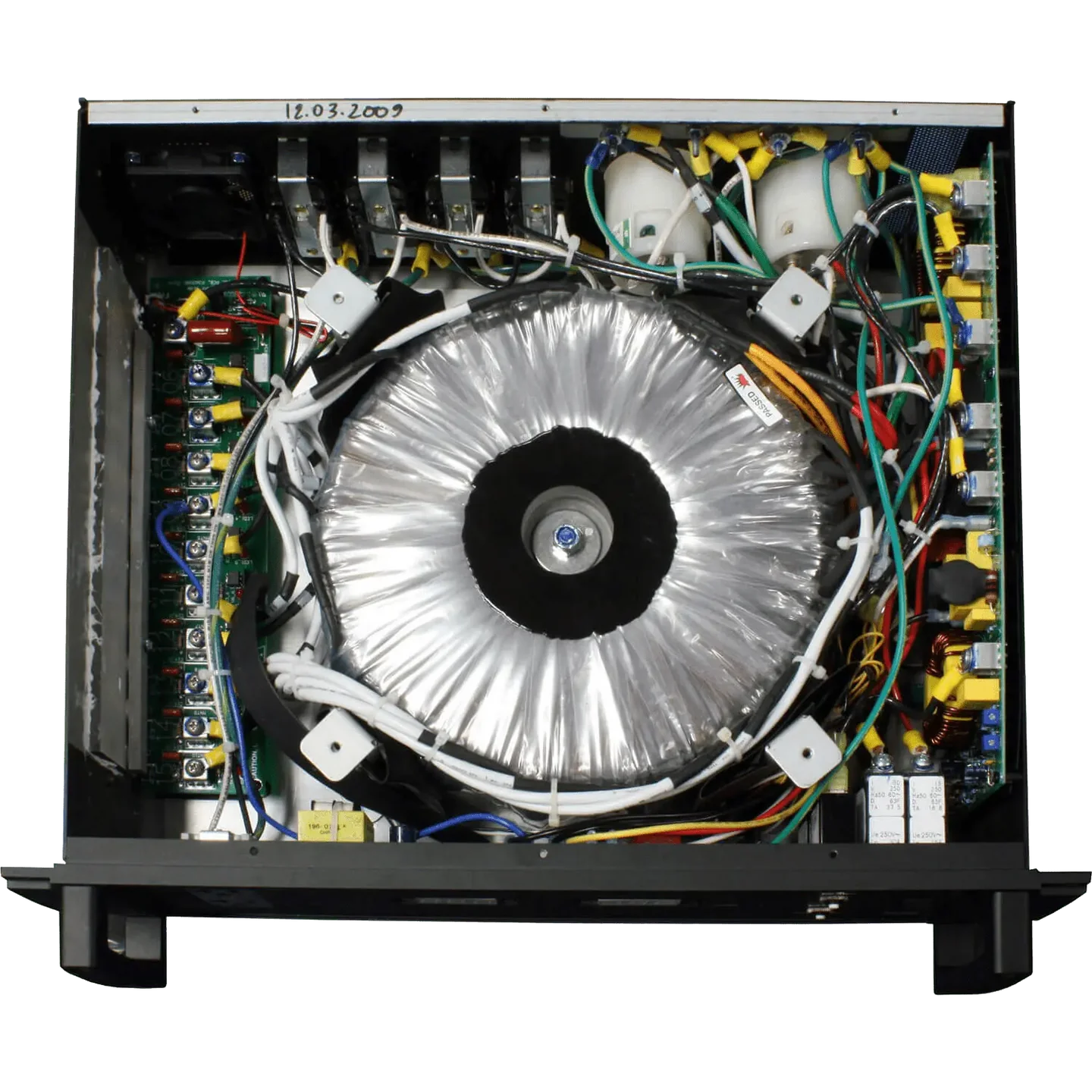

The predecessor to the P-3600 AR G, the AR-PRO, has been an indispensable product for many professional users. The updated model features True RMS Regulation Technology (utilizing an ultra-low-noise toroidal isolation transformer/autoformer, high-current switching TRIACs, and micro-processing control) to step-down or step-up input voltages. It also offers exclusive LiFT/SMP/EVS technologies for professional-level protection and linear AC noise filtration.
These features, along with the P-3600 AR G’s 30A output capacity and wide input voltage capture range, make it a unique solution among other portable power conditioner/voltage regulators and a reliable, application-specific alternative to typical step-up/step-down transformers.
Specifications
Response Time: 1 nanosecond
Maximum Surge Current: 6,500 amps
AC Input: L-14 Male Twistlock Inlet (Twistlock Cable-Mount Connector Included)
Line Voltage: 120 (Volts)
Number of Outlets: 11
Number of Isolated Banks: 0

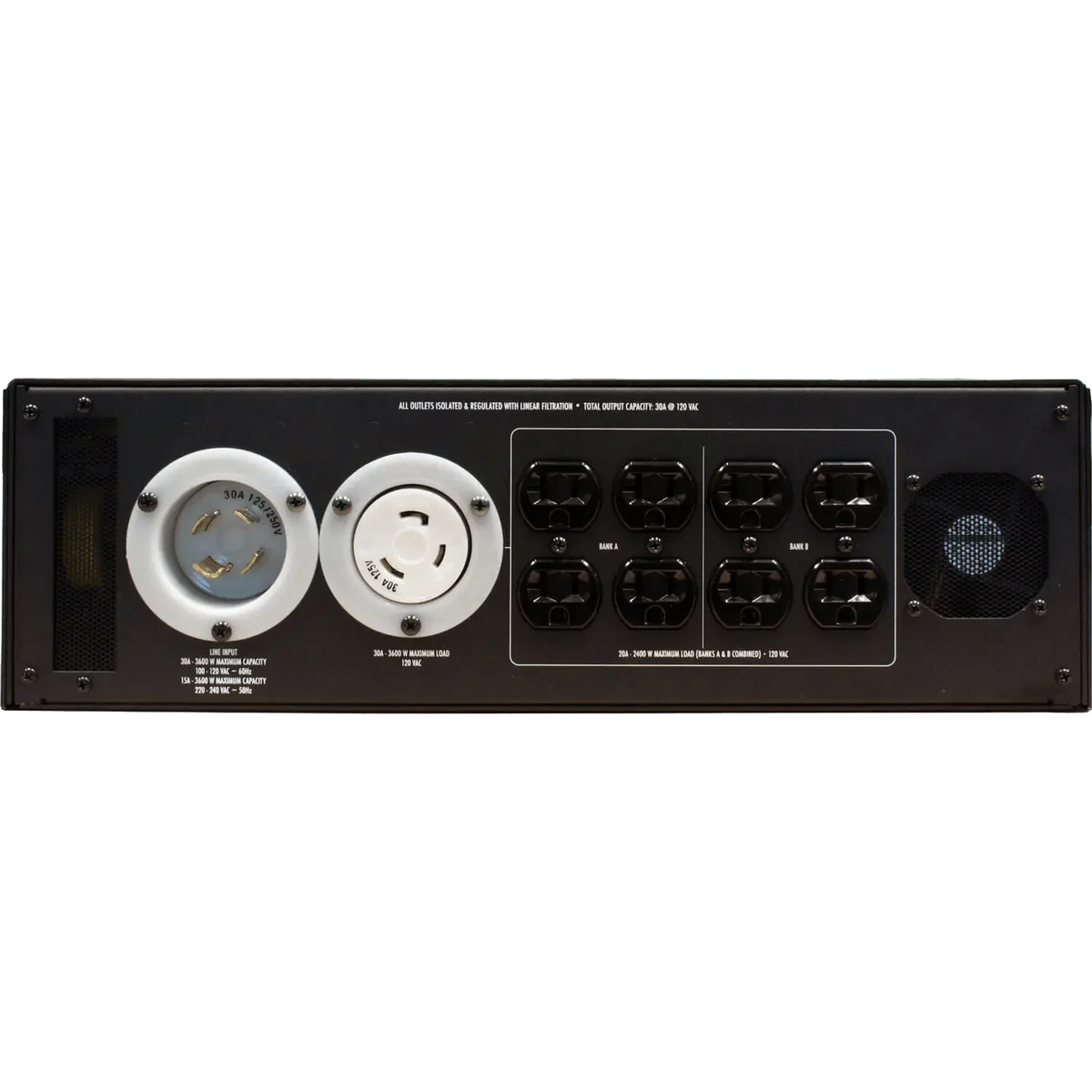

Outlet Descriptions: All 11 outlets regulated, protected, and filtered. Rear panel: (8) 20 amp outlets and (1) 30 amp outlet. 2 front panel 20 amp convenience outlets
Rack Mountable: Yes
Rack Ears Included: Yes

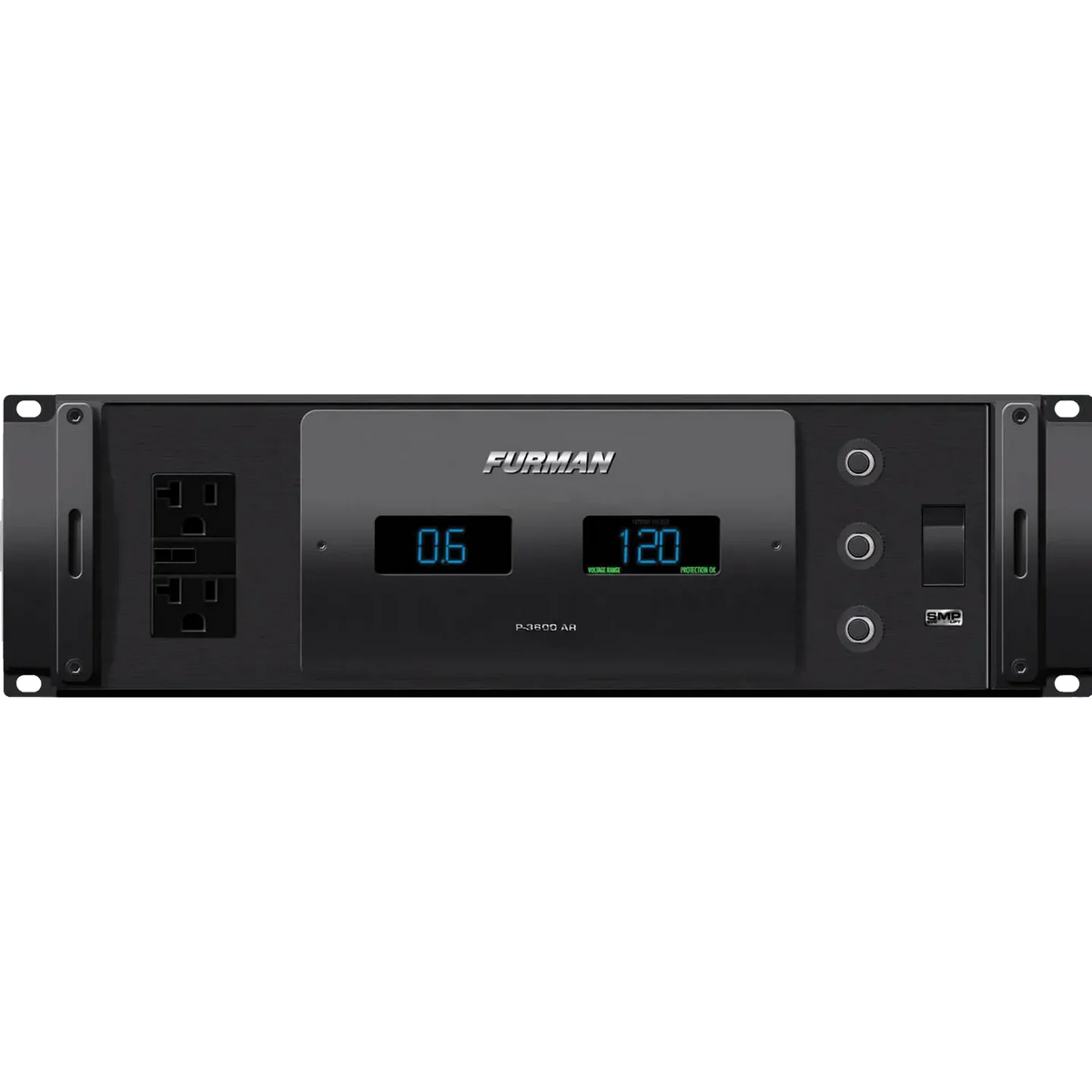

Front Panel Meter(s): LED voltmeter displays incoming line voltage, LED ammeter displays output current draw
Front Media Light(s): No
Control: Front panel On/Off switch, Outlet bank reset buttons
Voltage Regulation: Regulation capture range: (LOW) 88-133 VAC @ 50/60Hz, (HIGH) 170-265 VAC @ 50/60Hz
Compliance: cTUVus
USB Charging: N/A
Low Voltage Trigger: N/A
AC Power Cord: L-14 male twistlock inlet (twistlock cable-mount connector included)
Dimensions: 19" W x 14.25" D x 5.25" H
Weight: 98 lbs
AC Protection Technology: Global True RMS Voltage Regulation, Extreme Voltage Shutdown, Series Multi-Stage Protection, Non-sacrificial protection with zero ground contamination
Over-Voltage Shutoff: 145 VAC Nominal (120VAC Input), 275 VAC Nominal (240VAC Input)
Maximum Current Rating: 30 Amps
Initial Clamping Level: 191V Peak @ 3,000 Amps
Filtration Technology: LiFT
Filtration Rating: 10 dB @ 10kHz, 40 dB @ 100kHz, 55 dB @ 500kHz
Signal Line Protection: No
UPC: 654061028215
