Description
Product Details
The P-2400 IT features over 80 dB of common-mode and over 50 dB of differential-mode noise reduction for recording, mastering, and broadcast studios, or anywhere noise-free performance is critical. With 100% isolation from line, neutral, and ground, the P-2400 IT is also ideal for breaking AC ground loops without rewiring or hiring an electrician.

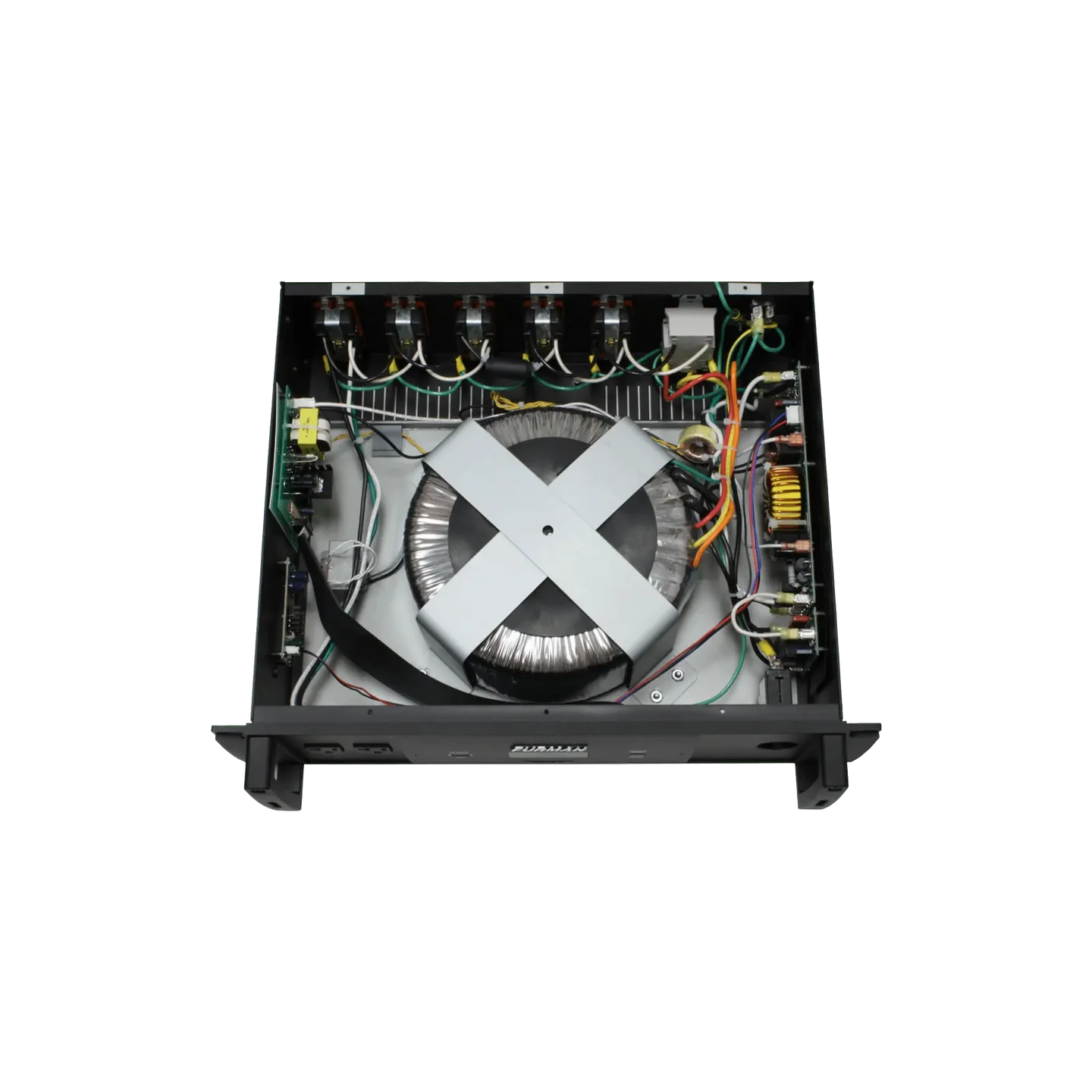

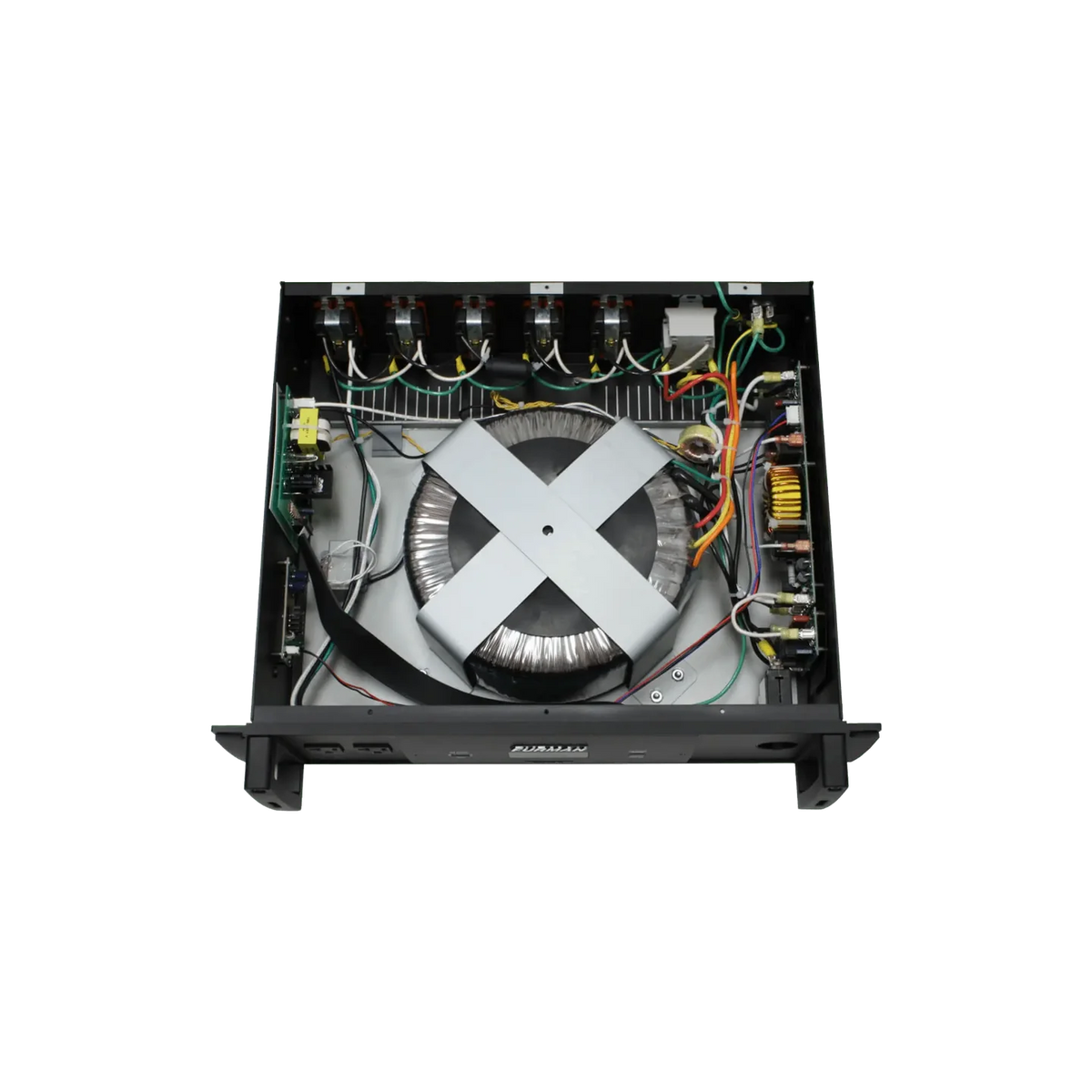

The P-2400 IT includes a specially wound and shielded toroidal balanced isolation transformer specifically designed to reduce hum pickup by sensitive equipment when ultra-low-noise is a must. Additionally, the revolutionary Series Multi-Stage Protection (SMP) featuring Extreme Voltage Shutdown (EVS) circuits, and exclusive Linear Filtering Technology (LiFT) combine to ensure what customers have grown to expect from Furman – uncompromised protection and purification.
Symmetrically Balanced Power
For the most critical, low-noise applications, Symmetrically Balanced Power provides an invisible noise floor, while completely breaking ground loops without dismantling equipment or rewiring. This noise reduction is extraordinarily efficient and linear across a huge frequency range. The transformer has completely re-worked your incoming AC, and the result is perfectly clean power devoid of the masking effects of AC noise with 100% isolation from line, neutral, and ground.
Unmatched Protection
SMP and EVS circuitry safeguards equipment from transient voltage events (such as surges and spikes), as well as sustained overvoltage conditions (commonly caused by wiring faults), for complete and comprehensive protection of sensitive equipment.
Innovative Convenience and Monitoring Features

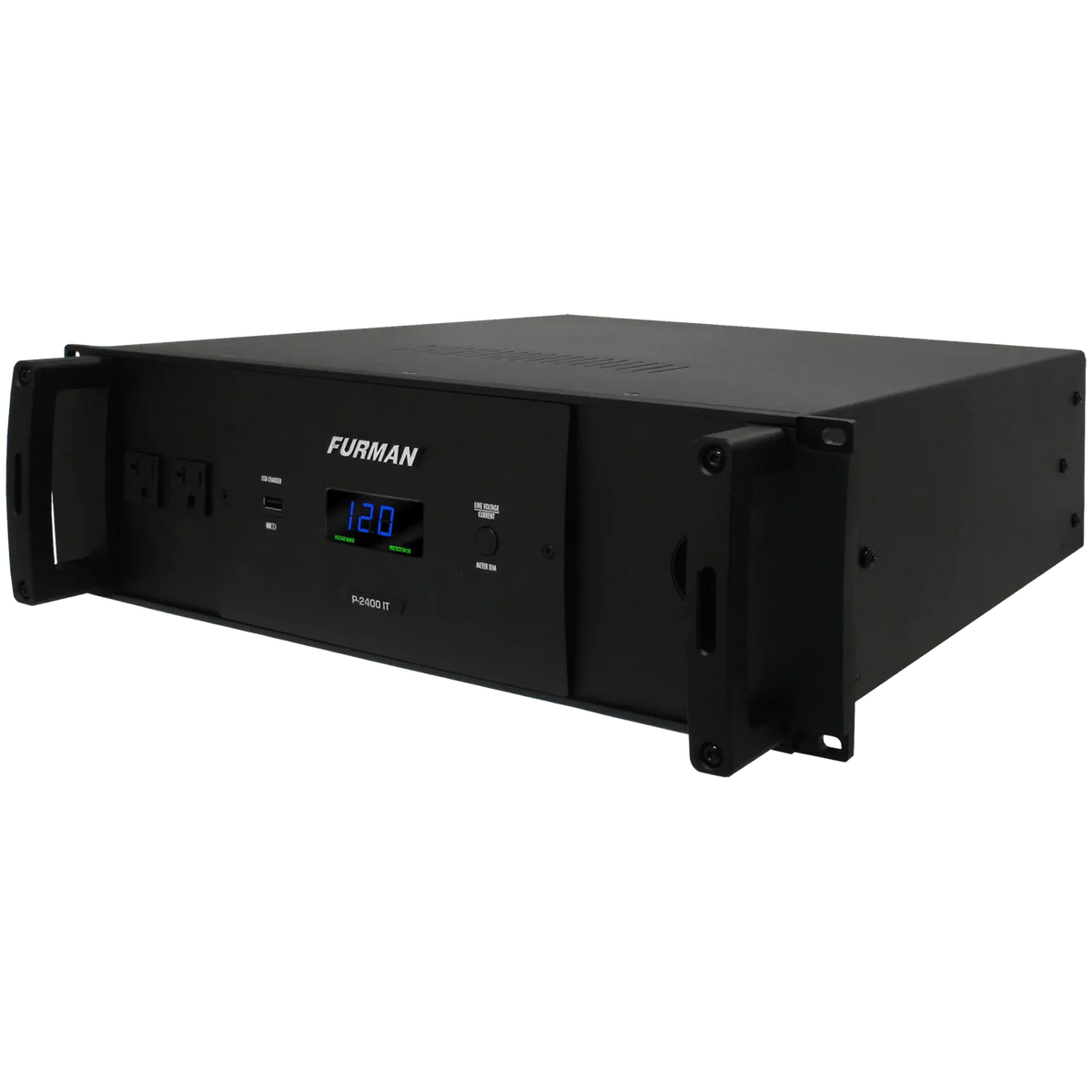

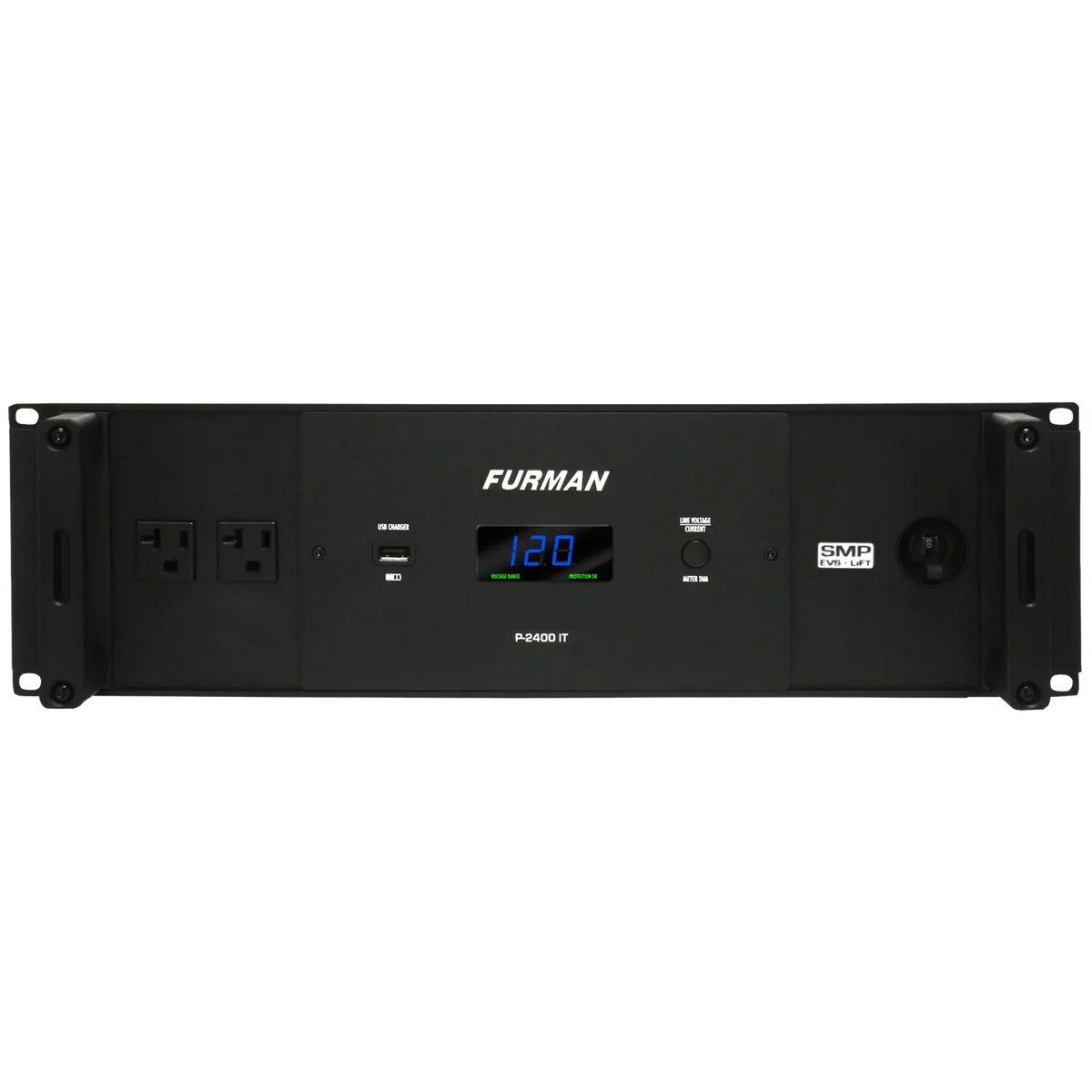

The P-2400 IT’s front panel LED window displays incoming voltage or output current, with ”Protection OK”, ”Extreme Voltage” and color-coded ”Voltage Range” indicators for comprehensive power monitoring. A front panel USB outlet charges most personal media devices and cell phones right at your equipment rack.
Specifications
Response Time: 1 nanosecond
Maximum Surge Current: 6,500 amps
Line Voltage: 120 (Volts)
Number of Outlets: 14
Number of Isolated Banks: 2
Outlet Descriptions: All outlets balanced, filtered, and protected. Rear panel: 10 ultra-low resistance Hubbell outlets, 2 GFCI outlets. 2 front panel convenience outlets
Rack Mountable: Yes
Rack Ears Included: Yes
Front Panel Meter(s): LED voltmeter/ammeter displays incoming voltage and output current draw
Front Media Light(s): No
Control: Front panel On/Off switch, Voltage meter dimmer button
Voltage Regulation: No
Compliance: NRTL-C
USB Charging: 1 front panel USB charger
Low Voltage Trigger: N/A
AC Power Cord: 10 ft. captive 3/12 AWG, black cord with NEMA 5-20 plug
Dimensions: 19" W x 14" D x 5.25" H
Weight: 90 lbs
Power Consumption: 26 Watts
AC Protection Technology: Extreme Voltage Shutdown, Series Multi-Stage Protection, Non-sacrificial protection with zero ground contamination
Under-Voltage Shutoff: 90V
Over-Voltage Shutoff: 140 VAC
Maximum Current Rating: 20 Amps
Initial Clamping Level: 188 VAC peak @ 3,000 Amps
Filtration Technology: LiFT, Isolated Symmetrically Balanced Power
Filtration Rating: Transverse Mode: 10 dB @ 10kHz, 40 dB @ 100 KHz, 50 dB @ 500kHz
Common Mode: 80 dB @ 20 kHz, 40 dB @ 20 kHz to 1MHz
Signal Line Protection: No
UPC: 654061028147
