Description
Product Details
The P-2400 AR accepts input voltage between 97V-137V and transforms it to a constant output of 120V, ±5V. Voltages beyond that range may also be converted to usable levels, depending on the range variance. With its robust 20A capacity, the P-2400 AR is ideal for high-current equipment such as power amplifiers or powering A/V racks in large installations.
Additionally, the P-2400 AR is a full-featured power conditioner that filters and purifies AC power, reducing line noise and ensuring optimum performance. Not only will your equipment perform better with Linear Filtering Technology (LiFT), but it will also be fully protected by the exclusive Series Multi-Stage Protection (SMP) and Extreme Voltage Shutdown (EVS). This circuitry provides the highest level of power protection available.
Specifications
Response Time: 1 nanosecond
Maximum Surge Current: 6,500 amps
Line Voltage: 120 (Volts)
Number of Outlets: 14
Number of Isolated Banks: 2

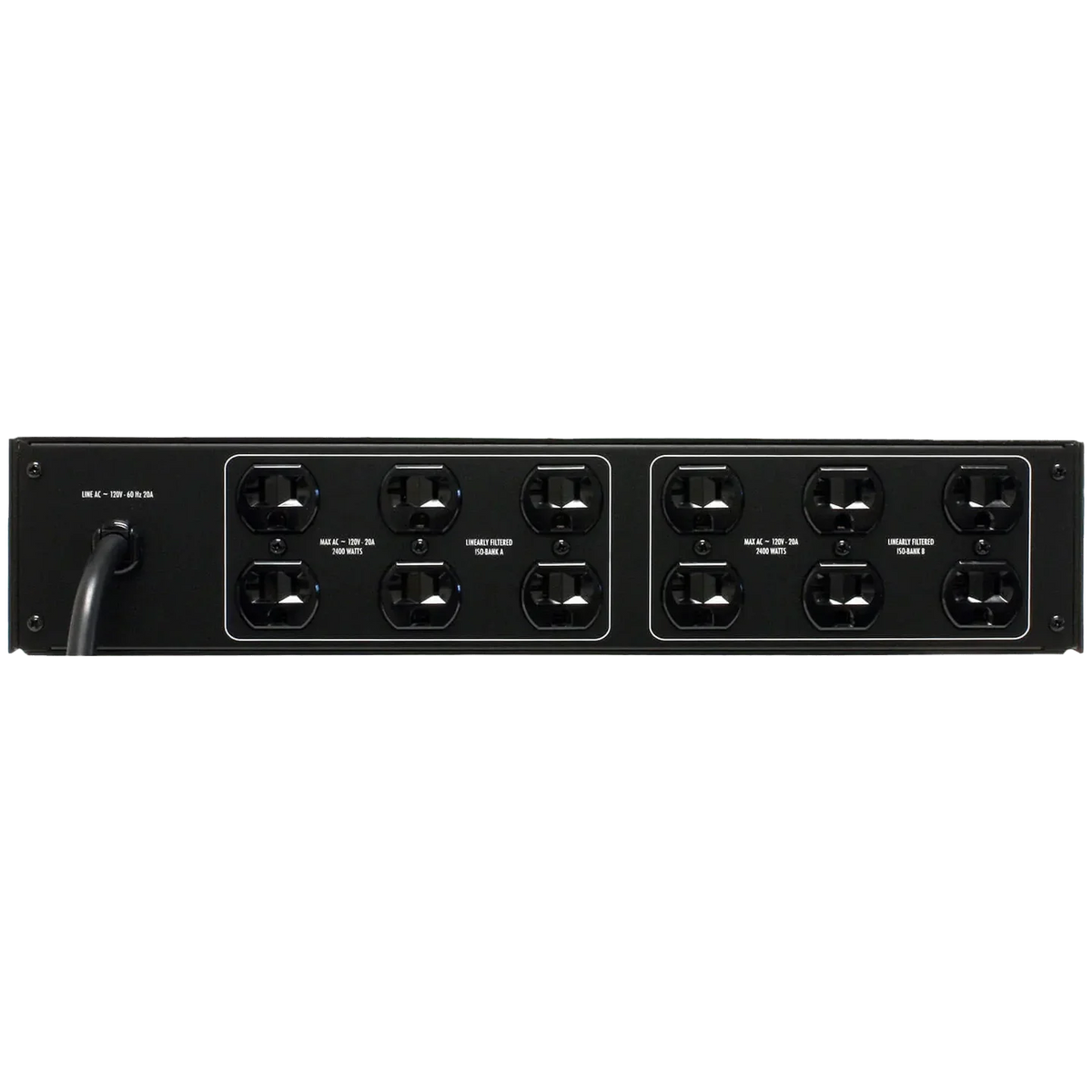

Outlet Descriptions: All 14 outlets regulated and conditioned – 12 on the rear panel and 2 on the front
Rack Mountable: Yes
Rack Ears Included: Yes
Front Panel Meter(s): LED voltmeter/ammeter displays incoming voltage and input current draw
Front Media Light(s): No
Control: Front panel On/Off switch, Voltage meter dimmer button
Voltage Regulation: Regulation capture range: 97 VAC to 137 VAC
Compliance: cETLus
USB Charging: 1 front panel USB charger
Low Voltage Trigger: N/A
AC Power Cord: 10 ft. captive 3/12 AWG, black cord with NEMA 20 plug
Dimensions: 19" W x 12" D x 3.5" H
Weight: 39 lbs
Power Consumption: 13 Watts
AC Protection Technology: True RMS Voltage Regulation, Extreme Voltage Shutdown, Non-sacrificial protection with zero ground contamination
Under-Voltage Shutoff: 90V
Over-Voltage Shutoff: 145 VAC
Maximum Current Rating: 20 Amps
Initial Clamping Level: 188 VAC peak @ 3,000 Amps
Filtration Technology: LiFT
Filtration Rating: 10 dB @ 10kHz, 40 dB @ 100kHz, 50 dB @ 500kHz
Signal Line Protection: No
UPC: 654061028192
