Description
Product Details
The exclusive Power Factor from Furman provides a 45A peak current reservoir to minimize the detrimental effects of line impedance on high-current gear such as amplifiers and powered monitors. Clear Tone Technology offers additional line noise filtration tuned for instrument amplifiers for clean and consistent tone. Plus, equipment benefits from professional-level protection thanks to the exclusive SMP and EVS technologies from Furman.
Power Factor Technology
Your amp needs a lot of power to sound its best. If you’re plugging into the wall, there’s a good chance your amp is not going to get the current it needs when pushed. The exclusive Power Factor Technology from Furman provides a 45A peak current reservoir to give your amp the headroom it needs to operate at maximum efficiency. No matter what venue or club, or how close or far away from the power panel, Power Factor Technology from Furman keeps your instrument amplifier’s tone consistent and sounding its best.
Clear Tone Technology
Clear Tone Technology works in unison with Power Factor Technology and Linear Filtering Technology to add an additional layer of AC noise filtration specifically engineered for instrument amplifiers. This technology provides tuned circuits that unveil instrument tone, harmonics, and clarity, resulting in a fuller sound and improved dynamic response.
Specifications
BNC Socket with Switch: For rear rack lamp: 12VAC 500mA max (lamp not included)
Response Time: 1 nanosecond
Maximum Surge Current: 6,500 amps
Reactive Power: 460 VA
Line Voltage: 120 (Volts)
Number of Outlets: 9
Number of Isolated Banks: 3

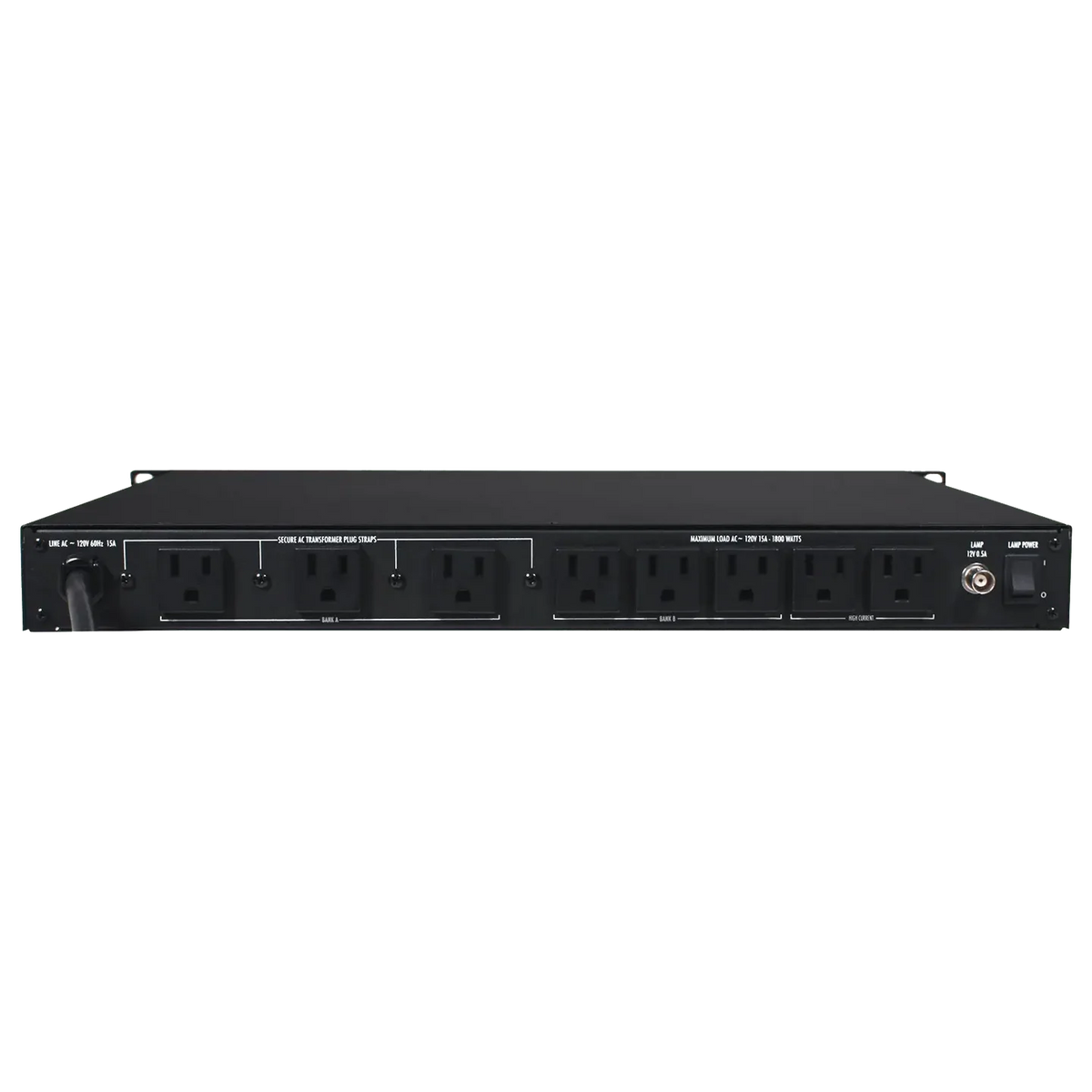

Outlet Descriptions: All 9 outlets linearly filtered and surge protected. 2 rear panel outlets are high current outlets
Rack Mountable: Yes
Rack Ears Included: Yes

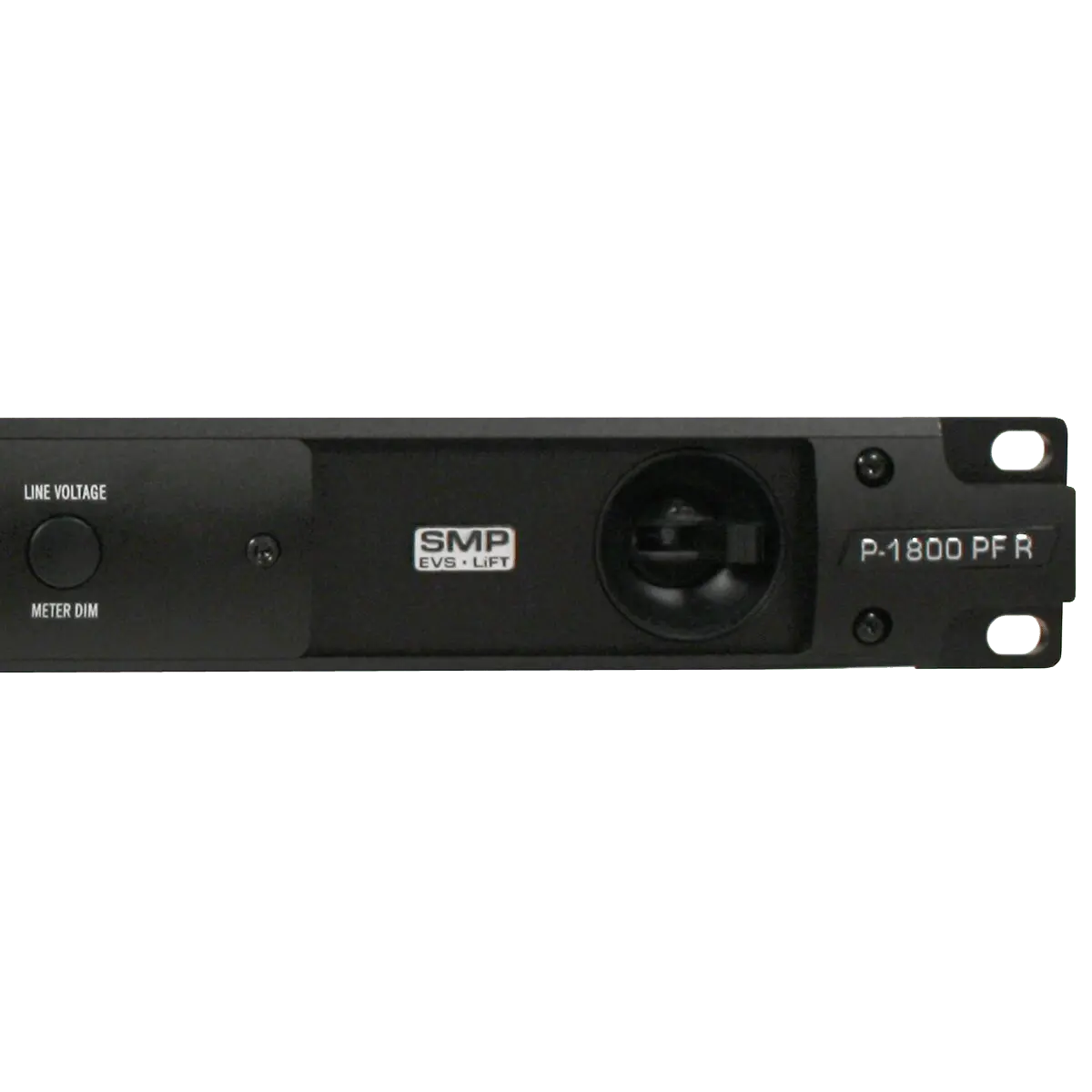

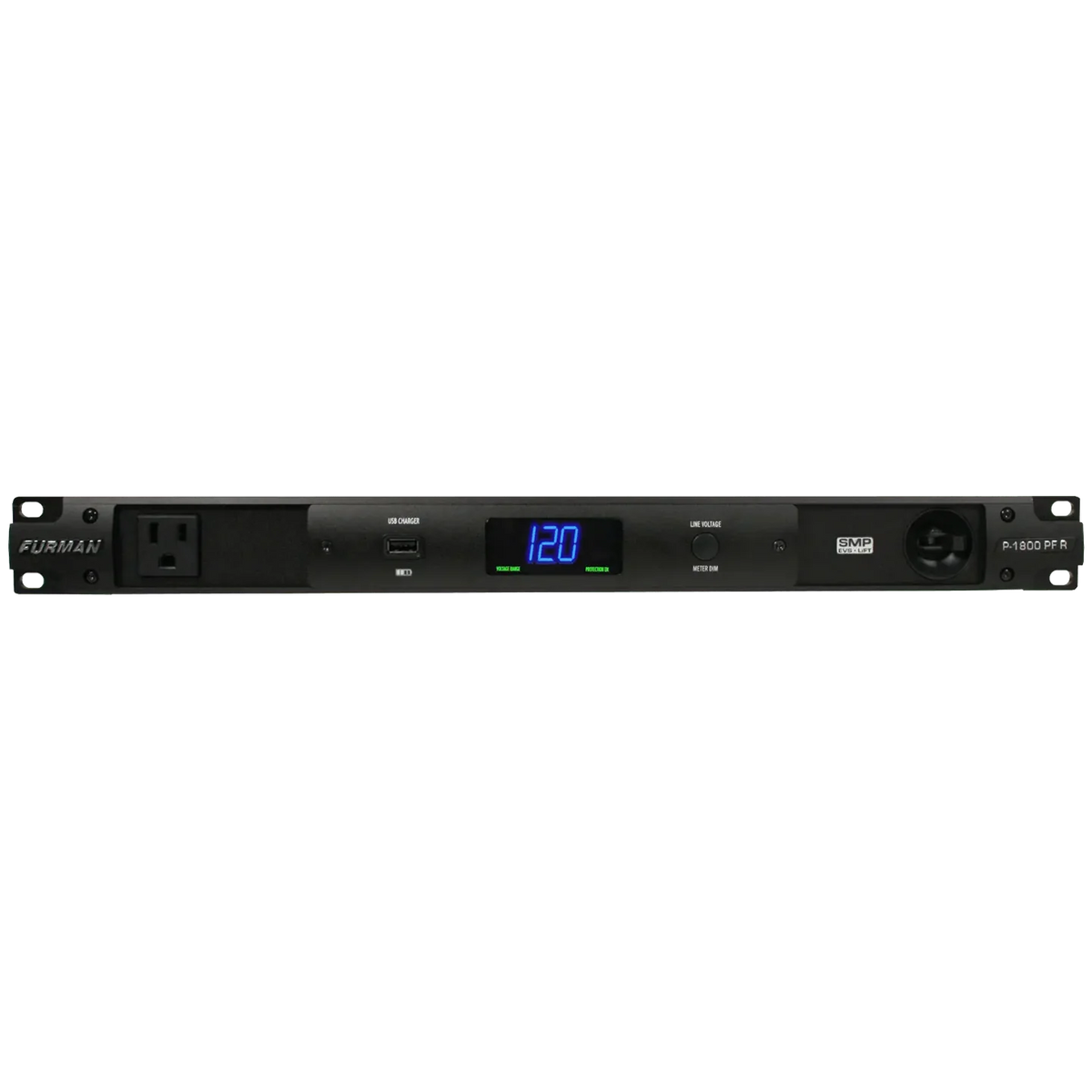

Front Panel Meter(s): LED voltmeter displays incoming line voltage
Front Media Light(s): No
Control: Front panel On/Off switch, Voltage meter dimmer button
Voltage Regulation: No
Compliance: cETLus
USB Charging: 1 front panel USB charger
Low Voltage Trigger: N/A
AC Power Cord: 10 ft, captive 3/14 AWG, with NEMA 15 plug
Dimensions: 19" W x 10.5" D x 1.75" H
Weight: 13 lbs
Power Consumption: 8 Watts
AC Protection Technology: Extreme Voltage Shutdown, Series Multi-Stage Protection, Non-sacrificial protection with zero ground contamination
Under-Voltage Shutoff: 90V
Over-Voltage Shutoff: 140 VAC
Maximum Current Rating: 15 Amps
Initial Clamping Level: 188 VAC peak @ 3,000 Amps
Filtration Technology: LiFT, Clear Tone Technology
Filtration Rating: 30 dB @ 2kHz, 40 dB @ 10kHz, 50 dB @ 20kHz, 70 dB @ 100kHz
Signal Line Protection: No
UPC: 654061028123
