Easy Installation and Power Sequencing

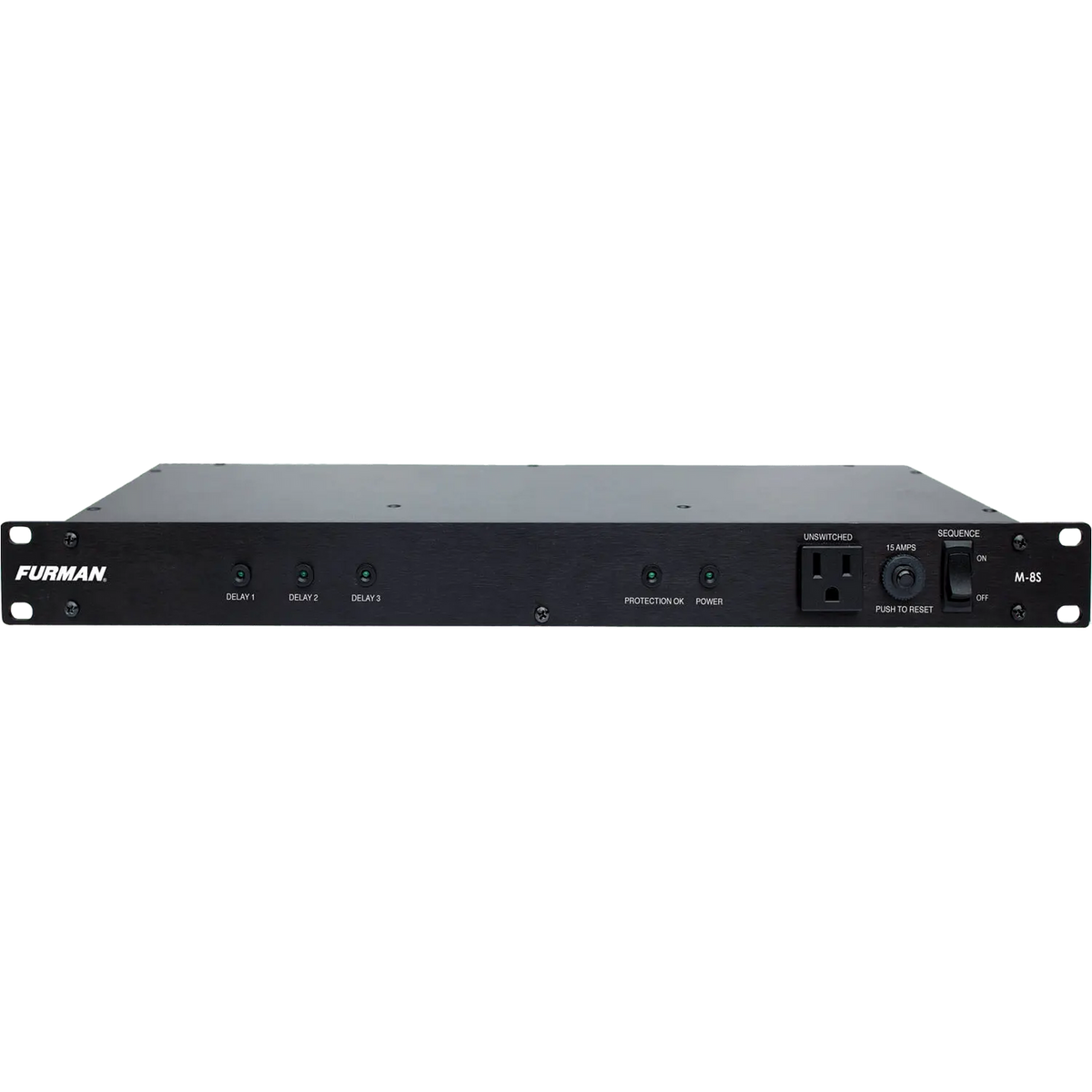

The M-8S is designed for easy installation in the top slot of your rack. Once installed, the unit's six delayed outlets on the rear panel provide sequenced power-up, ensuring that your equipment powers up in stages. This reduces the risk of power surges that can damage your gear, especially your speakers and amplifiers. With a total load capacity of up to 15 amps, the M-8S can handle the power needs of a wide range of audio and video equipment.
The device includes three delayed outlet banks, each consisting of two outlets, which allows for flexible distribution of power across multiple devices. Additionally, the unit offers two unswitched outlets, which are always on, providing power to critical devices that require continuous power, such as lighting or other essential gear.
Advanced Power Filtering for Clean Sound
One of the most notable features of the M-8S is its power filtering technology. Did you know that most standard power sources introduce unwanted noise into your audio system? The hum from fans, the buzz from fluorescent lights, or even fluctuations in the power lines outside can all cause low-level background noise that can affect the clarity of your sound. Typical power strips can't address this issue, but the Furman M-8S can. With its advanced power filtration, the M-8S removes unwanted electrical noise, ensuring that your audio equipment delivers the clean, clear sound quality you expect.
Protect Your Equipment with Sequenced Outlets
Bars, clubs, and other event venues have some of the worst power out there—from air compressors turning on and off to light shows pulling current loads up and down, the AC power can strain the circuits in your rig. The advanced Series Multi-Stage Protection and LiFT from Furman keeps the bad stuff out, and the dual pull-out front panel lights let you discreetly see your board and gear without distracting from the show on the dance floor.
Specifications
Family: Merit Series
Line Voltage: 120 (Volts)
AC Cord: 14AWGx3, 10 feet, black, fixed, NEMA 5-15P plug
Convenience Outlet (Front Panel): 1 Un-switched NEMA 5-15R
Sequenced Rear Panel Outlets: 6 Sequenced NEMA 5-15R (3 duplexes, each controlled by separate relay)
AC Surge Protection: Merit Class (sacrificial)
Spike Protection Mode: Line to neutral, zero ground leakage
Maximum Continuous Operating Voltage: 130V RMS
Max Clamp Voltage: 500 Volts Peak
Peak Impulse Current: 12,000 Amps
Energy Rating (2 X 820µS): 225 Joules
AC Filtering: Pi LCR Filter
Noise Attenuation: >26dB, 100 Khz to 1 MHz
Operating Temperature Range: 5°C (40°F) to 40°C (105°F)
Humidity Range: <90% rH (Relative Humidity)
Rocker Switch: Front panel, Sequence (ON, OFF)
Thermal Circuit Breaker: Front panel, push to reset
Front Panel Indicators: Delay 1, Delay 2, Delay 3, Power, Protection OK
Control/Status/Triggering (Rear Panel): Rear Panel DIP Switches: 12V Mode On/Off, GND Mode On, Momentary/Maintained
Potentiometer: Rear panel, time calibration fine-tune delay adjust
Remote Terminal: +5-30VDC In, 12VDC (12mA) Out
Remote Terminal Connector: Phoenix type 4-Pin Connector with Screw terminals; +12V, STAT, REM, GND (Class 2 Wiring)
Size: 1.75” x 19.00” x 6.5” (HWD) – ANSI 1RU
Mass: 5.3 lbs.
Power Consumption (No Load): 5 Watts
Safety Agency: C/CSA/US
UPC: 654061041078
