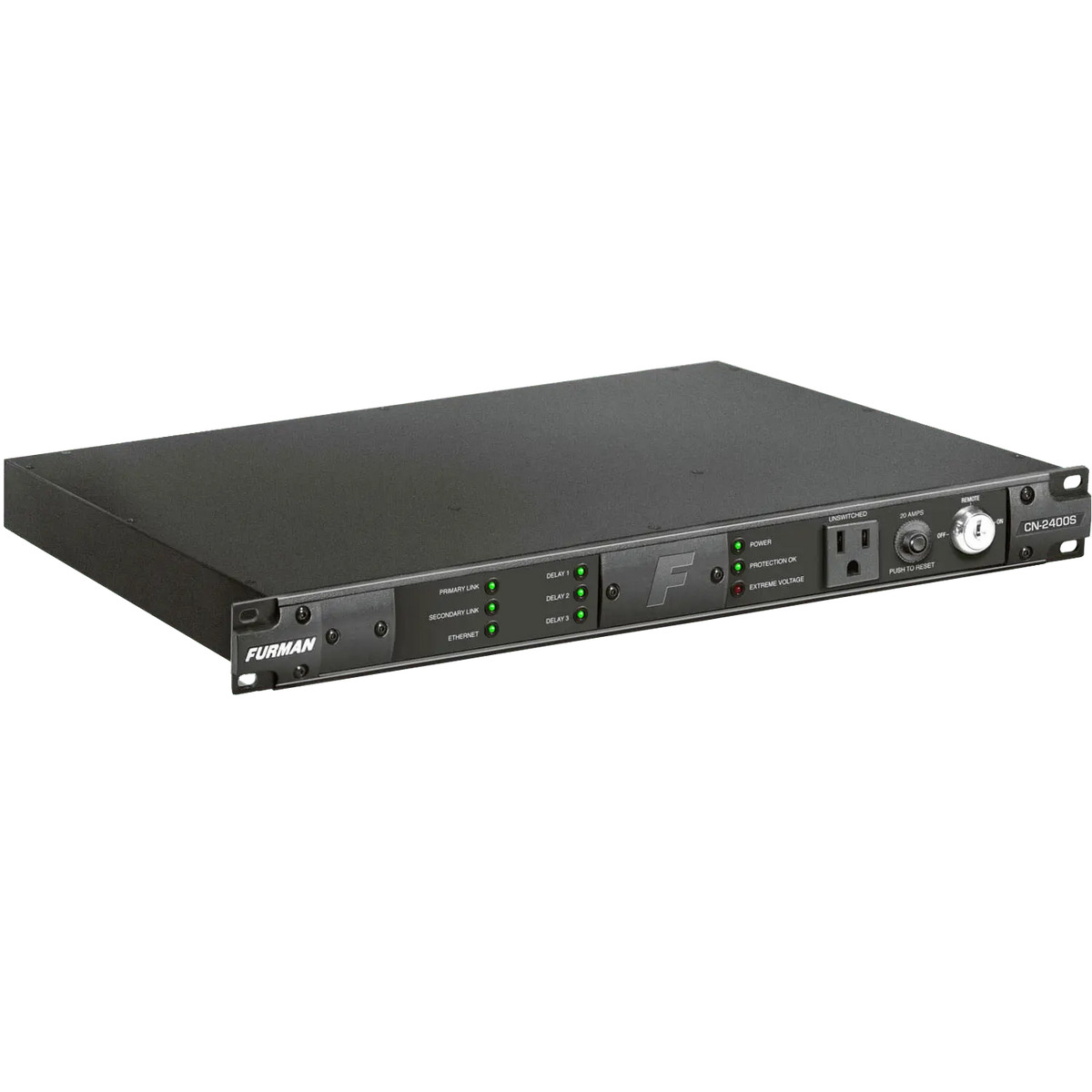

The CN-2400S is a cutting-edge power management solution designed for professional A/V installers, offering seamless integration with complex systems and superior protection for sensitive electronics. Equipped with Furman’s groundbreaking SmartSequencing™ technology, the CN-2400S simplifies power control for large multizone A/V installations. A simple push of a button or turn of a key can safely power on or off entire systems, even by nontechnical users, with bidirectional communication to manage multiple units from a single point.
Key features include:
-
SmartSequencing™ Technology: Enables safe, bidirectional sequencing of power across multiple units with simple controls, ensuring reliable operation.
-
Advanced AC Protection: Series Multi-Stage Protection (SMP) safeguards against surges and spikes, while Extreme Voltage Shutdown (EVS) automatically powers down during unsafe voltage conditions.
-
Noise Filtration: Linear Filtration Technology (LiFT) ensures audio and video clarity by reducing AC noise across a wide bandwidth.
-
Comprehensive Control Options: RS-232 ports and command sets allow easy integration with external control systems.
- Nine Outlets for Versatile Use: Featuring eight rear panel NEMA 5-20R outlets (six sequenced, two unswitched) and one front panel NEMA 5-15R convenience outlet.
Designed for demanding environments, the CN-2400S offers robust functionality with diagnostic lights for monitoring system performance, configurable DIP switches, and support for long-distance connections of up to 1,000 feet. With its industry-leading protection, control, and sequencing, the CN-2400S is the ultimate solution for safe and efficient power management in commercial A/V installations.
Specifications
Family: Contractor Series
Line Voltage: 120 Volts
AC Voltage Input Range: 90-139VAC, 50/60Hz
Maximum AC Current Rating: 20 amps (Thermal breaker)
AC Cord: 3/12AWG, 10 feet, black, fixed, NEMA 5-20P plug

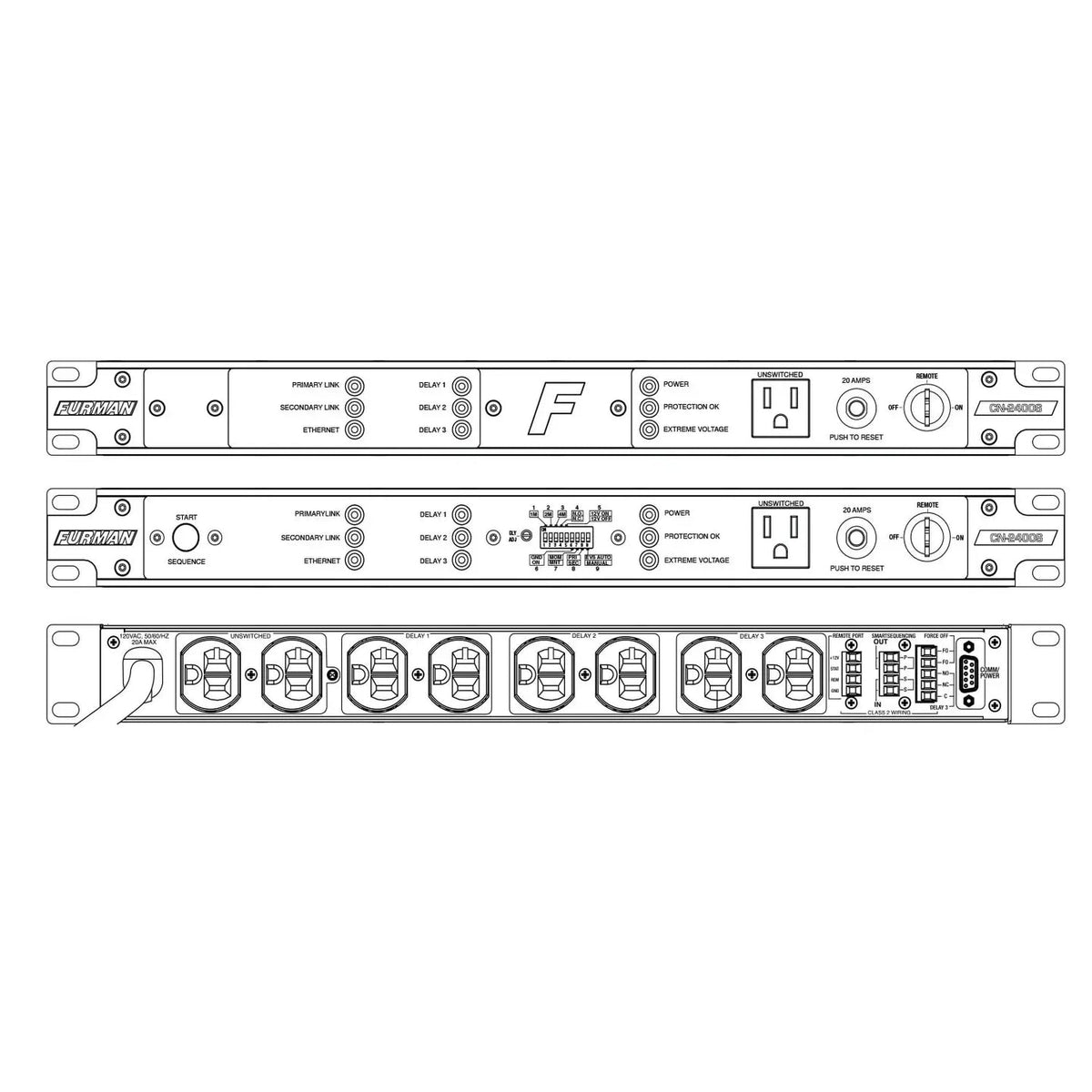

AC Receptacles
Rear Panel: 2 Unswitched NEMA 5-20R (1 duplex), 6 Sequenced NEMA 5-20R (3 duplex)
Front Panel: 1 NEMA 5-15R Convenience Outlet, Unswitched
AC Surge Protection: SMP
Spike Protection Mode: Line to neutral, zero ground leakage
Spike Clamping Voltage: 188VAC peak @ 6,000 volts/3,000 amps
Response Time: 1 nanosecond
Maximum Surge Current: 6,500 Amps
AC Undervoltage Protection: EVS, 77VAC +/-3VAC
AC Overvoltage Protection: EVS, 145VAC +/-5VAC
AC Overvoltage Reset Modes: Manual and Auto-reset (configurable)
AC Filtering: LiFT
Noise Attenuation: Linear, 10dB @10KHz, 40dB@100KHz, 50dB@500KHz
Operating Temperature Range: 5°C (40°F) to 40°C (105°F)
Humidity Range: <90% rH (Relative Humidity)
Keyswitch: Front panel, 3-position key-switch (On, Off, Remote), keys included (1 pair)
Push-button Switch: Front panel, hidden by security cover
Circuit Breaker: Front panel, push-button, 20A Thermal Breaker
Front Panel Diagnostic Indicators: Primary link, Secondary link, Ethernet, Remote off, Delay 1, Delay 2, Delay 3, Power, Protection OK, Extreme Voltage
DIP Switches: Front panel. Hidden by security cover, 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off, BND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual
Potentiometer: Front panel, hidden by security cover, fine tune delay adjust
Control/Status/Triggering (Rear Panel): Remote Terminal +5-30VDC In, 12VDC (12mA) Out
SmartSequencing: Phoenix 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop – 1000’ nominal)
Remote Terminal: Phoenix 4-Pin Connector With Screw Terminals; +12V, STAT, REM, GND (Class 2 Wiring)
Force Off/Delay 3 Terminal: Phoenix 5-Pin Connector With Screw Terminals, FORCE OFF, DELAY 3 (Class 2 Wiring)
RS-232 Compatible: Yes, DB-9 Connector
Voltmeter: Available with RS-232, ± 2VAC accuracy
Ammeter: Available with RS-232, ±1A accuracy
Power Consumption (No Load): 10 Watts
Safety Agency :NRTL-C, RoHS Compliant
UPC: 654061028468
