Product Details
At the core of the CN-1800S is SmartSequencing™ technology, enabling seamless control of large, multi-zone systems. The bidirectional communication between units allows a primary CN-1800S to control multiple secondary units across an installation, ensuring synchronized power sequencing. This feature is ideal for complex commercial environments where different areas or devices need to be powered up or down in a specific order. Units can communicate over distances exceeding 1,000 feet and are fully backward compatible with legacy sequencers, making the CN-1800S a versatile addition to any setup.
The CN-1800S also includes a comprehensive set of protection features. Series Multi-Stage Protection (SMP) technology provides the highest level of protection against surges and spikes, shielding sensitive equipment from potentially damaging electrical disturbances. Additionally, the unit incorporates Linear Filtration Technology (LiFT), which reduces AC noise across a wide bandwidth, delivering superior audio and video clarity.
For voltage protection, the Extreme Voltage Shutdown (EVS) circuitry automatically powers down the unit and connected devices during unsafe voltage conditions, safeguarding equipment from harm. Diagnostic lights on the front panel provide real-time information on system performance, including power quality, protection status, and voltage warnings, enabling users to easily monitor system health.
With nine total outlets—eight on the rear panel and one on the front—the CN-1800S offers ample connectivity for various devices. It supports up to 15 amps of output current, protected by a thermal circuit breaker. For added versatility, the unit is equipped with RS-232 ports and a command set, allowing integration with third-party control systems and open-source programming.
Specifications
Family: Contractor Series
Line Voltage: 120 Volts
AC Receptacles
Rear Panel: 2 Unswitched NEMA 5-15R (1 duplex), 6 Sequenced NEMA 5-15R (3 duplex)
Front Panel: 1 NEMA 5-15R Convenience Outlet, Unswitched
AC Surge Protection: SMP
Spike Protection Mode: Line to neutral, zero ground leakage
Spike Clamping Voltage: 188VAC peak @ 6,000 volts/3,000 amps
Response Time: 1 nanosecond
Maximum Surge Current: 6,500 Amps
AC Undervoltage Protection: EVS, 77VAC +/-3VAC
AC Overvoltage Protection: EVS, 145VAC +/-5VAC
AC Overvoltage Reset Modes: Manual and Auto-reset (configurable)
AC Filtering: LiFT
Noise Attenuation: Linear, 10dB @10KHz, 40dB@100KHz, 50dB@500KHz
Operating Temperature Range: 5°C (40°F) to 40°C (105°F)
Humidity Range: <90% rH (Relative Humidity)
Key-switch: Front panel, 3-position key-switch (On, Off, Remote), keys included (1 pair)
Push-button Switch: Front panel, hidden by security cover
Circuit Breaker: Front panel, push-button, 15A Thermal Breaker

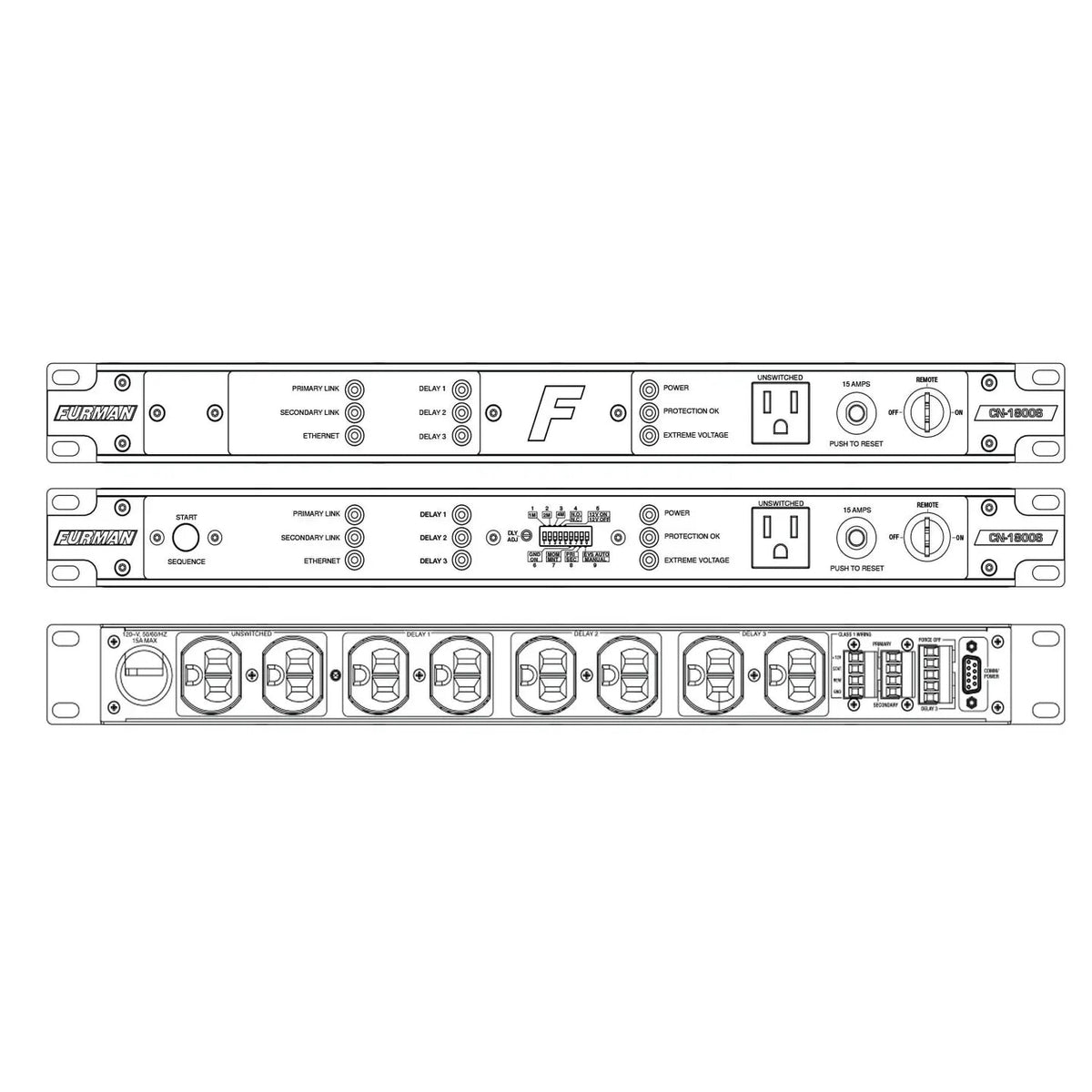

Front Panel Diagnostic Indicators: Primary link, Secondary link, Ethernet, Remote off, Delay 1, Delay 2, Delay 3, Power, Protection OK, Extreme Voltage
Front Panel DIP Switches: Front panel. Hidden by security cover, 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off BND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual
Potentiometer: Front panel, hidden by security cover, fine tune delay adjust
Control/Status/Triggering (Rear Panel): Remote Terminal +5-30VDC In, 12VDC (12mA) Out
SmartSequencing: Phoenix 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop – 1000’ nominal)
Remote Terminal: Phoenix 4-Pin Connector With Screw Terminals; +12V, STAT, REM, GND (Class 2 Wiring)
RS-232 Compatible: Yes, DB-9 Connector
Voltmeter: Available with RS-232, ± 2VAC accuracy
Ammeter: Available with RS-232, ±1A accuracy
Power Consumption (No Load): 10 Watts
Safety Agency: NRTL-C, RoHS Compliant
UPC: 654061028451
Proposition 65 Warning: WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
