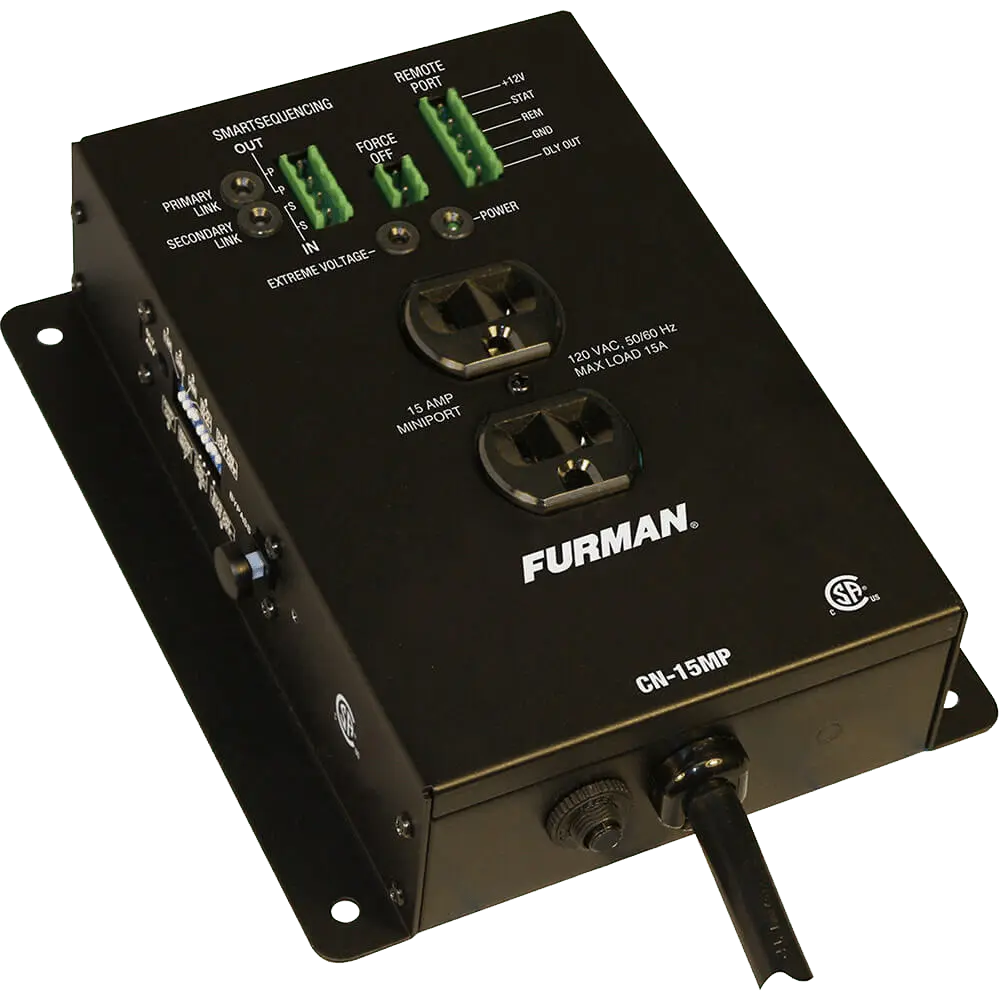

Contractor Series MiniPorts extend the benefits of SmartSequencing to electronics outside of the equipment rack, providing tremendous flexibility to any installation scenario. Units may be daisy-chained and fully controlled via a Furman SmartSequencer, legacy Furman sequencer, third-party sequencers, and/or control and automation systems.
DIP switches and potentiometer allows customization of settings such as sequencing delays, 12V on/off, and more. Security covers are provided to prevent unauthorized personnel from tampering with DIP switches.
Sequencing of duplex initiated remotely by standard analog triggering (remote terminal) or digital link (SmartSequencing from CN-1800S or CN-2400S).
The CN-15MP can shut itself off automatically when triggered by a fire alarm.
Specifications
Family: Contractor Series
Line Voltage: 120 Volts
AC Voltage Input Range: 90-139VAC, 50/60Hz
Maximum AC Current Rating: 15 amps (Thermal breaker)
AC Cord: 3/14AWG, 10 feet, black, fixed, NEMA 5-15P plug
AC Receptacles: 2 NEMA 5-15R’s (1 duplex)
AC Undervoltage Protection: EVS, 77VAC+/-3VAC
AC Overvoltage Protection: EVS, 140VAC+/-5VAC
AC Overvoltage Reset Modes: Manual and Auto-reset (configurable)
Operating Temperature Range: 5°C (40°F) to 40°C (105°F)
Humidity Range: <90% Relative Humidity
Circuit Breaker: Pushbutton, 15A
Front Panel Diagnostic Indicators (LED): Power, Extreme Voltage, Primary Link, Secondary Link
Side Panel DIP Switch Features: 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off, GND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual
Side Panel Potentiometer: Allows fine-tune delay adjustments
Remote Terminal: +5-30VDC In, 12VDC (12mA) Out
SmartSequencing: Phoenix-type 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop – 1000’ nominal)
Remote Terminal: Phoenix-type 5-Pin Connector With Screw Terminals; +12V, STAT, REM, GND, DLY_OUT (Class 1 Wiring)
Force Off: Phoenix-type 2-Pin Connector With Screw Terminals, FORCE OFF (Class 1 Wiring)
RS-232 Compatible: Yes, indirectly, when connected via SmartSequencing to a Furman Smart Sequencer with an RS-232 port
Voltmeter: Available with SmartSequencing, ±2VAC accuracy
Ammeter: Available with SmartSequencing, ±1A accuracy
Power Consumption (No Load): 10 Watts
Safety Agency: CSA, RoHS Compliant
UPC: 654061028475
