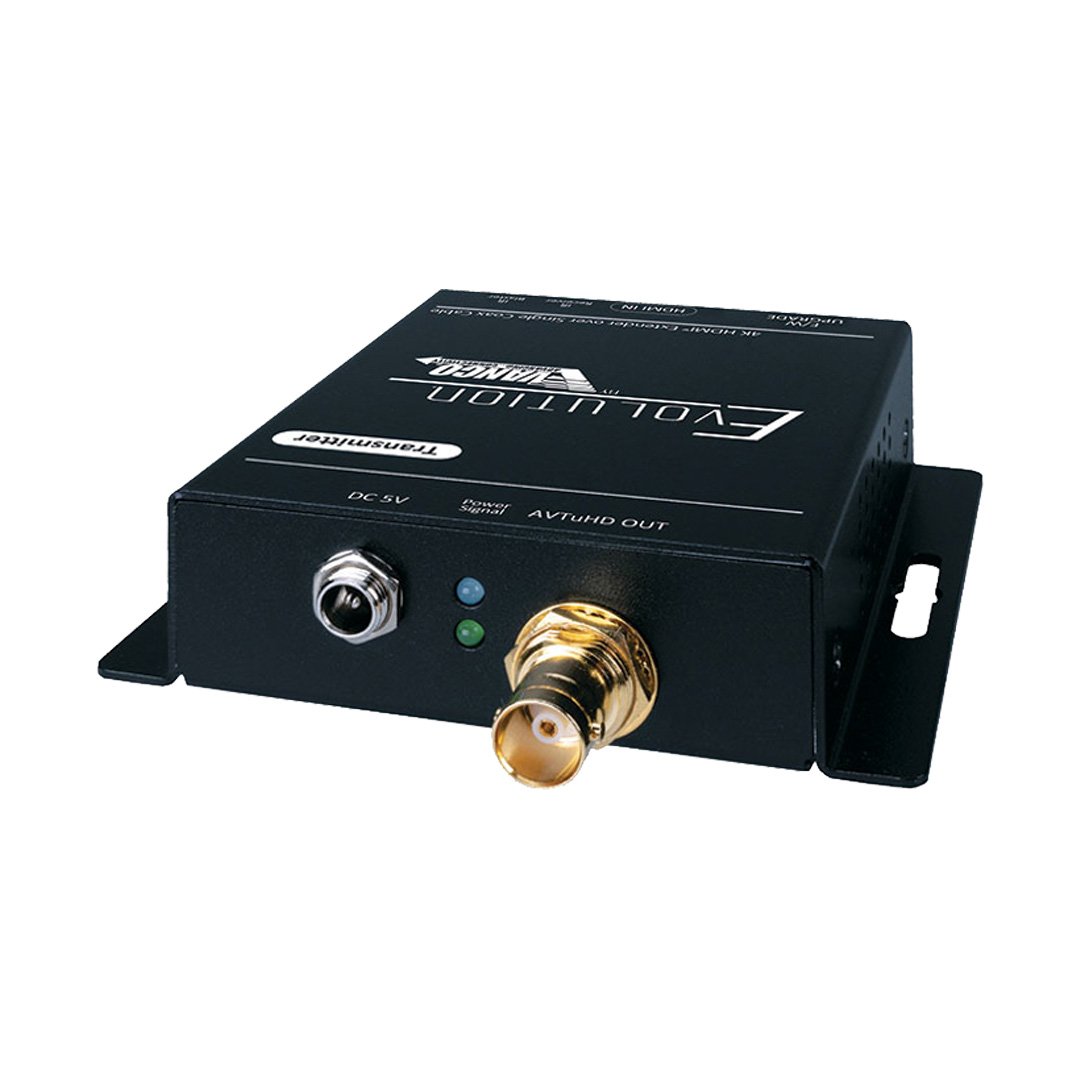

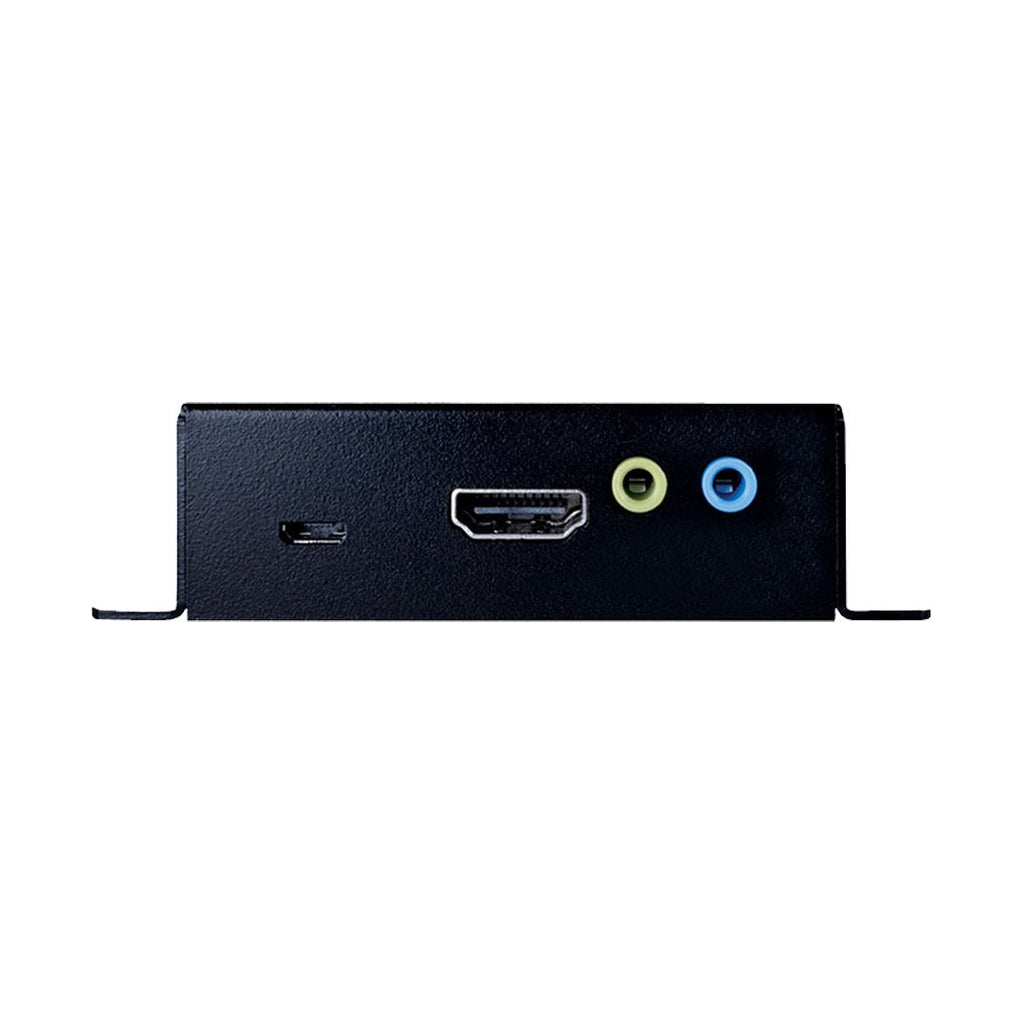

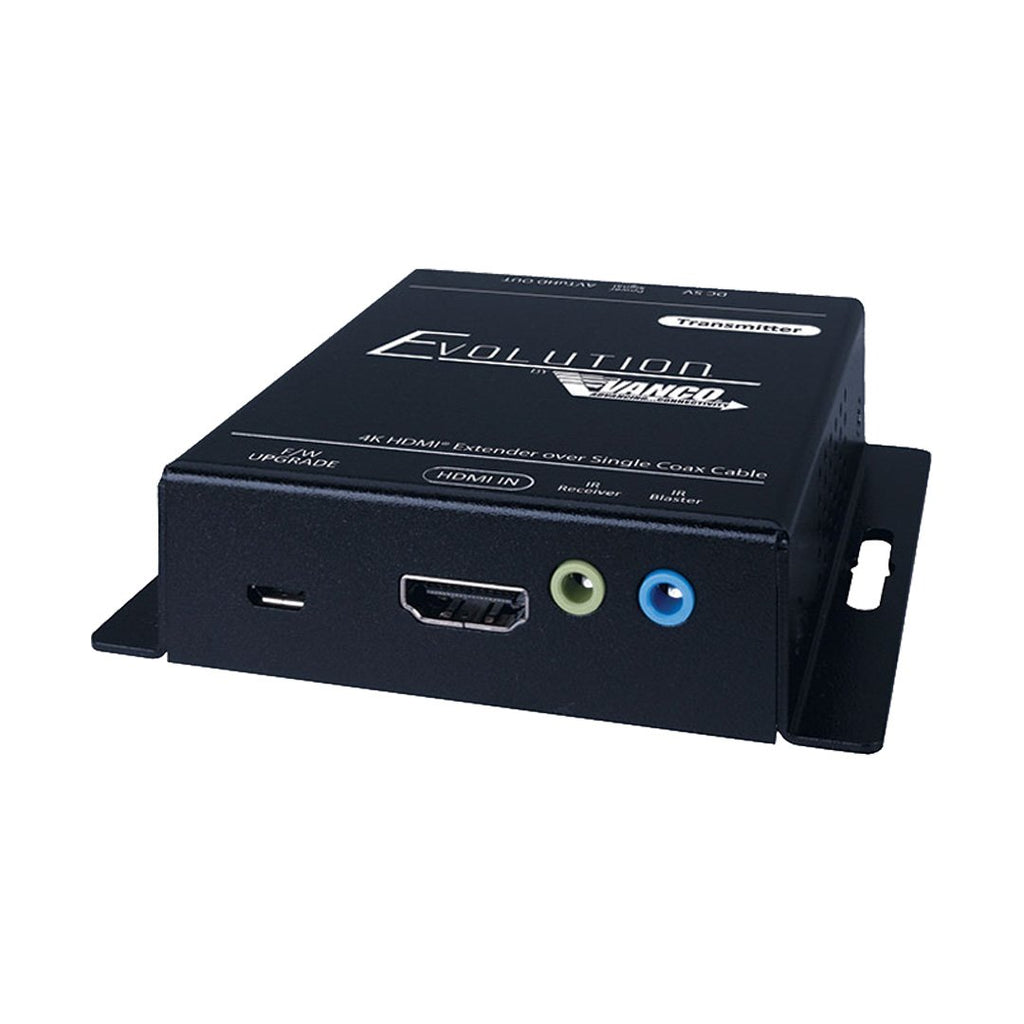

Evolution EV4K2004 HDMI Extender over Coax 4K HDR 70m, 1080p 100m w/ IR

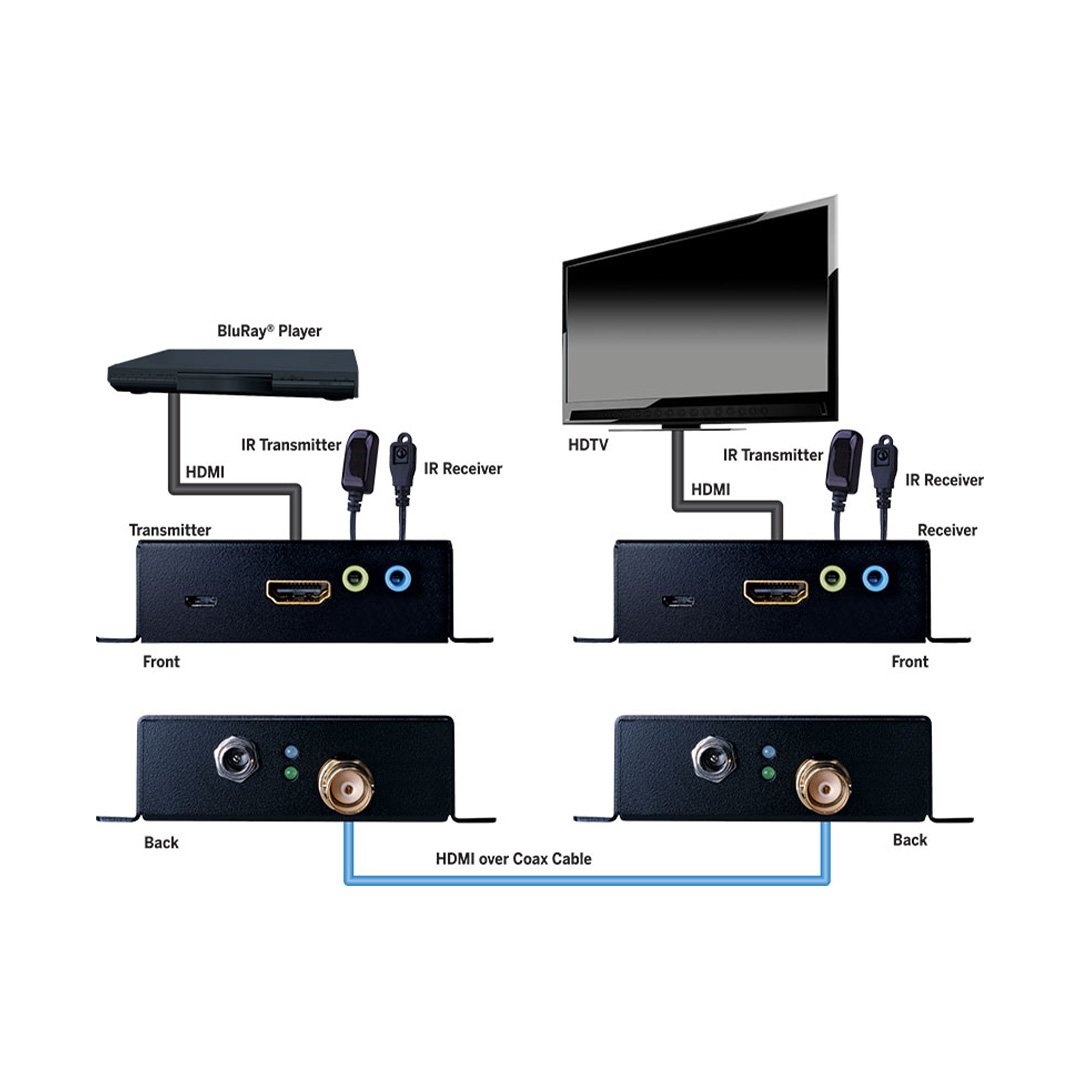

- Allows HDMI audio/video signals to be transmitted using a single coaxial cable
- Supports up to 4K@60Hz, 4:4:4 chroma subsampling, 8bits and HDR10
- Transmission range: Extends 4K@60Hz up to 330ft (100m); 4K@60Hz and HDR10 up to 230ft (70m) over a single RG6 coaxial cable
- HDMI 2.0 and HDCP 2.2/1.4 compliant
- Uncompressed 2CH digital HDMI over coaxial cable transmission
- Audio sample rate supports 32KHz, 44.1KHz, 48KHz
- Auto signal equalization and dynamic EDID
- Supports full frequency IR signal from 20KHz to 60KHz
- Bi-directional IR pass-through for source and/or display control
- Compact and wall mounting housing design for easy and robust installation
- TAA Compliant
- Dimensions: 3.5” x 3.7” x 1”
Tech Support Tips:
-
- RG6 coaxial cable highly recommended with home-run installation for best results, with no splicing, coupling, etc., mini coax cable will not function with this unit
Package Contents:
EV4K2004 (TX & RX)
(1) IR Blasters (TX)
(1) IR Receivers (RX)
Mounting Hardware
(2) DC 5V, 2A Power Supplies
Product Manual
