Wifi standards
|
Wi-Fi 7 (IEEE802.11a/b/g/n/ac/ax/be)
|
|
Number of radios
|
2; dual-band
|
|
Supported channels
|
2.4 GHz: 20, 40 MHz
5 GHz: 20, 40, 80, 160, 240 MHz
|
|
MIMO
|
2x2/4x4 MU/SU-MIMO
|
|
Spatial streams
|
6
|
|
Channel width
|
20, 40, 80, 160, 240 MHz
|
|
Network security and services
|
WPA3 and WPA2 wireless encryption
|
|
Other Wi-Fi features
|
Support for IPv4, IPv6, UPnP, DHCP reservations, and port forwarding. WAN compatibility: DHCP, static IP, PPPoE, and internet VLAN tagging.
|
|
BE rating
|
BE5000
|
|
Automatic Channel Selection
|
Yes
|
|
Band steering
|
Yes
|
|
Device/profile pause
|
Yes
|
|
Easy password sharing for guest and home network
|
Yes
|
|
Smart home hub
|
Yes
|
|
Thread
|
OpenThread
|
|
Bluetooth
|
Bluetooth Low Energy 5.0
|
|
Zigbee
|
Yes (as a controller only)
|
|
Works with Alexa
|
Yes
|
|
Matter
|
Yes (as a controller only)
|
|
Antenna
|
2x2 2.4 GHz
2x2 5 GHz
|
|
Frequency bands
|
ISM (2.4-2.484 GHz)
U-NII-1 (5.15-5.25 GHz)
U-NII-2A (5.25-5.35 GHz)
U-NII-2C (5.47-5.725 GHz)
U-NII-3 (5.725-5.85 GHz)
|
|
Types of modulation
|
OFDM (2.4 GHz, 5 GHz) DSSS (2.4 GHz only)
|
|
Ethernet
|

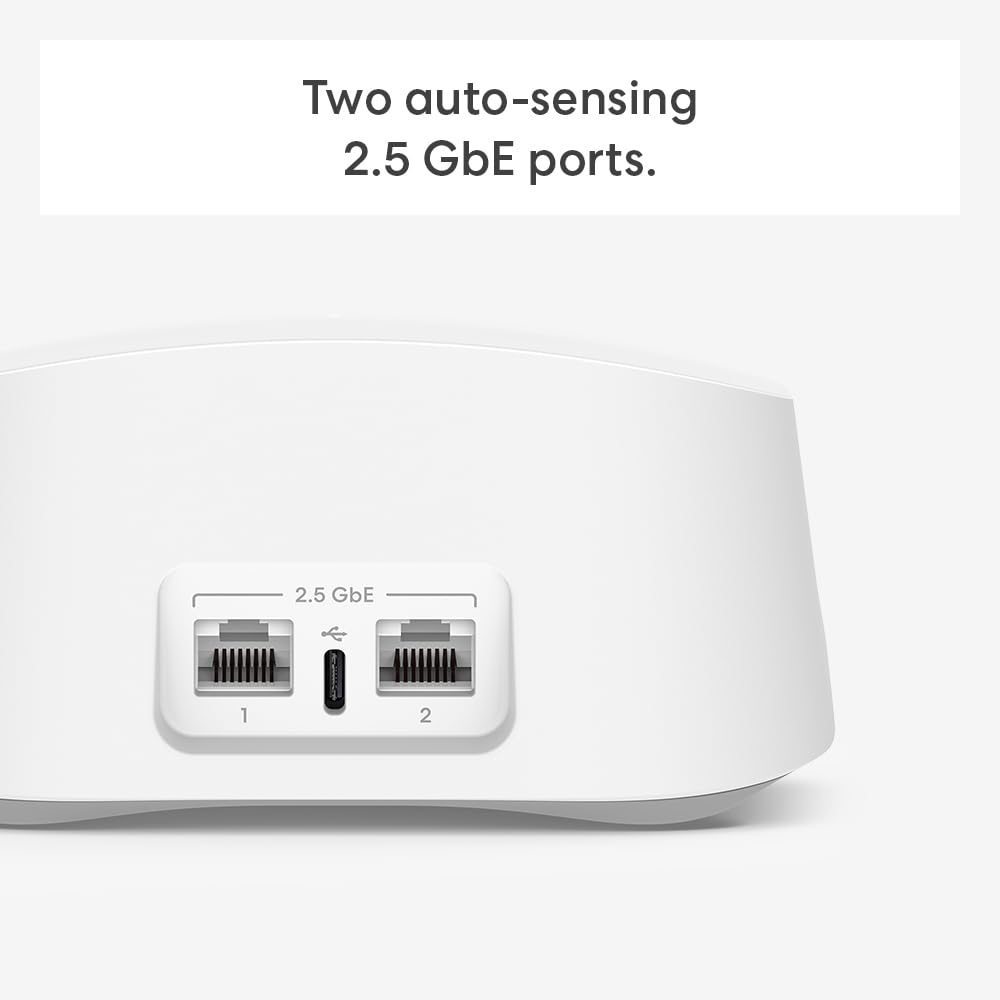

Two auto-sensing 2.5 Gigabit Ethernet ports, 1 USB-C port
|
|
Processor
|
1.1 GHz quad-core processor
|
