Description
Eaton EMI104-10 Metered Input PDU, 1PH, 0U, L6-30P input, 10 ft cord, 5.76kW, 24A, 200-240V, 42 Outlets (36) C13 (6) C19

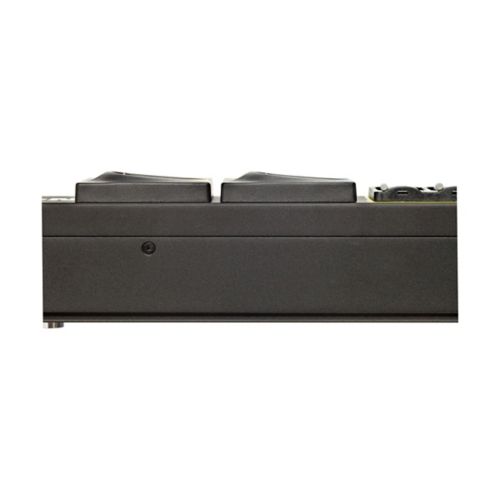

Eaton Metered Input rack Power Distribution Unit, Power Distribution Unit: 0U, L6-30P input Connector, 5.76 kW max, 200-240V, 24A, 10 ft cord, Single-phase, OutPUT Connector: (36) C13 Outlet grip, (6) C19 Outlet grip - Dimensions : (H x W x D, in) 66.5 x 2.05 x 2.1 - (2) 20 A Breaker - EMI104-10
General specifications
| Product Name |
Eaton metered input PDU
|
| Catalog Number |
EMI104-10
|
| UPC |
743172050458
|
| Product Length/Depth |
2.05 in
|
| Product Height |
66.5 in
|
| Product Width |
2.1 in
|
| Product Weight |
15.54 lb
|
| Warranty |
3 year
|
| Compliances |
TAA Compliant
|
| Certifications |
UL Listed
|
| Product Type |
Metered input PDU
|
| Form factor |
0U (Vertical)
|
| Outlet control |
No
|
| Phase |
Single-phase
|
| Wattage |
5.76 kW max
|
| Amperage Rating |
24A
|
| Input voltage |
200-240V
|
| Input connection |
L6-30P
|
| Outlets |

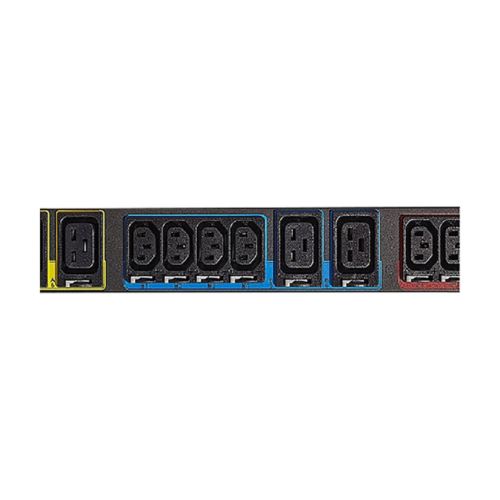

(36) C13 Outlet grip, (6) C19 Outlet grip
|
| Cord length |
10 ft
|
| Frequency rating |
50-60 Hz
|
| Ethernet interface |
Yes
|
| Serial interface |
RS-232
|
| Operating Temperature |
0° to 60°C (32° to 140°F)
|
