Description
DoorBird 423866720 IP Upgrade Intercom for DoorKing Classic/Plus Stainless Steel V2A, Brushed
For DoorKing® 1812 Classic and Plus (Flush- and Surface-Mount)
Stainless steel V2A, brushed(GTIN/EAN: 4260423866720, P/N: 423866720)

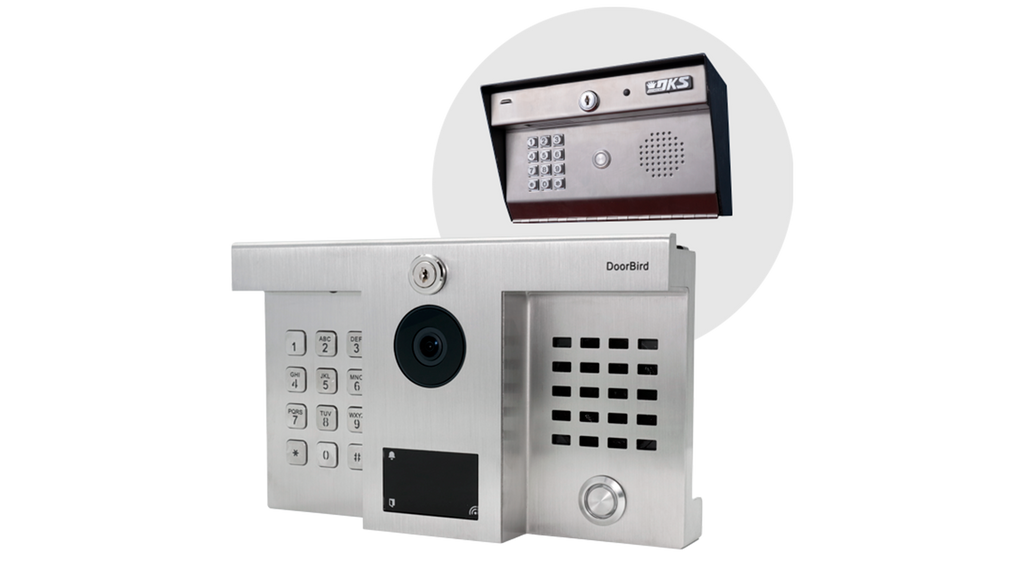

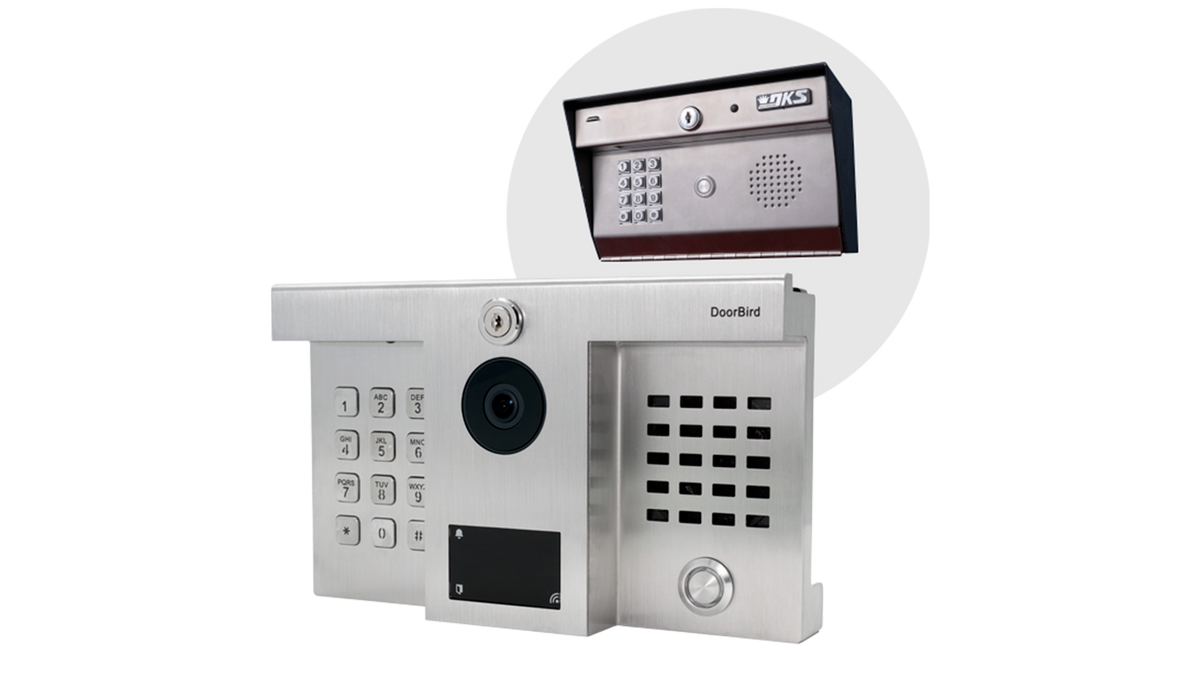

- Hybrid upgrade for installations of DoorKing® 1812 Classic and Plus (Flush- and Surface-Mount)
- Keeps the existing DoorKing® 1812 analog telephone system running
- LAN connection (PoE capable)
- 2-way audio
- Ultra-wide angle lens, 1080p, night vision, IR LEDs
- 4D motion sensor, RFID reader
- Keypad
- 2 freely configurable bistable switching relays
HIGHLIGHTS AND DETAILS
-
Compatibility
DoorKing® 1812 Classic (1871-010) or (1970-010), flush or surface mount
DoorKing® 1812 Plus (1871-010) or (1970-010), flush or surface mount
Other revisions: Contact us before continuing with your purchase or installation -
Open API
Local interface for integration with third-party systems and SIP -
Video and audio call
On smartphones, tablets (iOS, Android), IP and landline phones (SIP) -
Smart Transmission Mode (STM)
Real-time audio / video communication, optimized for mobile devices via WiFi, 3G, 4G, 5G -
Smart Home & NVR compatible
Control4, Lilin, Crestron, Synology, Dahua, URC, QNAP, RTI, ELAN, Synology, Bang & Olufsen and others -
Automatic door buzzer
For use in medical offices and office environments -
Free visitor history
Store still images for free, optional video recording available -
Individual action schedules, e.g.:
RFID card “abc” has only access on Wednesday from 9 am until 11 am
4D motion sensor switches on external lamp between 9 pm and 6 am -
Geofencing
Automatic door and gate opening when returning home -
Wiegand Interface
Output of Keypad and RFID reader -
Keypad Module
Configurable via App
Up to 500 individual PIN codes
Individual events (e.g. trigger a relay, HTTP(s) request) -
Bluetooth Low Energy (BLE)
For access control, compatible external sensors and smart locks -
RFID reader
Configurable remotely via App (e.g. time frame) -
Motion sensor with 4D technology
Distance up to 6 m (19.7 ft) adjustable via App (interval: 1 m/ 3.3 ft) -
Night vision
With Infrared LEDs -
HDTV Video
Ultra wide-angle, hemispheric lens, 180° -
Light sensor
For night vision mode -
Microphone
Clear voice transmission - Noise reduction and echo cancellation (AEC, ANR)
-
Configurable stainless steel button
With illuminated LED ring -
Two freely configurable bi-stable switching relays
Two doors or gates can be controlled via App
Status configurable via App: temporary or permanent circuit -
Easy self-install
Quick installation via QR code scan -
Easy connection to the network
Connection via a network cable or bell wire via 2-Wire Ethernet PoE Converter “DooBird A1071” (PoE, network data) -
Hybrid upgrade
Keep the existing analog DoorKing® 1812 telephone system running -
Bluetooth Low Energy (BLE)
For access control, compatible external sensors and smart locks
