Description

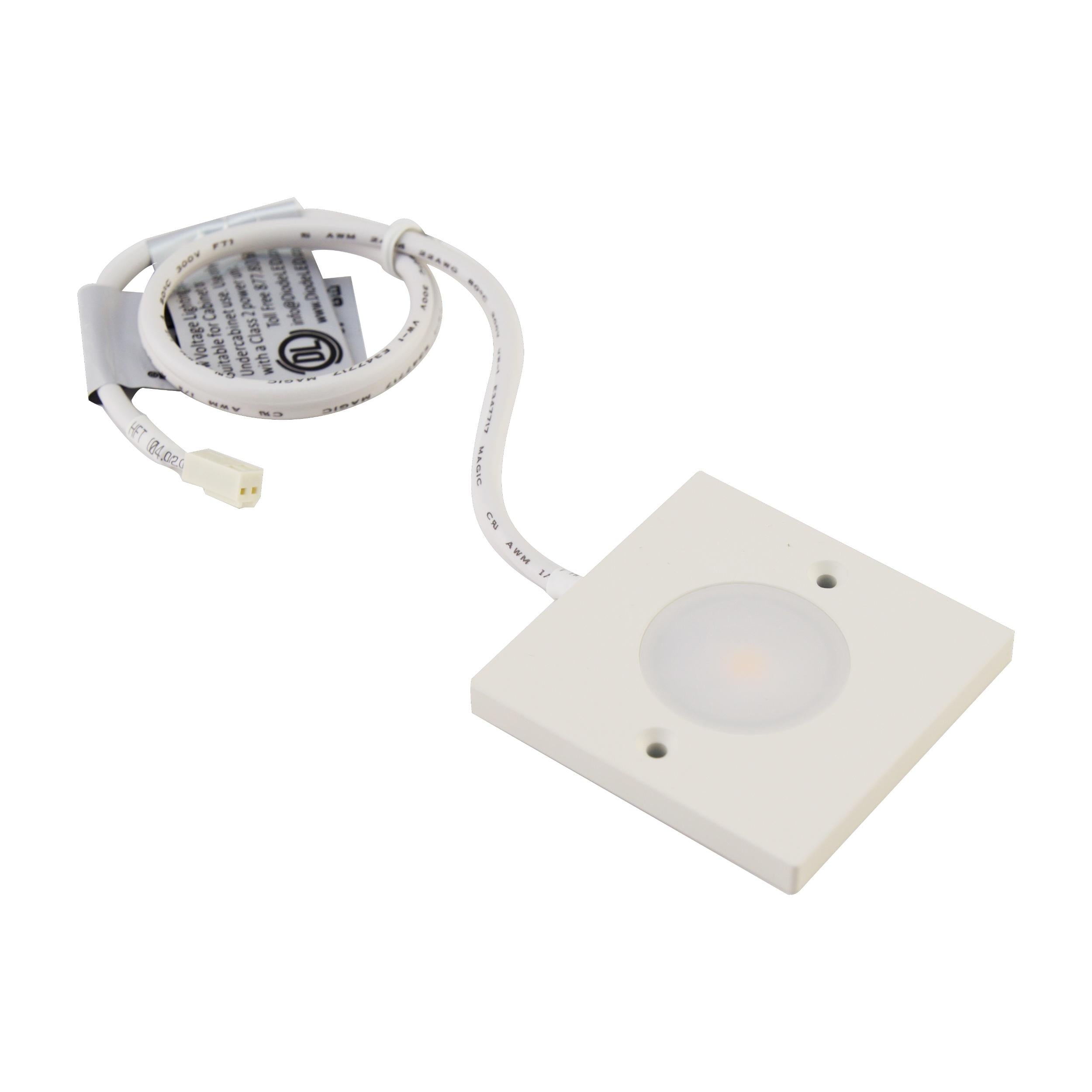

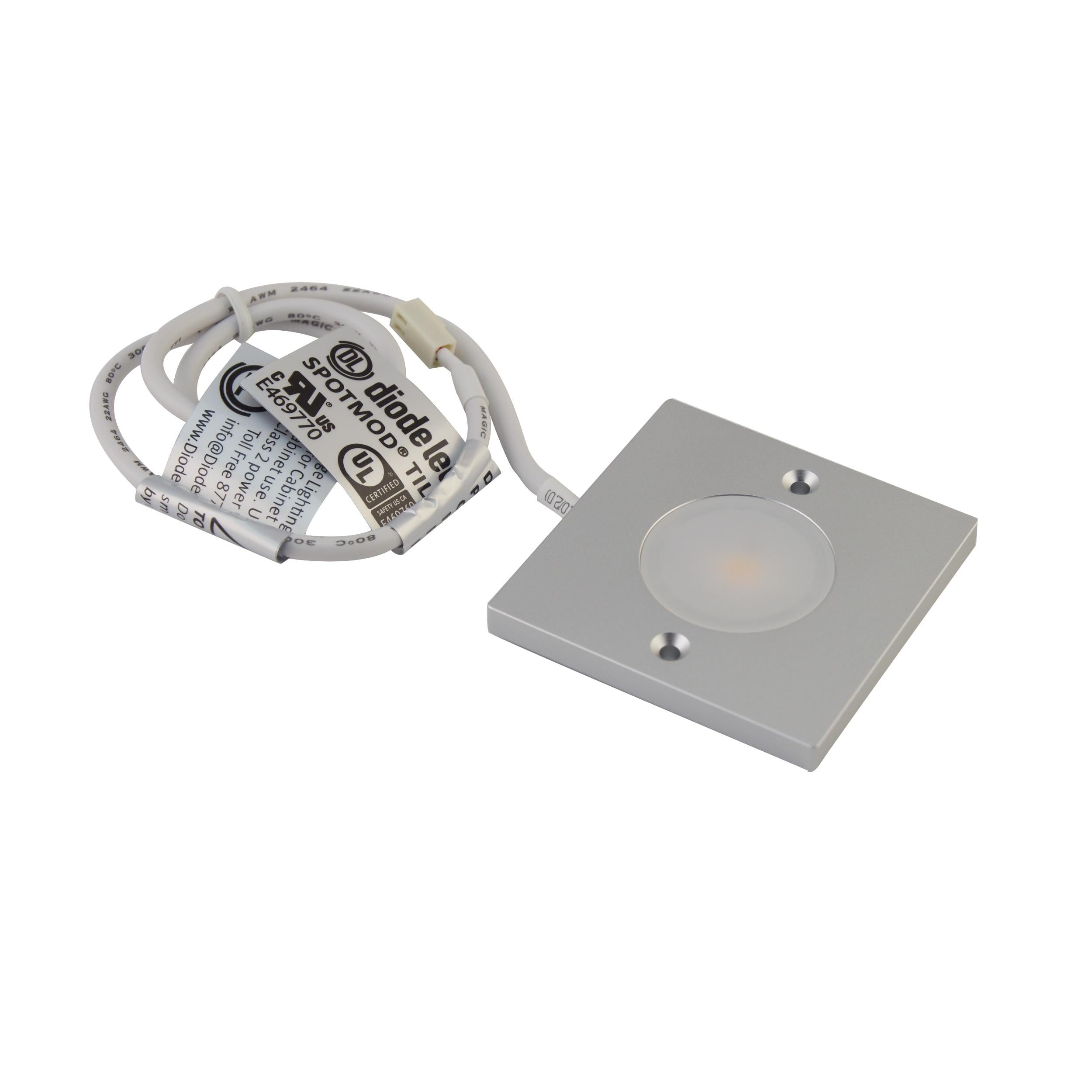

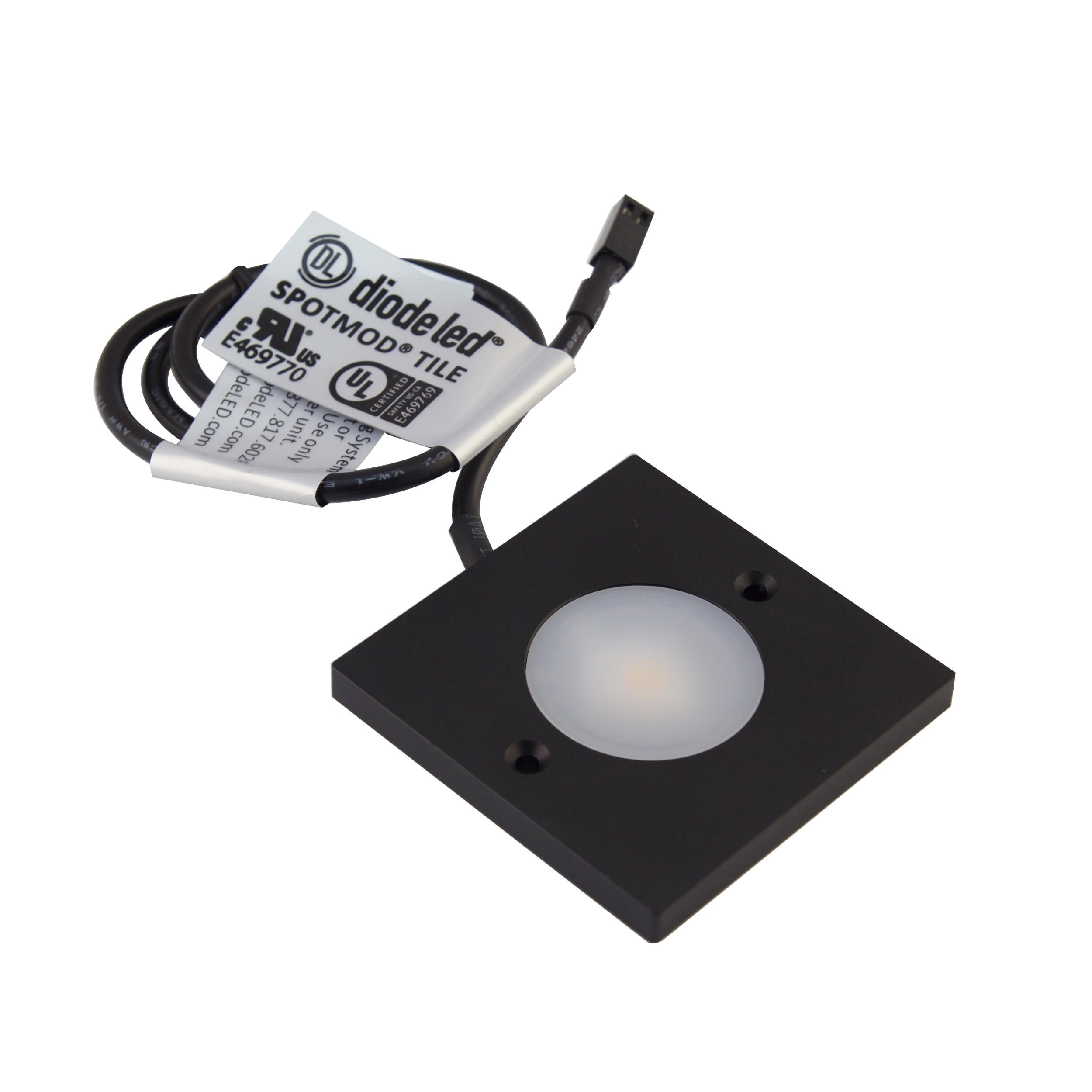

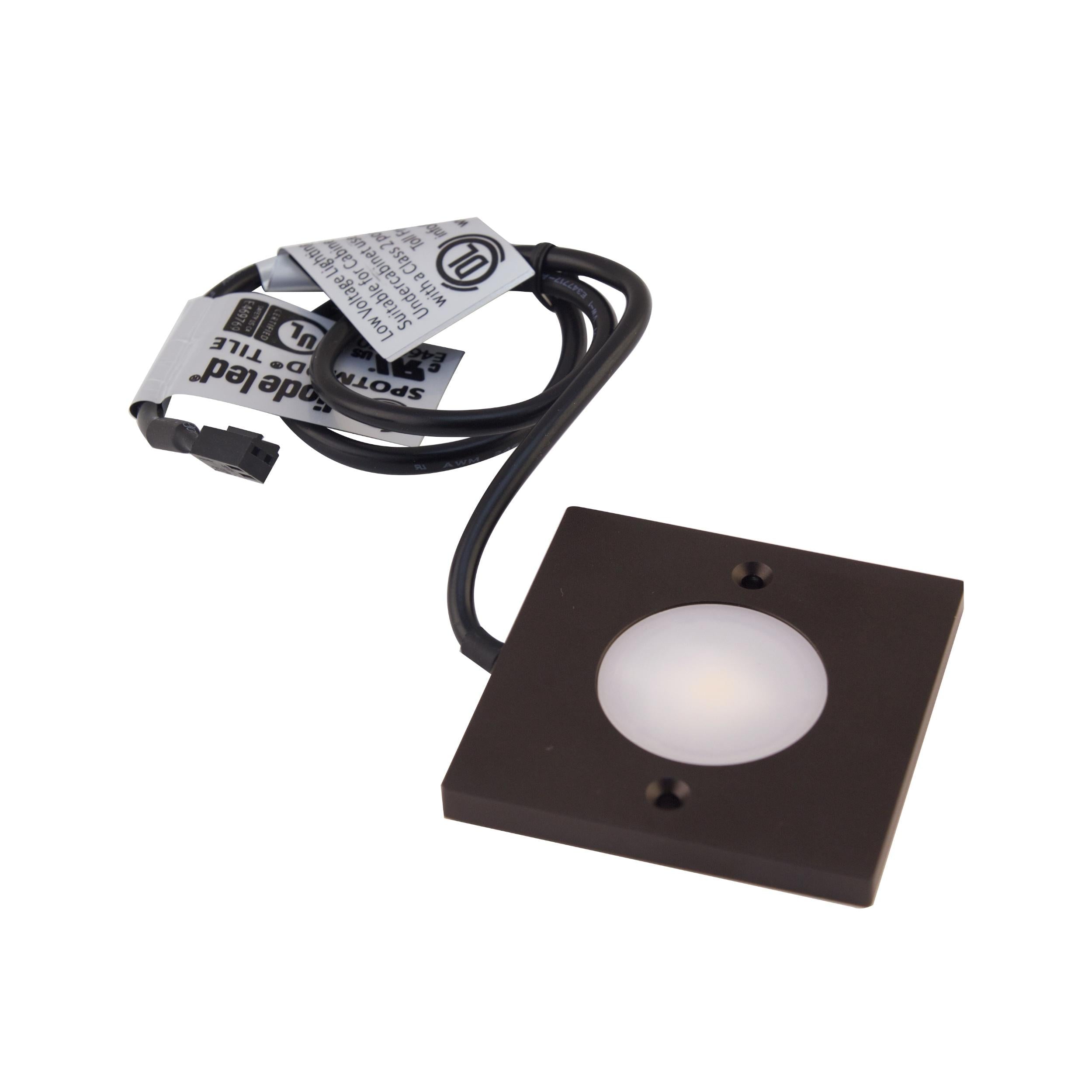

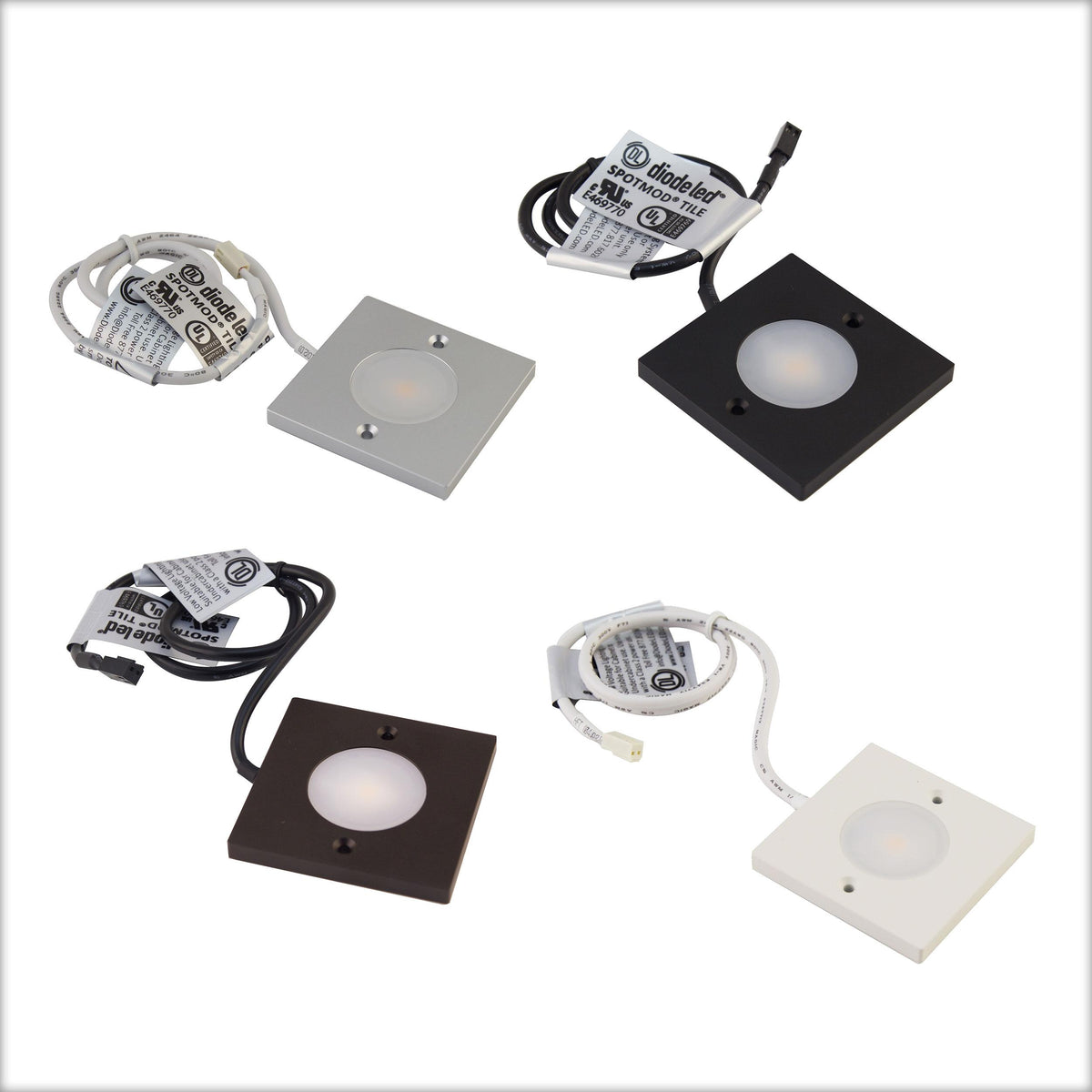

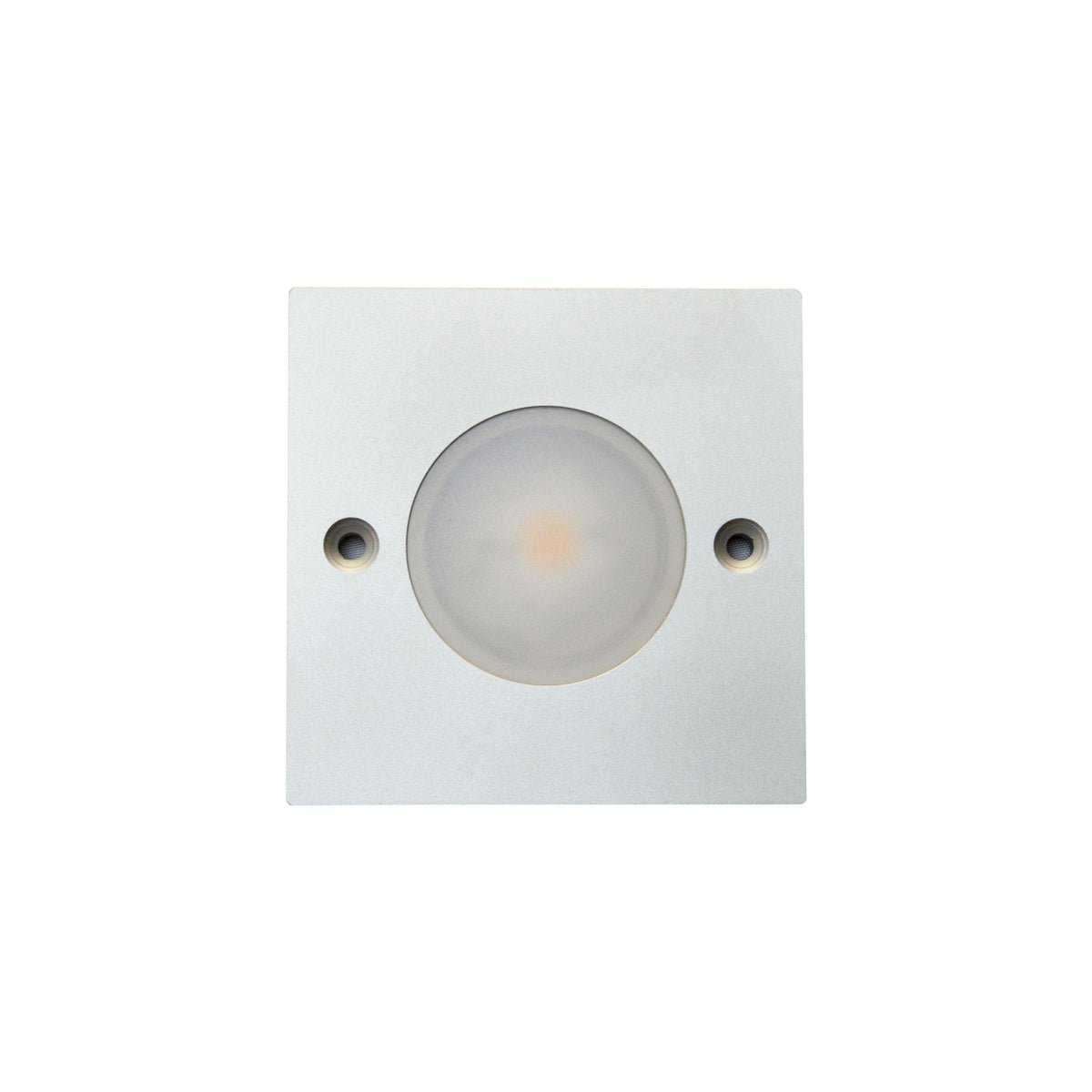

Diode SPOTMOD® TILE LED Fixture
The SPOTMOD® TILE LED Fixture is an ultra-bright and low-profile fixture for surface mounting onto most surfaces.
Features & Benefits
- 90+ CRI: High R9-R14 values
- High lumen output
- Modern and resilient aluminum designs
- Easy to install
- High efficacy fixture
Downloads
Product Specs
| Certifications | UL Listed 2108 |
|---|---|
| Connection Type | See Specification |
| CRI | 90+ |
| CRI Range | 90-100 |
| Dimensions | 2.36 x 2.36 x 0.25 (LxWxD) |
| Dimmable | Yes |
| Environment / IP Rating | Dry Location |
| Input Voltage | 12VDC |
| Lumens per Fixture | 220 |
| Warranty | 3 Year Limited |
| Wattage per Fixture | 4W |
| Light Beam Angle | 120º |
