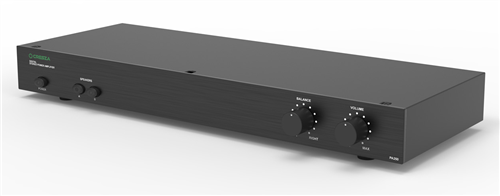

Cresza PA250 Two-Channel Digital Power Amplifier

Features

• MAIN / INTERRUPT priority input switching
• MAIN auxiliary output
• Speaker A/B switching
• Front panel balance and volume trim controls
• Signal sensing “Power On” and Trigger mode
• Rear mounted treble and bass controls

Specifications

• Stereo (8 ohm): 50W per channel, <1% THD+N
• Stereo (4 ohm): 75W per channel, <1% THD+N
• Bridged Mono (8 ohm): 160W, 1kHz, <1% THD+N
• Frequency Response: 10Hz ~ 30kHz, +1dB/ -2dB
• Signal to Noise Ratio: 100dB below 50W output into 8 ohms w/20kHz Lowpass filter
• Channel Separation: 65dB @ 1kHz, referred to 50W output into 8 ohms
• Input Sensitivity: 700mV input for rated 50W output into 8 ohms
• AC Power Consumption: 200W maximum
