Description

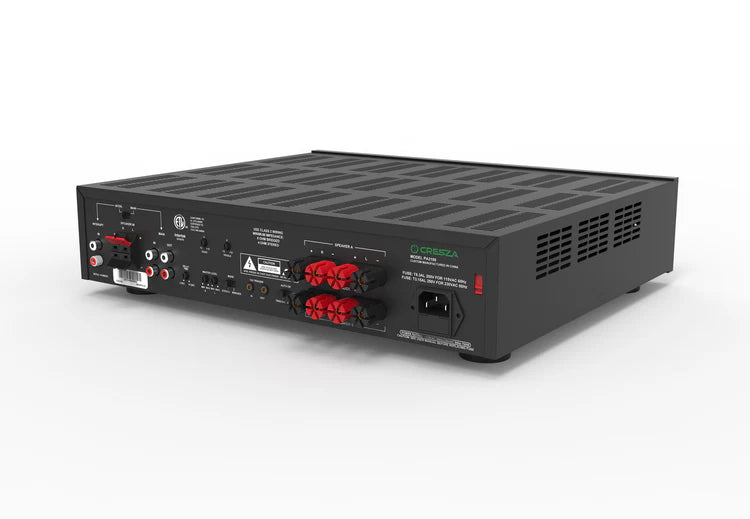

Cresza PA2100 Digital Multi-Zone Power Amplifier
Features
2 channel rated at 100 watts into 8 ohms
- Rear bass and treble control
- 125 watts per channel into 4 ohms
- 250 watts bridged mono at 8 ohms
- Front panel level and balance controls
- High efficiency class D topologies
- OTP Protection (over temperature protection)
- OCP - Protection (over current protection)
- Master Level Controls
- Main input and Output
- Stereo mode or Bridged Mode
- Auto On Select switch
- Delay time 3-15 seconds to interrupting input
- Speaker Zone A and Speaker Zone B
- 12 V Trigger 3.5 mini plug cable
- Rack Mountable (rack mounts included)
Specifications
- Stereo (8 ohm): 100W per channel, <0.2% THD+N
- Stereo (4 ohm): 125W per channel, <0.2% THD+N
- Bridged Mono (8 ohm): 250W, 1kHz, <0.2% THD+N
- Frequency Response: 10Hz ~ 50kHz, +0dB/ -3dB
- Signal to Noise Ratio: 100dB below 100W output into 8 ohms
- Channel Separation: 70dB @ 1kHz, referred to 100W output into 8 ohms
- Input Sensitivity: Variable, 350mV to 2.8V for rated power into 8 ohms
- AC Power Consumption: 700W maximum
- Net Weight: 24lbs / 10.9kgs
- Gross Weight: 30lbs / 13.6kgs
