Cooper Lighting HALO New Construction Housing
Product Details

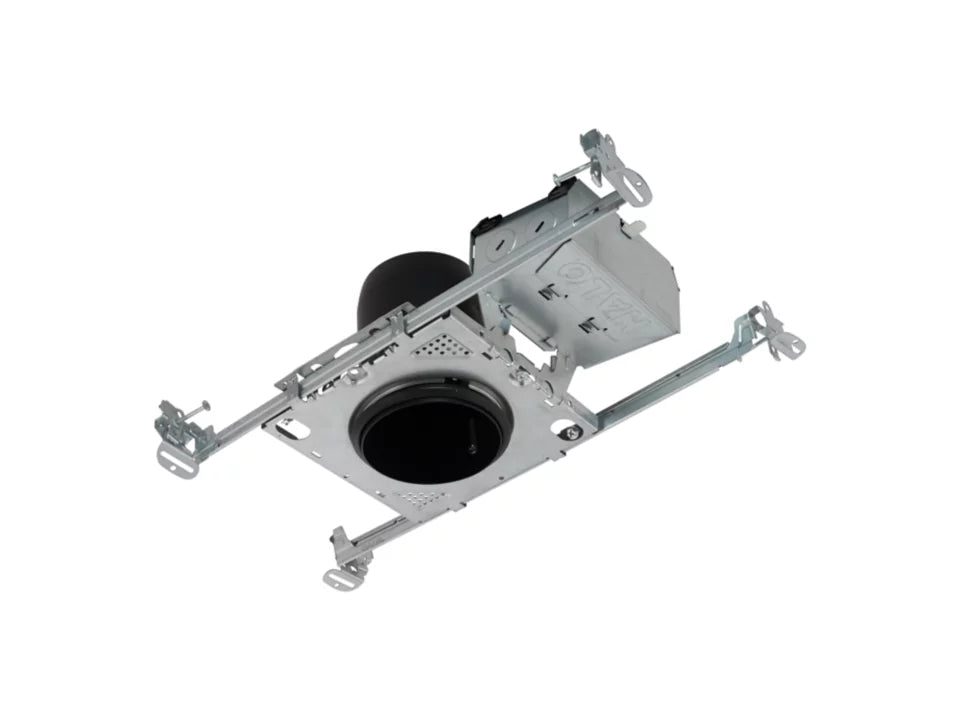

H35ICAT:
- 3" Shallow Recessed New Construction LED Housing
- Suitable for 2x6 framing or shallow plenum construction
- Got Nail!™ bar hangers
- Slide-N-Side™ wire traps
- AIR-TITE™ per ASTM E283
- Use with compatible HALO LED integrated trims and modules

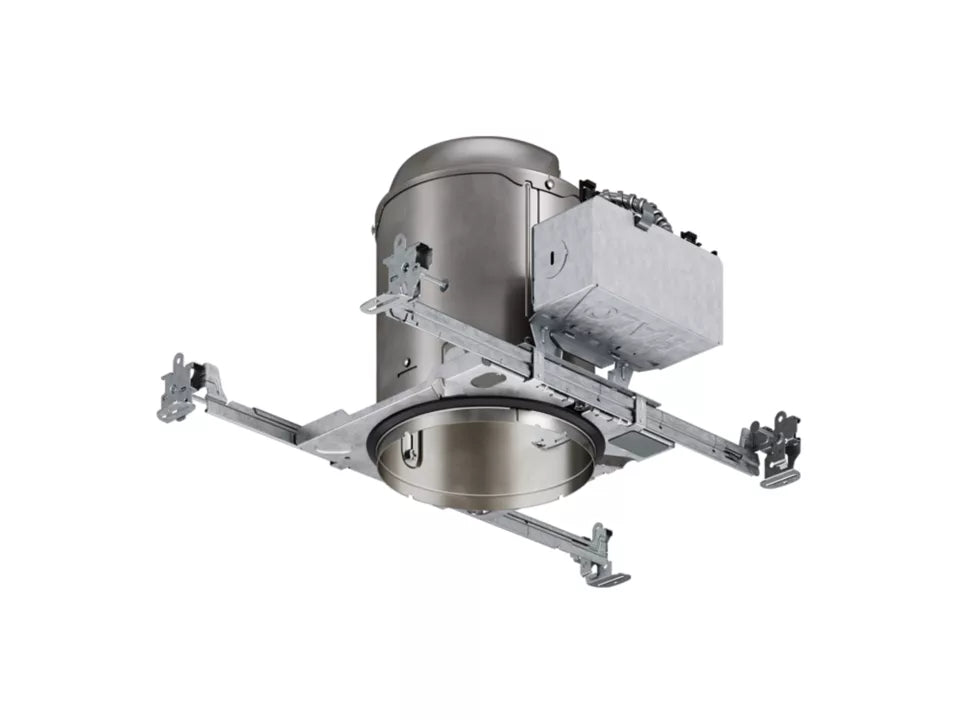

H550ICAT:
- H550 5” New Construction Recessed Housing with Orange LED Quick Connect
- IC-Rated: UL Certified for installation in contact with loose-cell insulation
- AIRTITE(TM) housing and compression gasket improves air quality and energy efficiency by keeping exterior/attic air from coming into conditioned spaces
- Ideal for both residential / commercial new construction applications in shallow 2x8 framing or T-grid ceilings
- Q-Channel bars increase rigidity and stability, while with Pass-N-Thru(TM) design allows for tool-less shortening (7.25"–24")
- Got Nail!(TM) Bar Hangers with pre-installed nails, automatic leveling flange, T-grid compatible and more
- Junction box with 4 Slide-N-Side(TM) Wire Traps for fast wiring of non-metallic sheathed cable, along with 4-½" knockouts for conduit
- Includes 3 Push-in wire nuts (120V Input)
- Plaster Frame with regressed locking screws for locking Bar Hangers and housing adjustment to accommodate up to 1"-thick ceilings
- Movable junction box can rotate 90 degree to avoid obstructions when needed
- Compatible with all 5" HALO LED Trims
- 5-year limited warranty

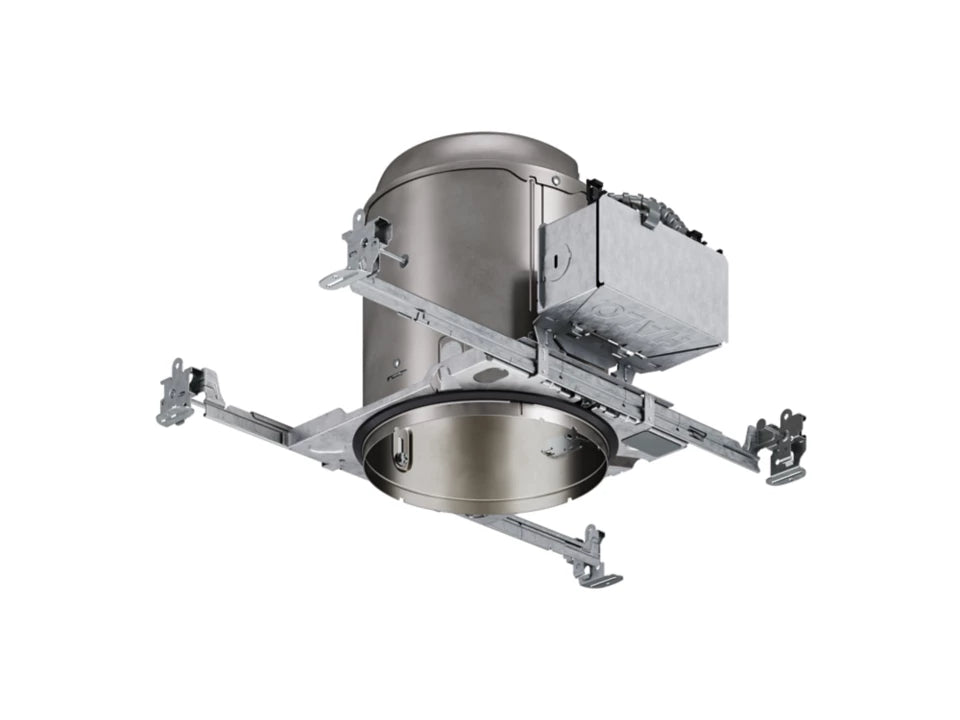

H750ICAT:
- H750 6" New Construction Recessed Housing with Orange LED Quick Connect
- IC-Rated: UL Certified for installation in contact with loose-cell insulation
- AIRTITE(TM) housing and compression gasket improves air quality and energy efficiency by keeping exterior/attic air from coming into conditioned spaces
- Ideal for both residential / commercial new construction applications in SHALLOW 2x8 framing or T-grid ceilings
- Q-Channel bars increase rigidity and stability, while with Pass-N-Thru(TM) design allows for tool-less shortening
- Got Nail!(TM) Bar Hangers with pre-installed nails, automatic leveling flange, T-grid compatible and more
- Junction box with 4 Slide-N-Side(TM) Wire Traps for fast wiring of non-metallic sheathed cable, along with 4 ½” knockouts for conduit, Includes 3 Push-in wire nuts (120V Input)
- Plaster Frame with regressed locking screws for locking Bar Hangers and housing adjustment to accommodate up to 1"-thick ceilings
- Movable junction box can rotate 90 degree to avoid obstructions when needed
- Compatible with all 6" HALO LED Trims
- 5-year limited warranty
