Description

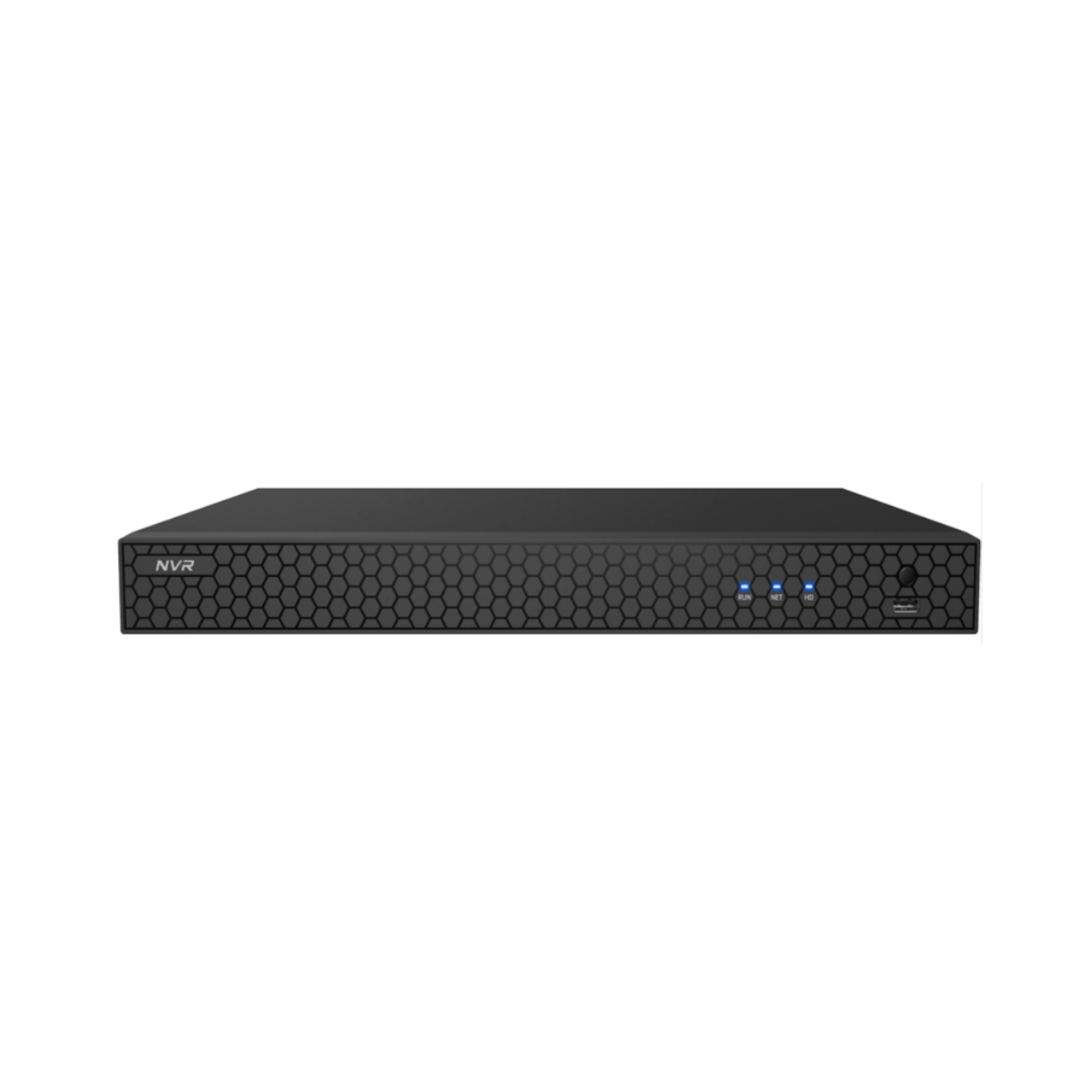

ProView Pro 8CH PoE 4K/8MP Ultra NVR PROCNR-8208-P8
Product Details
8CH PoE 4K/8MP Ultra NVR; 8CH input max, 2 x SATA, 9x RJ-45, Alarm I/O 4/1, Audio I/O 1/1, Plug & Play; PLAYBACK: 2 x 4K@30fps, 3 x 5MP@30fps, 4 x 4MP@30fps, 5 x 3MP@30fps,8 x 1080p@30fps; Multiple Search mode;
Specification
|
Model NO. |
PROCNR-8208-P8 |
System |
|
|
Main Processor |
|
|
Operating System |
Embedded LINUX |
Video |
|
|
Input |
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Output |
1 VGA, 1 HD |
Audio |
|
|
Input |
1-ch, RCA |
|
Output |
1-ch, RCA |
|
Audio Bit Rate |
64kbps |
|
Audio Compression standard |
G711u, G711a |
Alarm |
|
|
Sensor Input |
4 |
|
Output |
1 |
|
Motion Detection |
8 Channel, MD Zones: 396 (22 × 18) |
|
Trigger Events |
Recording, Email, FTP, Snapshot, Buzzer and Screen Tips |
Display |
|
|
HD Output1 |
3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
HD Output2 |
N/A |
|
VGA |
1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|
Display Split |
9CH/8CH/6CH/4CH/1CH |
|
Digital Zoom |
YES |
|
OSD |
Camera Title, Time, Recording, Motion Detection, Event Alarm |
Recording |
|
|
Video Compression |
H265/H264/H265+/H264+ |
|
Resolution |
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Record Rate |
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
|
Record Mode |
Manual\Timer\Motion Detection\Smart Event |
Playback & Backup |
|
|
Local Sync Playback |
2 x 4K@30fps, 3 x 5MP@30fps, 4 x 4MP@30fps, 5 x 3MP@30fps,8 x 1080p@30fps |
|
Decode Capability |
1080p@240fps |
|
Remote Sync Playback |
YES |
|
Search Mode |
ALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm,Tag search |
|
Playback Functions |
Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio |
|
Backup Mode |
USB Device/Network |
Network |
|
|
Interface |
1 RJ-45 10M/100M/1000M |
|
Incoming Bandwidth |
80Mbps |
|
Outgoing Bandwidth |
64Mbps |
|
Network Functions |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP |
|
Onvif |
Profile S, Profile G, Profile T |
|
Web Browser |
Edge,IE8-11, Google Chrome , Firefox ,Safari |
|
CMS Software |
Support Windows 7/ Windows 8/Windows 10/MAC OS |
|
Cloud Support |
Yes |
|
Smart Phone |
iPhone, iPad, Android, Android Pad |
|
POE |
8 RJ-45 10M/100M |
|
WIFI UI |
/ |
Storage |
|
|
Interface Type |
2 SATA Hard Disk Interface (3.5" SATA) |
|
Capacity |
Up to 10TB capacity |
|
eSATA |
N/A |
General |
|
|
Language UI |
English, French, Spanish, Russian, German, Polish, Portuguese, Italian, Greek, Czech, Turkish, Hungarian, Bulgarian, Ukrainian |
|
USB Interface |
1 x USB2.0, 1 x USB3.0 |
|
RS485 |
/ |
|
Power Supply |
100 ~ 240 V AC Power Consumption: ≤10W(without HDD) |
|
Working Environment |
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
|
Dimension(W×D×H) |
380mm × 315mm ×53mm (15.0" × 12.4" ×2.1") |
|
Weight |
≤2.6kg (5.73lb) |
